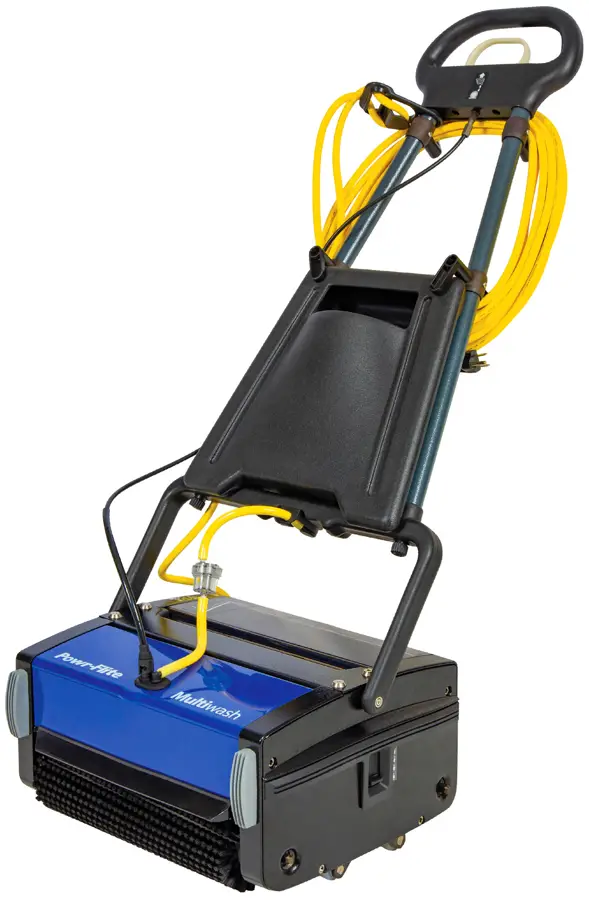

MULTIWASH 14
PFMW14 PARTS LIST
WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT.
Save These Instructions
SCHEMATICS – PARTS LISTS

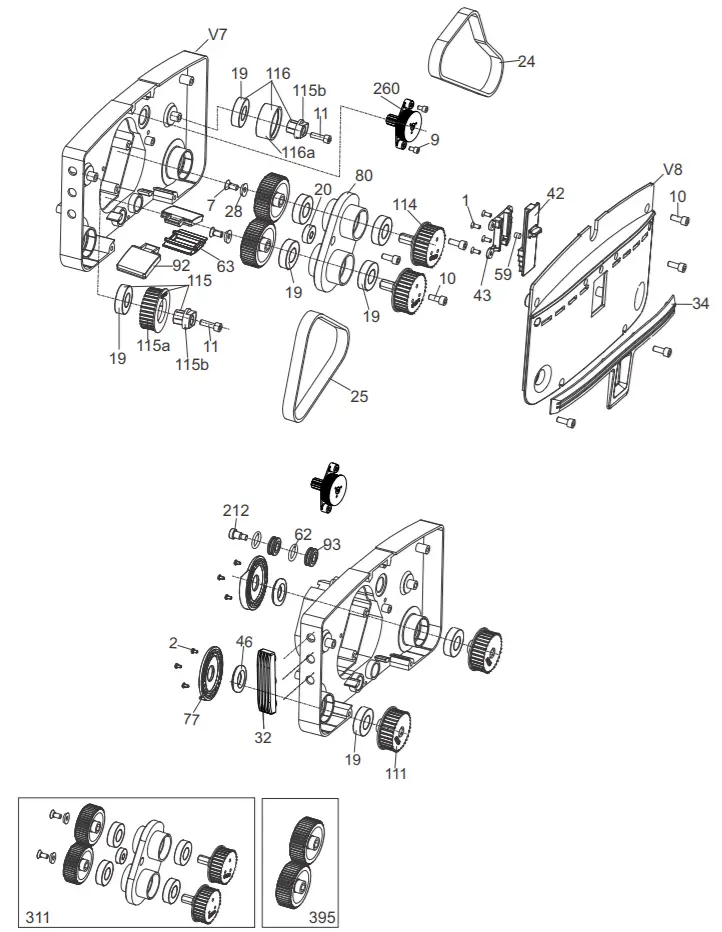

PFMW14 DRIVE SIDE HOUSING
NOTE: Item no 9 is not included in assy 260.
| No. | Part No. | Qty | Description |
| 1 | 90-0258-0000 | 4 | Screw M4 x 10 |
| 2 | 90-0001-0000 | 6 | Screw M3x6 |
| 7 | 90-0143-0000 | 3 | Screw M6 x 14 |
| 9 | 90-0293-0000 | 2 | Screw M6 x 10 |
| 10 | 90-0144-0000 | 7 | Screw M6 x 16 |
| 11 | 90-0005-0000 | 2 | Screw M6 x 20 |
| 19 | CAS88 | 8 | Bearing 6003 2RS |
| 20 | 90-0598-0000 | 1 | Motor Shaft Bushing |
| 24 | 90-0011-0000 | 1 | Belt |
| 25 | 90-0012-0000 | 1 | Belt |
| 28 | 90-0152-0000 | 2 | Washer |
| 32 | 90-0154-0000 | 1 | Front Bumper |
| 34 | 90-0156-0000 | 1 | Side Bumper |
| 42 | 90-0024-0000 | 1 | Brush Slider |
| 43 | 90-0025-0000 | 1 | Slider Housing |
| 46 | 90-0027-0000 | 2 | Seal |
| 59 | 90-0035-0000 | 1 | Pin |
| 62 | 90-0176-0000 | 2 | 0-Ring |
| 63 | 90-0040-0000 | 1 | Shield |
| 77 | 90-0020-0000 | 2 | Cap |
| 80 | 90-0285-0000 | 1 | Gear Housing |
| 92 | 90-0267-0000 | 2 | Shield |
| 93 | 90-0294-0000 | 2 | Roller |
| 111 | 90-0061-0000 | 2 | Brush Stroke |
| 114 | 90-0063-0000 | 2 | Gear Sproket |
| 115 | 90-0065-0000 | 1 | Idler Assembly |
| 115a | 90-0169-0000 | 1 | Sproket |
| 115b | 90-0161-0000 | 2 | Hub |
| 116 | 90-0197-0000 | 1 | Idler Assembly |
| 116a | 90-0166-0000 | 1 | Sleeve |
| 212 | 90-0392-0000 | 1 | Stub Axle |
| 260 | 90-0499-0000 | 1 | Drum Pinion Assembly |
| 311 | 90-0651-0000 | 1 | Gear Support Housing Assembly |
| 395 | 90-0650-0000 | 1 | Complete Gear Replacement Assembly |
| V7 | 552580171 | 1 | Blue Drive Housing |
| V8 | 552580180 | 1 | Blue Cover |

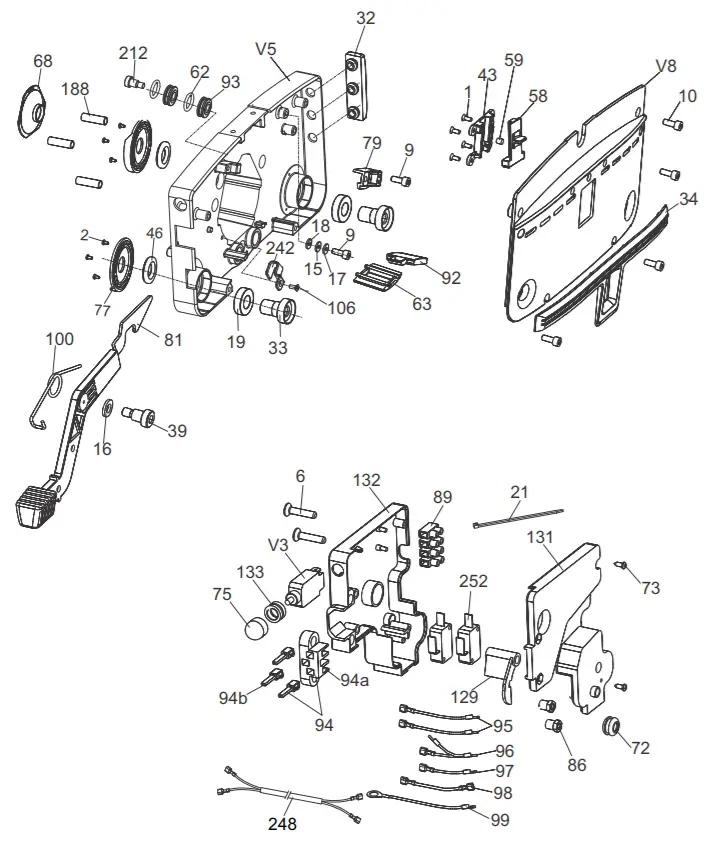

PFMW14 IDLE SIDE HOUSING
| No. | Part No. | Qty | Description |
| 1 | 90-0258-0000 | 4 | Screw M4 x 10 |
| 2 | 90-0001-0000 | 6 | Screw M3 x 6 |
| 6 | 90-0261-0000 | 2 | Screw M5 x 25 |
| 9 | 90-0293-0000 | 1 | Screw M6 x 10 |
| 10 | 90-0144-0000 | 6 | Screw M6 x 16 |
| 15 | 90-0147-0000 | 1 | Washer |
| 16 | 90-0395-0000 | 1 | Washer |
| 17 | 90-0298-0000 | 1 | Spring Washer |
| 18 | 90-0148-0000 | 1 | Toothed Washer |
| 19 | CAS88 | 2 | Bearing 6003 2RS |
| 21 | 90-0149-0000 | 3 | Wire Tie |
| 32 | 90-0154-0000 | 1 | Front Bumper |
| 33 | 90-0155-0000 | 2 | Bushing |
| 34 | 90-0156-0000 | 1 | Side Bumper |
| 39 | 90-0123-0000 | 1 | Stub Axle |
| 43 | 90-0025-0000 | 1 | Slider Housing |
| 46 | 90-0027-0000 | 2 | Seal |
| 58 | 90-0033-0000 | 1 | Transport Slider |
| 59 | 90-0035-0000 | 1 | Pin |
| 62 | 90-0176-0000 | 2 | 0-Ring |
| 63 | 90-0040-0000 | 1 | Shield |
| 68 | 90-0179-0000 | 1 | Fan Cover |
| 72 | 90-0045-0000 | 2 | Gromet |
| 73 | 90-0183-0000 | 6 | Self Tapping Screw |
| 75 | 90-0048-0000 | 1 | Cap |
| 77 | 90-0020-0000 | 2 | Cap |
| 79 | 90-0188-0000 | 1 | Stopper |
| 81 | 90-0259-0000 | 1 | Pedal Arm |
| 86 | 90-0297-0000 | 2 | Nut |
| 89 | 90-0269-0000 | 1 | Connector |
| 92 | 90-0267-0000 | 1 | Shield |
| 93 | 90-0294-0000 | 2 | Roller |
| 94 | 90-0290-0000 | 1 | Socket Assembly |
| 94a | 90-0291-0000 | 1 | Socket |
| 94b | 90-0292-0000 | 3 | Terminal |
| 95 | 90-0278-0000 | 2 | Cable |
| 96 | 90-0279-0000 | 1 | Cable |
| 97 | 90-0280-0000 | 1 | Cable |
| 98 | 90-0281-0000 | 1 | Cable |
| 99 | 90-0282-0000 | 1 | Cable |
| No. | Part No. | Qty | Description |
| 100 | 90-0260-0000 | 1 | Pedal Spring |
| 106 | 90-0396-0000 | 1 | Screw M4 x 8 |
| 129 | 90-0265-0000 | 1 | Switch Lever |
| 131 | 90-0262-0000 | 1 | Top Insulation |
| 132 | 90-0263-0000 | 1 | Bottom Insulation |
| 133 | 90-0295-0000 | 1 | Nut |
| 188 | 90-0397-0000 | 3 | Tie Rod Sleeve |
| 212 | 90-0392-0000 | 1 | Stub Axle |
| 242 | 33864 | 1 | Wire Clamp |
| 248 | 33865 | 1 | Cable Assembly |
| 252 | 33866 | 2 | Switch 21A |
| V3 | 90-0056-0000 | 1 | Circuit Breaker 10A |
| V5 | 558250580-00 | 1 | Housing Blue |
| V8 | 558250588-00 | 1 | Cover Blue |

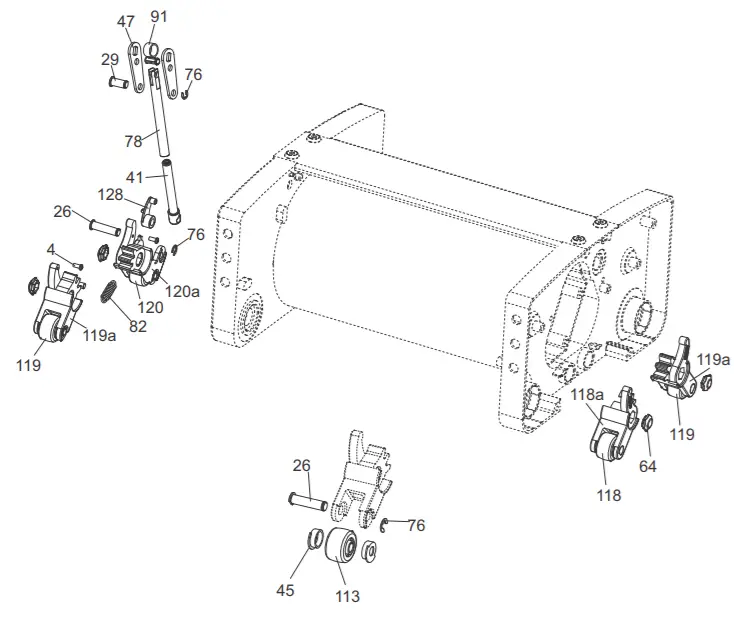

PFMW14 LEVER and GUIDE MECHANISM
| No. | Part No. | Qty | Description |
| 4 | 90-0046-0000 | 2 | Screw M4 x 12 |
| 26 | 90-0151-0000 | 5 | Clevis Pin |
| 29 | 90-0153-0000 | 1 | Clevis Pin |
| 41 | 90-0159-0000 | 1 | Link |
| 45 | 90-0162-0000 | 8 | Shield |
| 47 | 90-0163-0000 | 2 | Lever |
| 64 | 90-0177-0000 | 4 | Lever Button |
| 76 | 90-0051-0000 | 6 | Circlip |
| 78 | 90-0186-0000 | 1 | Guide Link |
| 82 | 90-0284-0000 | 1 | Spring |
| 91 | 90-0257-0000 | 1 | Bushing |
| 113 | 90-0196-0000 | 4 | Wheel |
| 118 | 90-0068-0000 | 1 | Lever Assembly |
| 118a | 90-0173-0000 | 1 | Lever |
| 119 | 90-0069-0000 | 2 | Lever Assembly |
| 119a | 90-0174-0000 | 2 | Lever |
| 120 | 90-0070-0000 | 1 | Lever Assembly |
| 120a | 90-0175-0000 | 1 | Lever |
| 128 | 90-0266-0000 | 1 | Lever Switch |

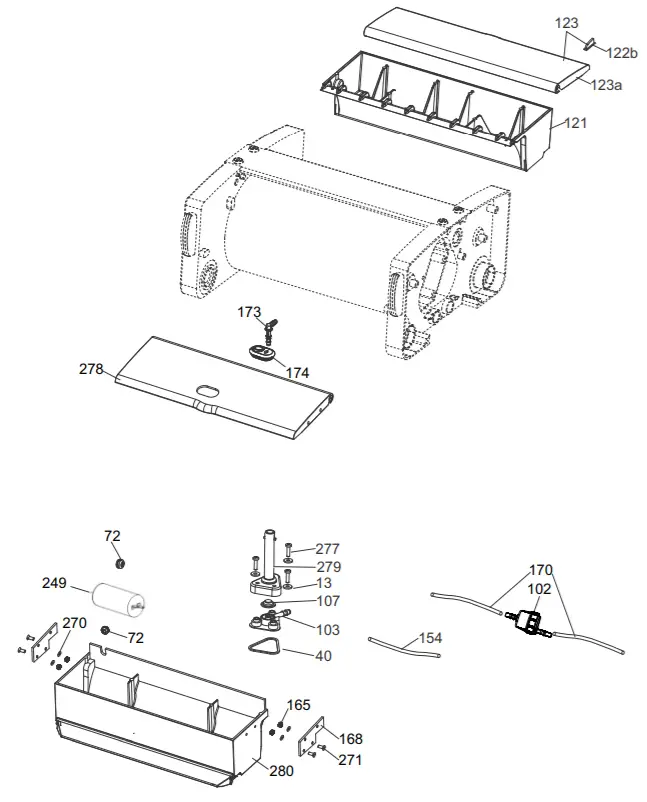

PFMW14 PUMP HOUSING
| No. | Part No. | Qty | Description |
| 13 | 90-0007-0000 | 3 | Washer |
| 40 | 90-0023-0000 | 1 | Casket |
| 72 | 90-0045-0000 | 2 | Gromet |
| 102 | 90-0113-0000 | 1 | Filter |
| 103 | 90-0192-0000 | 1 | Valve Body |
| 107 | 90-0224-0000 | 1 | Seal |
| 121 | 90-0072-0000 | 1 | Dirty Water Tank |
| 122b | 90-0055-0000 | 2 | Lid Pad |
| 123 | 90-0075-0000 | 1 | Dirty Water Tank Lid Assembly |
| 123a | 90-0184-0000 | 1 | Dirty Water Tank Lid |
| 154 | 90-0104-0000 | 1 | Hose |
| 165 | 90-0141-0000 | 4 | Nut |
| 168 | 90-0349-0000 | 2 | Lid Strip |
| 170 | 90-0403-0000 | 2 | Hose |
| 173 | 90-0404-0000 | 1 | Hose Connector |
| 174 | 90-0405-0000 | 1 | Lid Boot |
| 249 | 33879 | 1 | Capacitor 63.5 mfd |
| 270 | 33874 | 4 | Washer |
| 271 | 33875 | 4 | Screw M4 x 15 |
| 277 | 818106 | 3 | Screw M4 x 16 |
| 278 | 558250587-00 | 1 | Lid |
| 279 | 553250400-00 | 1 | Valve Cap |
| 280 | 558250585-00 | 1 | Housing Assembly |

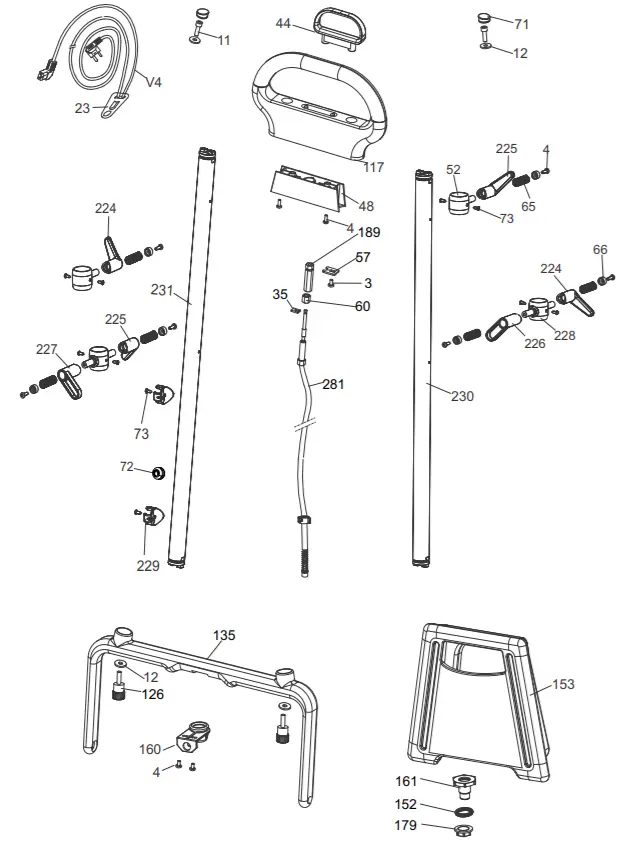

PFMW14 HANDLE ASSEMBLY
| No. | Part No. | Qty | Description |
| 3 | 90-0002-0000 | 1 | Screw M4 x 8 |
| 4 | 90-0046-0000 | 8 | Screw M4 x 12 |
| 11 | 90-0005-0000 | 2 | Screw M6 x 20 |
| 12 | 90-0006-0000 | 4 | Washer |
| 23 | 90-0010-0000 | 1 | Cable Restraint |
| 35 | 90-0018-0000 | 1 | Clamp |
| 44 | 90-0026-0000 | 1 | Pull Handle |
| 48 | 90-0165-0000 | 1 | Cap |
| 52 | 90-0168-0000 | 2 | Cable Holder Base |
| 57 | 90-0032-0000 | 1 | Clamp |
| 60 | 90-0038-0000 | 1 | Nut |
| 65 | 90-0041-0000 | 6 | Spring |
| 66 | 90-0042-0000 | 6 | Washer |
| 71 | 90-0044-0000 | 2 | Plug |
| 72 | 90-0045-0000 | 1 | Grommet |
| 73 | 90-0183-0000 | 10 | Self Tapping Screw |
| 117 | 90-0067-0000 | 1 | Top Handle |
| 126 | 90-0296-0000 | 2 | Knob |
| 135 | 90-0235-0000 | 1 | Bottom Handle |
| 152 | 90-0101-0000 | 1 | Gasket |
| 153 | 90-0103-0000 | 1 | Tank 4L |
| 160 | 90-0110-0000 | 1 | Base Valve Assembly |
| 161 | 90-0111-0000 | 1 | Valve |
| 179 | 90-0092-0000 | 1 | Nut |
| 189 | 33881 | 1 | Sleeve |
| 224 | 90-0402-0000 | 2 | Cable Holder Knob II |
| 225 | 90-0429-0000 | 2 | Cable Holder Knob I |
| 226 | 90-0443-0000 | 1 | Tank Holdedre Knob-LH |
| 227 | 90-0444-0000 | 1 | Tank Holder Knob-RH |
| 228 | 90-0445-0000 | 2 | Cable and Tank Holder Base |
| 229 | 33882 | 2 | Guide |
| 230 | 90-0451-0000 | 1 | Pipe-LH |
| 231 | 90-0452-0000 | 1 | Pipe-RH |
| 281 | 558250591-00 | 1 | Pull Cable Assembly |
| V4 | 33883 | 1 | Yellow Power Cord 40′ |

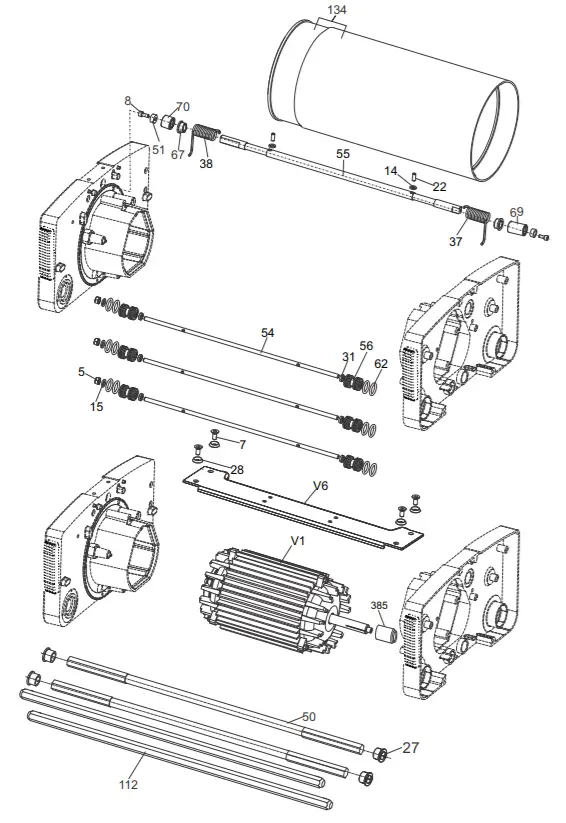

PFMW14 MOTOR, DRUM, and BRIDGE ASSEMBLY
| No. | Part No. | Qty | Description |
| 5 | 90-0142-0000 | 3 | Nut |
| 7 | 90-0143-0000 | 4 | Screw M6 x 14 |
| 8 | 90-0004-0000 | 2 | Screw M4 x 10 |
| 14 | 90-0146-0000 | 2 | Washer |
| 15 | 90-0147-0000 | 3 | Washer |
| 22 | 90-0150-0000 | 2 | Screw 5 x 12 |
| 27 | 90-0015-0000 | 4 | Bushing |
| 28 | 90-0152-0000 | 4 | Washer |
| 31 | 90-0017-0000 | 6 | Washer |
| 37 | 90-0157-0000 | 1 | Spring |
| 38 | 90-0158-0000 | 1 | Spring |
| 50 | 90-0167-0000 | 2 | Hex Shaft |
| 51 | 90-0030-0000 | 2 | Washer |
| 54 | 90-0170-0000 | 3 | Tie Rod |
| 55 | 90-0171-0000 | 1 | Shaft |
| 56 | 90-0172-0000 | 6 | Roller |
| 62 | 90-0176-0000 | 12 | 0-Ring |
| 67 | 90-0178-0000 | 2 | Bushing |
| 69 | 90-0180-0000 | 1 | Bushing |
| 70 | 90-0181-0000 | 1 | Bushing |
| 112 | 90-0062-0000 | 2 | Brush Shaft |
| 134 | 90-0306-0000 | 1 | Drum Assembly |
| 385 | 553250489-00 | 1 | Motor Shaft Shield |
| V1 | 90-0193-0000 | 1 | Motor (110V/60Hz) |
| V6 | 33885 | 1 | Bridge Assembly |

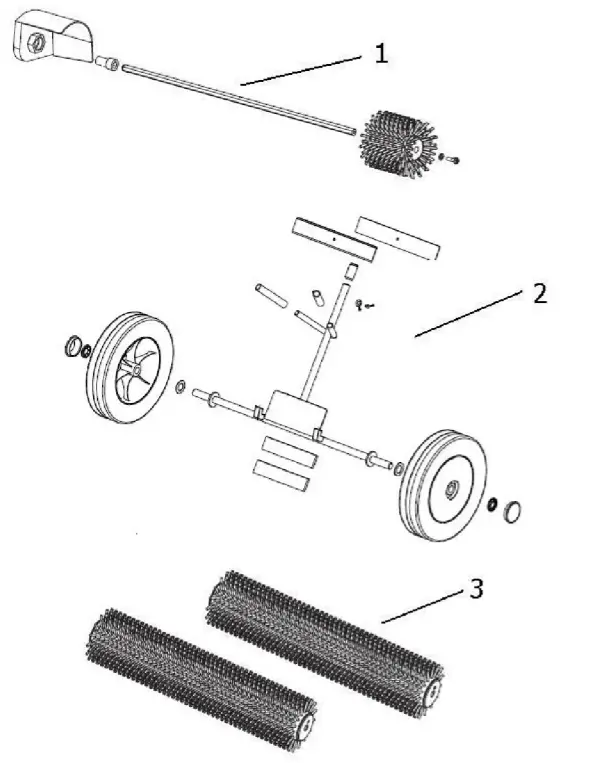

PFMW14 ACCESSORIES
| No. | Part No. | Qty | Description |
| 1 | PFMWSB | 1 | Black Side Brush |
| 2 | 05-3395-0500 | 1 | Transport Cart |
| 3 | PFMWSD | 1 | Black Standard Brush |
| PFMWSF | AR | Grey Soft Brush | |
| PFMWHBD | AR | Blue Hard Brush | |
| PFMWEB | AR | Blue Escalator Brush |
For warranty information go to www.Powr-Flite.com
A Tacony Company
3101 Wichita Court • Fort Worth, TX 76140-1755
1-800-880-2913 • Fax: 1-817-551-0719
©Tacony Corporation, All rights reserved
PFMW14 PARTMAN 04/2021
