VICTRIX
THERMAL IMAGING CLIP-ON

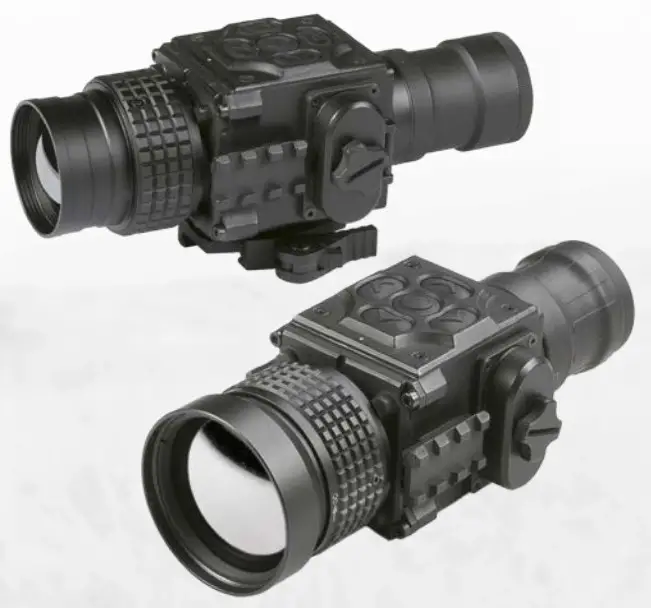

The AGM Victrix is a compact thermal imaging clip-on system that allows quick transformation of the day optics into a thermal imaging device without any special tools or accessories. The Victrix can be easily attached to scopes with magnification up to 8x for medium-range use. Powered with two CR123 batteries the unit provides up to 5 hours of continuous operation. An optional high-capacity external battery pack is capable of increasing the total operation time to up to 44 hours. The Victrix can be also connected to an optional video recorder for shooting real-time video or an external Wi-Fi module in order to connect with smartphones.

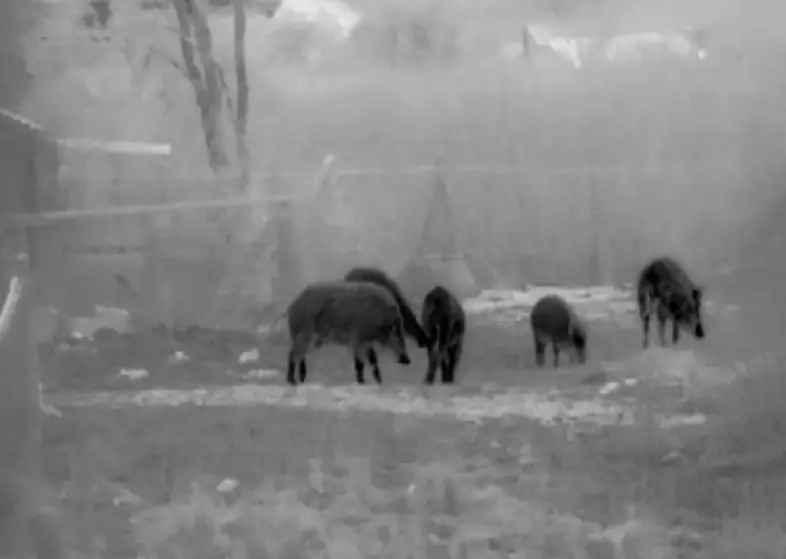

■ Quick conversion of daytime optics into thermal image scope
■ Mounts in front of any daytime scope, no re-zeroing is required
■ Electronic accuracy correction
■ Lightweight and compact design
■ Superior clarity, versatility, and reliability
■ Waterproof & shockproof
■ Easy to operate control panel
■ High-resolution display
■ Picture in Picture (PIP ) mode with 2x digital zoom
■ Automatic or manual (silent) calibration
■ Stadiametric rangefinder
■ Powered by two standard CR123A batteries
■ External power supply via micro-USB
■ Optional external Wi-Fi module and video recorder
■ Integral rails on the unit for optional accessories
■ Limited 3-Year Warranty
SPECIFICATIONS
| Victrix TC38-384 | Victrix TC50-384 | |
| Detector Type | 17μm Uncooled Microbolometer | 17μm Uncooled Microbolometer |
| Resolution | 384×288 | 384×288 |
| Refresh Rate | 50 Hz | 50 Hz |
| Lens System | 38 mm; F/1.0 | 50 mm; F/1.0 |
| Optical Magnification | 1× | 1× |
| Field of View (H × V) | 9.8° x 7.4° | 7.5° x 5.6° |
| Exit Pupil Diameter | 27 mm | 40 mm |
| Digital Zoom | 1×, 2×, 4×, PIP | 1×, 2×, 4×, PIP |
| Focusing Range | 5 m to infinity | 5 m to infinity |
| Display | HD Display 1024×768 | HD Display 1024×768 |
| Video/Photo Format | AVI / JPG | AVI / JPG |
| Temperature Imaging Palettes | 11 Image palettes | 11 Image palettes |
| Interfacing | S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder); Micro-USB (Power Bank 5V) | S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder); Micro-USB (Power Bank 5V) |
| Battery Type | Two CR123A 3V Lithium Batteries | Two CR123A 3V Lithium Batteries |
| Battery Life (Operating) | Up to 5 hr | Up to 5 hr |
| Power Supply | 5V USB / 3.6-7.2 V | 5V USB / 3.6-7.2 V |
| Operating Temperature Range | -40°C to +70°C (-40°F to +158°F) | -40°C to +70°C (-40°F to +158°F) |
| Degree of Protection | IP67 | IP67 |
| Weight | 0.59 kg (1.3 lbs) | 0.68 kg (1.5 lbs) |
| Overall Dimensions | 181 x 84 x 64 mm (7.1 x 3.3 x 2.5 in) | 190 x 84 x 64 mm (7.5 x 3.3 x 2.5 in) |
| Package Inludes | Thermal Imaging Clip-On, Lens Cloth, Soft Carrying Case, User Manual |
Specifications are subject to change without notice.
OPTIONAL EQUIPMENT
| Front Scope Mount #1 (6106SM11) | Wi-Fi Attachment (6305WIF1) |
| Front Scope Mount #2 (6106SM21) | Extended Battery Pack (6308EXB1) |
| Front Scope Mount #3 (6106SM31) | HD Recorder (6305HDR1) |
| Front Scope Mount #4 (6106SM41) | Hard Case for Storage/Transportation |
| Front Scope Mount #5 (6106SM51) |
