Pdw Fatty Object Co2 Inflator Instruction Manual

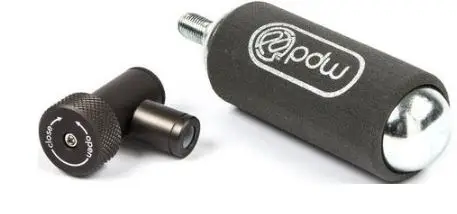

pdw Fatty Object CO2 Inflator

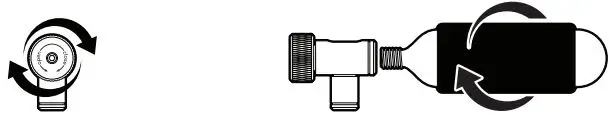

1. Close control knob.
2. Thread CO2 cartridge onto inflater until it punctures.

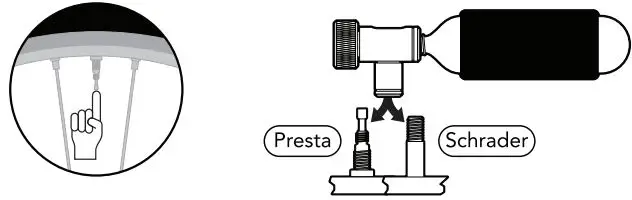

3. If using a Presta Valve,open it and tap the valve to release a burst of air and unstick the valve.
4. Push nozzle onto valve.



5. Open control knob slightly to release a small amount of CO2 into tube. Verify CO2 is going into the tube before proceeding to fill tube completely.
6. When finished, twist control knob to close the flow of CO2 and pull nozzle from tire valve.



ridepdw.com I 503-234-7257 3625 SE 21st Ave
Portland OR 97202
