Halo Smd6 Led 6" Round/square Surface-mount Downlights User Guide

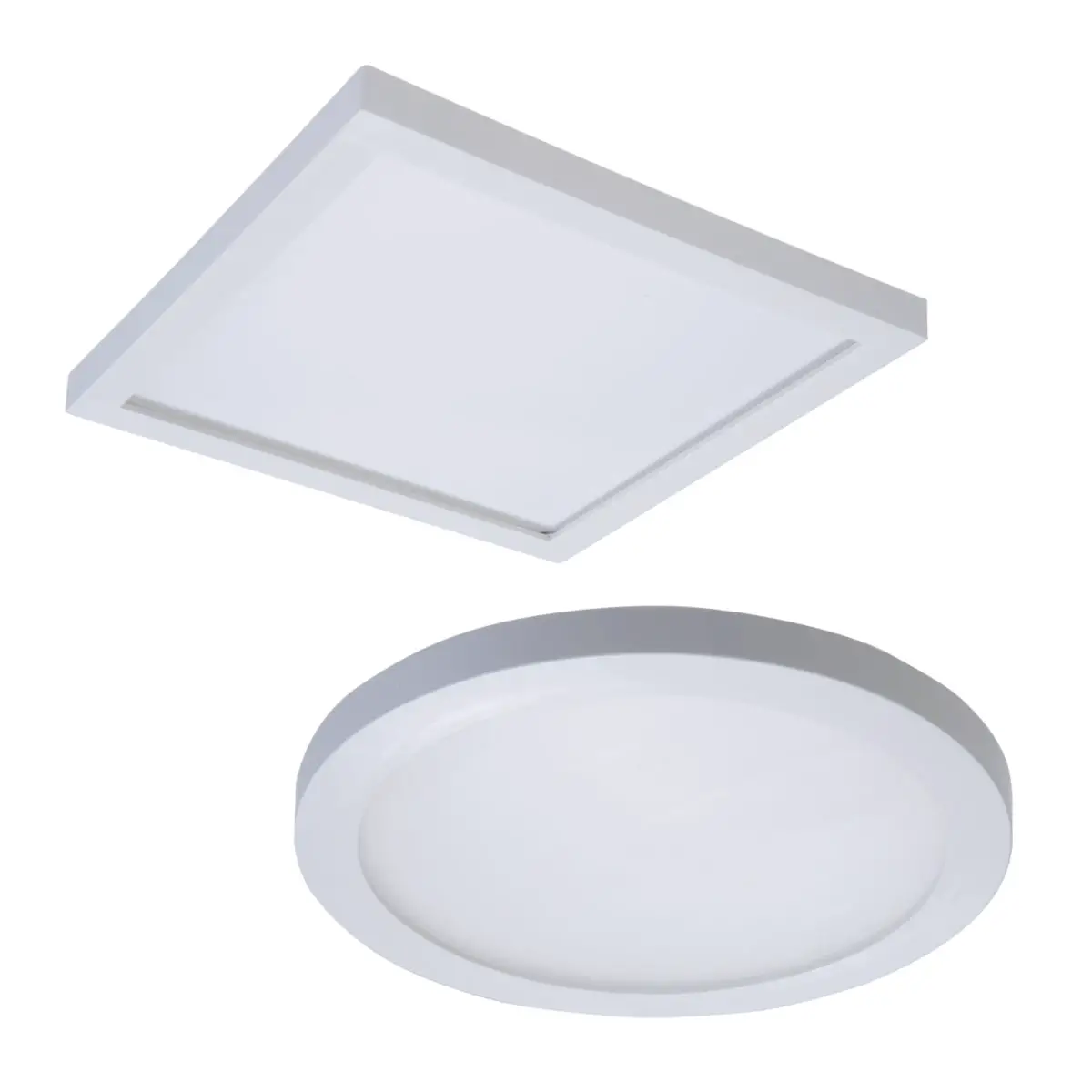

HALO SMD6 LED 6″ Round/Square Surface-Mount Downlights

DESCRIPTION

The Halo Surface Mount LED Downlight (SMD) is a low profile surface mounting luminaire with a modern look and high performance. SMD6 (6″) is designed for installation in many 3-1/2″ and 4″ square, octagon, or round junction boxes. Supply wire adapter with LED quick wiring connector included. The SMD6 may also retrofit in 5″ and 6″ aperture IC and Non-IC recessed housings.

SPECIFICATION FEATURES

HOUSING

• Non-electrically conductive polycarbonate frame.
• High impact diffuse polystyrene lens provides shielding to the light guide with no pixilation
• Stamped aluminum housing provides thermal cooling achieving L70 at 50,000 hours in IC and non-IC applications

GASKETS

Closed cell gasket achieves boxes in direct contact with restrictive airflow and wet insulation including spray foam location requirements without insulation. additional caulkin

OPTICS

• Precision acrylic light guide organizes source flux into wide distribution with 1.2 ­ 1.4 spacing criteria useful for general area illumination

LED

• Mid power LED array provide a uniform source with high efficiency and long life.
• Available in 90 CRI minimum, R9 greater than 50 and color accuracy within 3 SDCM provide color accuracy and uniformity junction box. This includes all applicable national and local electrical and building coded

DRIVER SMD 120V

• Integral 120V 50/60Hz constant current driver provides noise free operation..
• Continuous, flicker-free dimming from 100% to 5% with select leading or trailing edge 120V phase cut dimmers.
• Dimming to 5% is best assured using dimmers with low end trim adjustment. Consult dimmer manufacturer for compatibility and conditions of use. (Note some dimmers require a neutral in the wallbox.)
• Inline electrical quick connect and E26 adapter (provided) provides mains connections.

SMD 120-277V

•  Integrated 120-277V 60Hz constant current driver provides noise free operation.
• SMD Universal Voltage (120-277V) configurations are recommended for use with compatible 0-10V DC low voltage dimmers only

MOUNTING/RETENTION

• Adjustable spider plate allows for quick installation into both junction boxes and recessed housings.
• Torsion springs and friction blades includedELECTRICAL JUNCTION  BOX MOUNTING
• The SMD may be used in compatible electrical junctionboxes in direct contact withinsulation including spray foam  insulation.
• Suitable for installation in many3-1/2” and 4” square, octagon,  and round electrical junction boxes.
  Note: SMD120-277V UNV is only compatible with junction boxes that provide minimum depth of 2-1/8”.
• Installer must ensure compatibility of fit, wiring and proper mounting in the electrical junction box. This includes allapplicable national and local  electrical and building coded

RECESSED HOUSING MOUNTING

• May be installed in IC recessed housings in direct contact with insulation
  Note: Not for use in recessed housing in direct contact with spray foam insulation. Refer to NEMA LSD 57-2013.

Torsion Spring 5” & 6”

• Precision formed torsion spring bracket kit included
• The torsion springs adjust on the mounting plate to fit 5” or 6” compatible housings

Friction Blade 5” & 6”

•  Precision formed friction blades included
•  For retrofit in 5” and 6” housings without torsion springs mounting tabs.
• Friction blade design allows the SMD to be installed in any position within the housing aperture (360 degrees)

DESIGNER SKINS (SOLD SEPARATELY)

• SMD skins are accessory rings in both round and square. These skins attach to the SMD for a permanent finish. Refer to the SMD accessories specification sheet for details.
  – Matte White (Paintable)
  – Satin Nickel
  – Tuscan Bronze

WARRANTY

• Five year limited warranty, consult website for details. www.cooperlighting.com

COMPLIANCE

• cULus Certified for use with Halo housings and for use with other’s  housings, see instruction sheet for conditions of acceptability.
• Wet and Damp Location listed, airtight per ASTM-E283
• Suitable for use in closets, compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5)
• EMI/RFI emissions per FCC 47CFR Part 15B
• Contains no mercury or lead and RoHS compliant.
• Photometric testing in accordance with IES LM-79-08 · Lumen maintenance projections in accordance with IES LM-80-08 and TM-21 11.
• Can be used for State of California Title 24 high efficacy luminaire compliance, reference the California Energy Commission Title 20 Appliance Efficiency Database for current listings.
• Can be used for International Energy Conservation Code (IECC) and high efficiency luminaire compliance
• ENERGY STAR® listed, reference database for current listings

SMD6 Series

6 inch Round and Square

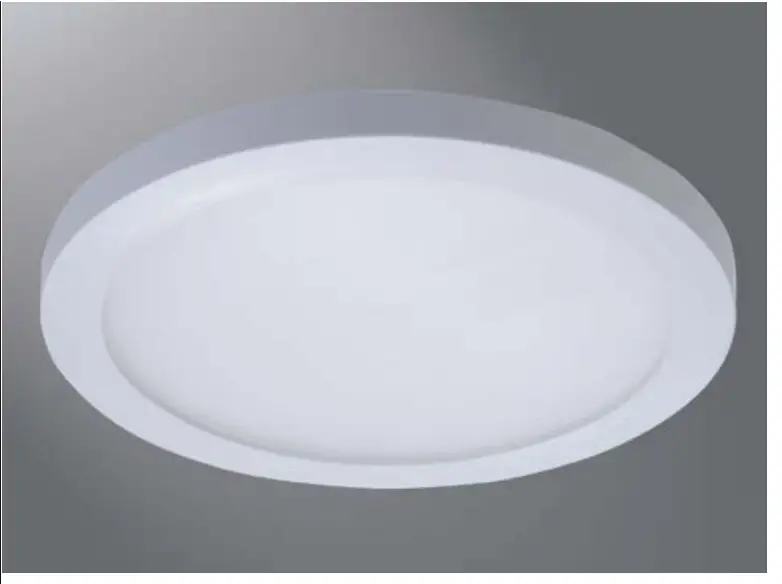

SMD6R

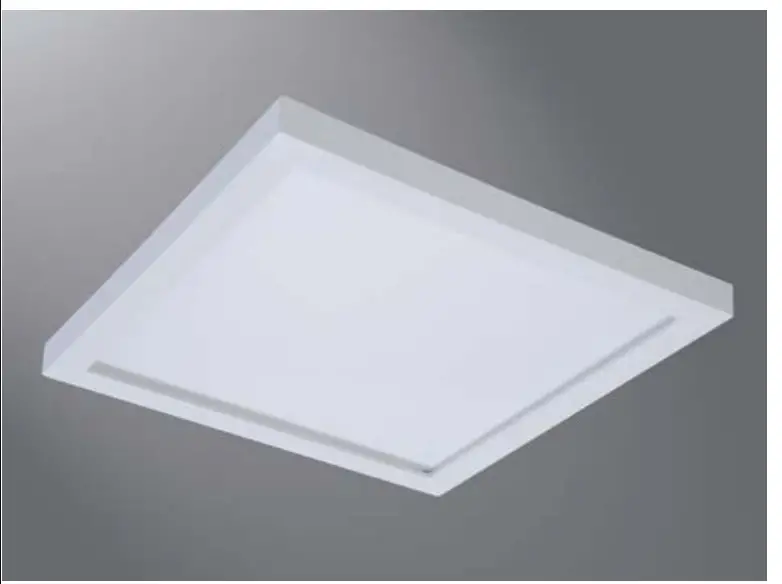

SMD6S

6″ Surface Mount
Downlight

Suitable for ceiling or wall electrical junction boxes

Suitable for 5″ and 6″ recessed housing retrofit

Non-conductive Dead Front

ʀᴇꜰᴇʀ ᴛᴏ ᴇɴᴇʀɢʏ ꜱᴛᴀʀ® ᴄᴇʀᴛɪꜰɪᴇᴅ ᴘʀᴏᴅᴜᴄᴛꜱ ʟɪꜱᴛ.
ᴄᴀɴ ʙᴇ ᴜꜱᴇᴅ ᴛᴏ ᴄᴏᴍᴘʟʏ ᴡɪᴛʜ ᴄᴀʟɪꜰᴏʀɴɪᴀ ᴛɪᴛʟᴇ 24 ʜɪɢʜ ᴇꜰꜰɪᴄᴀᴄʏ ʀᴇqᴜɪʀᴇᴍᴇɴᴛꜱ.
ᴄᴇʀᴛɪꜰɪᴇᴅ ᴛᴏ ᴄᴀʟɪꜰᴏʀɴɪᴀ ᴀᴘᴘʟɪᴀɴᴄᴇ ᴇꜰꜰɪᴄɪᴇɴᴄʏ ᴅᴀᴛᴀʙᴀꜱᴇ ᴜɴᴅᴇʀ ᴊᴀ8.

Note: For Direct mount product please refer to the SLD6-DM spec sheet.

ENERGY DATA

SMD6R6
SMD6S6

SMD6R12
SMD6S12

SMD6R12-E
SMD6S12-E

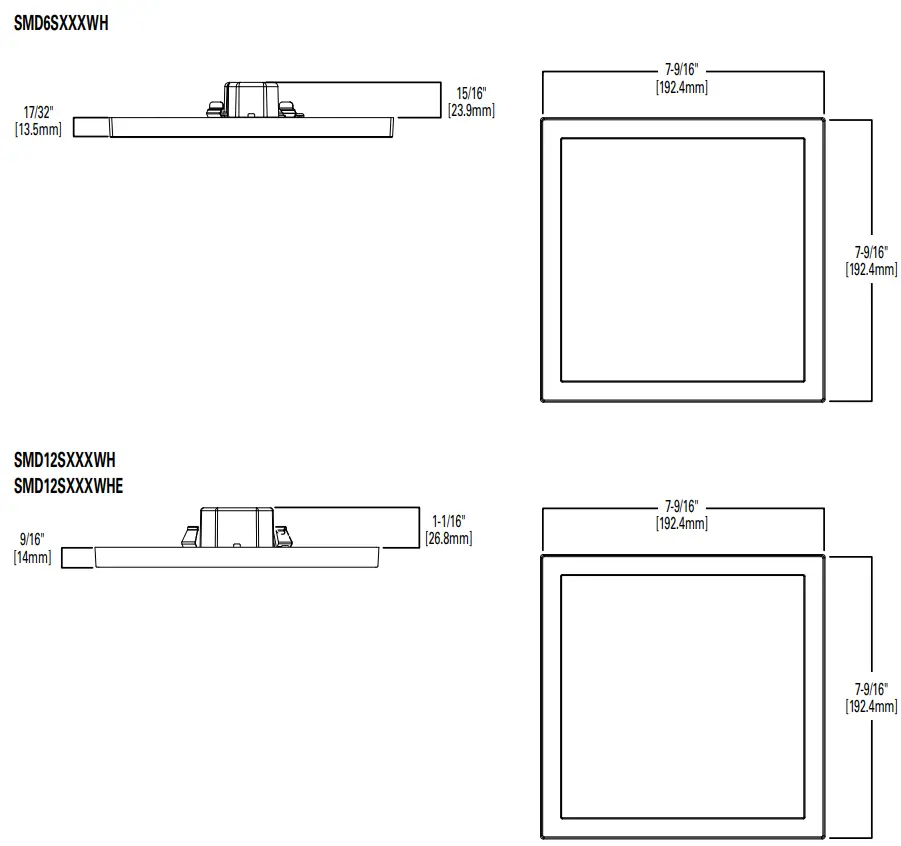

DIMENSIONS

ORDERING INFORMATION

SAMPLE NUMBER: SMD6R6930WH=6” Round Surface Mount Downlight, 90CRI, 3000K
Junction Box Installation: Order junction box separately, as supplied by others, to complete installation.
Recessed Installation: Order Halo recessed housing separately to complete installation.

Accessories

Designer Trims
SMD6RTRMSN=6” Round SMD Satin Nickel
SMD6RTRMTBZ=6” Round SMD Tuscan Bronze
SMD6RTRMWH=6” Round SMD White (paintable)
SMD6STRMSN=6” Square SMD Satin Nickel
SMD6STRMTBZ=6” Square SMD Tuscan Bronze
SMD6STRMWH=6” Square SMD White (paintable)
T24HWKIT= Title 24 Cable harness kit used to convert incandescent and low voltage housings to LED
HE26LED= E26 Screw base adapter for retrofit (included)

* UNV voltage configuration is offered only in the 1200 lumen series

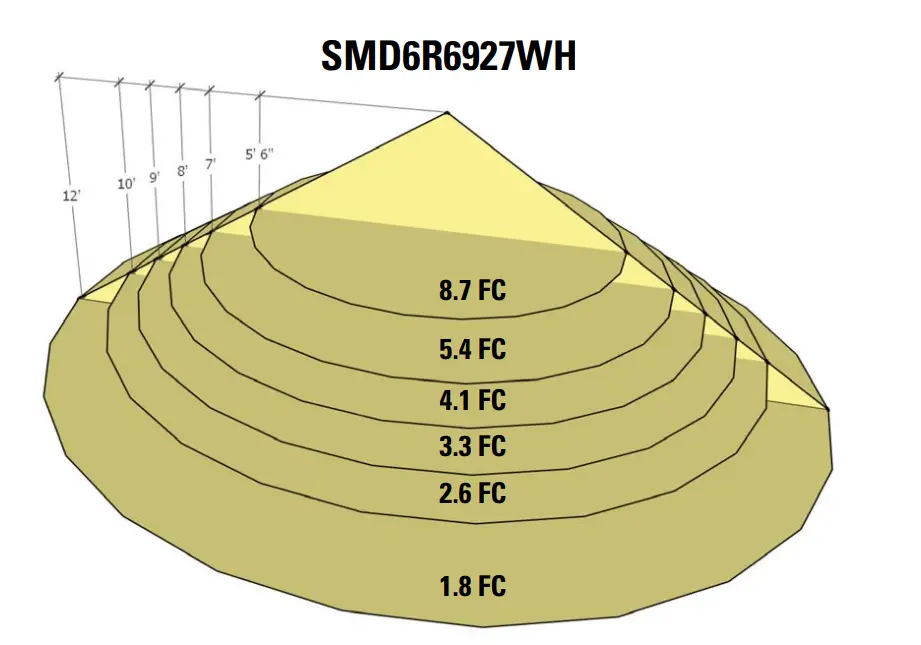

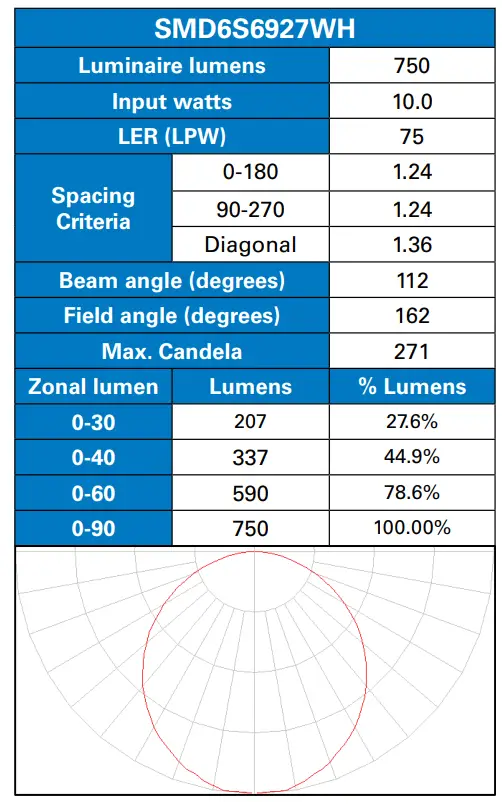

PHOTOMETRIC DATA – SMD6 (120V)

DD = distance down to illuminated work plane
FC = initial foot-candles at nadir
DIA = diameter
