Elipse® Respirator
Size Guide
GVS-RPB.COM
M-L Elipse Respirator
The GVS Elipse is a tight-fitting negative pressure respirator, offering a high level of protection and lasting comfort through its ergonomic and lightweight construction. With its flexible design, the Elipse molds to the shapes and contours of your face, ensuring a secure and personalized fit.
Because this is a tight-fitting respirator, selecting the correct size is really important to ensure the respirator can provide you with adequate protection.
The Elipse is available in two sizes – S/M and M/L. There are two key measurements that determine the correct size of respirator for you – face length and face width. Cross-reference these measurements on the chart below to find your size.

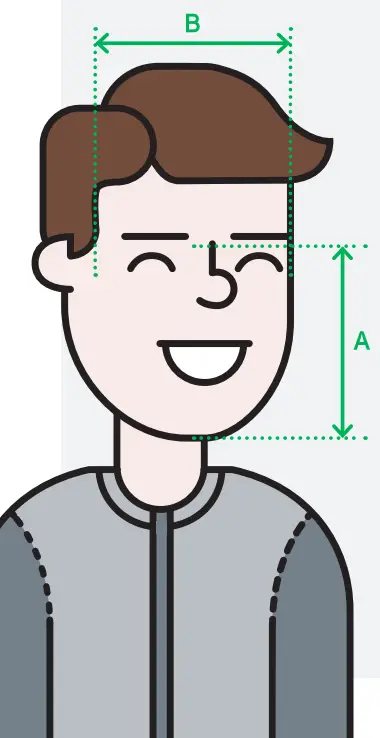

A: Face Length
Measure the distance from the bridge of your nose to the bottom of your chin
B: Face Width
Measure the distance from one cheekbone to the other.
| Face Length (A) | 5.1 – 5.5 | M/L | M/L | M/L |
| 4.7 – 5.1 | S/M | M/L | M/L | |
| 4.3 – 4.7 | S/M | S/M | M/L | |
| 3.9 – 4.3 | S/M | S/M | S/M | |
| 4.7 – 5.2 | 5.2 – 5.7 | 5.7 – 6.2 | ||
| Face Width (B) |
All measurements are in inches.
Note: This Size Chart is a guide only, and correct sizing and fitment must be qualified using either a quantitative or qualitative face fit test in accordance with national regulations for your region.
For more information contact [email protected]
