Package parts List | |
| (1)
| (2)
|
| (3)
| (4)
|
| (5)
| (6)
|
| (7)
| (8)
|
| (9)
| (10)
|
| (11)
| (12)(x2)
|
| (13)
| (14)
|
| (15)
| (16)
|
| (17)
| (18)
|
| (19)
| (20)
|
| (21)
| (22)
|
| (23)(x4)
| (24)(x2)
|
| (25)
| (26)
|
| (27)
| (28)
|
| |

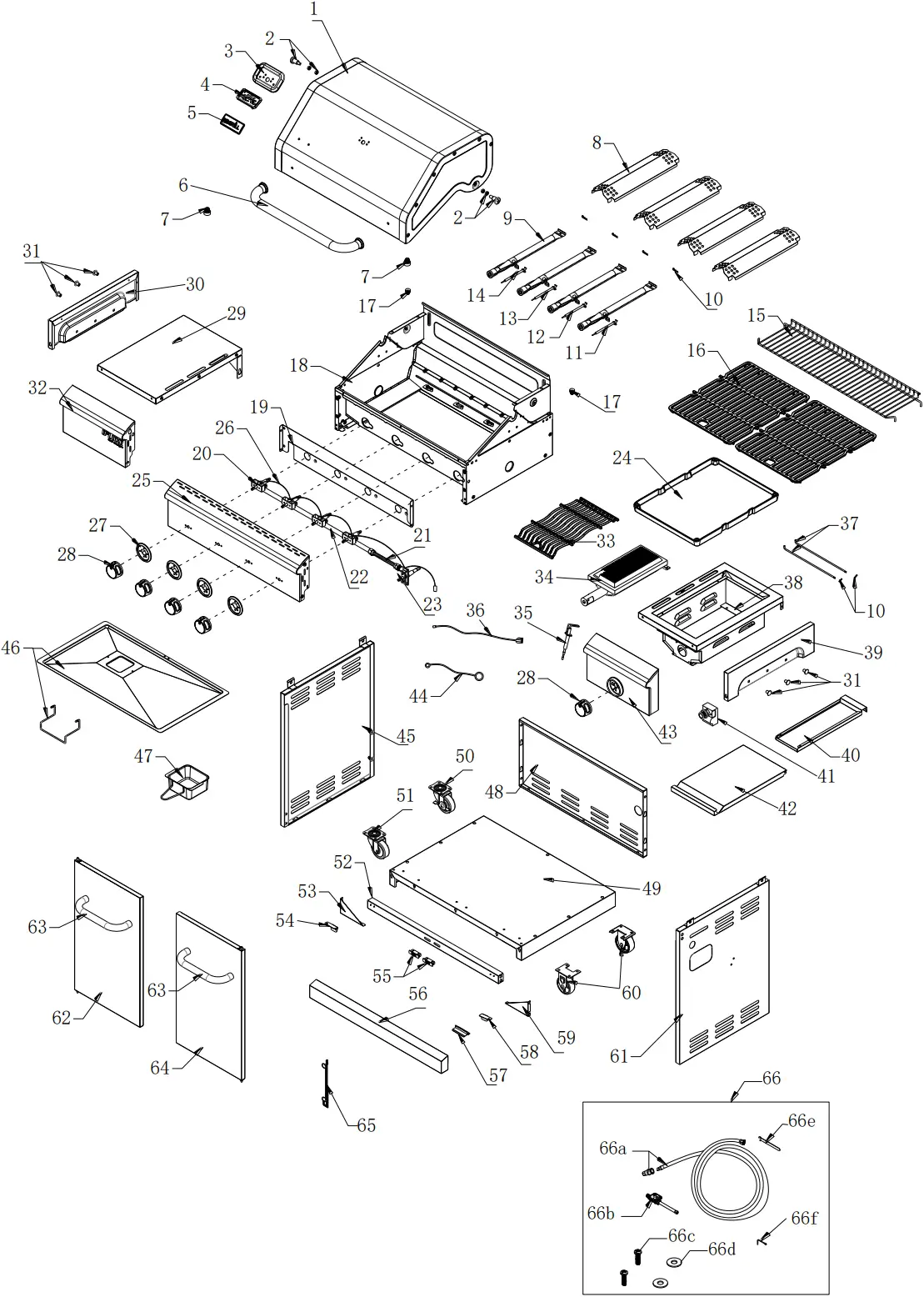

Parts Diagram
No. | Part (Description) | QTY |
1 | Main lid | 1 |
2 | Main lid screw | 2 |
3 | Temperature gauge Housing | 1 |
4 | Temperature gauge | 1 |
5 | Logo | 1 |
6 | Main lid handle assembly | 1 |
7 | Hood buffer A | 2 |
8 | Flame tamer | 4 |
9 | Main burner | 4 |
10 | Burner pin assembly | 6 |
11 | Main burner igniter wire A | 1 |
12 | Main burner igniter wire B | 1 |
13 | Main burner igniter wire C | 1 |
14 | Main burner igniter wire D | 1 |
15 | Warming rack | 1 |
16 | Cooking grid with hole | 2 |
17 | Hood buffer B | 2 |
18 | Main burner bowl assembly | 1 |
19 | Front baffle | 1 |
20 | Main gas valve | 4 |
21 | Searing side burner flex gas line | 1 |
22 | Main manifold | 1 |
23 | Searing side burner gas valve | 1 |
24 | Cooking griddle | 1 |
25 | Main control panel | 1 |
26 | Switch cord assembly | 1 |
27 | Control knob bezel | 4 |
28 | Main burner control knob | 5 |
29 | Side shelf, left | 1 |
30 | left side shelf trim piece | 1 |
31 | Tooling hook | 6 |
32 | Side shelf control panel | 1 |
33 | Searing side burner cooking grid | 1 |
34 | Searing side burner | 1 |
35 | Searing side burner igniter wire pin | 1 |
36 | Searing side burner igniter wire | 1 |
37 | Searing side burner lid hinge rod | 2 |
38 | Searing side burner bowl assembly | 1 |
39 | Side burner shelf trim piece | 1 |
40 | Searing side burner grease tray | 1 |
41 | Pulse igniter module | 1 |
42 | Searing side burner lid | 1 |
43 | Searing side burner control panel | 1 |
44 | Grounding wire | 1 |
45 | Side panel, left | 1 |
46 | Grease tray assembly | 1 |
47 | Grease box | 1 |
48 | Rear panel | 1 |
49 | Bottom panel | 1 |
50 | Swivel caster with brake | 1 |
51 | Swivel caster | 1 |
52 | Cart frame, front | 1 |
53 | Triangle bracket, left | 1 |
54 | Door hinge fixed plate, left | 1 |
55 | Door magnet | 2 |
56 | Bottom panel trim piece | 1 |
57 | Door iron piece | 1 |
58 | Door hinge fixed plate, right | 1 |
59 | Triangle bracket, right | 1 |
60 | Caster | 2 |
61 | Side panel, right | 1 |
62 | Door, left | 1 |
63 | Door handle | 2 |
64 | Door, right | 1 |
65 | Lighting rod | 1 |
66 | NG conversion kit | 1 |
66a | NG gas hose with quick connector assembly | 1 |
66b | NG regulator assembly | 1 |
66c | Truss head screw with lock | 2 |
66d | Flat washer | 2 |
66e | 6mm Wrench | 1 |
66f | 6mm Nut Driver | 1 |

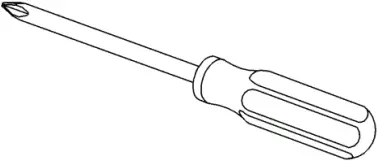

Tools Needed
Some parts come with Screws pre-installed.
Loosen and tighten for final assembly.

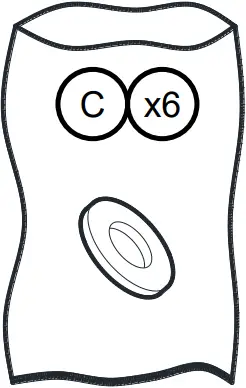

Hardware package list

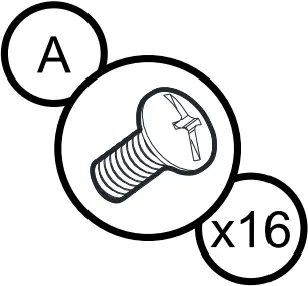

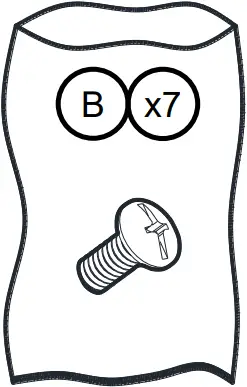

Truss Head Screw 1/4-20 x 5/8 ” Truss Head Screw 5/32-32x 3/8 ”

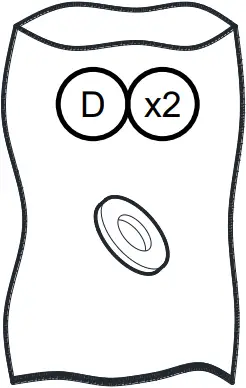

Flat Washer 1/4″ Flat Washer 5/32″

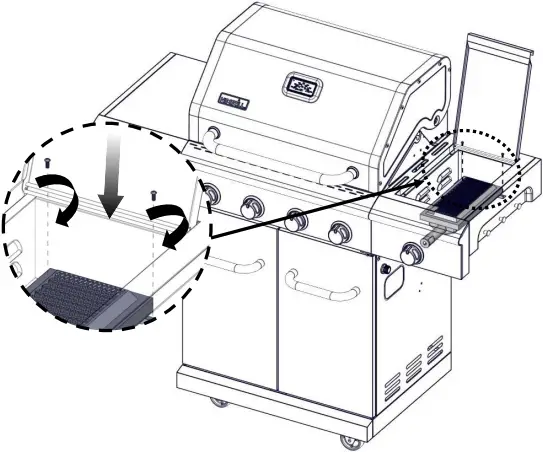

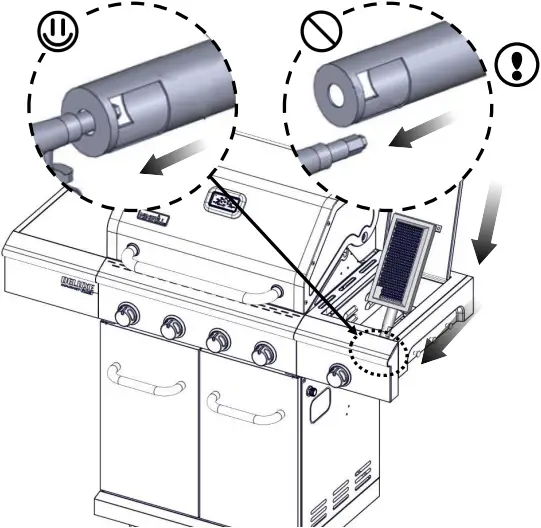

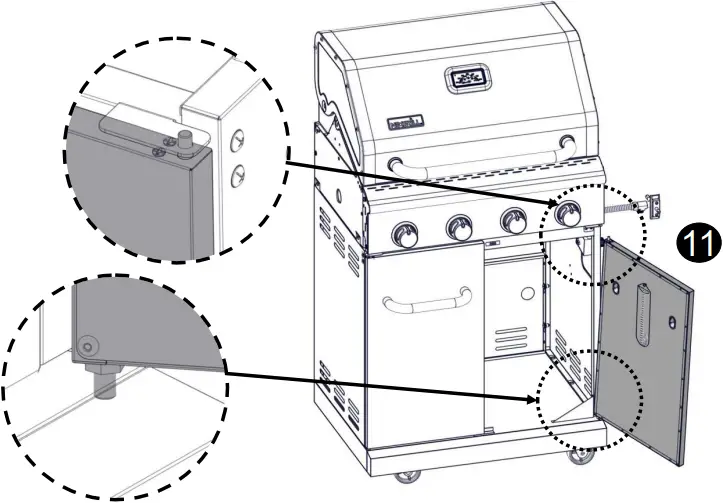

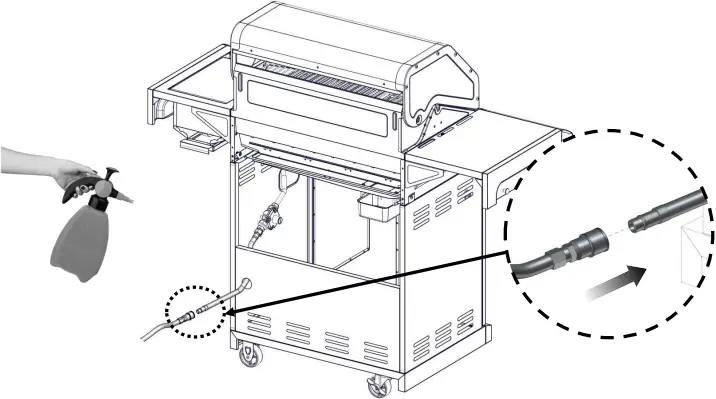

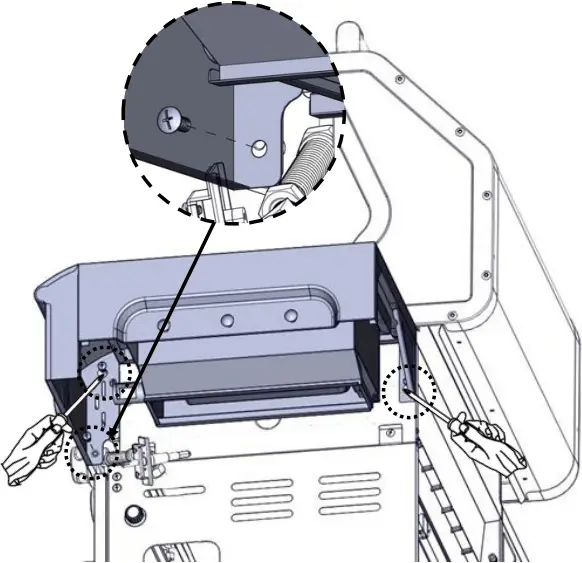

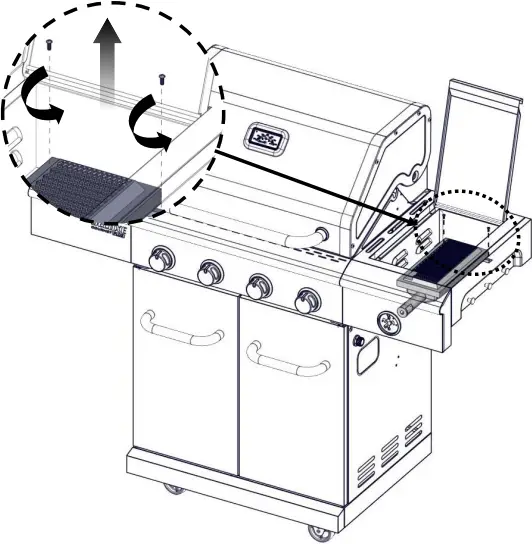

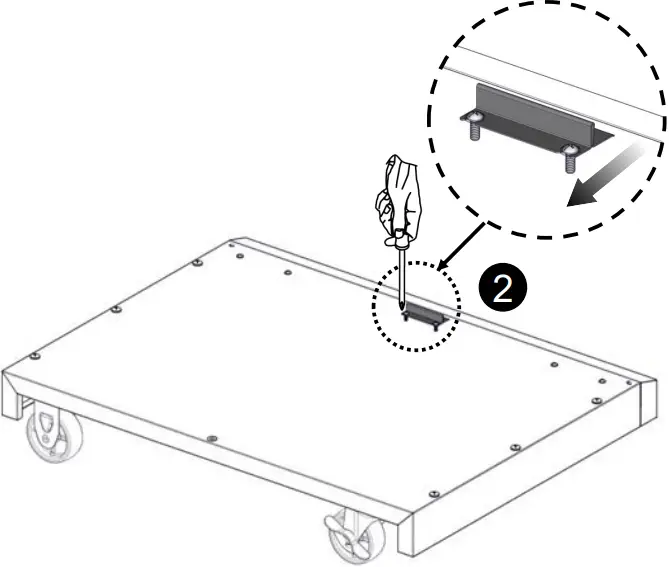

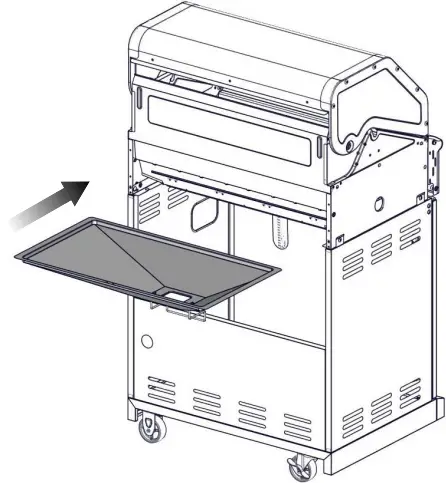

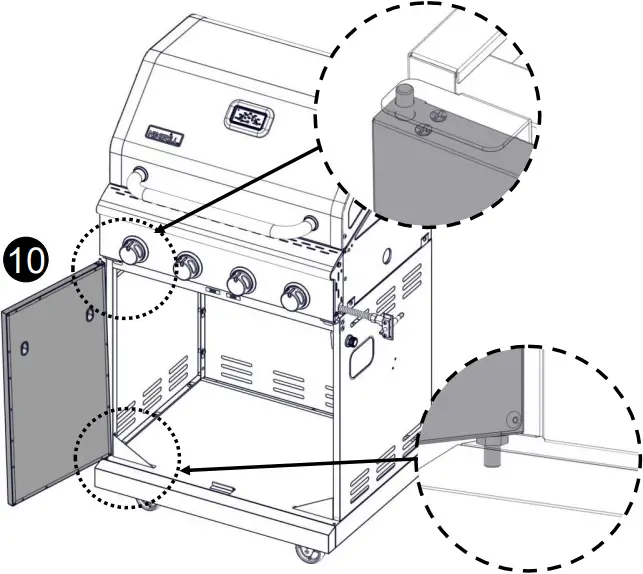

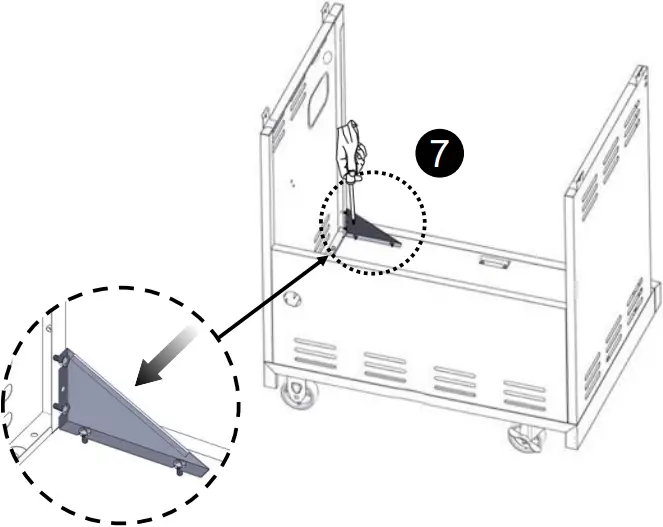

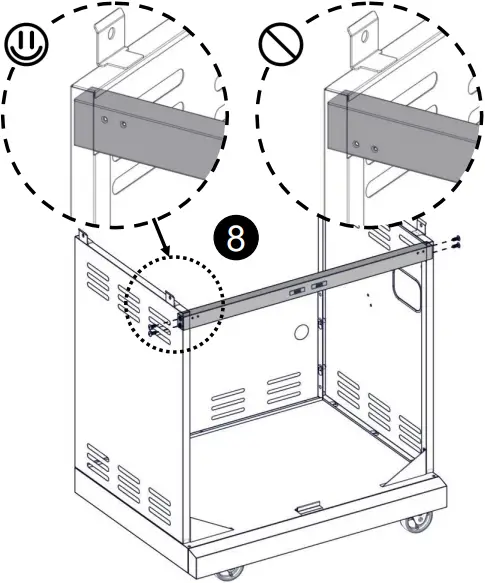

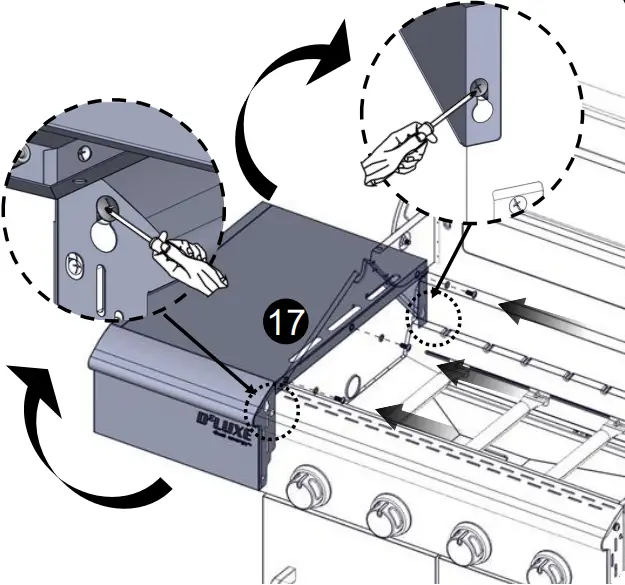

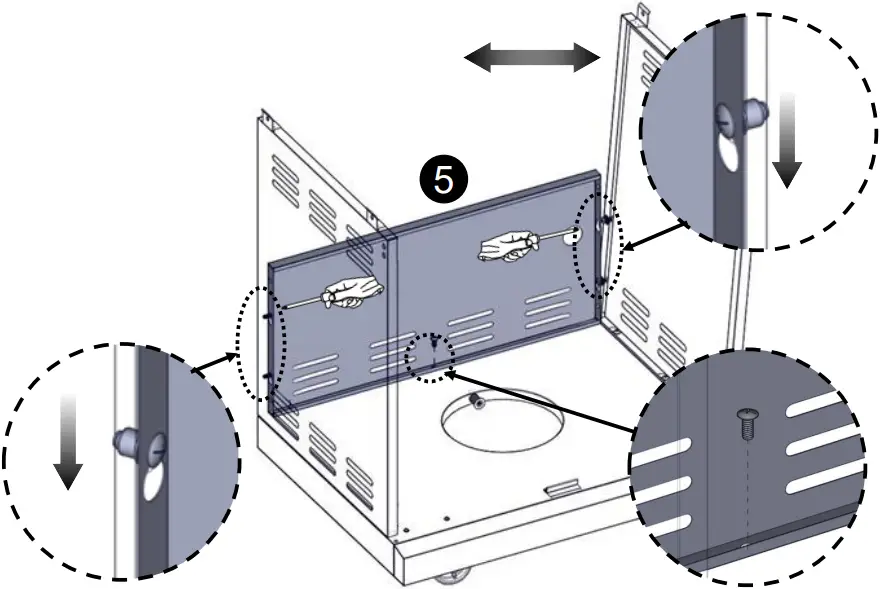

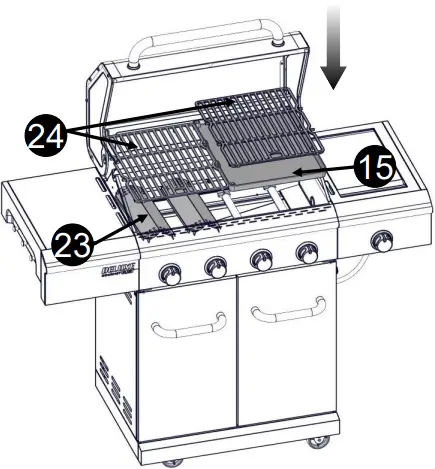

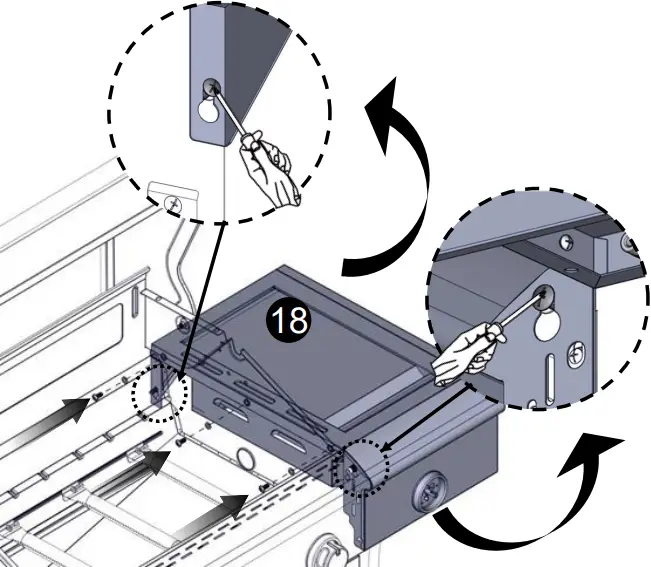

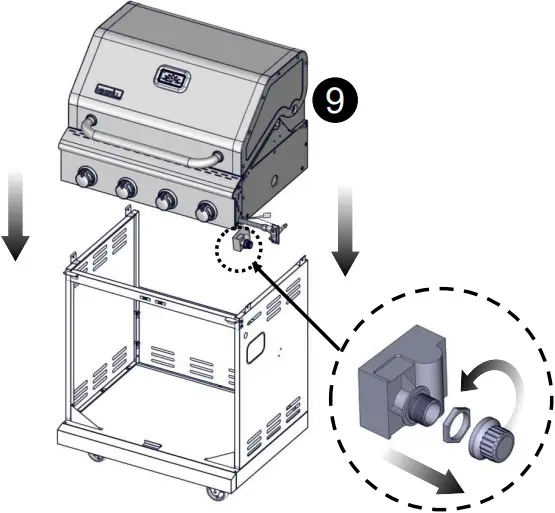

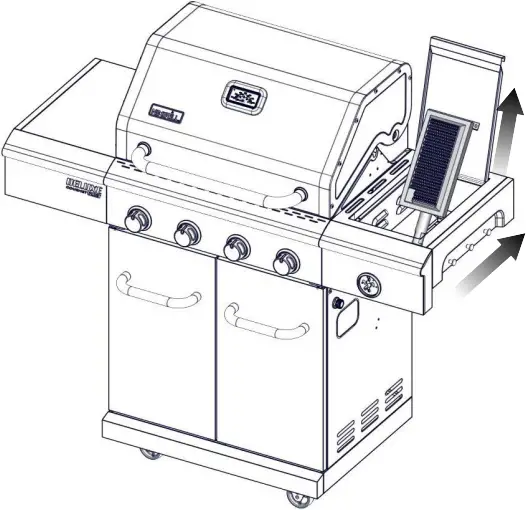

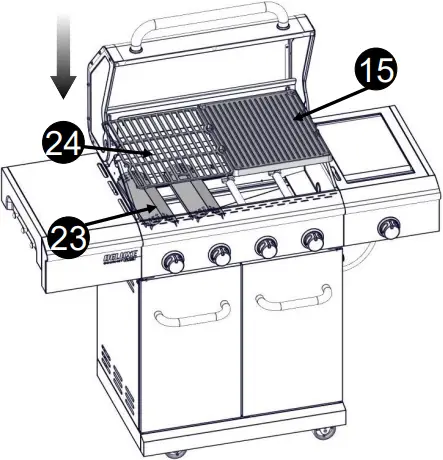

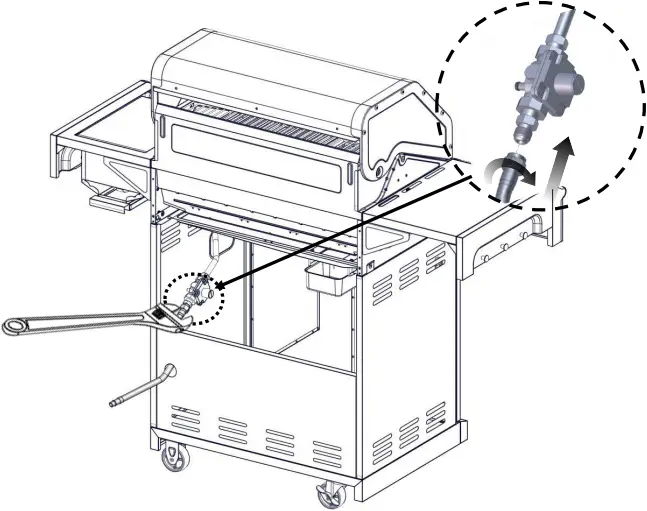

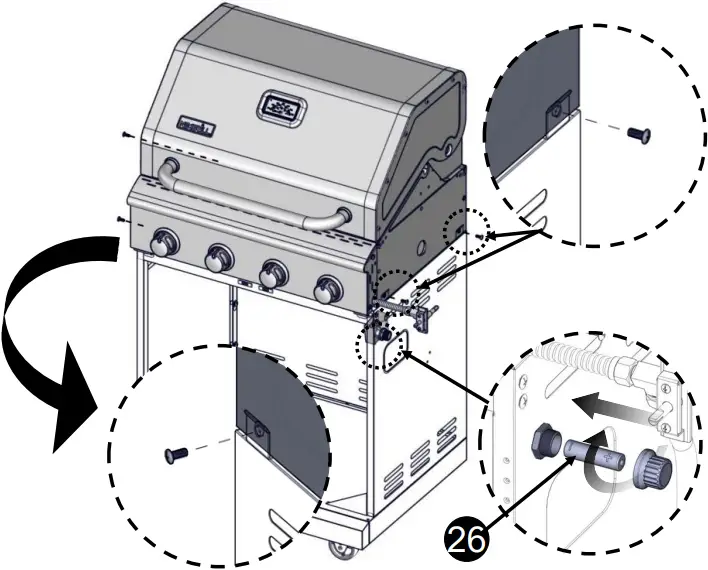

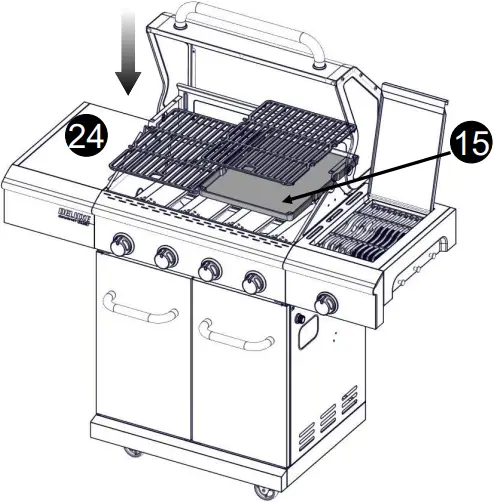

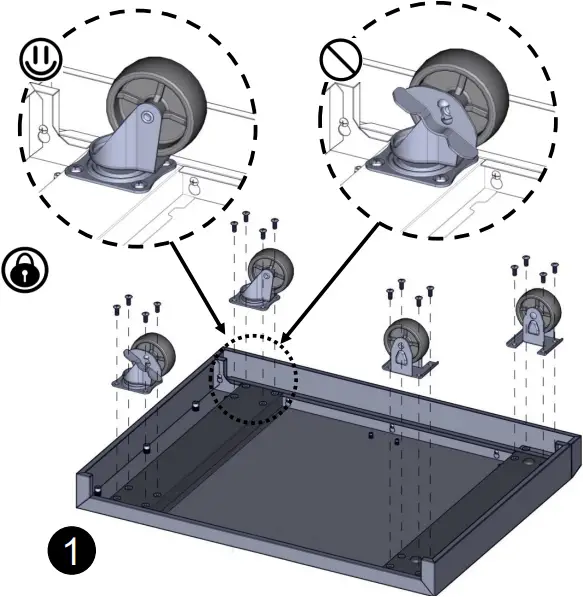

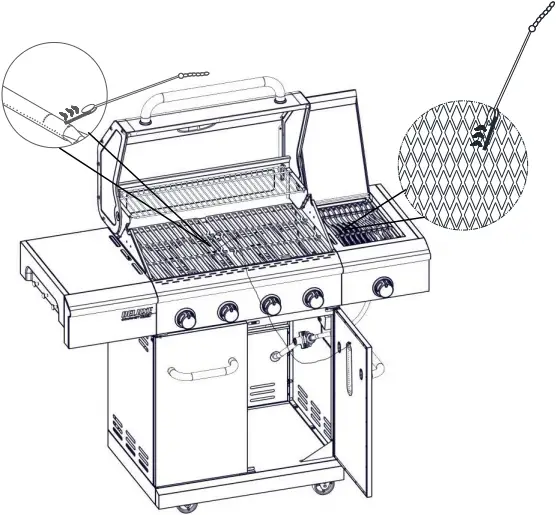

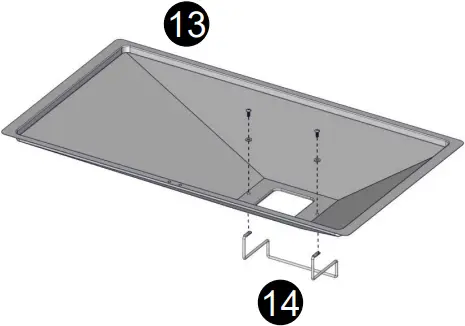

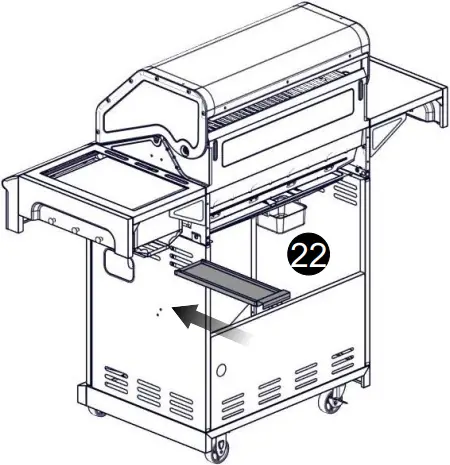

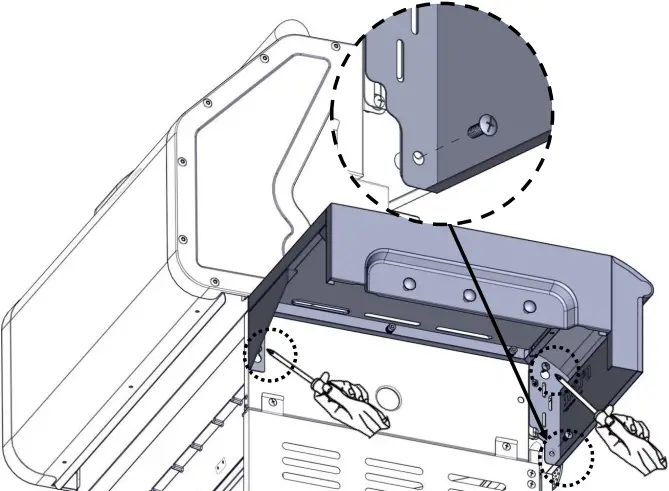

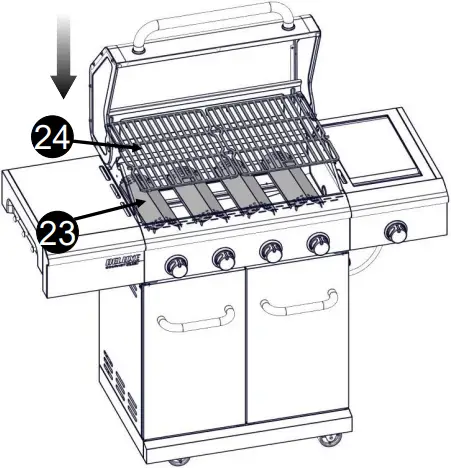

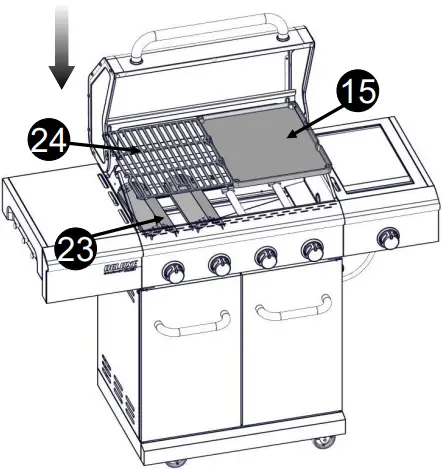

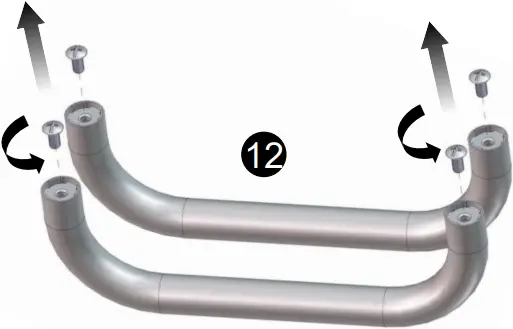

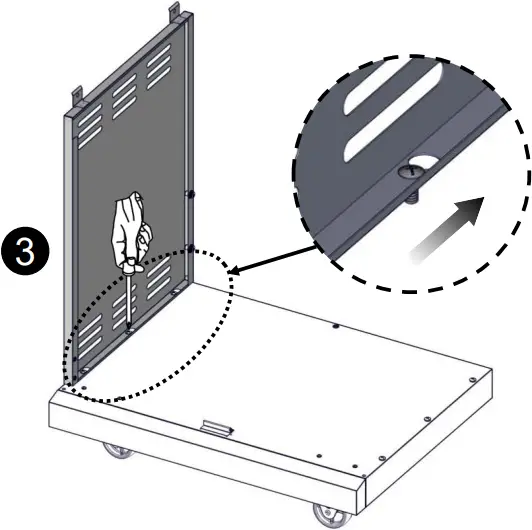

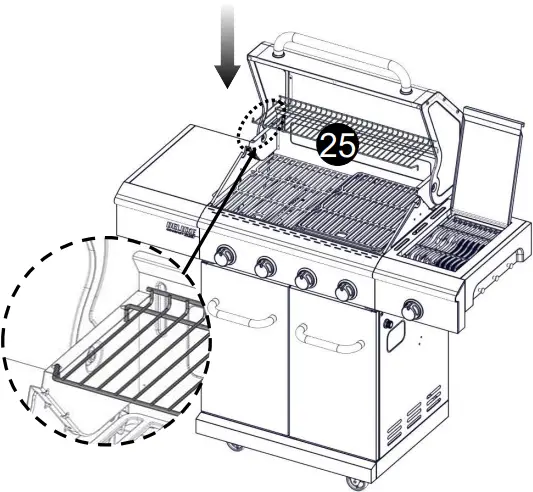

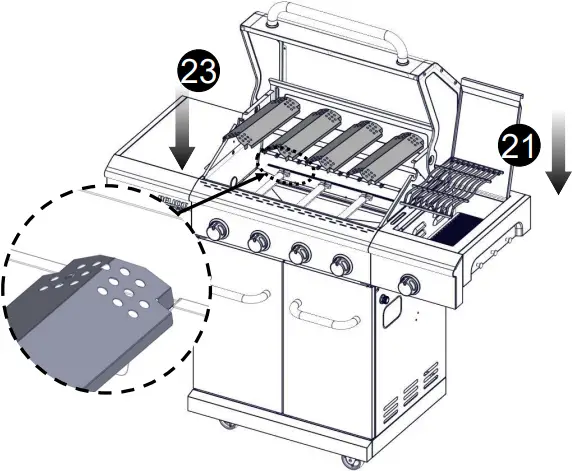

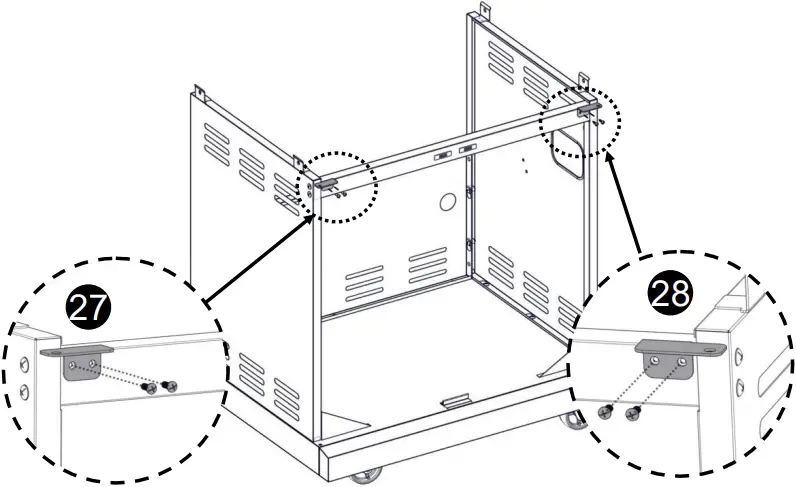

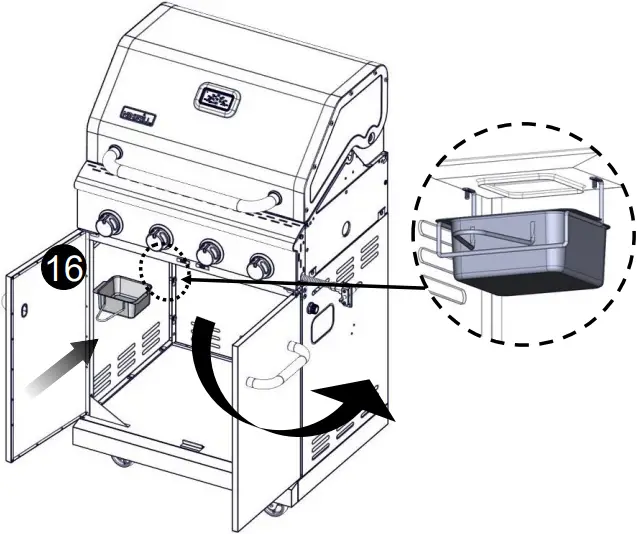

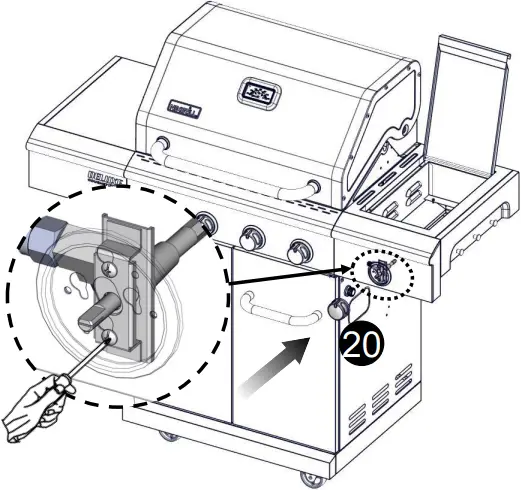

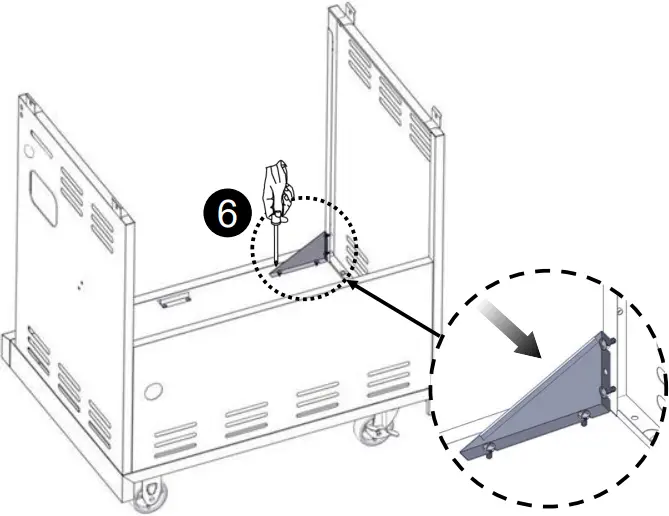

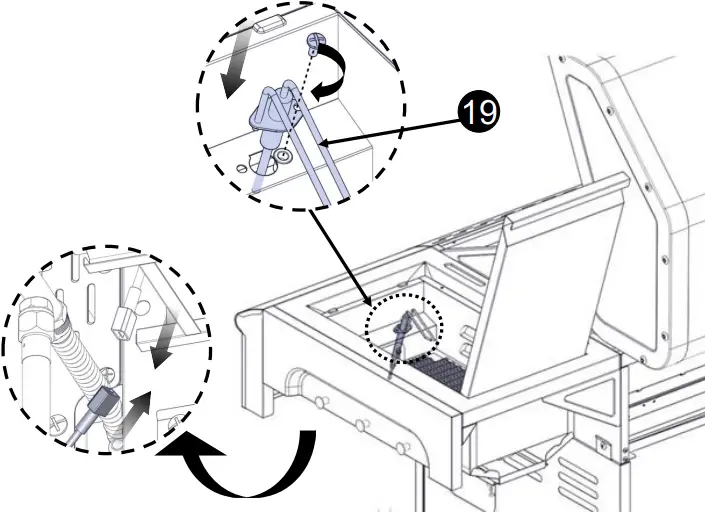

Assembly Instructions
