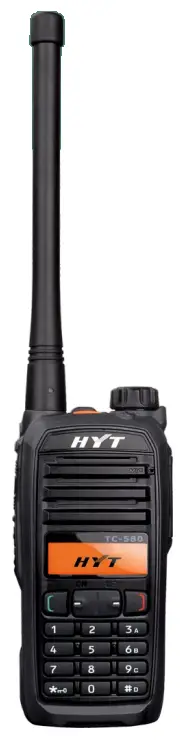

Hyt Tc-580 Professional Two-way Radio Owner's Manual (+ PDF)

As a combination of efficiency and practicality, TC-580 is definitely the best choice for various kinds of users. With an intelligent design of LCD, numeric keypad, wide-band coverage, 256 channels, manually programming and versatile call, TC-580 has integrated all cutting-edge analog technologies, and is capable of fulfilling any demand on conventional communication.

With practical needs of mission critical workers in mind, it deserves your trust.

Technical Features

Powerful Front Panel Programming

Large front panel buttons facilitate easy programming of nearly the whole radio parameters and functions without the need for additional equipment.

Select Call & Caller Identification

With the signaling of DTMF, versatile call functions are available such as caller ID identification and select call.

256 Channels & 32 Zones

This channel capacity makes the radio suitable for large radio system applications or systems where channel capacity can be used to increase and simplify unique calling requirements. Where large numbers of channels are being used, they can be grouped into smaller blocks to allow for easier navigation and segregation.

Display Reverse

This product supports a 180-degree reverse of the displayed content. In this way you can read the information in LCD easily without removing the radio from its holder. This would facilitate your work and enhance your efficiency.

Emergency Alarm

When encountering an emergency, you can use this function to sound harsh alarms and send a message to the control center for help.

Applications

Light industry
Retail
Hospitality
Construction
Transportation

Main Functions

Battery Strength Indicator
Switchable Power (High/ Low)
Low Battery Alert
Busy Channel Lockout (BCL)
Time-out Timer (TOT)
CTCSS/CDCSS
Squelch Tail Elimination
Nine Squelch Levels Selectable
Channel Scan
PC Programmable
Wired Clone
Compandor
Scrambler
Whisper
VOX
Home Channel
Factory Defaults Restorable

Accessories

Standard Accessories	Antenna	Li-Ion Battery (1650mAh) BL1719	Rapid-rate Charger (for Li-Ion Battery) CH10L1
Standard Accessories	Switching Power (different P/N for different countries and areas)	Belt Clip BC12	Strap RO03

Featured Optional Accessories

Six-unit Switching Power PS7002 (different power cable for different countries and areas)
The Six-unit Switching Power works with chargers.

Highlights: Using the 6-unit switching power, you can combine multiple rapid-rate chargers as a simple multi-unit charger which fulfills high-speed shift or busywork for large fleets, and share the economical benefits and convenience that it brings.

Optional Accessories

Antenna
Li-ion Battery(1300mAh) BL1301
Vehicle Power Adapter CHV09
Earpiece with on-MIC PTT & VOX & Transparent Acoustic Tube EAM12
Earbud with in-line PTT & VOX ESM11
Earbud with on-MIC PTT & VOX ESM12
D-earset with Boom Microphone & VOX EHM16
D-earset with in-Line MIC & VOX EHM15
Remote Speaker Microphone SM08M3
Receive-Only Earbud (for use with remote speaker microphone) ESS07
Receive-Only Earpiece with Transparent Acoustic Tube (for use with remote speaker microphone) ESS08

Programming Cable (COM Port) PC19
Programming Cable (USB to Serial Port) PC26
Cloning cable CP05

Note: Pictures are for reference only. Image may vary from actual product. Product function shall remain the same.

Applicable MIL-STD-810C/D/E/F

Applicable MIL-STD	810C Methods Procedures		810D Methods Procedures		810E Methods Procedures		810F Methods Procedures
Low Pressure	500.1	1	500.2	1,2	500.3	1,2	500.4	1
High Temperature	501.1	1,2	501.2	1,2	501.3	1,2	501.4	1,2
Low Temperature	502.1	1	502.2	1,2	502.3	1,2	502.4	1,2
Temp. Shock	503.1	1	503.2	1	503.3	1	503.4	1
Solar Radiation	505.1	1	505.2	1	505.3	1	505.4	1,2
Rain	506.1	2	506.2	2	506.3	1,2	506.4	1,2
Humidity	507.1	2	507.2	2,3	507.3	2,3	507.4	1
Salt Fog	509.1	1	509.2	1	509.3	1	509.4	1
Dust	510.1	1	510.2	1	510.3	1	510.4	1
Vibration	514.2	8,10	514.3	1	514.4	1	514.5	1
Shock	516.2	1,2,5	516.3	1,4	516.4	1,4	516.5	1,4

General

Frequency Range(MHz)	VHF: 136-174 UHF: 350-390 400-470
Channel Capacity	256
Channel Spacing(KHz)	25/12.5 KHz
Operating Voltage(V)	7.4
Battery	1650mAh (Li-Ion Battery)
Battery Life (5-5-90 Duty Cycle)	12 hours above
Frequency Stability(ppm)	±2.5
Operating Temperature(℃)	-25~+65
Antenna Impedance(Ω)	50
Dimensions (H×W×D)(with battery, without antenna)(mm)	117×53×36
Weight (with antenna & battery)(g)	287

Transmitter

RF Power Output	VHF: 5W/1W UHF: 4W/1W
Modulation	16KΦF3E/8KΦF3E
Spurious and Harmonics	-36dBm<1GHz -30dBm>1GHz
FM Noise	≥ 40/35dB
Audio Distortion	≤5%

All Specifications are tested according to TIA/EIA-603, and subject to change without notice due to continuous development

Receiver

Sensitivity	≤ 0.25/0.28μV
Selectivity	70/50dB
Intermodulation	60dB
Spurious Response Rejection	70dB
S/N	40/35dB
Rated Audio Power Output	1W
Rated Audio Distortion	≤5%

Customer Support

Hytera Communications Corporation Limited

Address: Hytera Tower, Hi-Tech Industrial Park North,Beihuan Rd., Nanshan District,Shenzhen,China
Tel: +86-755-2697 2999 Fax: +86-755-8613 7139 Post: 518057
http://www.hytera.com Stock Code: 002583

Hytera retains right to change the product design and specification. Should any printing mistake occur, Hytera doesn’t bear relevant responsibility. Little difference between real product and product indicated by printing materials will occur by printing reason.
