Bega 23 967.1 Indoor Ceiling Luminaire Instruction Manual

 23 967.1 Indoor Ceiling Luminaire
Instruction Manual23 967.1

 23 967.1 Indoor Ceiling Luminaire

Ceiling luminaire for indoor use

Instructions for use

Application

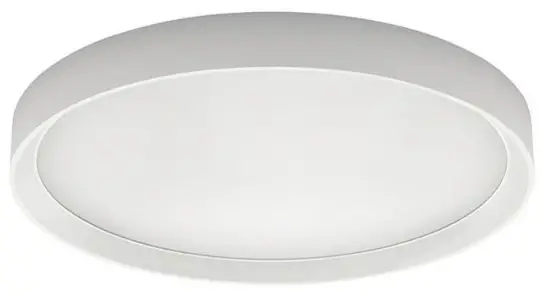

Ceiling mounted luminaire · indoor luminaire with handblown opal glass, satin matt and aluminium housing, for all lighting tasks in interior applications.
They are ideal for places where a soft and uniform lighting distribution is required.

Product description

Luminaire made of Aluminium, finish Colour white
Opal glass, satin matt, with screw neck
Silicone gasket

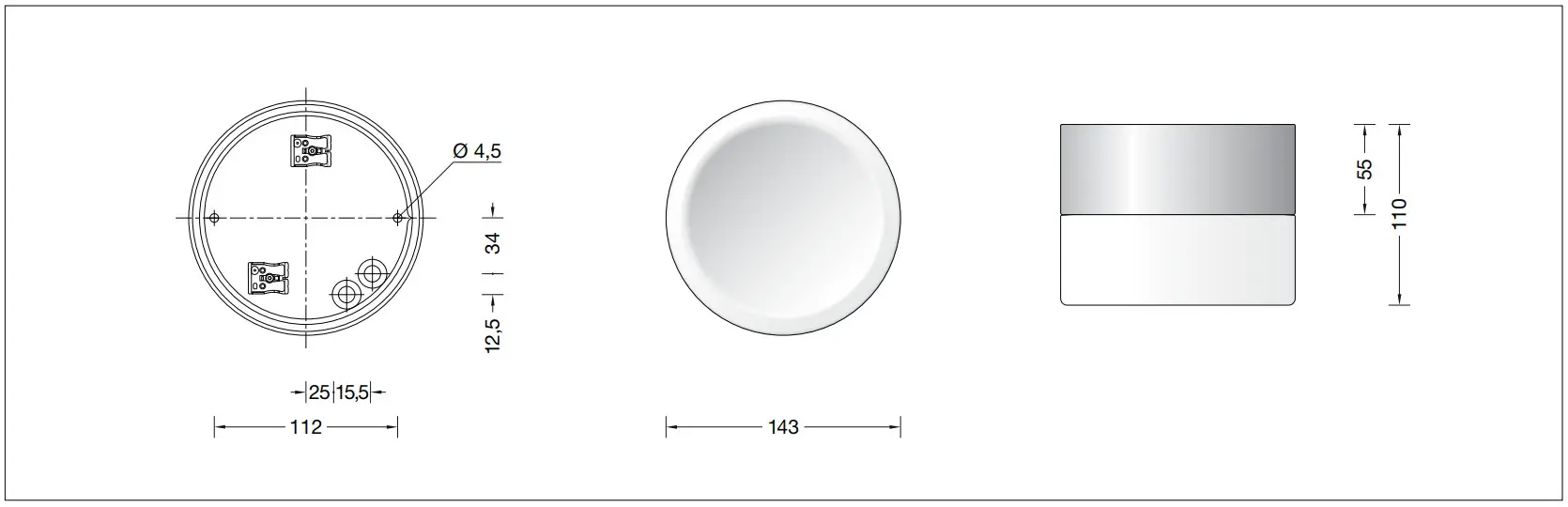

2 mounting holes ø 4.5 mm
Distance apart 112 mm
2 cable entries for through-wiring of mains
supply cable ø 7-10.5 mm, max. 5 G 1.5@
Connection terminal 2.5@
Earth conductor connection
2-pole connecting terminal for digital control
LED power supply unit
220-240 V x 0/50-60 Hz
DC 176-276 V
DALI-controllable
Number of DALI addresses: 1
Basic insulation is provided between the mains and control cables
BEGA Thermal Control®
Temporary thermal regulation to protect temperature-sensitive components without switching off the luminaire
Safety class I
– Safety mark
– Conformity mark
Weight: 1.1 kg
This product contains light sources of energy efficiency class(es) D

Overvoltage protection
The electronic components installed in the luminaire are protected against overvoltage in accordance with DIN EN 61547.
To achieve an additional protection against e. g. transients, etc. we recommend separate overvoltage protection components.
You can find them on our website at www.bega.com.

Safety

The installation and operation of this luminaire are subject to national safety regulations.
Installation and commissioning may only be carried out by a qualified electrician.
The manufacturer accepts no liability for damage caused by improper use or installation.
If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.
Lamp

23 967.1 K3

23 967.1 K4

Installation

LED are high-quality electronic components!
Please avoid touching the light output opening of the LED directly during installation or relamping.
Remove glass from luminaire housing by turning it counter-clockwise.
Undo knurled screws and remove cover plate.
Lead the mains supply cable through the cable entry into the luminaire housing.
Fasten the luminaire housing with the supplied fastening material or other suitable fastening material to the mounting surface.
It is absolutely essential to use the enclosed protection against accidental contact.
Establish earth conductor connection and make the electrical connection to the terminals.
For digital control please use the connecting terminal DA, DA.
In case this terminal is not used the luminaire will be operated at full light output.
Make earth conductor connection between cover plate and luminaire housing.
Assemble cover plate.
Screw glass with gasket into luminaire housing.
Make sure that gasket is positioned correctly.

Cleaning · Maintenance

Clean luminaire regularly with solvent-free cleansers from dirt.
Defective glass must be replaced.

Replacing the LED module
The designation of the LED module is noted on a label in the luminaire.
The light colour and light output of BEGA replacement modules correspond to those of the modules originally fitted.
The module can be replaced by qualified persons using standard tools.
Disconnect the system and open the luminaire.
Please follow the installation instructions for the LED module.
Inspect and, if necessary, replace the luminaire gaskets.
Defective glass must be replaced.
Close the luminaire.
Spares

BEGA Gantenbrink-Leuchten KG
Postfach 31 60
58689 Menden
[email protected]
www.bega.com

References

• BEGA · Das gute Licht.
