Set up, extend, adapt, maintain an overview: the new, intuitive devolo App for controlling the devolo Magic adapter.
Information
Make a note of the Wi-Fi key on the back of the devolo Magic adapter.

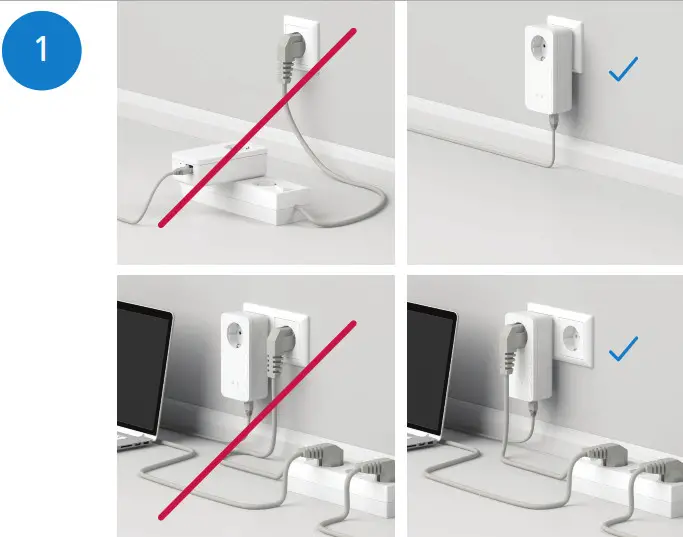

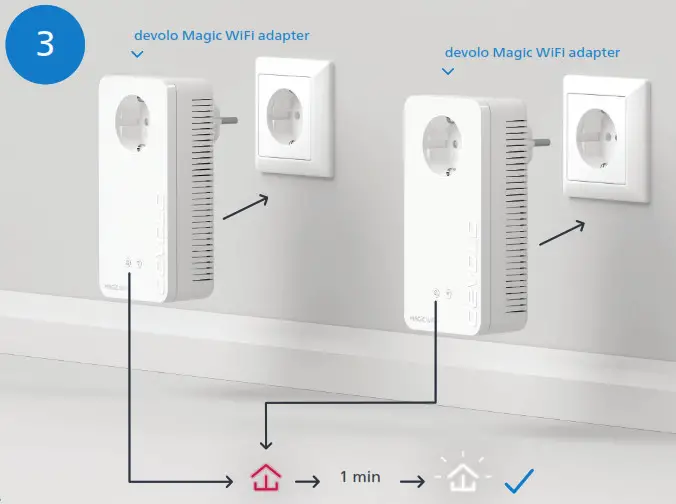

Connnect the two devolo Magic WiFi adapters to a free wall socket and wait until the LED quickly flashes white (approx. 1 minute).

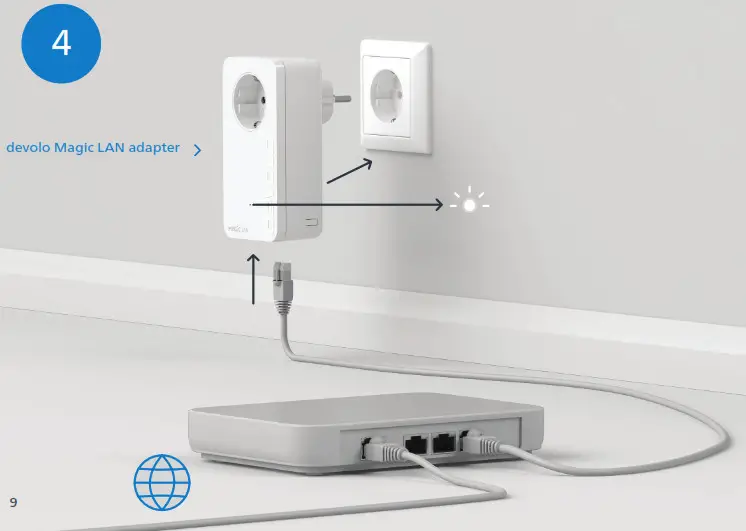

Connect the devolo Magic LAN adapter to the socket and connect it to your router using the enclosed LAN cable.

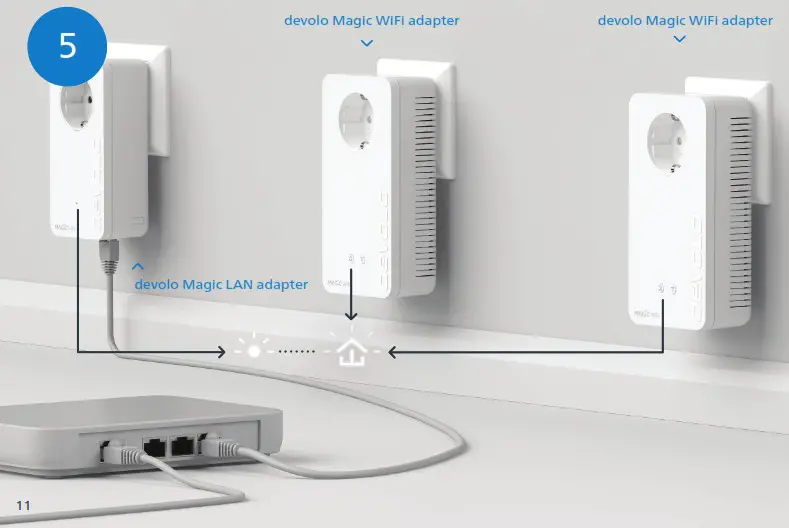

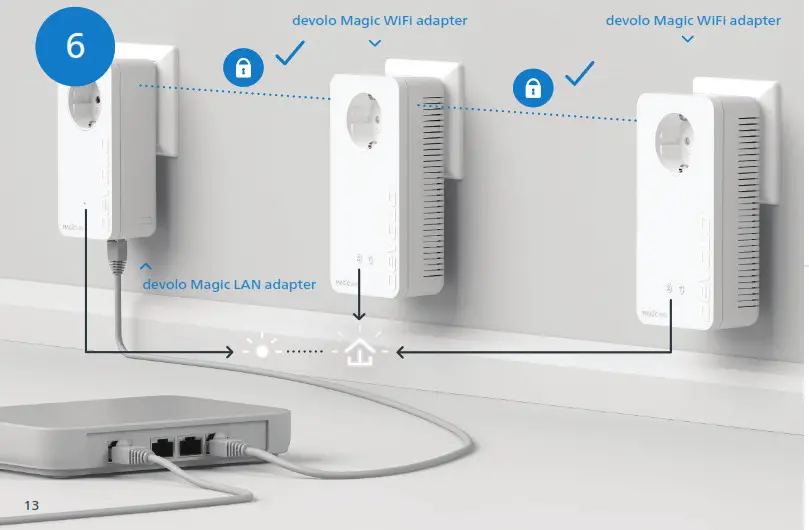

The encryption process takes place automatically. During this time, the LEDs of all adapters flash white.
The process is complete as soon as all of the LEDs on the devices light up solid white. The process takes a maximum of 3 minutes.

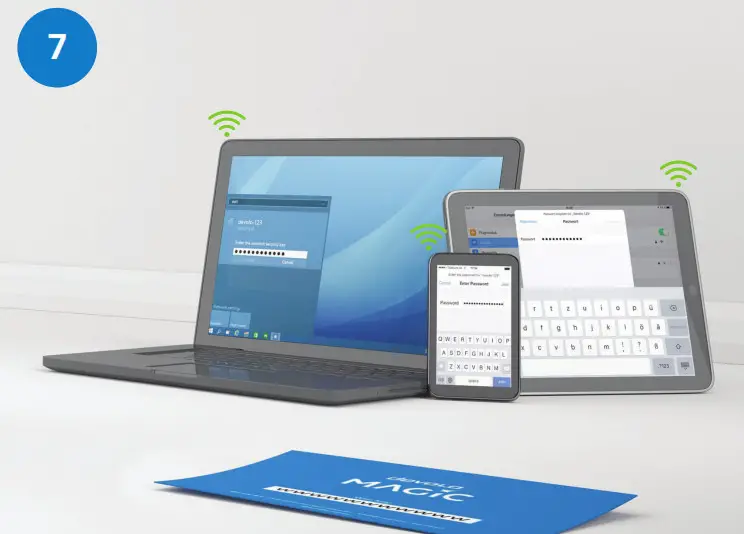

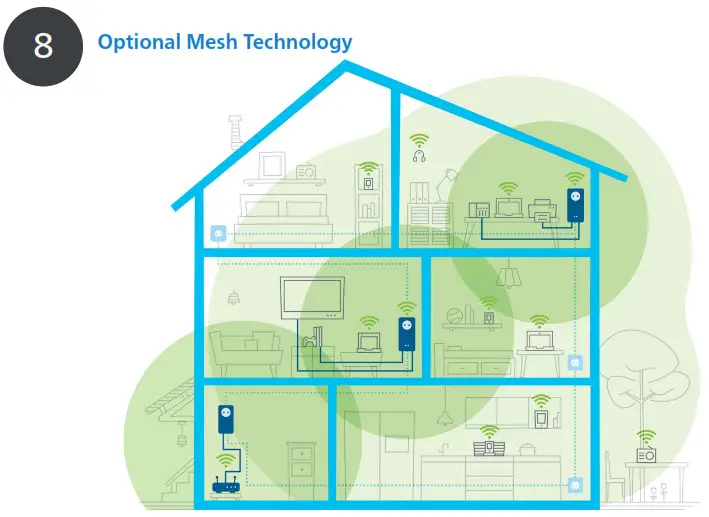

Set up the Wi-Fi connection on your smartphone, etc. The basic installation process is complete. Optionally, you can then use Mesh technology to connect all devolo Magic adapters and your router to a contiguous network and connect seamlessly to the Internet with the strongest possible connection anywhere in the house.
To do this, the Wi-Fi access data is transferred as a one-off to the devolo Magic WiFi adapter at the press of a button. This gives you the best Wi-Fi coverage in any room.

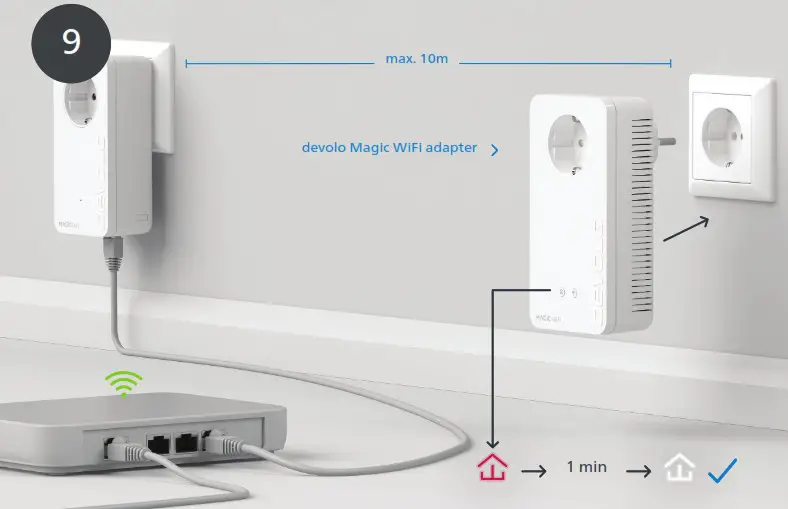

Only connect one devolo Magic WiFi adapter for the initial setup process to a free wall socket near your router (max. distance 10 metres) and wait around 1 minute until the LED lights up white.

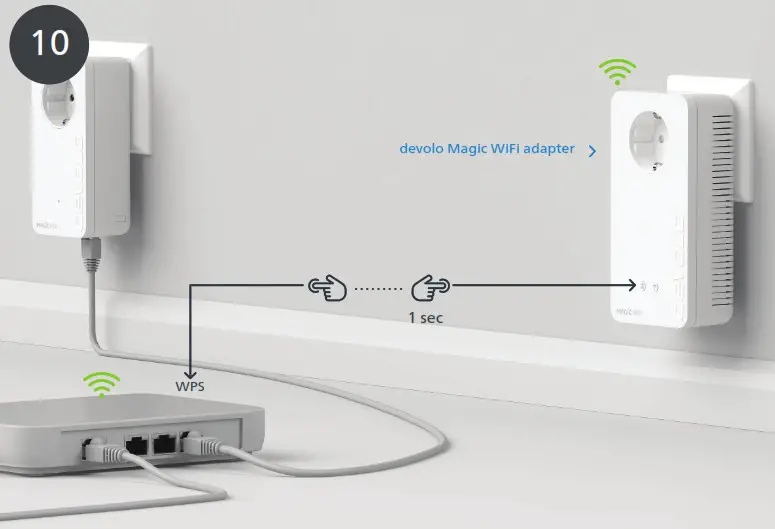

Briefly press the
button on your devolo Magic WiFi adapter. After the button is pressed, the LED flashes white. Press the WPS button on your router within 2 minutes. Please consult your router`s instruction for use to find out how long to press the button for.

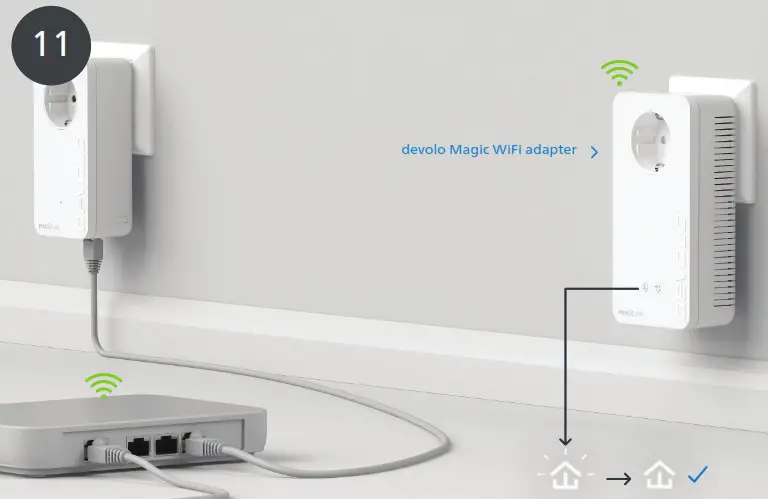

Once the LED lights up solid white, the process has been completed successfully for both devolo Magic adapters.

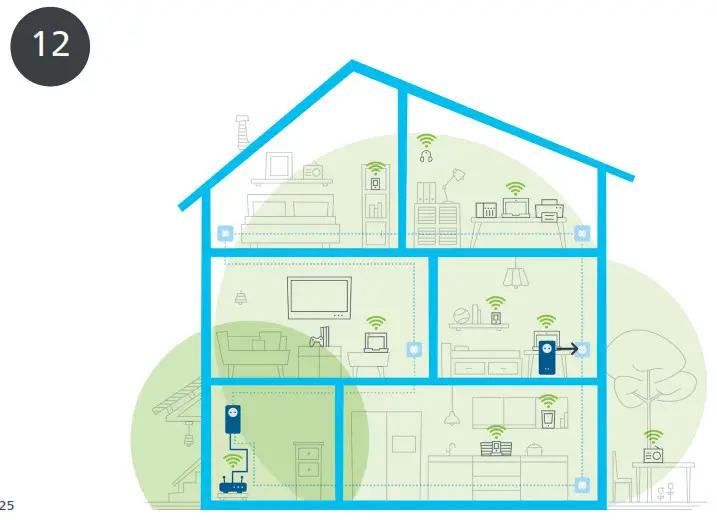

You can now disconnect your devolo Magic WiFi adapter and place it in your preferred location. Done! devolo Magic adapters get you seamlessly onto the Internet anywhere in the house with the strongest possible connection.
PLC button
| Duration of the button press | Action | LED behaviour |
| 1 second | Start pairing with other devolo Magic adapters (on WiFi adapters: start ConfigSync) | Flashes white |
| > 10 seconds | Reset devolo adapter to factory settings | Lights up red |
| … is working perfectly. It is connected to other devolo Magic adapters. | Lights up white | |
| … is currently establishing a pairing connection with another adapter. | Quickly flashes white | |
| … is not connected to the network* | Flashes red | |
| … is in standby mode. | Slowly flashes white | |
| … is currently undergoing a software update. | Alternately flashes white and red | |
| … has a poor Powerline connection. | Lights up white and then briefly flashes red | |
| … is currently in the start-up process. … cannot see any other devolo Magic adapters. | Lights up red | |
| … no longer has any LED function since it was disabled by the user. | None |
WiFi button
| Duration of the button press | Action | LED behaviour |
| 1 second | WPS function is being carried out | Flashes white |
| > 3 seconds | Wi-Fi is being switched off | LED goes out |
| WiFi LED | The devolo Magic WiFi adapter … | LED behaviour |
| … has a fault-free connection to the Internet. | Lights up white | |
| … is attempting to establish a connection via WPS. | Flashes white | |
| . no longer has any LED function since it was disabled by the user. | ||
| Off | ||

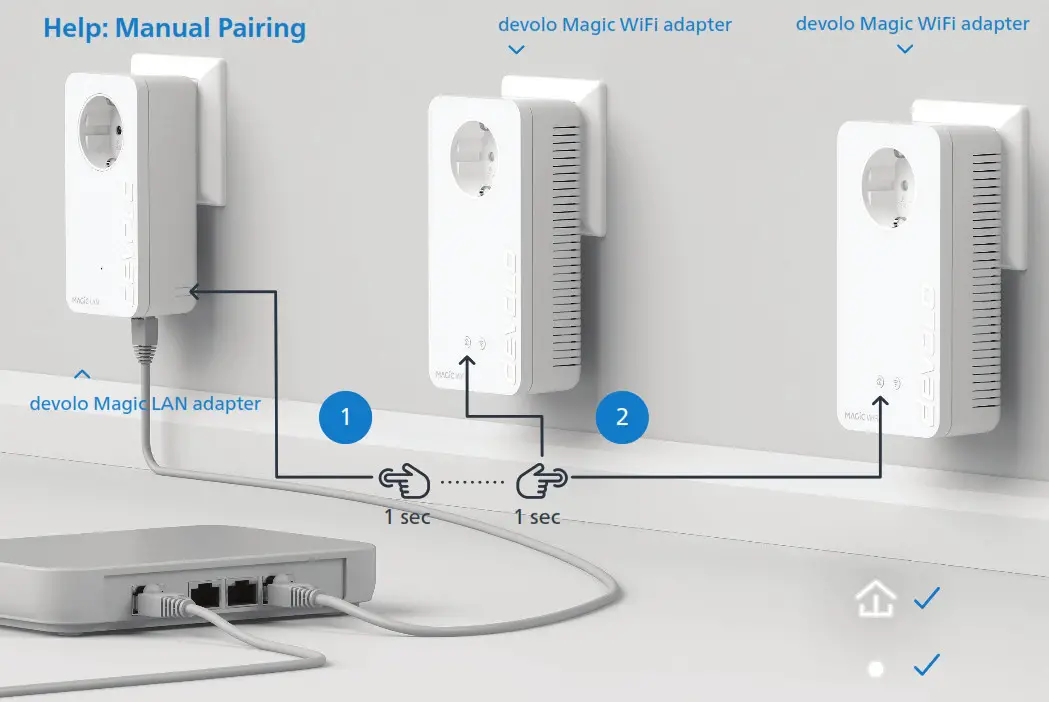

Help: If automatic pairing during initial installation was unsuccessful, you can carry out manual pairing of the Magic adapters. Connect both devolo Magic WiFi adapters to a free wall socket and wait until the LED flashes white (approx. 1 minute).
Within 3 minutes, press the button on the side of your devolo Magic LAN adapter which is connected to the router. Second, press the LED on your Magic WiFi adapters. As soon as all of the LEDs light up white, pairing has been completed successfully.
Warranty: 3 years
If your devolo device is found to be defective during initial installation or within the warranty period, please contact the vendor who sold you the product. The vendor will take care of the repair or warranty claim for you. The complete warranty conditions can be found at www.devolo.com/warranty.
Support
www.devolo.co.uk/serviceWiFi Key:
