YABER Pro-V7 9800L 5G WiFi Bluetooth Projector

YABER Lifetime Professional Support

Dear customer,
Thank you very much for supporting YABER!
Please read this manual thoroughly before using the projector. If you have any issues, email your order number and the problem to [email protected]. We will provide a fast solution in 24 hours.
Actually, many problems can be easily solved by setting, such as no signal, no sound, Bluetooth connection failed, WiFi connection failed, dark spots, choppy animation etc. We promise all the projectors have been 100% carefully checked and packaged before shipping.
If you have any questions, could you please contact us so that the problem can be solved? And give us an opportunity to improve. We guarantee we will provide you a satisfactory solution.
Thanks for your understanding!
YABER Service Team
TIPS:

1. Do not place projector in too warm or too-cold room, because the high temperature or low temperature will shorten the lifespan of the device. The working environment would be 5°C-35°C better.
2. lf there are black spots on the projection screen, please don’t worry, please contact [email protected] via email, and we can send you a video about how to remove the dust.
3. The ventilation is equipped for the projector to work stably. Don’t cover the vent with cloth, blanket or other things. Don’t insert anything into the slit of the projector, or it may produce a short circuit or an electric shock to your device and cause damage.
4. The projector shall be strictly protected from strong impact, extrusion and vibration. Do not try to move and on strong impact, extrusion and vibration. Do not try to move and the internal circuit faults.
5. Lens, as the core component of the projector, is directly related to the picture definition and effect. The excessive dust thereon will affect image quality. The dirty lens shall be wiped with soft cotton cloth for the glass lens surface. Hard cloth or abrasives shall not be used.

PACKAGE LIST

PROJECTOR SPECIFICATIONS

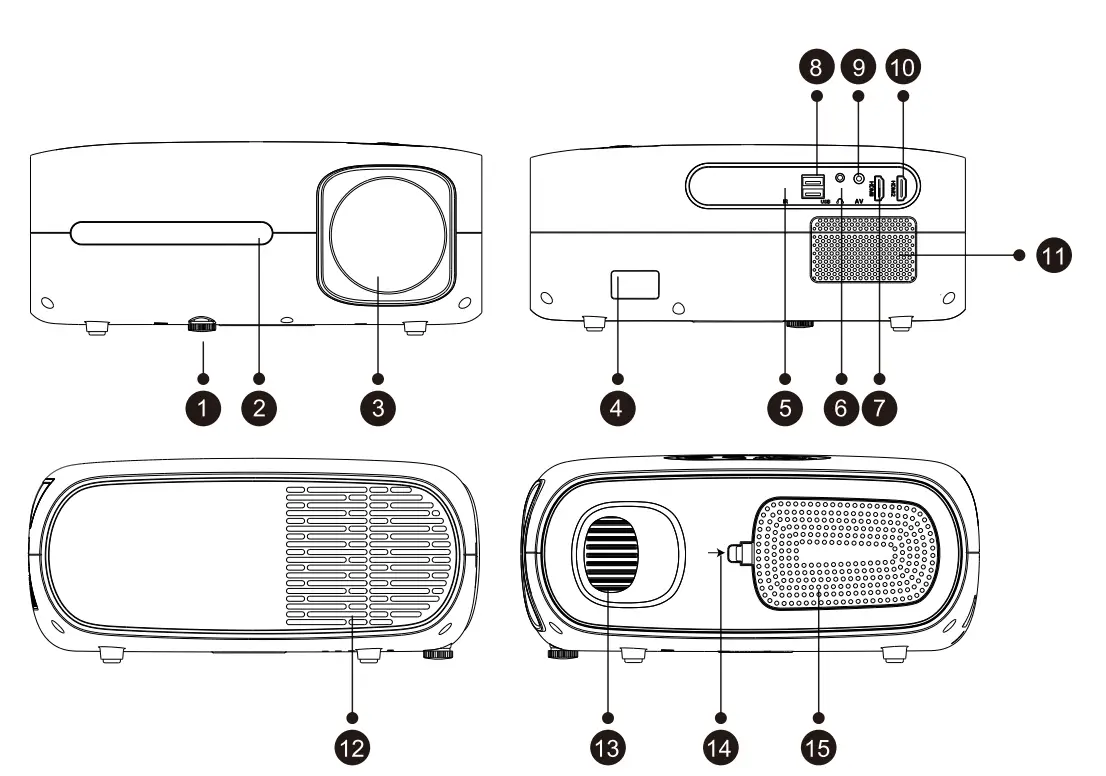

PROJECTOR OVERVIEW

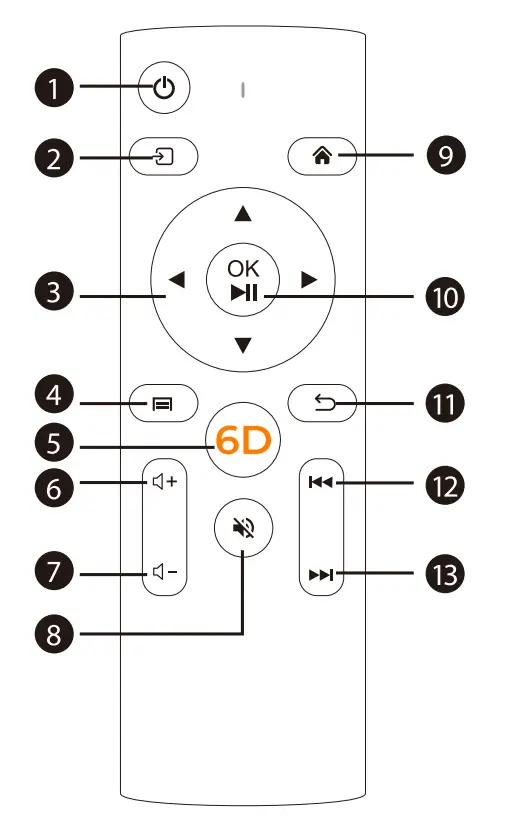

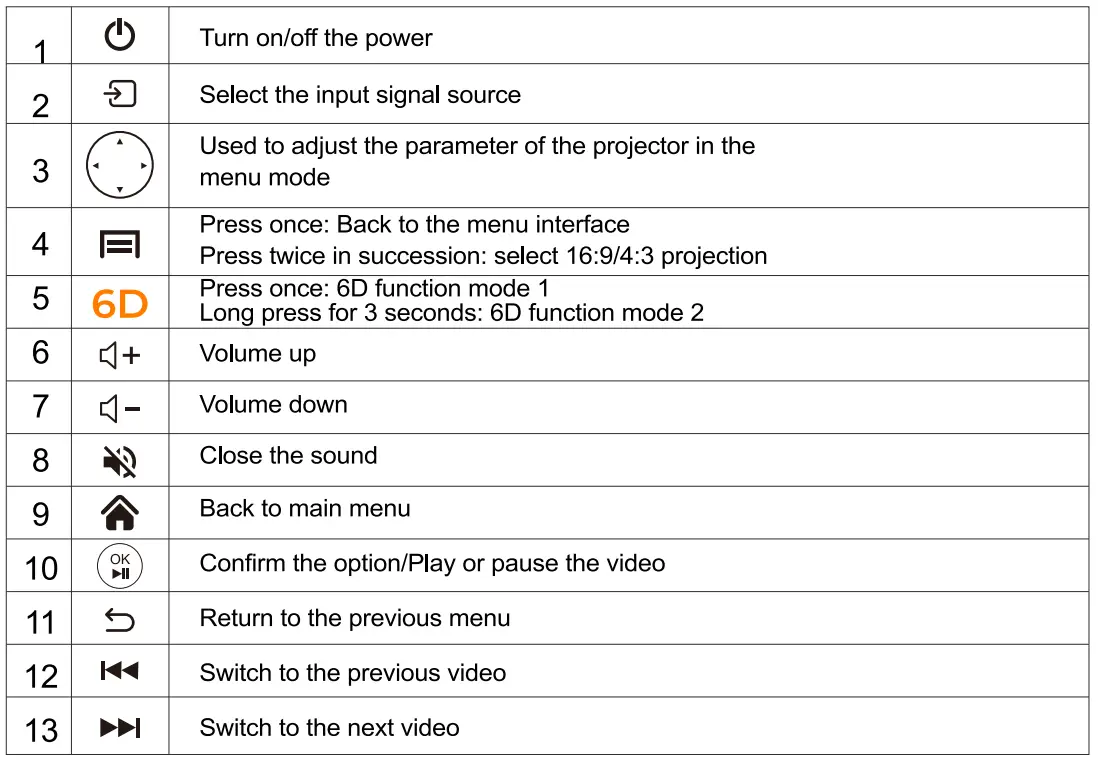

REMOTE CONTROL

Note:

1. Install 2 pieces of AAA batteries into the remote before using it. Do not combine new batteries with old ones in remote controller, which can cause operation failure due to insufficient power supply.
2. Wh en using the remote controller, please make sure that the signal transmitter of the remote controller aims at infrared signal receiver of the projector.
3. If you are not using the remote controller for an extended period, please take out the batteries to prevent batteries leakage.

INSTALLATION

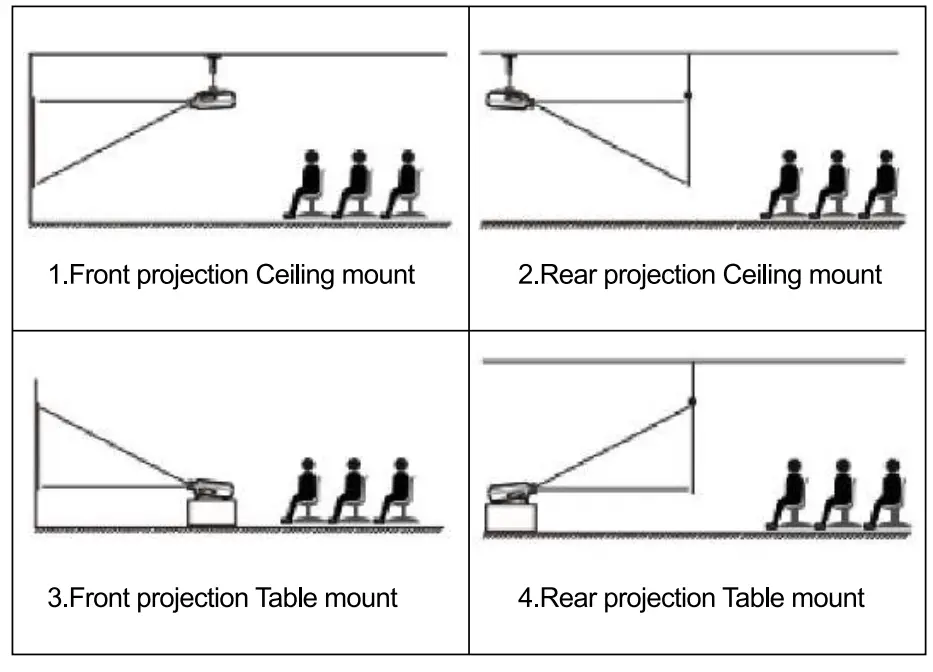

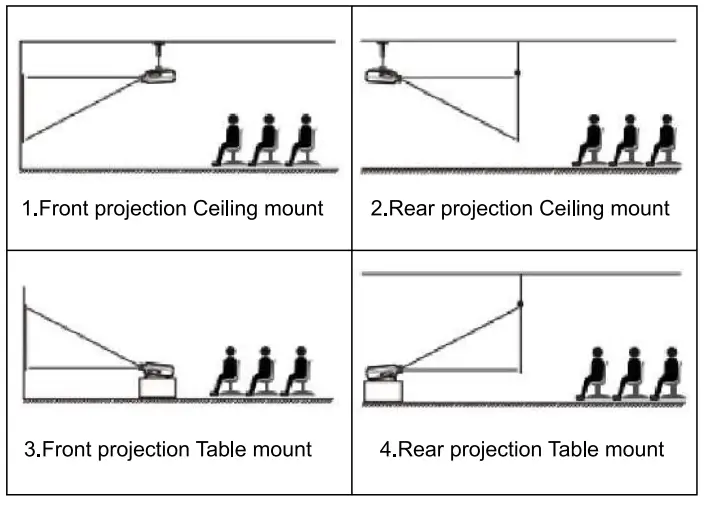

1. Installation Method The projector can be hung on the ceiling with a special hanger frame, and placed on the stable desk to project the image according to the operating environment and requirements. In addition, the projector can be installed with the following methods:

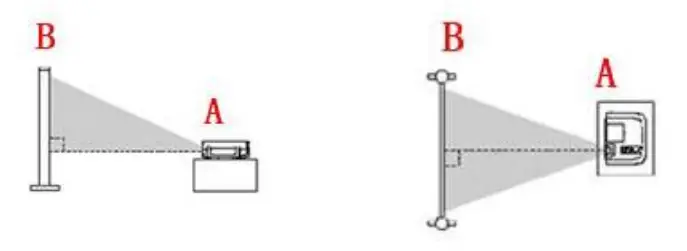

   Keep the projector at a height where its lens is axial symmetry to the screen. If this is not possible, use the keystone correction function to adjust the projection image.
   If you want to get a free projection screen, please contact us via[email protected]

   Aspect Ratio: 16:9
   Distance (ft.}	Screen Size
   5.50	50″
   7.80	70″
   11.0	100″
   13.0	120″
   16.4	150″
   21.8	200″

   The recommended projection distance is about 11ft, the shortest projection distance is 5.5ft.
   The image size depends on the distance between the projector and the screen, there may be a 3% deviation among the above-listed data. Different settings cause various distances.

2. lnstall on the Ceiling
   • Please purchase a universal projector ceiling mount;

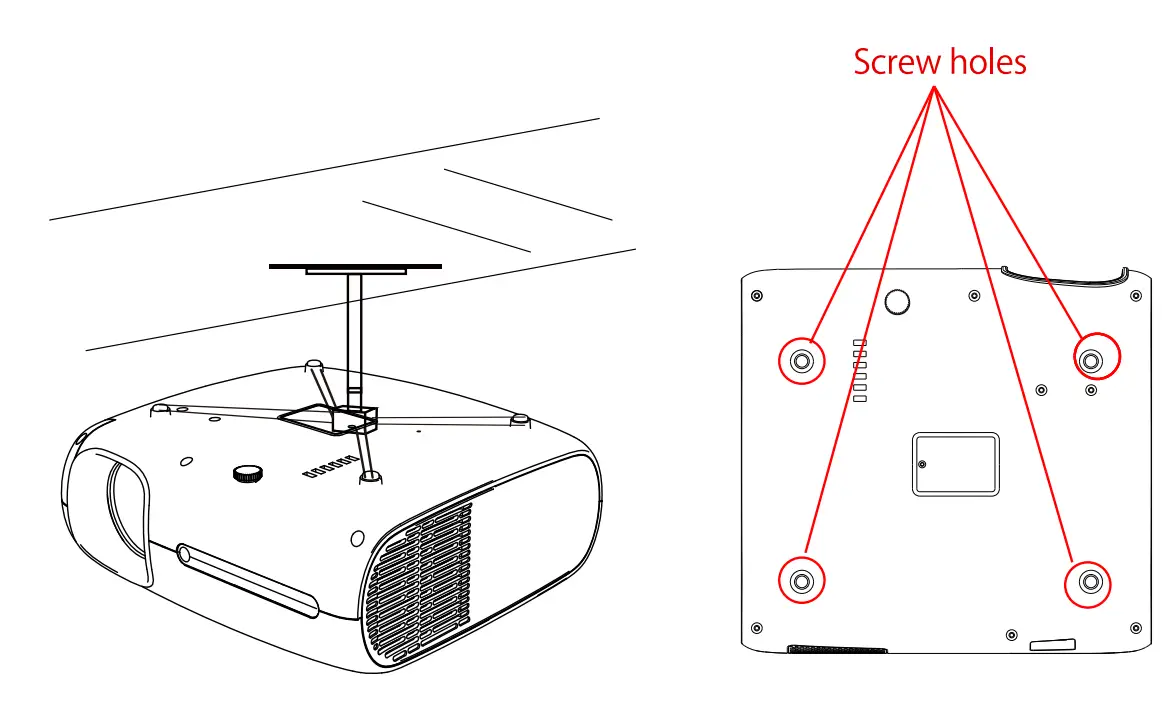

   • Remove the four rubber pads on the bottom of the projector, you will see the screw holes and use the M5*11 mm screws for installing the ceiling, and then install it.

STARTING PROJECTOR

1. Press the power key on the remote or projector, and the indicator light will turn blue;
2. Adjust the focus ring on the left side of the projector to get the best image performance; (If it is still blurry, please try to adjust the projection distance.)
3. Use the 6D keystone function of the projector to get a rectangle projection screen;
4. Connect the external device (Smart phone, iPad, Amazon Fire TV, TV box, DVD player, Computer, etc.) in the corresponding interfaces of the projector, please be sure to select the corresponding source. If you do not select the correct source, the projector will not be able to detect the signal.

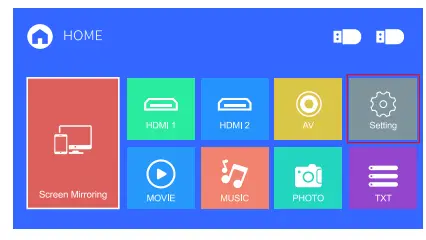

5. Select the [Setting] menu, enter the [Options] menu, and then you can select the option [OSD Language] to set the preferred language of your main system.
   PS: Select the [Screen Mirroring] menu.enter the [Settings] menu-[System Setting] menu, then you can select the option [Language] to set the preferred language of your Screen Mirroring system.

IMAGE ADJUSTMENT

When using the projector for the first time, it normally displays an unclear image. This is due to the lens being out of focus or the incorrect trapezoid setting.
Please follow the below steps to correct:

1. Focus AdjustmentRotate the focus ring slowly. At the same time, check the focus point carefully. The best focus point for the lens would be where the image most clear. Note: If it is still blurry, please try to adjust the projection distance.

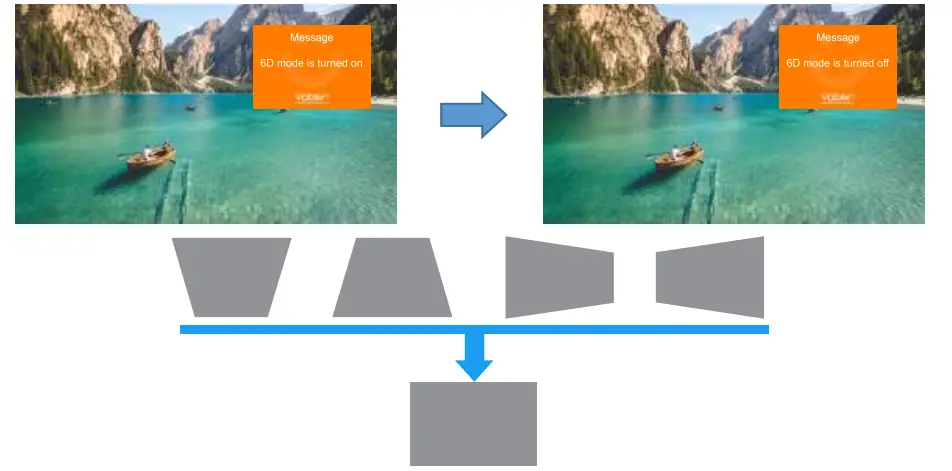

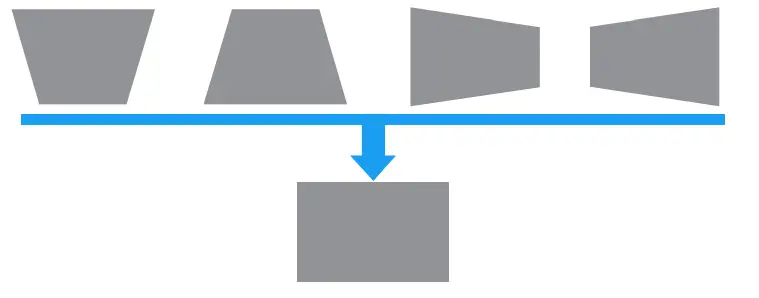

2. Auto 6D keystone Correction Function
   Turn on the projector. Make sure the lens (A) is facing at the screen/wall (B).

Mode 1:

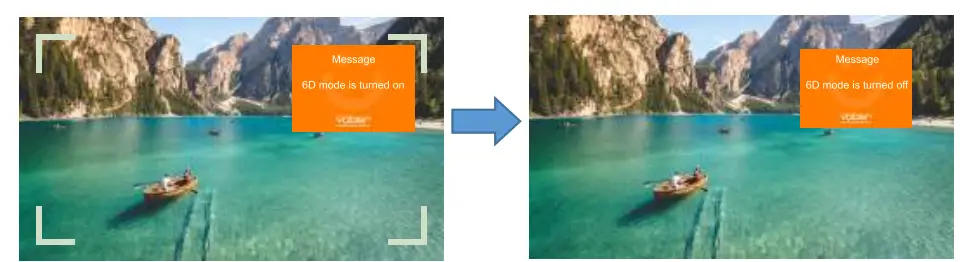

1. Press the 6D button on the remote control once to enter Auto 6D keystone correction mode 1.
2. Adjust the projection direction, the projection screen will automatically restore to a rectangle.
3. Press the 6D button on the remote control again, the four corners of the projection screen will disappear and exit Auto 6D keystone correction mode.

Mode 2:

1. Long press the 6D button on the remote control (or press and hold the OK button on the projector ) to enter 6D keystone correction mode 2.
2. Adjust the projection direction, the projection screen will automatically restore to a rectangle.
3. Long press the 6D button on the remote control to exit 6D keystone correc­tion mode.

Note:

1. ln mode 1 and mode 2, the auto 6D keystone correction function will work automatically.
2. lf you are not satisfied with the projection effect after correction, please disable the auto 6D keystone correction function, short press the 6D button on the remote control to reopen mode 1, and repeat the above operation.
3. The above operation must be repeated every time after the machine is turned on.
4. The projector cannot perform manual keystone correction in Auto 6D keystone correction mode.
5. The 6D function supports side projection. However, if the side projection angle is too large, some pixels will be lost on the side, please understand!

SETTING UP THE PROJECTOR

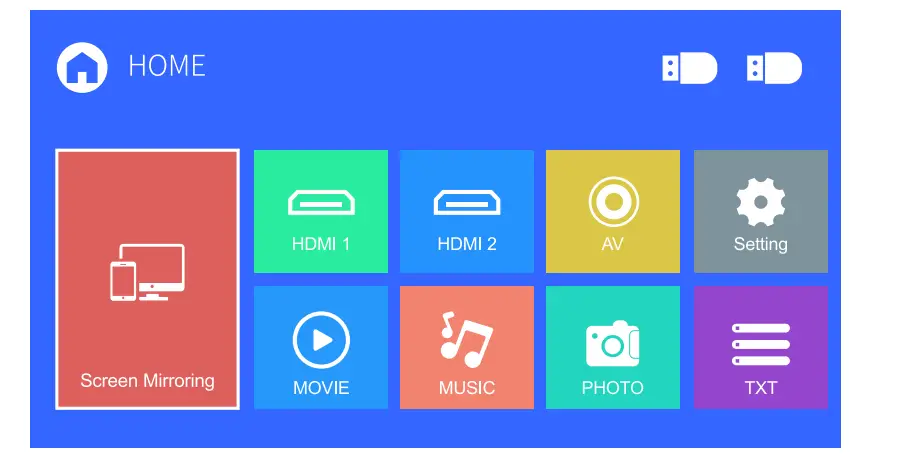

The projector’s home page is as follows.

1. Select The Input Signal Source
   Select the desired input signal source (HDMl1/HDMl2/AV) on the home-page
2. USB Disk Input Mode
   • Play Movie/Music/Photo/TXT in the USB Disk Input Mode
   • input the USB Disk, select [ USB] on the homepage and enter;
   • Select the option [ Movie/Music/Photo/TXT]
   • Select the desired file (or folder to enter the subfolder) in the USB disk, then press the [ OK ] button to play it.
     PS:
   • If you enter from the [Movie] menu, you can only play the video. The same as other 3 option.
   • U disk cannot play PPT files, but you can play PPT files by connecting to a computer.

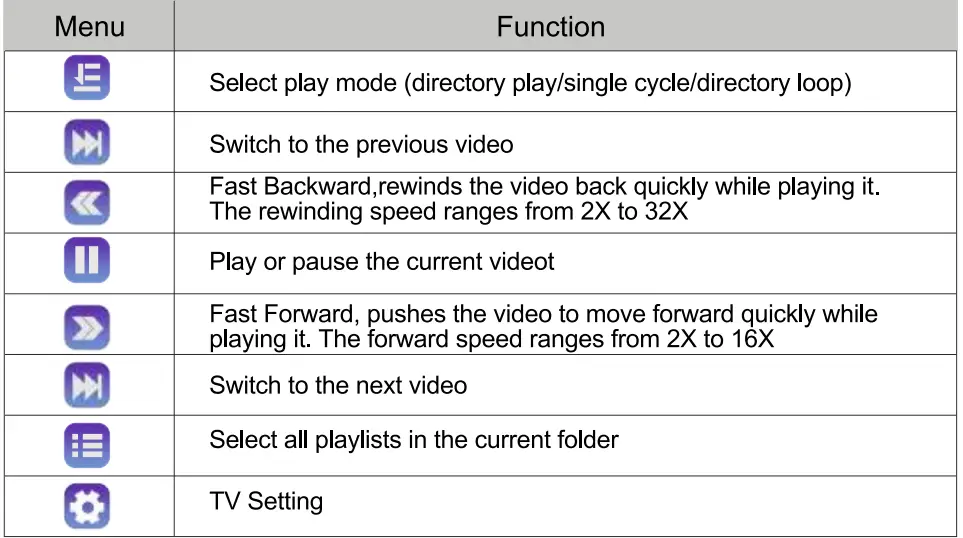

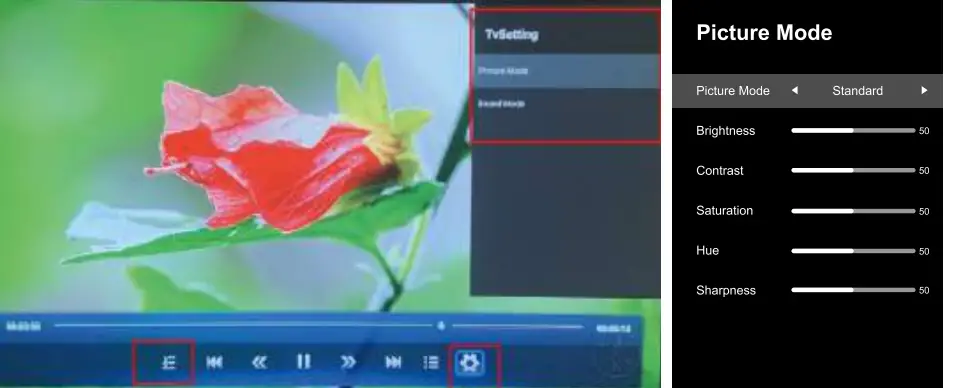

   • Play Interface


     Menu	Content	Mode	Function
     Picture Mode	User/StandardNivid/Soft	Brightness	Modify the picture parameters in the range 0-100
     		Contrast
     		Saturation
     		Sharpness
     Sound Mode	User/Standard/News/ Music/Sport	120Hz	Modify the sound parameters in the range 0-100
     		500Hz
     		1.5KHz
     		5KHz
     		10KHz

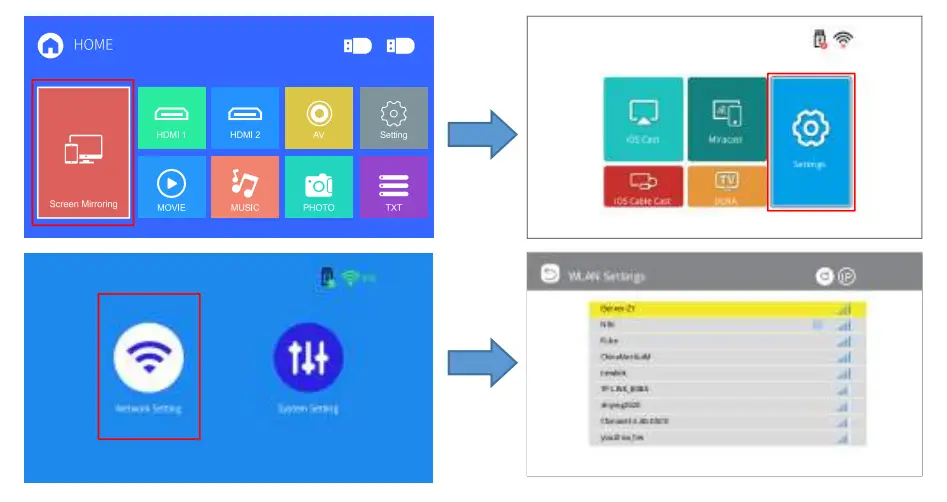

WiFi Setting

Wireless Connection
Warming Tips:

1. The fluency of screen mirroring with a wireless connection will be affected by the network environment. A bandwidth of 100Mbit or more is recommended when using screen mirroring.
   1. Make sure your mobile device is close to the projector when using a wireless connection. A distance of 1 meter is recommended.
2. Some mobile devices may not support screen mirroring due to the compati­bility.
3. Any questions, please feel free to email YABER via [email protected].

iOS Cast (for iOS Devices)

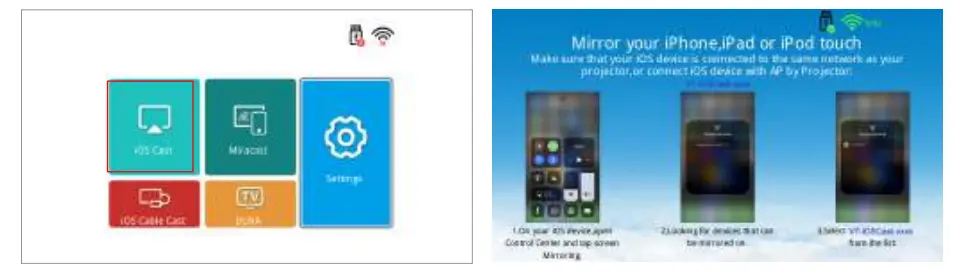

1. Go to the home page — Select the [ Screen Mirroring ] menu — Select the [ Settings ] – Select the [ Network Setting ]menu – Open the WiFi function -­Select your home WiFi from the list — Connect the V7 projector to your home WiFi.
2. Back to [ Screen Mirroring ] menu — Select [ iOS Cast] menu — Press the OK button to enter the [ iOS Cast] menu.
3. Select the [ Settings ] menu on your iOS device — Turn on the [ Wi-Fi ] function — Connect your iOS device to the same home network as the projector.
4. Open the [ Control Center] on your iOS device — Select the [ Screen Mirroring ] function — Select and connect the iOS Cast receiver named [ V7-iOSCast-xxxx] — your iOS device screen will be displayed on the projection screen after 3 seconds.

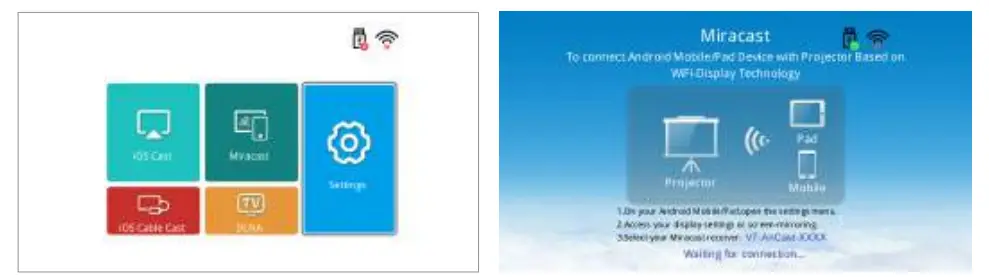

Miracast (for Android Devices)

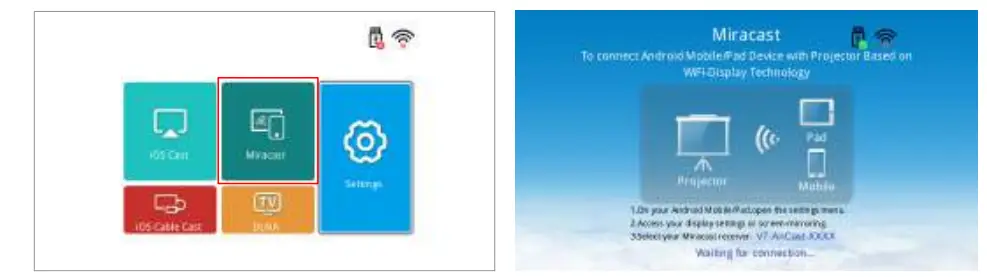

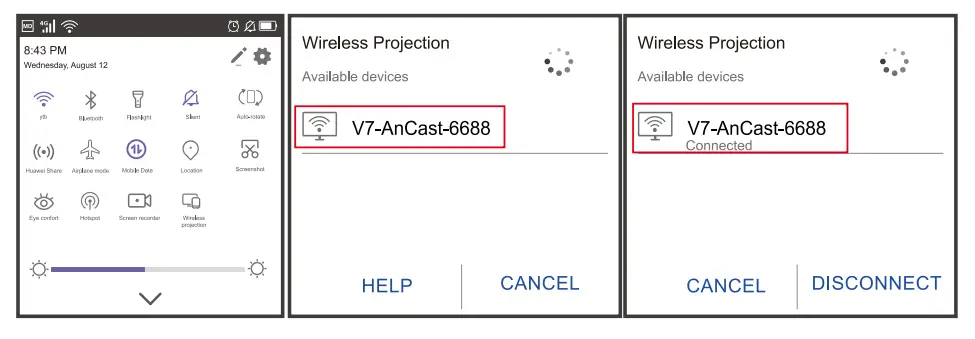

1. Go to the [ Screen Mirroring ] menu — Select the [ Miracast ] menu — Press the OK button to enter the [ Miracast Setting] Menu.
2. Select the [ Settings ] menu on your Android device — Select the [ Screen mirroring ] function – Select your Miracast receiver named [ V7-AnCast-XXXX ] — your Android device screen will be displayed on the projection screen after 3 seconds.
3. On your Android device, tap [Settings] -[ WLAN Display] -Turn [ Wi-Fi] ON, and Connect your home WiFi.
   Note:
   • Different brands of Android phones have different operations for select Screen Mirroring Display, please refer to your phone’s manual.
     [Multiscreen/Wireless display/WLAN display/Screen mirroring/Wireless projection/Smart view etc. ]
   • Not all Android phones support this function. Please make sure it is support­ed before use.

Wired Screen Mirroring{ for iOS Device)

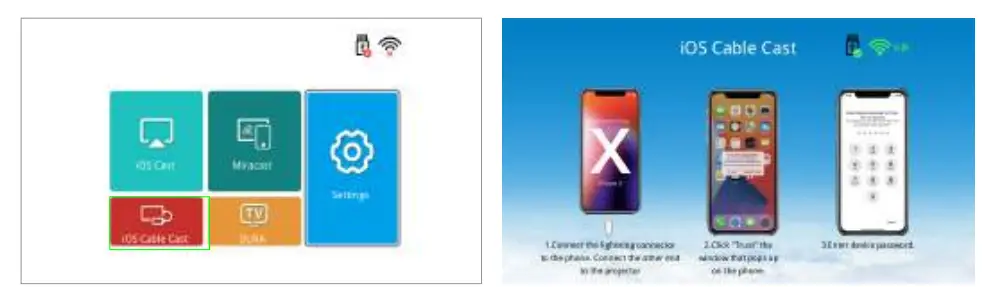

1. Go to [ Screen Mirroring ] menu •- Select the [ iOS Cable Cast ] menu -­Press the OK button to enter the [ Wired Screen Mirroring Setting ] Menu.
2. Plug the original cable of your IOS equipment to the USB-T Port.
3. Show with “Do you trust this equipment?”, tap “Trust”.

Wired Screen Mirroring {for Android Devices)

1. Go to [ Screen Mirroring ] menu — Select the [ Miracast ] menu — Press the OK button to enter the [ Wired Screen Mirroring Setting ] Menu.
2. Plug the original cable of your Android equipment to the USB-T Port.

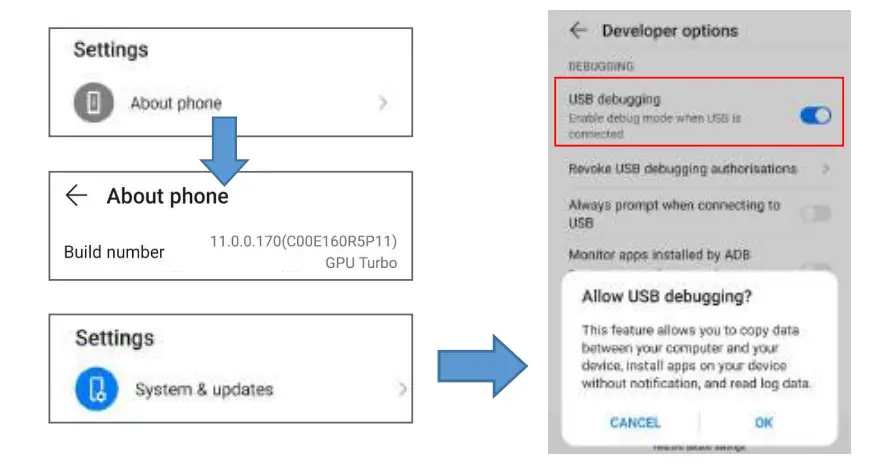

3. Android devices settings:
   1. Enter the [Setting] page of your device, click [About phone], click [Build number] 5 times;
   2. Return to the [Setting] page, click [System & updates], and enter Developer options;
   3. open the [USB debugging], tap OK in the pop-up window.
      Note:
      The USB cable MUST be the ORIGINAL cable or the cable which can transfer the data, otherwise screen mirroring may fail. You can plug the cable into your laptop to check the availability of transferring the data.

Bluetooth Setting

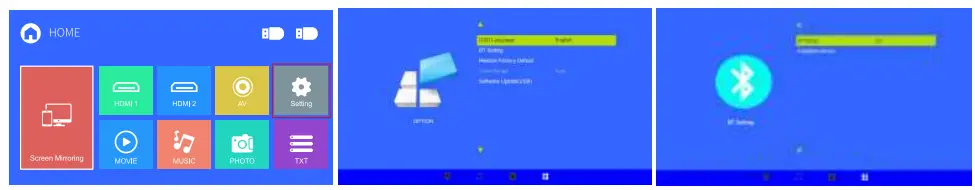

1. Go to home page – Select the [Setting] menu – Select the [OPTION] menu •· Select the [ BT Setting].
2. Open the Bluetooth function and your Bluetooth device.
3. Select [Availiable Device], click [ill to begin/stop searching the Bluetooth devices nearby.
4. Choose the Bluetooth device desired and press OK, wait a few seconds for a successful Bluetooth connection.

note:

1. The V7 projector is compatible with Bluetooth headsets, Bluetooth speakers and Airpods, but not the Bluetooth keyboards or Bluetooth phones.
2. lf you have any questions, please feel free to email YABER via: [email protected]

Projector Setting Menu

1. Select [Setting] menu on the projector’s home page.
2. Press”◄/►” key, the menu will move to “PICTURE”>”SOUND” >”TIME” »”OPTION”.
3. Select the adjust interface,use the”•/T” key to choose the wanted item.
4. press”OK” or”◄/►” to adjust the item parameter.

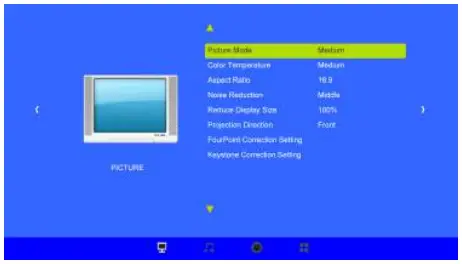

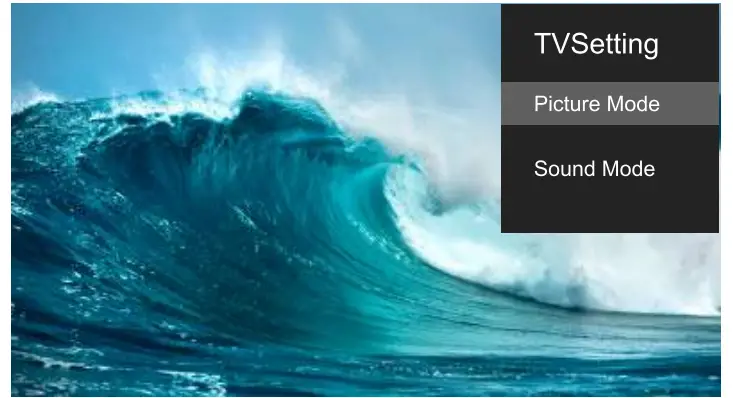

PICTURE MENU

Reduce Display Size

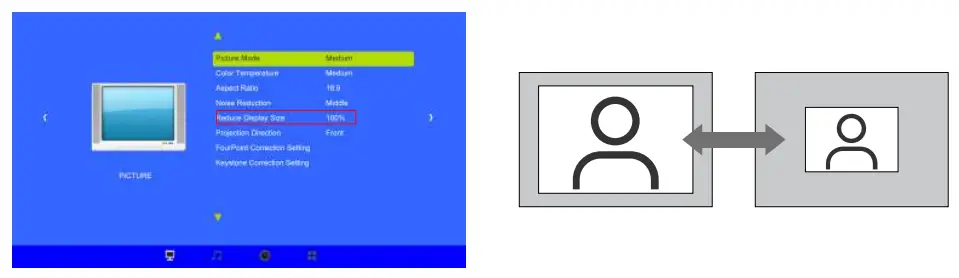

1. Press the button to select the [Reduce Display Size] menu, then press the [OK] bottom to enter the submenu.
2. By pressing the button on the remote or projector, you can reduce the height and width of the projection size up to 50%.

Projection Direction

FourPoint Correction Setting

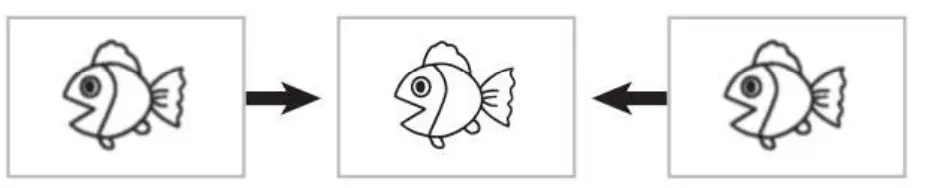

When the projection screen is not rectangular, it can be adjusted by a 4-point keystone correction.

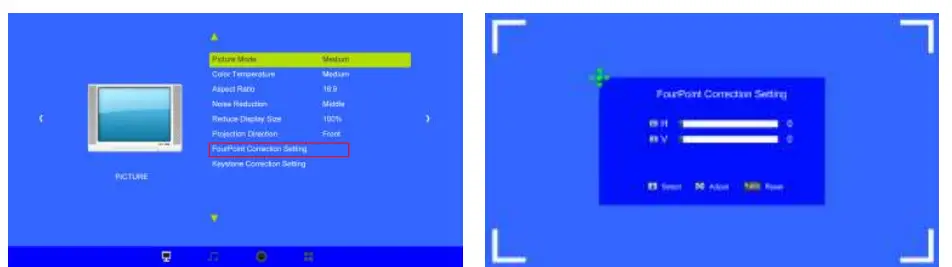

1. Step 1: Press the button to select the [ FourPoint Correction Setting ] menu, then press the [ OK] bottom to enter the submenu.
2. Step 2: Keep pressing the OK button on the remote control or projector to select the point IHI
3. Step 3: Press the arrow keys on the remote or projector to adjust the horizontal or vertical parameters, until the projection screen becomes the desired rectangle.
4. Step 4: Press the arrow keys on the remote or projector to adjust the horizontal or vertical parameters, until the projection screen becomes the desired rectangle.

Keep pressing the OK button on the remote control or projector, until the positioning icon appears at the point desired, then release the button immediately.
Press the arrow keys on the remote control or projector to adjust the horizontal or vertical parameters.
Press the l=I keys on the remote control to restore the original parameters.

Keystone Correction Setting

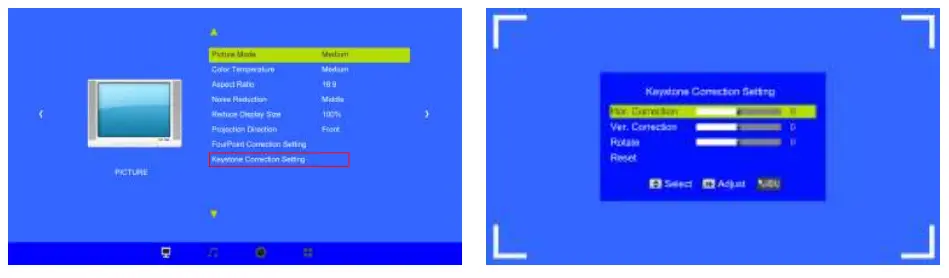

1. Step 1: Press the button to select the [Keystone Correction Setting ] menu, then press the [OK] bottom to enter the submenu.

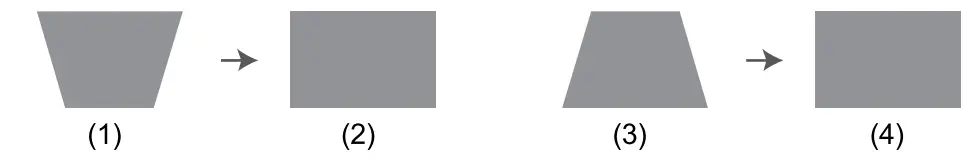

2. Step 2: If the projection image shows as (1), press the button on the remote or projector to increase the vertical parameter (-50-0), until to achieve the projection image (2).
3. Step 3: If the projection image shows as (3), then press the button on the remote or projector, and decrease the vertical parameter (0-50), until to achieve the projection image (4).

Keep pressing the button on the remote control or projector to choose Hor. Ner. Correction or Rotate, then release the button immediately.
Press the button on the remote control or projector to adjust the horizontal or vertical parameters.
Press the keys on the remote control to restore the original parameters.

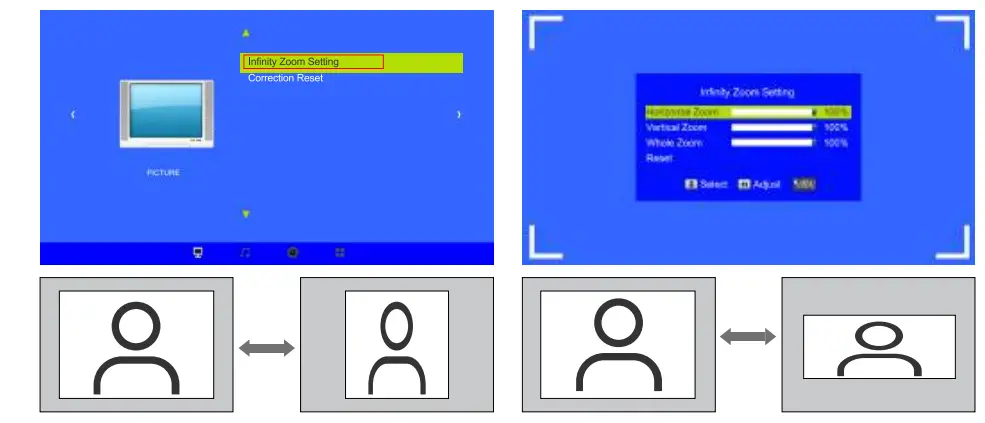

Infinity Zoom Setting

1. Step 1: Press the button to select the [Infinity Zoom Setting] menu, then press the [OK] bottom to enter the submenu.
2. Step 2: By pressing the button on the remote or projector, you can reduce the height or width of the projection size up to 70%.

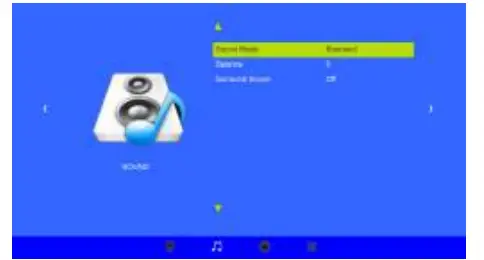

SOUND MENU

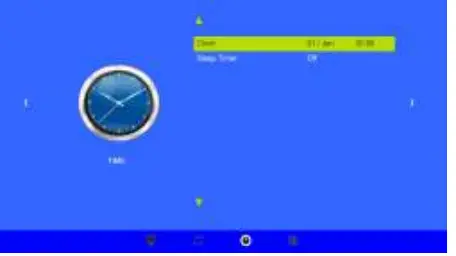

TIME MENU

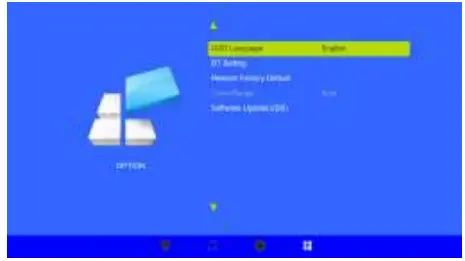

OPTION MENU

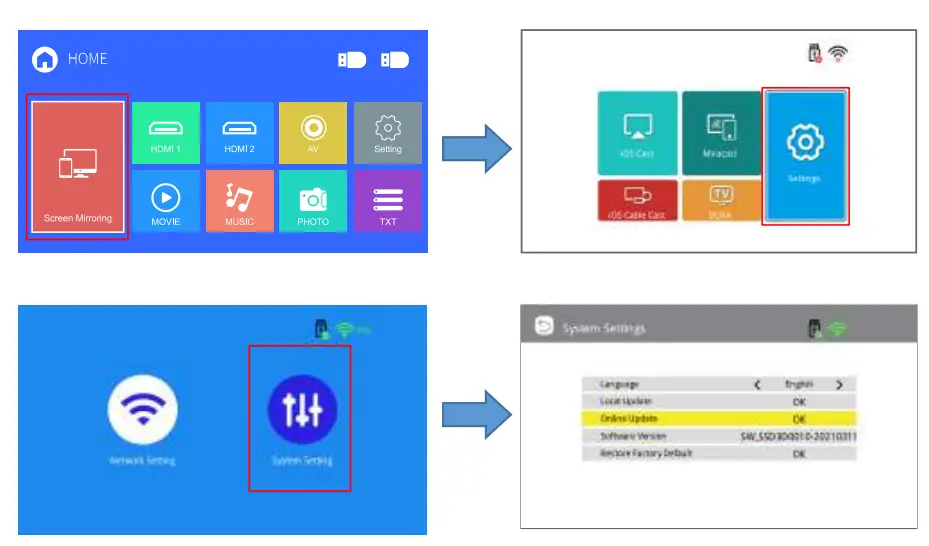

Screen Mirroring System Update

SIGNAL LINES CONNECTION

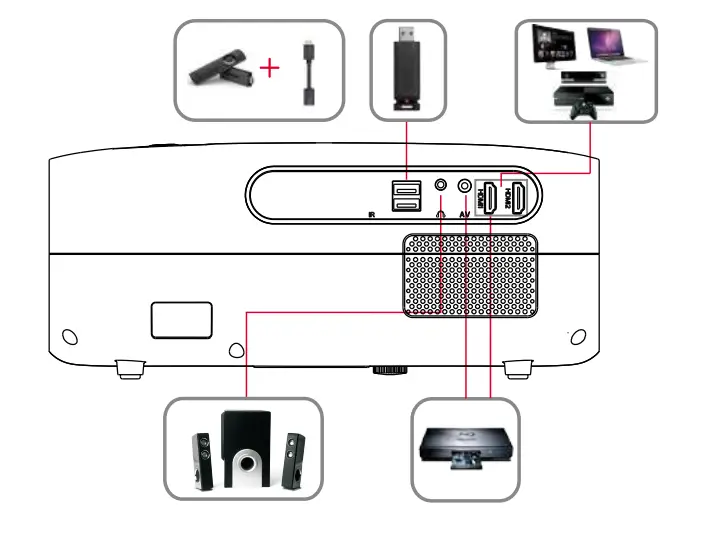

YABER V7 projector has 6 interfaces, HDMI ports*2/USB ports*2/3.5mm headphone output/AV output. Please select the correct connecting port to connect your device (PC, Phone, DVD Player, Soundbar, USB, PS4 etc.)

1. Connect USB Disk
   • Insert the U disk into either of the two usb input ports;
   • You can directly enter the start-up screen on the home page, select the option [ Movie/Music/Photo/TXT]
   • Select the desired file (or folder to enter the subfolder) in the USB disk, then press the [ OK ] button to play it.
2. Connect the Devices via the HDMI ports
   • Connect your TV stick or laptop to any HDMI port of the projector;
   • Enter the home page to select the corresponding HDMl1 or HDMl2 as the signal source.

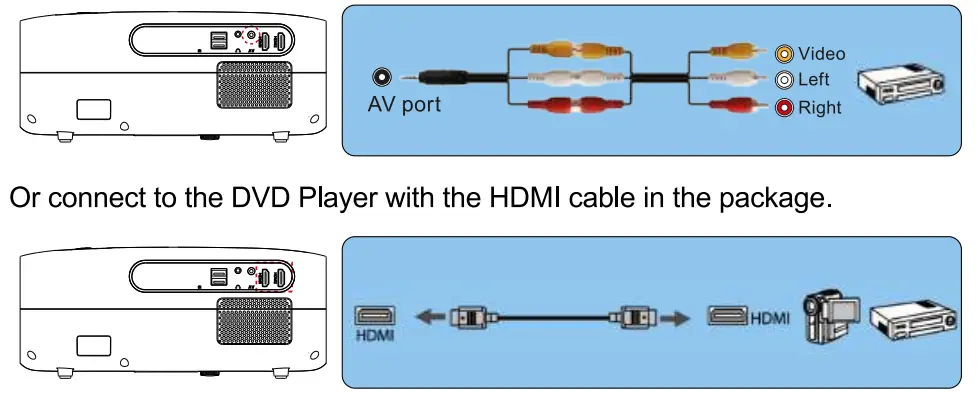

3. Connect to the DVD Player
   Use the 3-in -1 AV cable in the package
   • Turn on your DVD player and the projector;
   • Connect the colorful female connectors to your DVD player’s RCA cable with the 3-in-1 AV cable in the package;
   • Connect the black connector to the AV port of the projector, enter the home page to select [AV] as the signal source.
   •

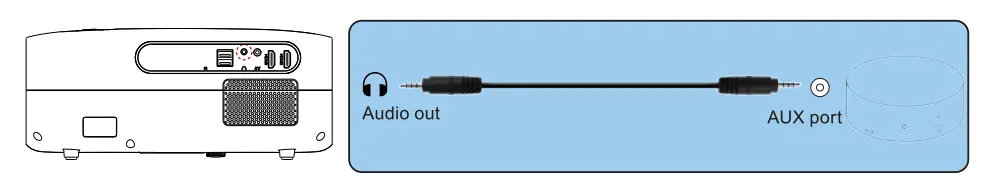

4. Connect to the Sound bar/Speaker
   If your speaker has AUX port, please use your 3.5mm audio cable to connect the projector and your speaker as the picture shows, and enter the home page to select [AV] as the signal source.

SAFE SHUTDOWN

1. Press the (‘.) button on the projector or remote.
2. Unplug the power cord of the projector.
3. Cover the lens and store the projector in a cool and dry place.

WARRANTY

Thank you so much for your purchase and support! We provide a 3-year warranty for V? projector. If you have any questions, please feel free to contact us via [email protected].

TROUBLESHOOTING

Problems listed below might occur during the operation of your projector. Please refer to the possible factors which might cause the issue to do troubleshooting.

1. When turning on the power switch, the indicator light does not work.
   • The power might not be connected well.
   • check the over-heat protection system.
2. The remote control does not communicate with the projector.
   • The power switch at the back of the projector is turned on or off?
   • The remote control’s batteries are depleted?
   • Something obstructing the signal between the remote and IR
   • Strong light on IR directly.
3. No image on the screen.
   • is the channel set-up correct?
   • Is there an input signal ?
   • Is the input cable plugged well ?
   • Under PC mode, is the refresh rate> 75KHz?
4. Blue screen,no picture,no sound.
   Input cables connected right?
5. Picture right, no sound.
   • Input cables connected right?
   • Volume at min or on Mute.
6. Can’t play the movies.
   • The format of the video is right?
   • Files are broken?
   • The device is broken?
7. There is a picture, no sound?
   The decoding system doesn’t match.
8. Can’t find devices when connected with hard drive or flash drive. Check if the device is broken.
9.  Auto-off after working for a while.
   • The projector ventilation is blocked.
   • The voltage is not stable.
   • The over-heat protection system.

FAQS

Can I adjust the dimensions of the output image without physically moving the projector?

Yes, you can use the remote control to reduce the image size.
