AUSSIE TRAVELLER
Incorporated in Queensland A.C.N. 010 809 168 A.B.N. 81 010 809 168
EuroVision Window Installation Instructions

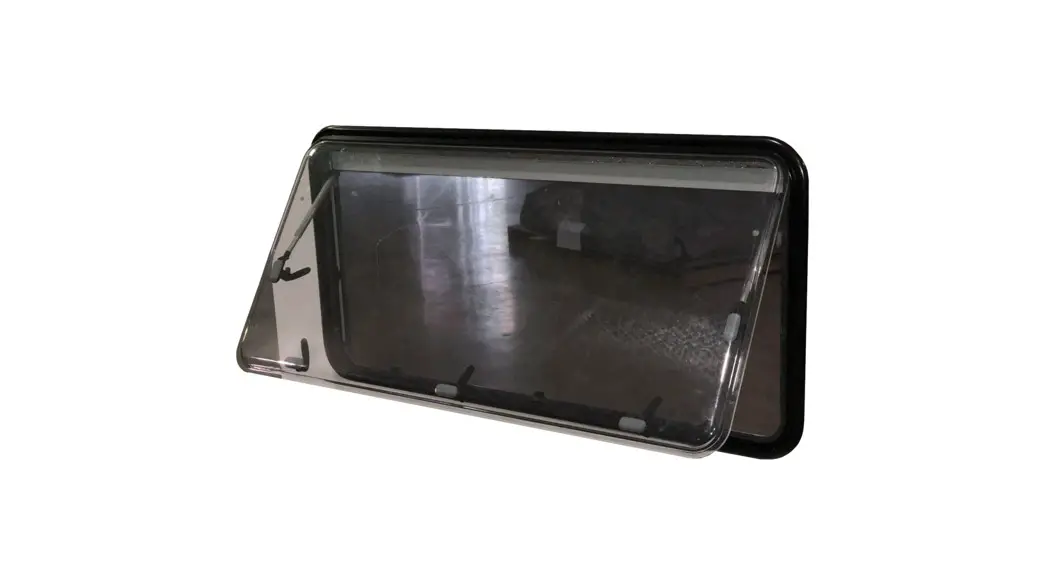

EuroVision Window and Blind Black Frame 800x1200mm

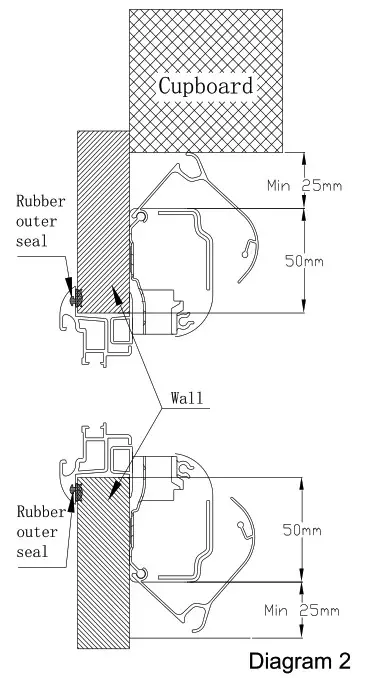

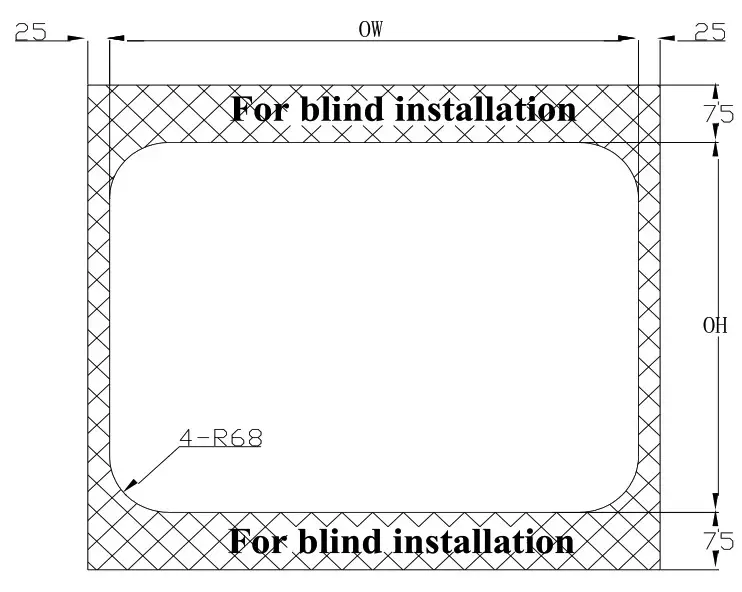

Step 1: Cut hole as Diagram 1&2
Diagram 1
OW( opening width)=W+3mm
OH (opening height)=H+3mm
Window size: 450X900
W=900mm H=450mm
OW=903mm, OH=453mm

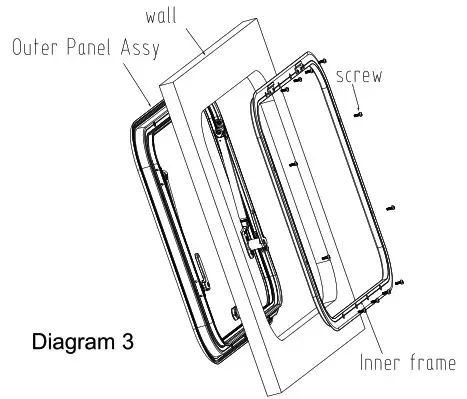

Step 2: Fix outer panel and Inner frame to wall as per Diagram 3, using set screw supplied.
NB: Do not over tighten screws.

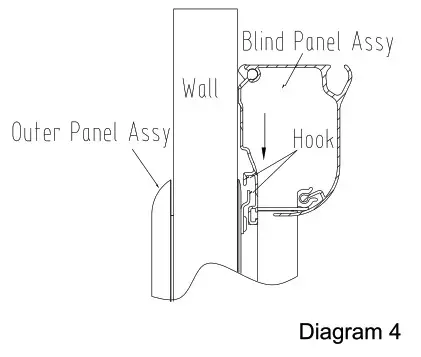

Step 3: Position blind panel over the hook as per Diagram 4, then slide down to locate into position.

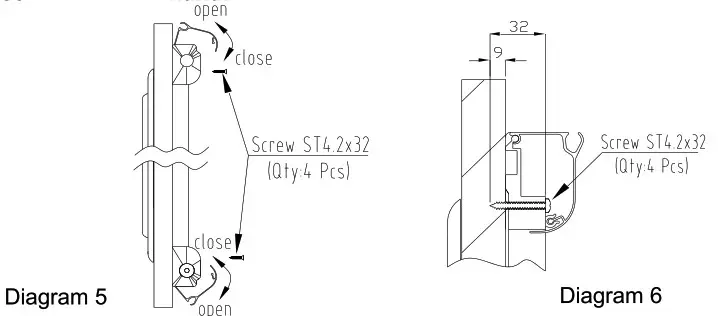

Step 4: Open top and bottom blind panel cover by lifting up/pulling down at corners, fix the blind panel to wall with ST4.2×32 screw as per Diagrams 5&6. Finally close the cover by hand.

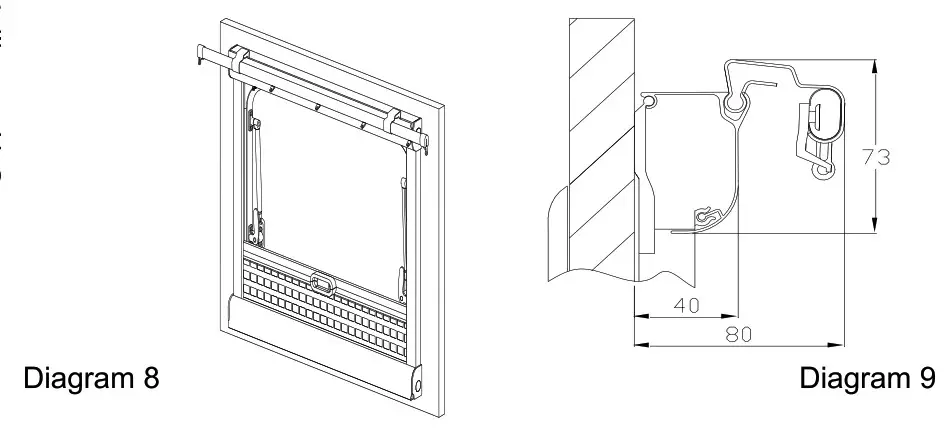

Optional Accessory: Curtain Track Assembly Kit Easily add a customized curtain to any window. The curtain track length is W+200mm. Kit comes with all fittings required to add curtains.
Tips for fitting
Use a magnetic tip screwdriver to hold screws when joining inner and outer frames.
Special Note:
- The window supplied is suitable for a flat wall. For Caravans/Motor Homes etc finished with profiled wall cladding, use a closed cell foam tape or suitable sealant to provide a waterproof fit. If using sealant remove the rubber outer seal provided before fitting.
- Normal Inner frame is suitable for 24-34mm wall thickness. For the wall thickness less than
24mm or more than 34mm, it is necessary to specify wall thickness when placing the order.
EuroVision Window Packing List
| 1. Outer Panel Assy: | 1pc |
| 2. Inner frame: | 1pc |
| 3. Blind Panel Assy: | 1pc |
| 4. Fitting Accessories: | |
| 1). Set Screw M4X14: | 1 bag Qty: as per table, incl. 2pcs spare |
| 2). Set Screw M4X20: | 1 bag Qty: as per table, incl. 2pcs spare |
| 3). Screw ST4.2×32: | 1 bag Qty: 6pcs, incl. 2pcs spare |
| 5. EuroVision Window Installation instructions and Packing List | |
| 6. EuroVision Window Operation Instructions | |
Fitting Accessories Qty List
| EV-H-W | M4x14 Qty | M4x20 Qty | ST4.2×32 Qty |
| EV-300-500 | 13 | 13 | 6 |
| EV-450-500 | 15 | 15 | 6 |
| EV-450-610 | 15 | 15 | 6 |
| EV-450-900 | 19 | 19 | 6 |
| EV-450-1100 | 19 | 19 | 6 |
| EV-500-900 | 19 | 19 | 6 |
| EV-500-1200 | 19 | 19 | 6 |
| EV-550-700 | 15 | 15 | 6 |
| EV-550-900 | 19 | 19 | 6 |
| EV-550-1100 | 19 | 19 | 6 |
| EV-550-1450 | 23 | 23 | 6 |
| EV-800-1000 | 23 | 23 | 6 |
| EV-800-1200 | 23 | 23 | 6 |

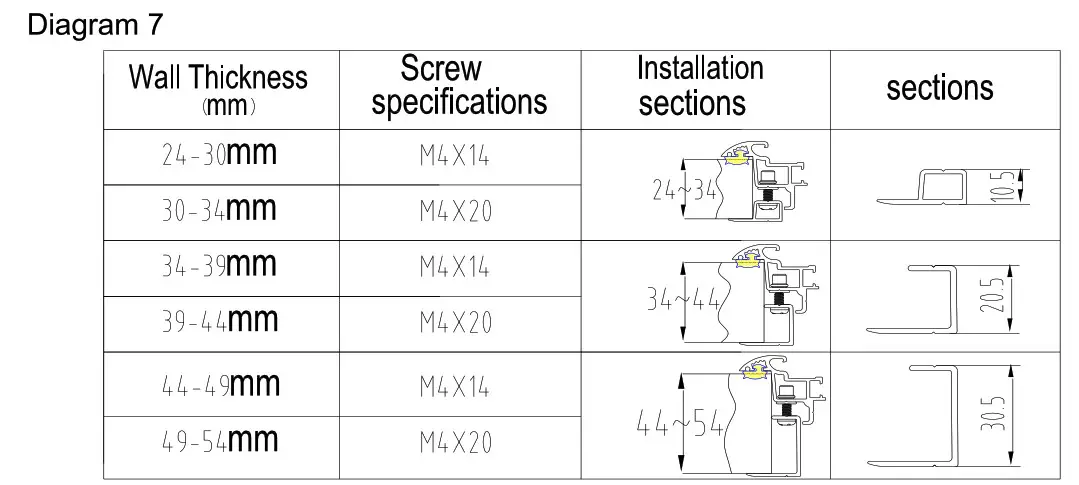

Either use M4x14 or M4x20, subject to wall thickness as per Diagram 7.
