Atd-3301a 27 Piece Master Radiator Pressure Test Kit Owner's Manual

ATD-3301A
27 Piece Master Radiator Pressure Test Kit
and Refill Kit Owner’s Manual

Features:

• Detects and exposes external system leaks
• Detects internal engine leaks due to blown head gaskets and/or cracked blocks or heads
• Easily test the entire cooling system; including the radiator, heater core, and radiator cap
• Vacuum purge and refill kit to refill cooling system and eliminate air pockets
• Test Range: 0 — 35 psi

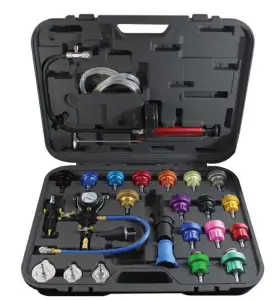

Kit Includes:

Hand pump, (1) thermometer, (1) universal radiator cap adapter, (1) vacuum purge and refill tool and coolant hose, (1) blue radiator cap test connector R123/R125, (1) black radiator cap test connector R123/R124, (19) adapters to fit most popular domestic and import cars and trucks, instructions and storage case.

Applications Include:

GM, Ford, Dodge/Chrysler, Jeep, Acura, Audi, BMW, Geo, Honda, Infinity, Isuzu, Lexus, Mazda, Mercedes, Mitsubishi, Nissan, Subaru, Suzuki, Toyota, Volvo, VW and more.

Made in China to ATD Tools, Inc. Specifications
Visit us at www.atdtools.com

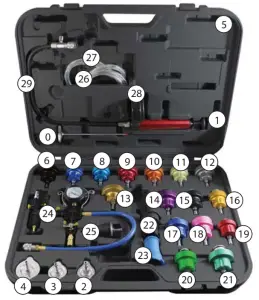

REPLACEMENT PARTS:

SAFETY WARNING AND PRECAUTIONS:

WARNING: The instructions and warnings contained in this manual should be read and understood before using or operating this tool. Do not allow anyone to use or operate this tool until they have read this manual and have developed a thorough understanding of how this tool works. Failure to observe any of the following instructions could result in personal injury or death.

SAFETY WARNING AND PRECAUTIONS
WARNING: The instructions and warnings contained in this manual should be read and understood before using or operating this tool. Do not allow anyone to use or operate this tool until they have read this manual and have developed a thorough understanding of how this tool works. Failure to observe any of the following instructions could result in severe personal injury to tool users and bystanders, or cause damage to the tool and property. Keep this manual for future reference.
NOTE: The warnings and cautions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product but must be supplied by the operator.
WARNING: Use safety equipment. User and bystanders should use safety goggles or safety glasses with side shields that comply with current national standards, or when needed, a face shield. Use an ANSI-approved dust mask or respirator when working around metal, wood, and chemical dust and mists. This applies to all persons in the work area. Also use non-skid safety shoes, hardhat, gloves, dust collection systems, and hearing protection when appropriate.
WARNING: Keep bystanders and children out of the work area while operating this tool.
WARNING: Always keep your work area clean, uncluttered, and well lit. Cluttered or dark areas invite accidents and injuries. DO NOT work on poor surfaces that are slippery.
WARNING: Do not operate this tool if you are tired or under the influence of alcohol, drugs, or medications that could affect your ability to use the tool properly.
WARNING: Dress properly. Do not wear loose clothing or jewelry as they can be caught in moving parts. Wear restrictive hair covering to contain long hair.
WARNING: Do not reach over or across running machines. Keep proper footing and balance at all times. Non-skid footwear is recommended when working.
OPERATING INSTRUCTIONS

• Before performing the test on your cooling system, test the pump first by pumping a few times to ensure it is working correctly. When testing, DO NOT PUMP OVER 20 psi.

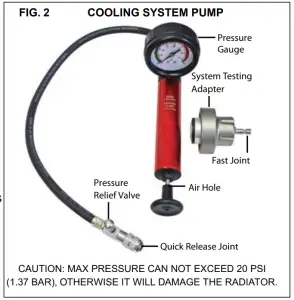

• During your inspection and during the test of your cooling system, when pumping the pump handle, always make sure that the force is applied straight into the pump rather than at an angle, or else it may cause the pump to leak. (See Figure 1)

TO TEST FOR LEAKS IN THE COOLING SYSTEM

1. Refer to the vehicle’s service manual for any specific radiator pressure testing instructions.
2. Loosen the vehicle’s radiator cap slowly to relieve any excess pressure before removing the cap completely. NEVER OPEN THE SYSTEM WHILE HOT, as this may cause personal injury.
3. Select the proper adapter and configuration of the stationary seat accessories. Securely attach the adapter to the filler neck of the radiator or expansion tank.
4. Attach the quick connector of the hand pump onto the adapter.
5. Rapidly pump the hand pump handle using straight force as shown in figure 1 while watching the pressure gauge. Pressurize the radiator up to the optimal pressure only – DO NOT OVER PRESSURIZE THE RADIATOR. Ideal readings should range between 15-20 psi (1.03-1.37 BAR).
   •Needle holds steady — If the gauge handholds at the same pressure number for 2 minutes, there are no serious leaks in the system.
   •Needle drops slowly — Indicates the presence of small leaks or seepage.
   •Needle drops quickly — Indicates serious leakage is present.
6. Once the test is complete, release the air pressure by depressing the pressure release valve on the hand pump hose, then disconnecting the quick coupler and adapter assembly.
7. Maintenance —After the testing process in Radiator Test:
   • Keep the adapter connected to the pump as you had set up while performing the actual test. Operate the pump several times to dissipate moisture and/or coolant that may have remained in the adapter and pump.
   • Oil the hand pump in order to lubricate the piston and prevent corrosion and internal damage.
8. Store the radiator pressure tester kit in its carrying case and keep the kit in a clean, dry, safe location out of reach of children and other unauthorized persons.

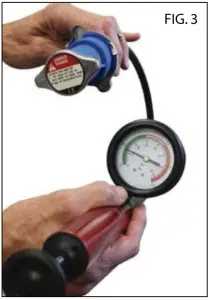

TO TEST FOR LEAKS IN THE ORIGINAL RADIATOR CAP:

1. Choose the correct radiator cap connector (43302-5A or 43302-5B) and correct steel radiator cap (43300-2, 43300-3, or 43300-4) for the correct vehicle being tested from the test kit. Fasten the original radiator cap to the radiator cap connector (43302-5A or 43302-5B) and then fasten the steel radiator cap (43300-2, 43300-3, or 43300-4) from the test kit to the other end of the radiator cap connector (43302-5A or 43302-5B).
2. Remove the hand pump assembly (43300-1) from the test kit and fasten the quick coupler at the end of the hose to the radiator cap (43300-2, 43300-3, or 43300-4) securely. Operate the hand pump until reaching the pressure recommended by the vehicle manufacturer. – DO NOT OVER-PRESSURIZE. Ideal readings should range between 15-20 psi (1.03-1.37 BAR).
3. Check the pressure reading on the gauge immediately after reaching the vehicle manufacturer’s recommended pressure. If the pressure drops, there is a leak in the radiator cap. After pressure testing is completed, press the release button on the quick coupler until the reading on the gauge reads 0. Remove quick coupler from radiator cap and then remove the original radiator cap from the original radiator cap connector.

PURGING AND REFILLING COOLING SYSTEM
PURGE COOLING SYSTEM:

1. Drain coolant from radiator.
2. Remove the purge and refill tool from the test kit and hang the tool in a convenient location under the hood with the hook provided.
3. Choose the correct radiator cap for the vehicle being tested, or the universal rubber radiator adapter from the test kit and install one of your choices on the cooling system opening. Fasten the quick coupler at the end of the hose on the purge and refill the tool to the radiator cap.
4. Turn VALVE 1 to the open position and VALVE 2 to the closed position. (See fig. 4)
5. Connect the air supply to the purge and refill tool and press ON/OFF until the pressure reaches 20-25 Hg (50-60 cm Hg). Turn VALVE 1 to the closed position and press ON/OFF off. (See fig. 5)

ATD-3301 VEHICLE COMPATIBILITY CHART
