CHAUVET Professional Maverick Silens 2 Profile

About This Guide

The Maverick Silens 2 Profile Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

Do not supply power to fixture until you have removed internal packing foam. Remove head cover, carefully remove internal packing foam and replace cover.
DO NOT open this product. It contains no user-serviceable parts.
DO NOT look at the light source when the product is on.
CAUTION: Flashing light is known to trigger epileptic seizures. User must comply with local laws regarding notification of strobe use.
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm, humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
CAUTION: This product’s housing may be hot when lights are operating.
Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
USE a safety cable when mounting this product overhead.
DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
DO NOT operate this product if the housing, lenses, or cables appear damaged.
DO NOT connect this product to a dimmer or rheostat.
ONLY connect this product to a grounded and protected circuit.
ONLY use the hanging/mounting bracket or the handles to carry this product.
The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 3.5 m is not expected.
If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
The luminaire is intended for professional use only.
The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
In the event of a serious operating problem, stop using immediately.

What is Included

Maverick Silens 2 Profile
Seetronic Powerkon IP65 power cord
Gel frame holder and gel frame
2 spare gobo holders
2 Omega brackets with mounting hardware
Quick Reference Guide

CAUTION: Do not supply power to fixture until you have removed internal packing foam. Remove head cover, carefully remove internal packing foam and replace cover.

AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

Power linking
It is possible to link up to 2 Maverick Silens 2 Profile products at 100/120 V, 4 products at 208 V, or 4 products at 230/240 V. Never exceed this number. Power-linking cords can be purchased separately from Chauvet.

AC plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live	Black	Brown	Yellow/Brass
AC Neutral	White	Blue	Silver
AC Ground	Green/Yellow	Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing the fuse

Disconnect the product from power.
Using a flathead screwdriver, unscrew the fuse holder cap from the housing.
Remove blown fuse and replace with a good fuse of the same type and rating.
Screw the fuse holder cap back in place and reconnect power.

DMX Linking
The Maverick Silens 2 Profile will work with a DMX controller using a 3- or 5 pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX connection
The Maverick Silens 2 Profile uses a 3- or 5-pin DMX data connection for its DMX personalities: 32Ch and 41Ch. See the User Manual for information about connecting and configuring the product for DMX operation.

RDM (Remote Device Management)
Remote Device Management, or RDM, is a standard for allowing DMX enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller’s User Manual or with the manufacturer, as not all DMX controllers have this capability. The Maverick Silens 2 Profile supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Signal Connection
The Maverick Silens 2 Profile can link to controller software using an Ethernet connection. If using other Art-Net™ or sACN -compatible products with the Maverick Silens 2 Profile, you can control each individually on a single network. See the User Manual for information about how to connect and configure the product for these signals.

Art-Net™ connection
Art-Net™ is an Ethernet protocol that uses TCP/IP, which transfers a large amount of DMX512 data using a Neutrik® etherCON® RJ45 connection over a large network. An Art-Net™ protocol document is available from www.chauvetprofessional.com. Chauvet Professional recommends using unicast Art-Net™ for best results.
Art-Net™ designed by and copyright Artistic License Holdings Ltd.

sACN connection
Streaming-ACN, also known as ANSI E1.31, is an Ethernet protocol that uses the layering and formatting of Architecture for Control Networks to transport DMX512 data over IP or any other ACN compatible network.

Wireless Operation
In optimal conditions, the Maverick Silens 2 Profile can operate up to 300 m (900 ft) away from the CRMX transmitter.
The CRMX receiver in the Maverick Silens 2 Profile must be paired with the CRMX transmitter for wireless operation. Download the User Manual from www.chauvetprofessional.com for more details.

USB Software Update

The Maverick Silens 2 Profile allows for software update through USB using the built-in USB port. To update the software using USB flash drive, do the following:

Power on the fixture and plug the flash drive into the USB port.
Once the flash drive has been detected, the message “Upgrade Firmware” will be displayed. Press ENTER. If a different message appears on the display, search for the updated software in the Menu (Updated Firmware). A list of the updated software files will be displayed.
Select the file that needs to be uploaded. The message “Are you sure?” will be displayed. Press ENTER.
If the selected file is correct, the upgrade will be completed. Restart the fixture. If the selected file is incorrect, the upgrade will fail, and the display will go back to the main interface. Repeat steps 1-3 using the correct file.

The .chl format file needs to be placed in the MAVERICK folder in the USB flash drive.

Mounting

Before mounting this product, read the Safety Notes. Use at least two mounting points per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to
http://trusst.com/productcategory/truss-clamps/.

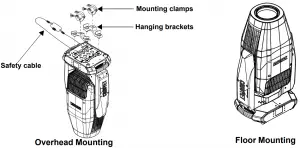

Mounting diagram

Battery-powered Display

Press and hold until menu screen appears (approximately 15 seconds). Pressing the left center button also activates the battery backup display.

Followspot Mode

The followspot mode disables the pan and tilt motors, allowing the output of the product to be aimed by hand. To enable the followspot mode of the Maverick Silens 2 Profile, hold<UP> and <LEFT> while the product is powering on. When the product is turned off and back on, the pan and tilt will return to normal function.

Control Panel Description

Button	Name	Function
	<UP>	Navigates upwards through the menu list or increases the numeric value when in a function
	<MENU>	Exits from the current menu or function
	<DOWN>	Navigates downwards through the menu list or decreases the numeric value when in a function
	<LEFT>	Navigates leftwards through the menu list
	<ENTER>	Enables the currently displayed menu or sets the currently selected value into the selected function
	<RIGHT>	Navigates rightwards through the menu list

Menu Map

Refer to the Maverick Silens 2 Profile product page on www.chauvetprofessional.com for the latest menu map.

Main Level	Programming Levels						Description
Address	001–512						Sets the starting address
Network Setup	IP Mode		Manual				Manually set IP address
			DHCP				Network sets IP address
			Static				Product sets IP address
	Universe		000–255 (Art-Net™) 001–256 (sACN)				Sets the universe
	IP		002._ _ _._ _ _._ _ _				Sets the IP address in Manual mode
	SubMask		_ _ _._ _ _._ _ _._ _ _				Sets the Subnet Mask in Manual mode
Personality	Dmx Mode 32CH						Selects the 32-channel mode
	Dmx Mode 41CH						Selects the 41-channel mode
Settings	Control Mode		DMX				Sets the control protocol
			CRMX
			ArtNet
			sACN
	Absolute Silence		No				Enables/disables Absolute Silence mode
			Yes
	Steady		Off				Disables Steady mode
			Steady Mode 1				Environment temperature 26 °C
			Steady Mode 2				Environment temperature 35 °C
	Red Shift		No				Mimics halogen lamp dimming
			Yes
	Pan Reverse		No				Normal pan
			Yes				Reversed pan
	Tilt Reverse		No				Normal tilt
			Yes				Reversed tilt
	Screen Reverse		No				Normal display
			Yes				Inverted display
			Auto				Automatic display orientation
	Pan Angle		540				540° pan range
			360				360° pan range
			180				180° pan range
			90				90° pan range
	Tilt Angle		270				270° tilt range
			180				180° tilt range
			90				90° tilt range
	BL. O. P/T Move		No				Do not black out while panning/tilting
			Yes				Blackout while panning/tilting
	BL. O. Color Move		No				Do not black out while color wheel moving
			Yes				Blackout while color wheel moving
	BL. O. Gobo Move		No				Do not black out while gobo wheels moving
			Yes				Blackout while gobo wheels moving
	Touch Calibration		No				Calibration disabled
			Yes				Calibration enabled
	Touch Lock		No				Touchscreen enabled
			Yes				Touchscreen disabled
	Lock Screen		Off				Lock the buttons and touch screen Passcode: 0920
			On
	Swap XY		No				Do not swap pan and tilt
			Yes				Pan controls tilt, tilt controls pan
	CRMX Reset		No				Do not reset CRMX

	Yes				Reset CRMX
	Display Timeout		30S				Display turns off after 30 seconds
			1M				Display turns off after 1 minute
			2M				Display turns off after 2 minutes
			On				Display remains on
	Loss of Data		Hold				Holds last signal received
			Close				Blacks out fixture
	Dimmer Curve		Linear				Set the dimmer curve
			Square
			I Square
			SCurve
	Dimmer Speed		Fast				Set the dimmer speed
			Smooth
	LED Frequency		20000Hz				Sets the LED frequency
			40000Hz
	Preset Select		Preset A				Recorded preset menu options
			Preset B
			Preset C
	Preset Sync		No				Allows recorded preset menu options to be transferred to other Maverick Silens 2 Profile fixtures in the DMX daisy chain
			Yes
	Reset	Pan/Tilt			Yes/No		Reset individual functions or all functions from start-up
		Iris/Prism
		Color/CMY
Shutters
Gobo/Gobo Rotate
Frost
Animation
Zoom
Entire Fixture
Factory Reset		No				Reset to factory default settings
Upgrade Firmware		No such file!				USB software upgrade
		xxx.EKL
		…
Test	Auto Test		No				Auto test all functions
			Yes
	Manual Test	Pan				000–255	Manually control and test all settings through the control panel
		Pan Fine
		Tilt
		Tilt Fine
		P/T Speed
		Dimmer
		Dimmer Fine
		Shutter/Strobe
		Virtual Strobe
		Cyan
		Magenta
		Yellow
		CTO
		Color

		Hue Adjustment
		Red Shift
		RGobo Wheel
		Gobo Rotation
		RGobo Wheel Index Fine
		Static Gobo Wheel
		Animation Wheel
		Shutter Rotate
		Shutter 1
		Shutter 1-1
		Shutter 2
		Shutter 2-1
		Shutter 3
		Shutter 3-1
		Shutter 4
		Shutter 4-1
		Focus
		Focus Fine
		Auto Focus
		Zoom
		Zoom Fine
		Prism
		Prism Rotation
		Iris
		Frost
Frost Fine
Information	Fixture Information	Ver				V_	Shows firmware version
		DMX Address				_ _ _	Shows current starting address
		Personality				_ _ _	Shows current personality
		Temperature				_ _°C/ _ _°F	Shows current product temperature in °C and °F
		Fixture Hours				_ _ _ _ _	Shows number of hours product has been powered on
		IP Address				_ _ _ _ _ _ _ _	Shows current IP address
		Subnet Mask				_ _ _ _ _ _ _ _	Shows current Subnet Mask
		MAC				_ _ _ _ _ _ _ _	Shows current MAC address
	Error Information			No Error!			Shows any errors, or No Error!
	DMX Values	Pan				000–255	Shows current DMX value of each setting
		Pan Fine
		Tilt
		Tilt Fine
		P/T Speed
		Dimmer
		Dimmer Fine
		Shutter/Strobe
		Cyan
		Magenta
		Yellow
		CTO
		Color
		Hue Adjustment
		Red Shift
		Gobo 1
		Gobo1 Rotation
		Gobo1 Rotation Fine
	DMX Values (continuation)	Static Gobo Wheel				000–255	Shows current DMX value of each setting

DMX Values

41CH

Channel	Function	Value	Percent/Setting
1	Pan	000 ⇔ 255	0–100%
2	Pan fine	000 ⇔ 255	Fine control (16-bit)
3	Tilt	000 ⇔ 255	0–100%
4	Tilt fine	000 ⇔ 255	Fine control (16-bit)
5	Pan/tilt speed	000 ⇔ 255	Fast to slow
6	Dimmer	000 ⇔ 255	0–100%
7	Dimmer fine	000 ⇔ 255	Fine control (16-bit)
8	Shutter/Strobe	000 ⇔ 010 011 ⇔ 082 083 ⇔ 093 094 ⇔ 163 164 ⇔ 174 175 ⇔ 223 224 ⇔ 255	No function (shutter open) Shutter effect, slow to fast No function (shutter open) Pulse effect in sequences No function (shutter open) Random effect, slow to fast No function (shutter open)
9	Virtual strobe	000 ⇔ 004 005 ⇔ 010 011 ⇔ 015 016 ⇔ 020 021 ⇔ 025 026 ⇔ 030 031 ⇔ 070 071 ⇔ 075 076 ⇔ 116 117 ⇔ 121 122 ⇔ 162 163 ⇔ 167 168 ⇔ 208 209 ⇔ 255	No function Section 1 on Section 2 on Section 3 on Section 4 on Section 5 on Stop between sections 1–5 clockwise, fast to slow Stop Stop between sections 1–5 counterclockwise, slow to fast Stop Fade between sections 1–5 clockwise, fast to slow Stop Fade between sections 1–5 counterclockwise, slow to fast No function
10	Cyan	000 ⇔ 255	0–100%
11	Magenta	000 ⇔ 255	0–100%
12	Yellow	000 ⇔ 255	0–100%
13	CTO	000 ⇔ 255	0–100%
14	Color wheel	000 ⇔ 004 005 ⇔ 009 010 ⇔ 013 014 ⇔ 018 019 ⇔ 022 023 ⇔ 027 028 ⇔ 031 032 ⇔ 187 188 ⇔ 219 220 ⇔ 223 224 ⇔ 255	Open Red Orange Dark green Cyan Congo blue UV Split color Color scroll, fast to slow Stop Reverse color scroll, slow to fast
15	Hue adjustment	000 ⇔ 127 128 ⇔ 255	-25 to 0 green 0 to +25 green
16	Red shift	000 ⇔ 010 011 ⇔ 127 128⇔ 255	No function Red shift off Red shift on
17	Rotating gobo wheel	000 ⇔ 005 006 ⇔ 010 011 ⇔ 015 016 ⇔ 020 021 ⇔ 025 026 ⇔ 030 031 ⇔ 035 036 ⇔ 040 041 ⇔ 055 056 ⇔ 070 071 ⇔ 085 086 ⇔ 100 101 ⇔ 115 116 ⇔ 130 131 ⇔ 145 146 ⇔ 200 201 ⇔ 255	Open Gobo 1 (Barking up a flaming river) Gobo 2 (Floyd) Gobo 3 (Sparse branches) Gobo 4 (Something linear) Gobo 5 (Super max) Gobo 6 (Windowpane) Gobo 7 (Shower glass) Gobo 1 shaking, slow to fast Gobo 2 shaking, slow to fast Gobo 3 shaking, slow to fast Gobo 4 shaking, slow to fast Gobo 5 shaking, slow to fast Gobo 6 shaking, slow to fast Gobo 7 shaking, slow to fast Gobo scroll, static to fast Reverse gobo scroll, static to fast
18	Gobo 1 rotation	000 ⇔ 191 192 ⇔ 221 222 ⇔ 225 226 ⇔ 255	Indexing Gobo rotation, fast to slow Stop Reverse gobo rotation, slow to fast
19	Gobo wheel 1 indexing fine	000 ⇔ 255	Fine control (16-bit)
20	Static gobo wheel	000 ⇔ 005 006 ⇔ 010 011 ⇔ 015 016 ⇔ 020 021 ⇔ 025 026 ⇔ 030 031 ⇔ 035 036 ⇔ 040 041 ⇔ 045 046 ⇔ 060 061 ⇔ 075 076 ⇔ 090 091 ⇔ 105 106 ⇔ 120 121 ⇔ 135 136 ⇔ 150 151 ⇔ 165 166 ⇔ 210 211 ⇔ 255	Open Gobo 1 (Dotty) Gobo 2 (Stones)Gobo 3 (Leafiness) Gobo 4 (Busted burlap) Gobo 5 (EVH) Gobo 6 (Basketcase) Gobo 7 (CaChow) Gobo 8 (Grass vignette) Gobo 1 shaking, slow to fast Gobo 2 shaking, slow to fast Gobo 3 shaking, slow to fast Gobo 4 shaking, slow to fast Gobo 5 shaking, slow to fast Gobo 6 shaking, slow to fast Gobo 7 shaking, slow to fast Gobo 8 shaking, slow to fast Gobo scroll, static to fast Reverse gobo scroll, static to fast
21	Animation wheel	000 ⇔ 003 004 ⇔ 127 128 ⇔ 131 132 ⇔ 255	Open / No function Clockwise rotation, fast to slow Stop Counterclockwise rotation, slow to fast
22	Framing shutter rotation	000 ⇔ 127 128 129 ⇔ 255	Rotation, left to center Stop Rotation, center to right
23	Framing shutter 1 movement	000 ⇔ 255	Movement, outward to inward
24	Framing shutter 1 swiveling	000 ⇔ 127 128 129 ⇔ 255	Swiveling from -25° to 0° 0° Swiveling from 0° to +25°
25	Framing shutter 2 movement	000 ⇔ 255	Movement, outward to inward
26	Framing shutter 2 swiveling	000 ⇔ 127 128 129 ⇔ 255	Swiveling from -25° to 0° 0° Swiveling from 0° to +25°
27	Framing shutter 3 movement	000 ⇔ 255	Movement, outward to inward
28	Framing shutter 3 swiveling	000 ⇔ 127 128 129 ⇔ 255	Swiveling from -25° to 0° 0° Swiveling from 0° to +25°
29	Framing shutter 4 movement	000 ⇔ 255	Movement, outward to inward
30	Framing shutter 4 swiveling	000 ⇔ 127 128 129 ⇔ 255	Swiveling from -25° to 0° 0° Swiveling from 0° to +25°
31	Focus	000 ⇔ 255	0–100%
32	Focus fine	000 ⇔ 255	Fine control (16-bit)
33	Auto focus	000 001 ⇔ 007 008 ⇔ 015 016 ⇔ 023 024 ⇔ 031 032 ⇔ 039 040 ⇔ 047 048 ⇔ 055 056 ⇔ 063 064 ⇔ 071 072 ⇔ 079 080 ⇔ 087 088 ⇔ 095 096 ⇔ 103 104 ⇔ 111 112 ⇔ 119 120 ⇔ 127	Auto focus off 4 m 6 m 8 m 10 m 12 m 14 m 16 m 18 m 4 m 6 m 8 m 10 m 12 m 14 m 16 m 18 m Reserved
34	Zoom	000 ⇔ 255	0–100%
35	Zoom fine	000 ⇔ 255	Fine control (16-bit)
36	Prism	000 ⇔ 127 128 ⇔ 255	No function Prism effect
37	Prism rotation	000  127 128  189 190  193 194  255	Prism indexing Clockwise rotation, fast to slow Stop Counterclockwise rotation, slow to fast
38	Iris	000 ⇔ 192 193 ⇔ 213 214 ⇔ 234 235 ⇔ 255	Large to small Auto change, slow to fast Open, slow to fast Close, slow to fast
39	Frost	000 ⇔ 255	0–100%
40	Frost fine	000 ⇔ 255	Fine control (16-bit)
41	Control (hold for 3 seconds)	000 ⇔ 007 008 ⇔ 015 016 ⇔ 023 024 ⇔ 031 032 ⇔ 039 040 ⇔ 047 048 ⇔ 055 056 ⇔ 063 064 ⇔ 071 072 ⇔ 079 080 ⇔ 087 088 ⇔ 095 096 ⇔ 103 104 ⇔ 111 112 ⇔ 119 120 ⇔ 127 128 ⇔ 135 136 ⇔ 143 144 ⇔ 151 152 ⇔ 255	No function Reset all Pan & tilt reset Effects reset (prism, iris, frost) Gobo reset Shutter module reset Other reset (zoom, focus reset) Color reset (CMY + CTO + color) Absolute silence off Absolute silence on Steady off Steady mode 1 (environment temperature 26 °C) Steady mode 2 (environment temperature 35 °C) Linear dimmer Square dimmer curve Inverse square dimmer curve S-curve dimmer Fast dimmer mode Smooth dimmer mode No function

32CH

Channel	Function	Value	Percent/Setting
1	Pan	000 ⇔ 255	0–100%
2	Pan fine	000 ⇔ 255	Fine control (16-bit)
3	Tilt	000 ⇔ 255	0–100%
4	Tilt fine	000 ⇔ 255	Fine control (16-bit)
5	Dimmer	000 ⇔ 255	0–100%
6	Shutter/Strobe	000 ⇔ 010 011 ⇔ 082 083 ⇔ 093 094 ⇔ 163 164 ⇔ 174 175 ⇔ 223 224 ⇔ 255	No function (shutter open) Shutter effect, slow to fast No function (shutter open) Pulse effect in sequences No function (shutter open) Random effect, slow to fast No function (shutter open)
7	Cyan	000 ⇔ 255	0–100%
8	Magenta	000 ⇔ 255	0–100%
9	Yellow	000 ⇔ 255	0–100%
10	CTO	000 ⇔ 255	0–100%
11	Color wheel	000 ⇔ 004 005 ⇔ 009 010 ⇔ 013 014 ⇔ 018 019 ⇔ 022 023 ⇔ 027 028 ⇔ 031 032 ⇔ 187 188 ⇔ 219 220 ⇔ 223 224 ⇔ 255	Open Red Orange Dark green Cyan Congo blue UV Split color Color scroll, fast to slow Stop Reverse color scroll, slow to fast
12	Rotating gobo wheel	000 ⇔ 005 006 ⇔ 010 011 ⇔ 015 016 ⇔ 020 021 ⇔ 025 026 ⇔ 030 031 ⇔ 035 036 ⇔ 040 041 ⇔ 055 056 ⇔ 070 071 ⇔ 085 086 ⇔ 100 101 ⇔ 115 116 ⇔ 130 131 ⇔ 145 146 ⇔ 200 201 ⇔ 255	Open Gobo 1 (Barking up a flaming river) Gobo 2 (Floyd) Gobo 3 (Sparse branches) Gobo 4 (Something linear) Gobo 5 (Super max) Gobo 6 (Windowpane) Gobo 7 (Shower glass) Gobo 1 shaking, slow to fast Gobo 2 shaking, slow to fast Gobo 3 shaking, slow to fast Gobo 4 shaking, slow to fast Gobo 5 shaking, slow to fast Gobo 6 shaking, slow to fast Gobo 7 shaking, slow to fast Gobo scroll, static to fast Reverse gobo scroll, static to fast
13	Gobo 1 rotation	000 ⇔ 191 192 ⇔ 223 224 ⇔ 255	Gobo rotation, slow to fast Stop Reverse gobo rotation, slow to fast
14	Static gobo wheel	000 ⇔ 005 006 ⇔ 010 011 ⇔ 015 016 ⇔ 020 021 ⇔ 025 026 ⇔ 030 031 ⇔ 035 036 ⇔ 040 041 ⇔ 045 046 ⇔ 060 061 ⇔ 075 076 ⇔ 090 091 ⇔ 105 106 ⇔ 120 121 ⇔ 135 136 ⇔ 150 151 ⇔ 165 166 ⇔ 210 211 ⇔ 255	Open Gobo 1 (Dotty) Gobo 2 (Stones) Gobo 3 (Leafiness) Gobo 4 (Busted burlap) Gobo 5 (EVH) Gobo 6 (Basketcase) Gobo 7 (CaChow) Gobo 8 (Grass vignette) Gobo 1 shaking, slow to fast Gobo 2 shaking, slow to fast Gobo 3 shaking, slow to fast Gobo 4 shaking, slow to fast Gobo 5 shaking, slow to fast Gobo 6 shaking, slow to fast Gobo 7 shaking, slow to fast Gobo 8 shaking, slow to fast Gobo scroll, static to fast Reverse gobo scroll, static to fast
15	Animation wheel	000 ⇔ 003 004 ⇔ 127 128 ⇔ 131 132 ⇔ 255	Open / No function Clockwise rotation, fast to slow Stop Counterclockwise rotation, slow to fast
16	Framing shutter rotation	000 ⇔ 127 128 129 ⇔ 255	Rotation, left to center Stop Rotation, center to right
17	Framing shutter 1 movement	000 ⇔ 255	Movement, outward to inward
18	Framing shutter 1 swiveling	000 ⇔ 127 128 129 ⇔ 255	Swiveling from -25° to 0° 0° Swiveling from 0° to +25°
19	Framing shutter 2 movement	000 ⇔ 255	Movement, outward to inward
20	Framing shutter 2 swiveling	000 ⇔ 127 128 129 ⇔ 255	Swiveling from -25° to 0° 0° Swiveling from 0° to +25°
21	Framing shutter 3 movement	000 ⇔ 255	Movement, outward to inward
22	Framing shutter 3 swiveling	000 ⇔ 127 128 129 ⇔ 255	Swiveling from -25° to 0° 0° Swiveling from 0° to +25°
23	Framing shutter 4 movement	000 ⇔ 255	Movement, outward to inward
24	Framing shutter 4 swiveling	000 ⇔ 127 128 129 ⇔ 255	Swiveling from -25° to 0° 0° Swiveling from 0° to +25°
25	Focus	000 ⇔ 255	0–100%
26	Zoom	000 ⇔ 255	0–100%
27	Prism	000 ⇔ 127 128 ⇔ 255	No function Prism effect
28	Prism rotation	000 ⇔ 127 128 ⇔ 189 190 ⇔ 193 194 ⇔ 255	Prism indexing Clockwise rotation, fast to slow Stop Counterclockwise rotation, slow to fast
29	Iris	000 ⇔ 192 193 ⇔ 213 214 ⇔ 234 235 ⇔ 255	Large to small Auto change, slow to fast Open, slow to fast Close, slow to fast
30	Frost	000 ⇔ 255	0–100%
31	Frost fine	000 ⇔ 255	Fine control (16-bit)
32	Control (hold for 3 seconds)	000 ⇔ 007 008 ⇔ 015 016 ⇔ 023 024 ⇔ 031 032 ⇔ 039 040 ⇔ 047 048 ⇔ 055 056 ⇔ 063 064 ⇔ 071 072 ⇔ 079 080 ⇔ 087 088 ⇔ 095 096 ⇔ 103 104 ⇔ 111 112 ⇔ 119 120 ⇔ 127 128 ⇔ 135 136 ⇔ 143 144 ⇔ 151 152 ⇔ 255	No function Reset all Pan & tilt reset Effects reset (prism, iris, frost) Gobo reset Shutter module reset Other reset (zoom, focus reset) Color reset (CMY + CTO + color) Absolute silence off Absolute silence on Steady off Steady mode 1 (environment temperature 26 °C) Steady mode 2 (environment temperature 35 °C) Linear dimmer Square dimmer curve Inverse square dimmer curve S-curve dimmer Fast dimmer mode Smooth dimmer mode No function

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

RF Exposure Warning for North America, and Australia
Warning! This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.
