Cobalt1 Electric Foldable Scooter User Manual

User Manual

About the manual

For your driving safety, please read this user manual carefully before using the e-scooter.

Please note “warnings” and “tips” in this manual.

Warnings: Improper operation may result in personal injury.

Tips: Helpful advice for the usage of the e-scooter.

Should you have any queries, please contact our customer support team via our website

Tips:

Children under 14 years old should be accompanied by an adult.

People without experience, or with impaired physical ability should learn to ride with a competent rider.

Children should only clean and maintain the e-scooter under adult supervision.

Improper use of the e-scooter and/or failure to read this user manual may lead to serious bodily injury. We will take no responsibility for any injuries caused by improper use.

Note: It is important to pump the tyres up to 35 P.S.I (2.41 Bar) for your own safety and optimal riding quality.

1. Safety notes

1.1 About safety

There are risks involved with riding an e-scooter. For your safety, please learn to ride safely and obey the local rules/laws.

Please check the tyres for damage and that fixings are tight before riding. Please contact your local distributor for any safety queries.

Please do not do anything that may harm other people or their property with the e-scooter.

Any conversion of the e-scooter is prohibited as it will change its performance or damage the structure, which may cause serious injury.

Please do not submerge the e-scooter into water, which will not only damage the e-scooter, but also cause a safety risk.

1.2 Safety precautions

Please note that you may lose balance, or fall over when you ride an e-scooter. To avoid injury, you should familiarise yourself with this manual and keep the e-scooter in good condition.

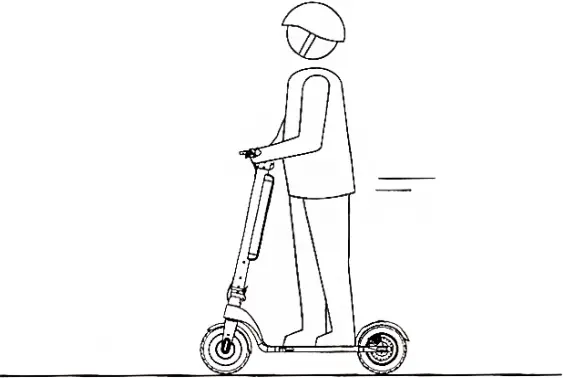

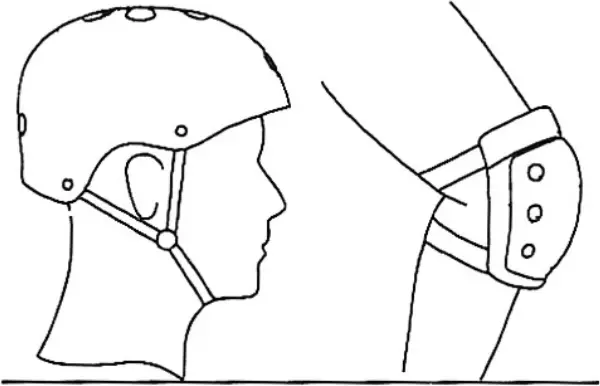

Safety measures should be taken before riding, e.g: wear sportswear, helmet, knee pads and elbow pads.

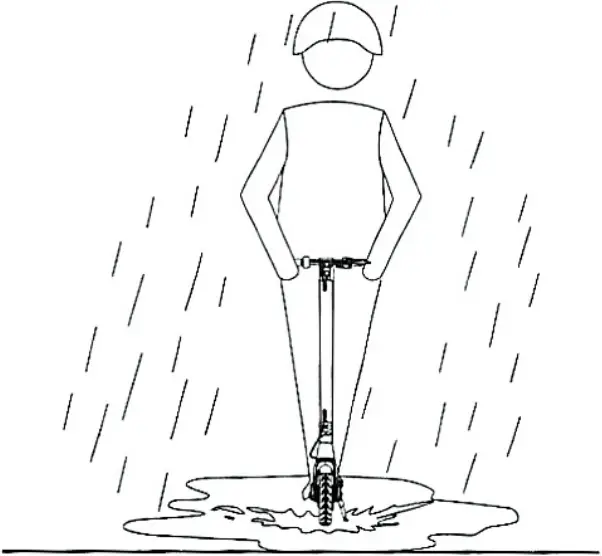

Take caution when riding in the rain.

DO NOT ride with loading.
DO NOT ride with more than one rider.

Do not ride if you are pregnant.

Max Load: 100 kg.

DO NOT ride after drinking alcohol or taking medicine.

DO NOT listen to music when you ride the e-scooter.

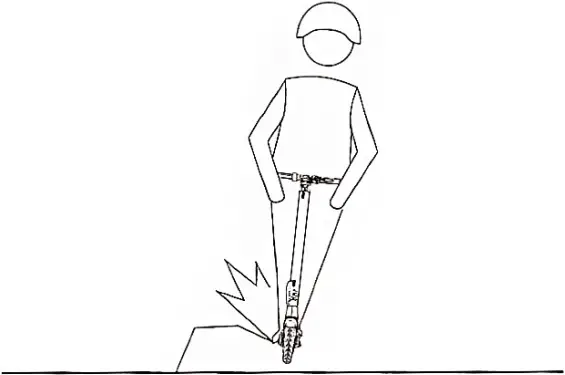

Be careful of uneven, loose or slippery surfaces. Avoid slopes, stairs and poorly lit areas.

DO NOT use in dangerous areas, where there is a risk from flammable materials.

2. Product information

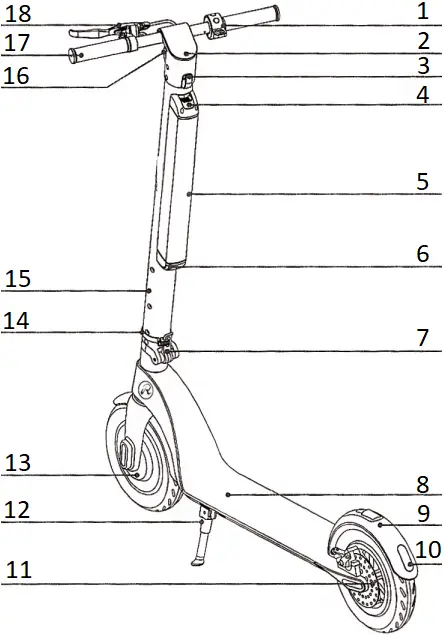

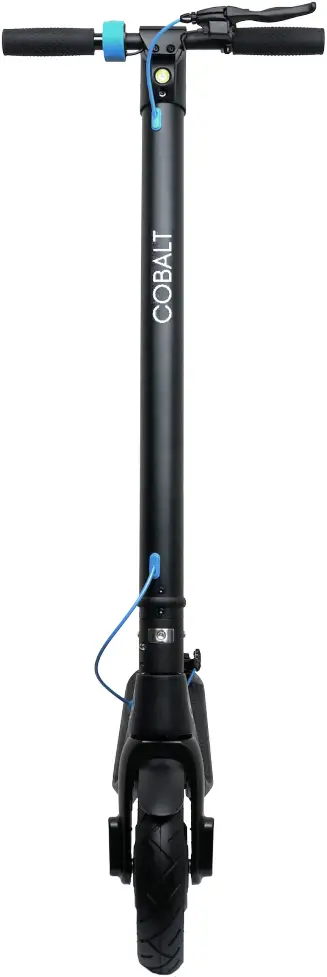

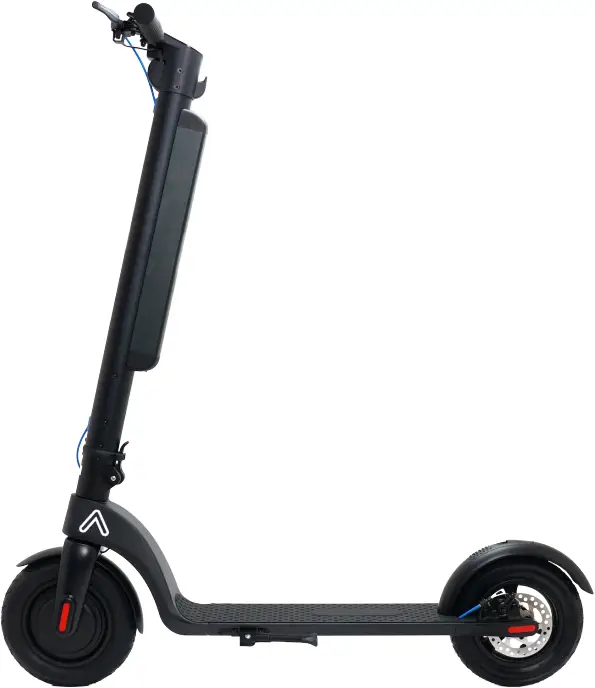

2.1 Overall view

1. Accelerator/ Throttle
2. LED Display
3. Hook
4. Battery cover lock
5. Battery
6. Charging port
7. Folding spanner
8. Anti-slip pedal
9. Fender
10. Tail lights
11. Disc brake
12. Kickstand
13. Motor
14. Folding ring
15. Lever
16. Headlight
17. Handle
18. Brake

2.2 Operation of buttons

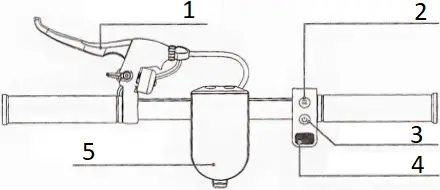

1. Brake handbar
2. Function button
3. Power switch
4. Throttle button
5. LED display

LED Display

1. Speed
2. Multifunction
3. Gear
4. The unit display
5. Power
6. Fault display

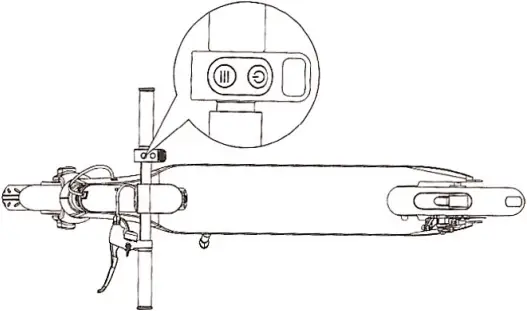

Power Switch. Press and hold the power button to turn on/off.

Function button:
A. Press function key to switch riding modes.

Beginner mode (10km/h limit).
Gear indicator is not displayed.

Normal mode (15km/h limit).
Gear indicator shows white.

Sports mode (25km/h limit).
Gear indicator shows red.

B. Press the function key twice to turn the headlights on/off.
The taillights are always on.

Throttle: Press down the throttle button to accelerate.

Brake: Apply pressure to the brake handle to brake. Lightly step on the rear fender to assist the brakes.

Cruise mode: Maintain a set speed for 6 seconds to enter the cruise mode. Exit the cruise mode by pressing down the throttle again, or by braking.

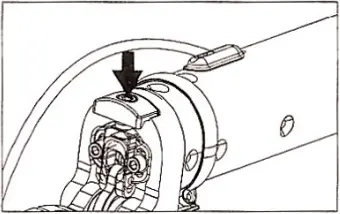

2.3 Pre-assembly instructions

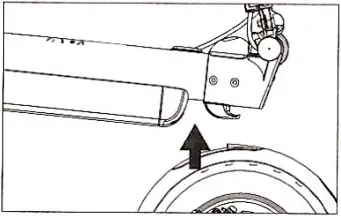

1. Pull up the lever while pressing down the rear wheel fender.

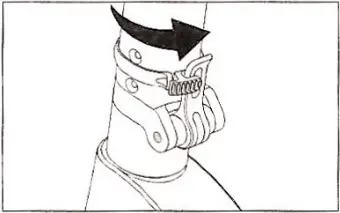

2. Tighten the folding mechanism and rotate the ring to secure the mechanism.

3. Fix the brake lever to the left side of the handle bar with the M5 hex wrench.

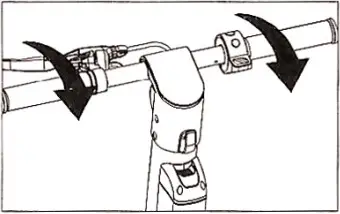

4. Tighten the handlebars (pay attention to the direction of rotation when tightening).

5. If the mechanism becomes loose, tighten the screw accordingly.

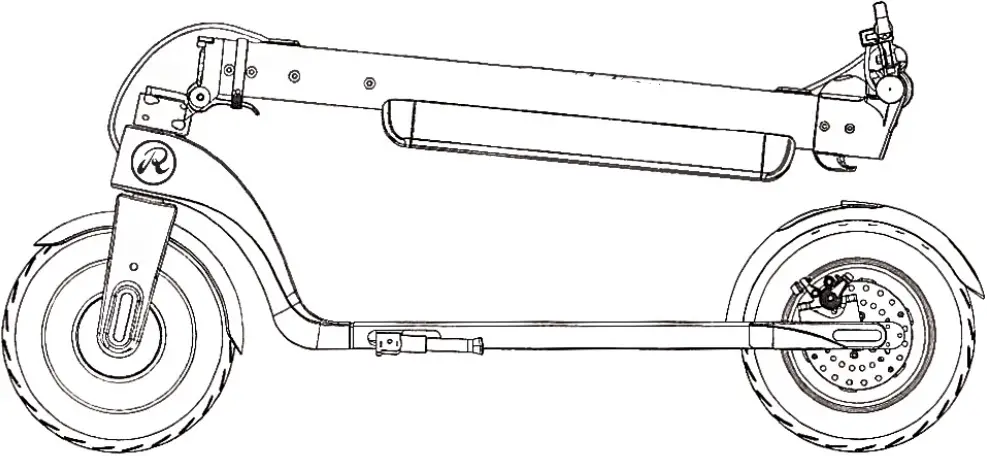

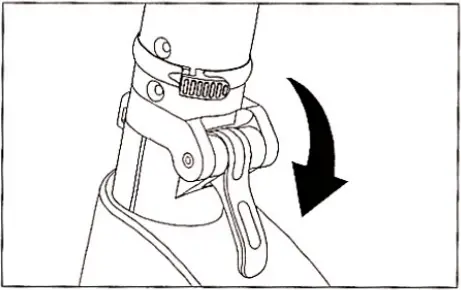

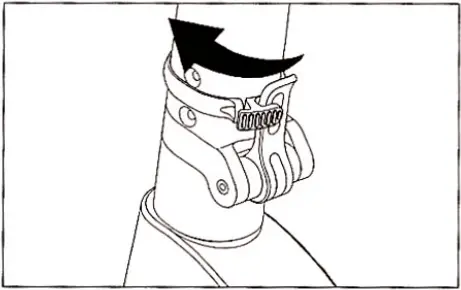

2.4 Folding steps

1. Rotate the ring clockwise.

2. Release the mechanism.

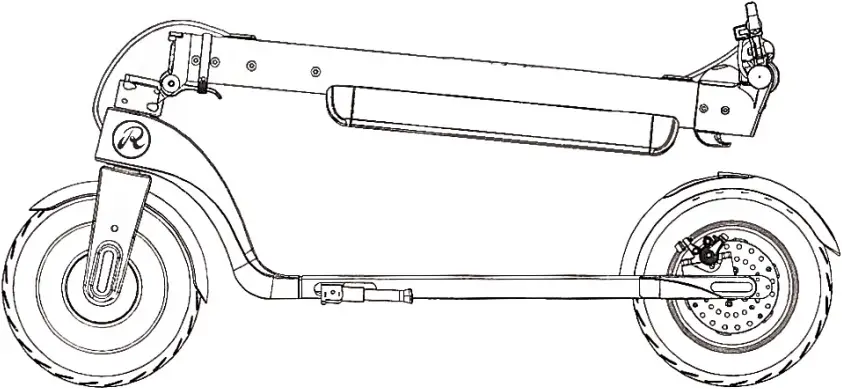

3. Fold the pole and fix the mechanism.

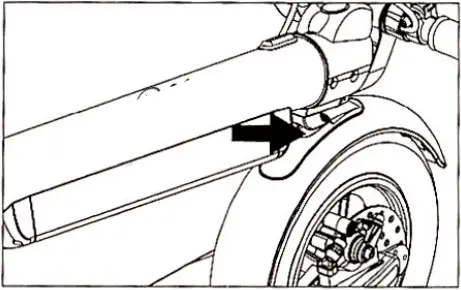

4. Align the hook with the hole of the rear fender and press down.

2.5 Uninstall/install the battery

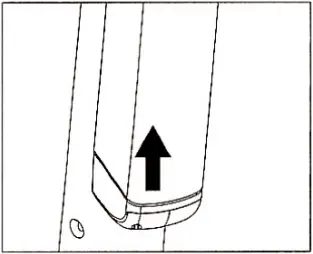

Uninstall

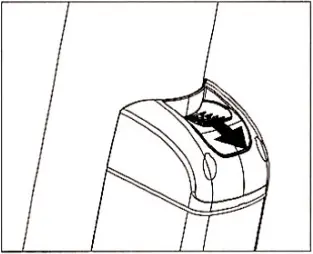

1. Pull the lock outwards on the battery case.

2. Push the battery up, away from the bottom.

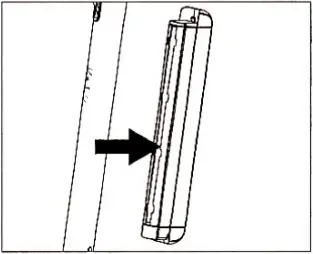

3. After pushing the battery up, then pull it out horizontally.

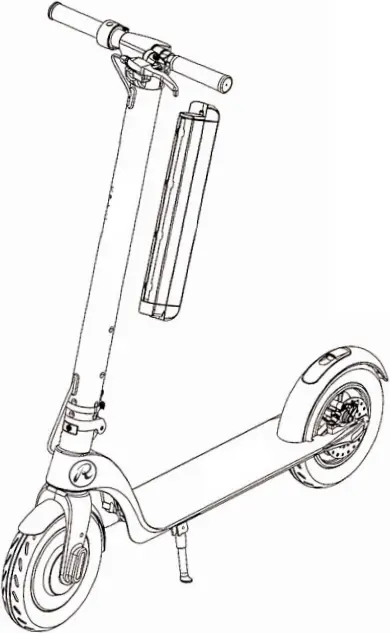

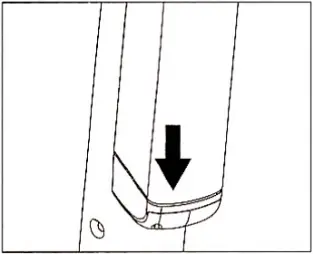

Install

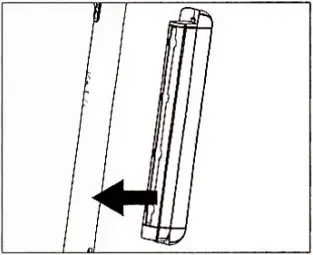

1. Insert the battery horizontally into the pole.

2. Push down until the latch of the battery box clicks in and locks.

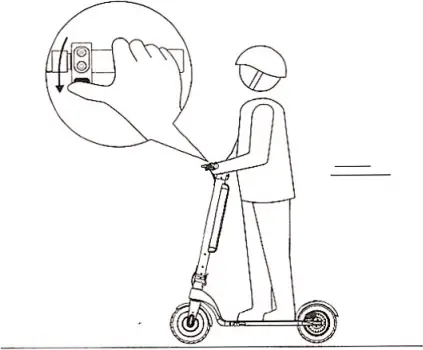

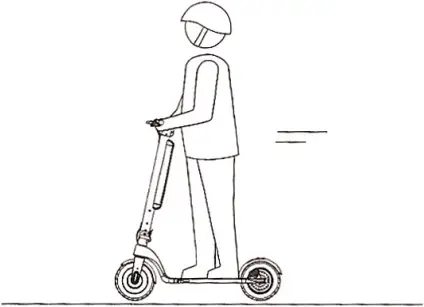

3. How to ride the e-scooter

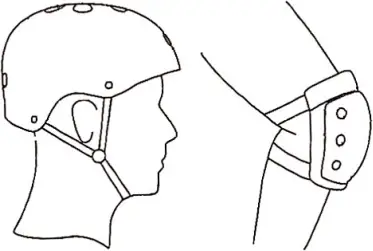

Wear a helmet, knee pads and elbow pads when you learn to ride the e-scooter.

1. Press the POWER button for two seconds.

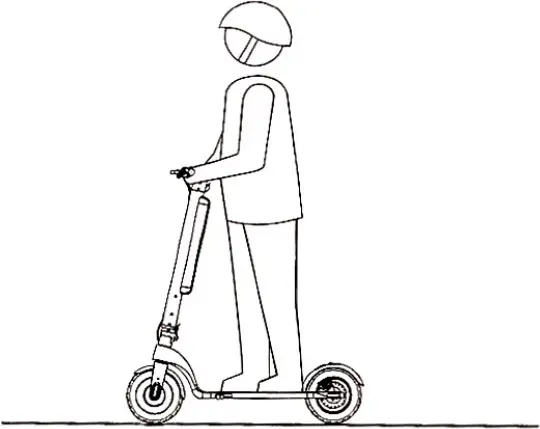

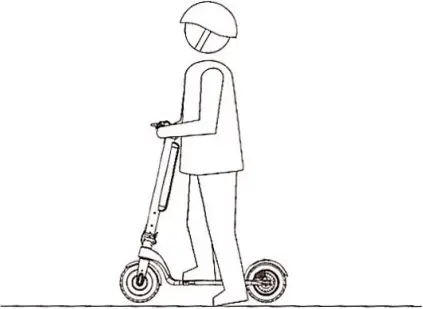

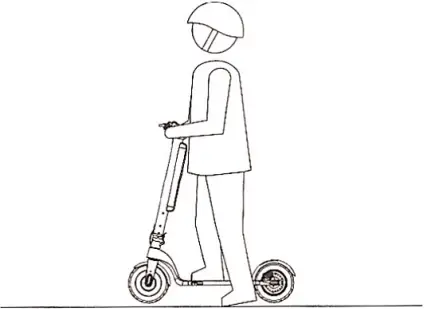

2. Put one foot on the base plate and push off the ground with your strong leg.

3. Balance both feet on your e-scooter when you have enough momentum.

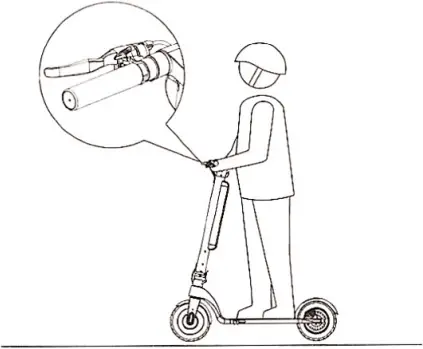

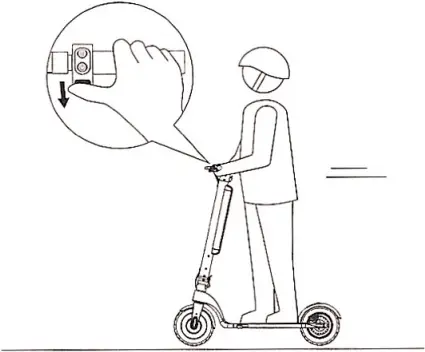

4. Press the THROTTLE slightly with your right hand to start and rotate the handlebars to turn.

5. Continuously press the throttle to speed up.

6. Apply pressure to the brake handle to slow down or stop.

7. When the e-scooter stops or runs at a slow speed, you can get off.

4. Battery instruction

The instructions show you how to charge and maintain the battery and provide some safety notices and the technical specifications. Please use the battery properly according to these instructions to prolong battery life and performance.

4.1 Battery parameters

4.2 Battery safety

Do not disassemble the battery.

In the unlikely event that there is a leak in the battery or it overheats, do not use or charge it and contact us.

Do not let children touch the battery. Always unplug the charger before installing the battery or riding.

If you want the e-scooter to run most efficiently, the battery must be charged and used within the temperature range indicated in the battery parameters.

Lithium ion batteries are considered dangerous and require local law to allow transportation.

The battery contains dangerous substances. Please do not open the battery. Do not insert anything into the battery.

Do not charge the battery at high temperature or charge the battery in a high temperature environment.

Only use the original charging equipment to charge the e-scooter.

4.3 Charging steps

Open the charging port cover, make sure the charging port is clean and dry.

Connect the charger to the battery and the plug to a power source (100V-240V;50/60Hz). Make sure the charging light is on.

When the charger indicator is green, charging is complete.

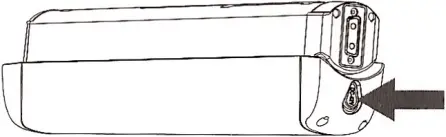

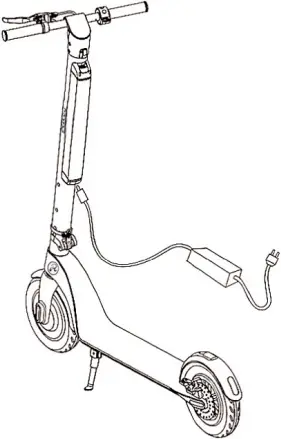

Charging method:

1. Battery connector
2. Charging port

Tips:

Connect the charger to the AC power first, then connect it to the battery.

After charging, cover with the dustproof rubber to prevent anything from entering the charging port and causing battery failure.

5. Specification

Item
Product
E-scooter Specification
Unfolded size	1083*420*1186mm
Folded size	1083*420*460mm
Height from ground to base plate	115mm
Height from ground to base plate	15kg
Basic Information
Capacity	36V/5Ah or 6.4Ah
Motor power	350W
Max range per charge	28 miles (45km)
Max speed	15.5 mph (25km/h)
Max loading	100kg

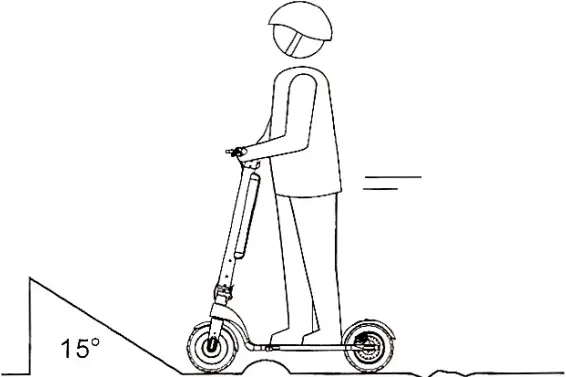

Climbing angle	15°
Charger Specification
Input voltage	100-240V
Frequency	50-60Hz
Output voltage	42V
Output current	1.5A/2A
Ideal storage temperature	0°C to 35°C

6. Maintenance

Maintenance

Make sure the e-scooter charger and charging cord are disconnected and ensure that the e-scooter is off.

Wipe the shell with a soft cloth to clean the e-scooter.

Do not clean the e-scooter with a jet wash or by soaking in water. This will cause permanent damage.

Storage

Please charge your e-scooter before you store. Please ensure this is done at least once every three months.

If the storage temperature is lower than 0°C, please don’t charge the e-scooter.

Please keep the e-scooter in a suitable place indoors, keep dry and at the appropriate temperature.

In order to protect the user’s safety, do not take the e-scooter apart, otherwise the warranty of the product will be invalid.

7. Trouble shooting

Please contact us for a repair or if there are any issues with the e-scooter.

Tips:

8. What’s included

E-scooter packing list:

1x E-scooter

1x Battery

1x Charger

1x Manual

1x Set of screws and Allen key

Please contact us if the product is broken or if anything is missing when you open the package. We will replace it for you as soon as possible.
