Sisigad Yd101b Foldable Electric Scooter User Manual

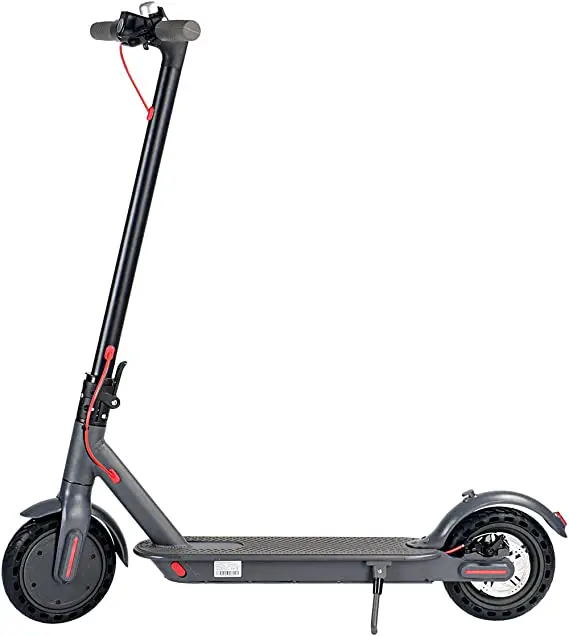

SISIGAD YD101B Foldable Electric Scooter

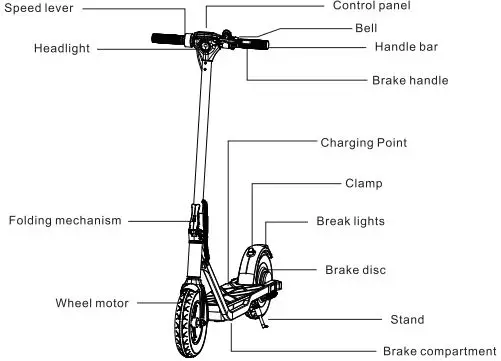

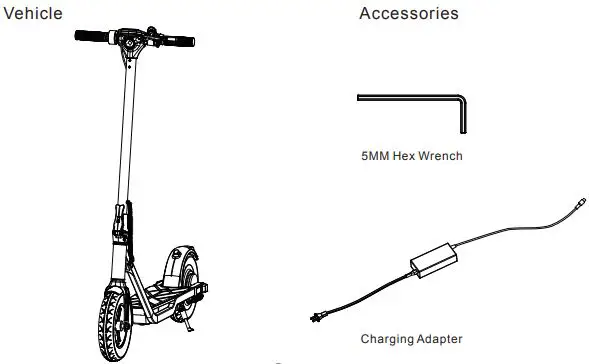

The Device & Access ories

FUNCTIONS

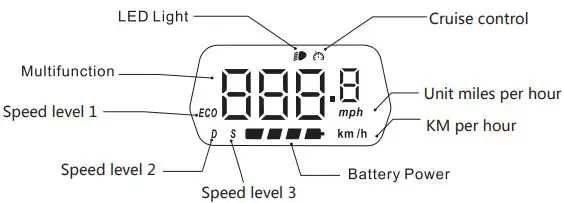

Mode indicators

Mode indicators

1. Press power button for 2 seconds to turn on the device, then press power button again for 2 seconds to turn off the device
2. When power on, short press power button to switch from “ODO-Trip-voltage-current-temperature”
3. In working mode, short press light button to switch gear lever from “1-2-3-2-1”
4. In workng mode, press light button for 2 seconds to turn on/off the head light.

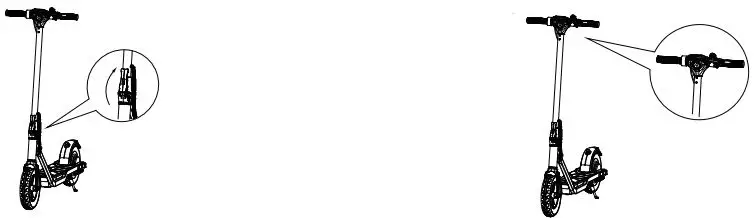

Assembling the device

1. fix the steering rod and open the parking bridge
2. fit the upper part including brake, handbar into front pole
3. Fix the screw with hex wrench in the nackina box
4. Testing the power switch after finish assembling

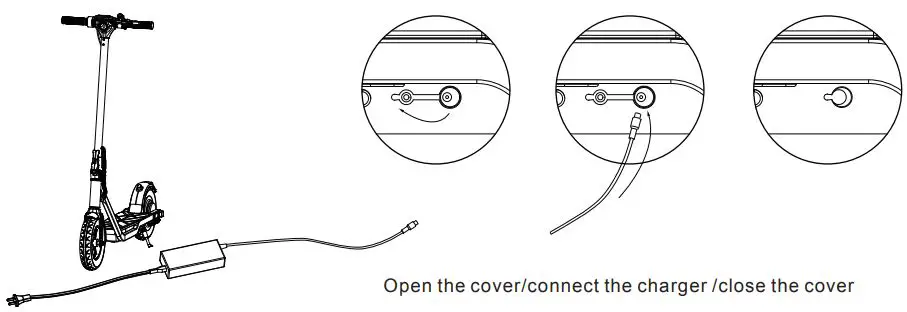

Charing scooter

Learning driving

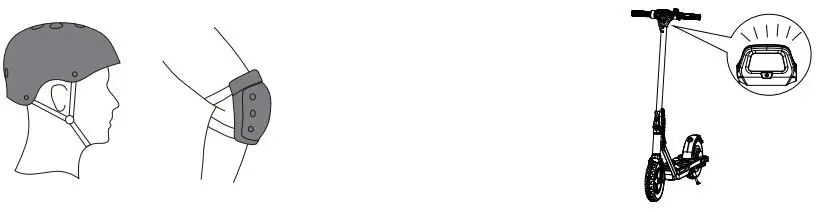

Please wear helmet and knee pads when practice

1. Power on and check the battery led light
