You can make detailed adjustments to MIDI settings.
For instructions on how to connect this instrument to the computer, refer to the “Computer-related Operations” downloadable from the Yamaha Downloads website.

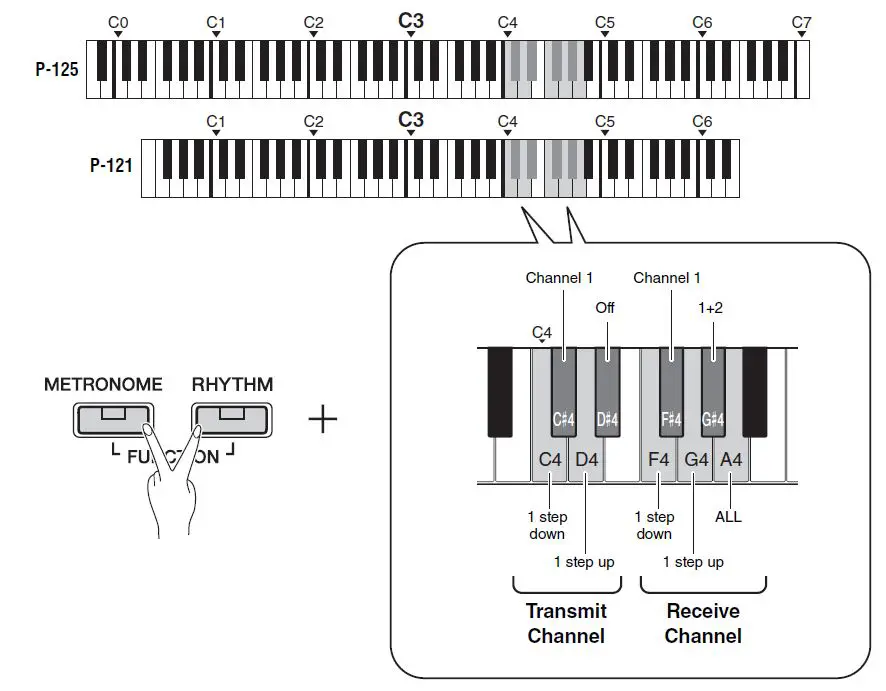

MIDI Transmit/Receive Channel Selection

In any MIDI control setup, the MIDI channels of the transmitting and receiving devices must be matched for proper data transfer. This parameter enables you to specify the channel on which the instrument transmits or receives MIDI data.

Setting the Transmit Channel
While simultaneously holding down the [METRONOME] and [RHYTHM] buttons, press one of the C4–D#4 keys.
Default setting: 1

Setting the Receive Channel
While simultaneously holding down the [METRONOME] and [RHYTHM] buttons, press one of the F4–A4 keys.

MIDI transmission channels in Dual, Split or Duo

Voice 1 data is transmitted on its specified channel and Voice 2 data is transmitted on the next greater channel number relative to the specified channel. In this case, no data is transmitted if the transmit channel is set to “OFF.”

ALL:
“Multi-timbre” Receive. This allows simultaneous reception of different parts on all 16 MIDI channels, enabling the instrument to play multi-channel song data received from a computer.

1+2:
“1+2” Receive. This allows simultaneous reception on channels 1 and 2 only, enabling the instrument to play 1 and 2 channel song data received from a computer.
Program change and other like channel messages received will not affect the panel settings of the instrument or the notes you play on the keyboard.
Data for the Demo Songs and Preset Songs cannot be transmitted via MIDI.

Local Control ON/OFF

“Local Control” refers to the fact that, normally, the keyboard of the instrument controls its internal tone generator, allowing the internal voices to be played directly from the keyboard. This situation is “Local Control On,” since the internal tone generator is controlled locally by its own keyboard. Local control can be turned OFF, however, so that the keyboard of the instrument does not play the internal voices, but the appropriate MIDI information is still transmitted via the [USB TO HOST] terminal when notes are played on the keyboard. At the same time, the internal tone generator responds to MIDI information received via the [USB TO HOST] terminal.

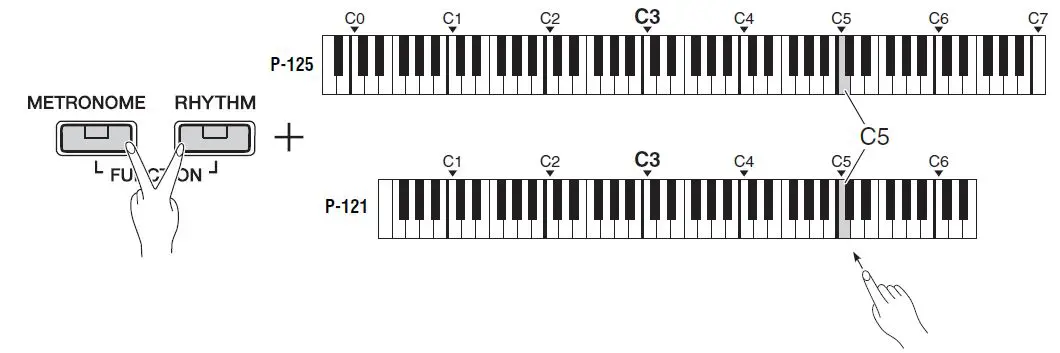

While simultaneously holding down the [METRONOME] and [RHYTHM] buttons, press the C5 key. Pressing the C5 key repeatedly toggles between Local Control On and Off.

Program Change ON/OFF

Normally the instrument will respond to MIDI program change numbers received from a computer, causing the same numbered voice to be selected on the corresponding channel (the keyboard voice does not change). The instrument will normally also send a MIDI program change number whenever one of its voices is selected, causing the same numbered voice or program to be selected on the computer if the computer is set up to receive and respond to MIDI program change numbers. This function makes it possible to cancel program change number reception and transmission so that voices can be selected on the instrument without affecting the computer.

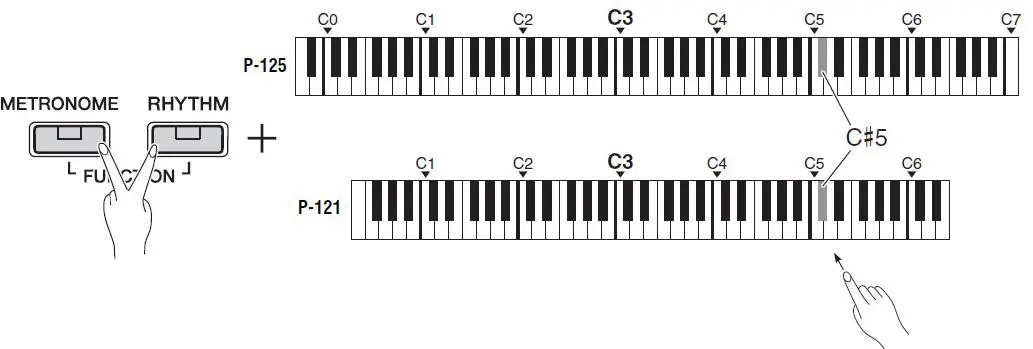

While simultaneously holding down the [METRONOME] and [RHYTHM] buttons, press the C#5 key. Pressing the C#5 key repeatedly toggles between Program Change On and Off.

Control Change ON/OFF

Normally the instrument will respond to MIDI control change data received from a computer, causing the voice on the corresponding channel to be affected by pedal and other “control” settings received from the controlling device (the keyboard voice is not affected).
The instrument also transmits MIDI control change information when the pedal or other appropriate controls are operated. This function makes it possible to cancel control change data reception and transmission so that, for example, the pedal of the instrument and other controls can be operated without affecting a computer.

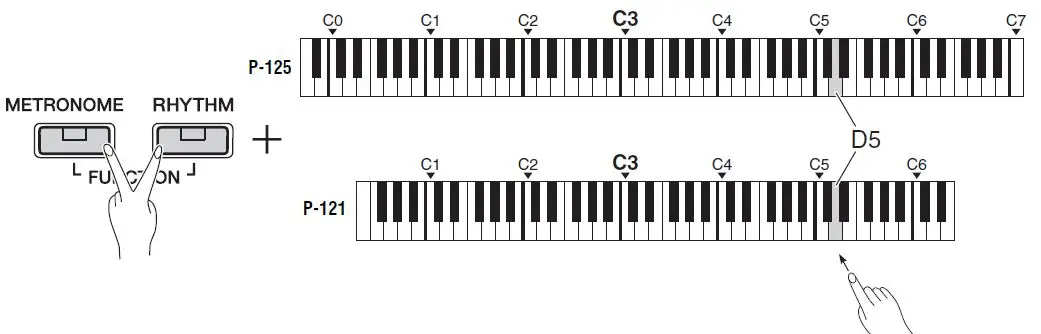

While simultaneously holding down the [METRONOME] and [RHYTHM] buttons, press the D5 key. Pressing the D5 key repeatedly toggles between Control Change On and Off.

MIDI Data Format

Many MIDI messages listed in the MIDI Data Format are expressed in decimal numbers, binary numbers and hexadecimal numbers. Hexadecimal numbers may include the letter “H” as a suffix.
Also, “n” can freely be defined as any whole number. To enter data/values, refer to the table below.

decimal	hexadecimal	binary	decimal	hexadecimal	binary	decimal	hexadecimal	binary	decimal	hexadecimal	binary
0	00	0000 0000	32	20	0010 0000	64	40	0100 0000	96	60	0110 0000
1	01	0000 0001	33	21	0010 0001	65	41	0100 0001	97	61	0110 0001
2	02	0000 0010	34	22	0010 0010	66	42	0100 0010	98	62	0110 0010
3	03	0000 0011	35	23	0010 0011	67	43	0100 0011	99	63	0110 0011
4	04	0000 0100	36	24	0010 0100	68	44	0100 0100	100	64	0110 0100
5	05	0000 0101	37	25	0010 0101	69	45	0100 0101	101	65	0110 0101
6	06	0000 0110	38	26	0010 0110	70	46	0100 0110	102	66	0110 0110
7	07	0000 0111	39	27	0010 0111	71	47	0100 0111	103	67	0110 0111
8	08	0000 1000	40	28	0010 1000	72	48	0100 1000	104	68	0110 1000
9	09	0000 1001	41	29	0010 1001	73	49	0100 1001	105	69	0110 1001
10	0A	0000 1010	42	2A	0010 1010	74	4A	0100 1010	106	6A	0110 1010
11	0B	0000 1011	43	2B	0010 1011	75	4B	0100 1011	107	6B	0110 1011
12	0C	0000 1100	44	2C	0010 1100	76	4C	0100 1100	108	6C	0110 1100
13	0D	0000 1101	45	2D	0010 1101	77	4D	0100 1101	109	6D	0110 1101
14	0E	0000 1110	46	2E	0010 1110	78	4E	0100 1110	110	6E	0110 1110
15	0F	0000 1111	47	2F	0010 1111	79	4F	0100 1111	111	6F	0110 1111
16	10	0001 0000	48	30	0011 0000	80	50	0101 0000	112	70	0111 0000
17	11	0001 0001	49	31	0011 0001	81	51	0101 0001	113	71	0111 0001
18	12	0001 0010	50	32	0011 0010	82	52	0101 0010	114	72	0111 0010
19	13	0001 0011	51	33	0011 0011	83	53	0101 0011	115	73	0111 0011
20	14	0001 0100	52	34	0011 0100	84	54	0101 0100	116	74	0111 0100
21	15	0001 0101	53	35	0011 0101	85	55	0101 0101	117	75	0111 0101
22	16	0001 0110	54	36	0011 0110	86	56	0101 0110	118	76	0111 0110
23	17	0001 0111	55	37	0011 0111	87	57	0101 0111	119	77	0111 0111
24	18	0001 1000	56	38	0011 1000	88	58	0101 1000	120	78	0111 1000
25	19	0001 1001	57	39	0011 1001	89	59	0101 1001	121	79	0111 1001
26	1A	0001 1010	58	3A	0011 1010	90	5A	0101 1010	122	7A	0111 1010
27	1B	0001 1011	59	3B	0011 1011	91	5B	0101 1011	123	7B	0111 1011
28	1C	0001 1100	60	3C	0011 1100	92	5C	0101 1100	124	7C	0111 1100
29	1D	0001 1101	61	3D	0011 1101	93	5D	0101 1101	125	7D	0111 1101
30	1E	0001 1110	62	3E	0011 1110	94	5E	0101 1110	126	7E	0111 1110
31	1F	0001 1111	63	3F	0011 1111	95	5F	0101 1111	127	7F	0111 1111

Except the table above, for example 144-159(decimal)/9nH/1001 0000-1001 1111(binary) denotes the Note On Message for each channel (1-16). 176-191/BnH/1011 0000-1011 1111 denotes the Control Change Message for each channel (1-16). 192-207/CnH/1100 0000-1100 1111 denotes the Program Change Message for each channel (1-16). 240/FOH/1111 0000 denotes the start of a System Exclusive Message. 247/F7H/1111 0111 denotes the end of a System Exclusive Message.
aaH (hexadecimal)/0aaaaaaa (binary) denotes the data address. The address contains High, Mid, and Low.
bbH/0bbbbbbb denotes the byte count.
ccH/0ccccccc denotes the check sum.
ddH/0ddddddd denotes the data/value.

Preset Voice List

Program change numbers are often specified as numbers “0 -127.” Since this list uses a “1 – 128” numbering system, in such cases it is necessary to subtract 1 from the transmitted program change numbers to select the appropriate sound: e.g. to select Live Grand in the list below, transmit program change number 1.

Voice Button	Voice Name	MSB (0-127)	LSB (0-127)	Program Change # (1-128)
[PIANO]	Grand Piano	108	0	1
	Live Grand	108	2	2
	Ballad Grand	108	3	1
	Bright Grand	108	0	2
[E.PIANO]	Stage E.Piano	108	0	5
	DX E.Piano	108	0	6
	Vintage E.Piano	108	1	5
	Synth Piano	108	0	89
[ORGAN]	Jazz Organ	108	0	17
	Rock Organ	108	0	19
	Organ Principal	108	1	20
	Organ Tutti	108	0	20
[CLV./VIB.]	Harpsichord 8’	108	0	7
	Harpsi.8’+4’	108	1	7
	E.Clavichord	108	0	8
	Vibraphone	108	0	12
[STRINGS]	Strings	108	0	49
	Slow Strings	108	0	50
	Choir	108	0	53
	Synth Pad	108	0	90
[+BASS]	Acoustic Bass	108	0	33
	Electric Bass	108	0	34
	Bass & Cymbal	108	1	33
	Fretless Bass	108	0	36

MIDI CHANNEL MESSAGE (1)

MIDI Events

Status byte

1st Data byte

2nd Data byte

MIDI

Formats

MIDI Reception

MIDI Transmission

Status

Data

(HEX)

Parameter

Data

(HEX)

Parameter

Song

Main

Layer Left

Panel

(main genera- tion method)

Song

Key Off

8nH

(n:Channel Number)

Key no. (0-127)

Velocity(0-127)

[GM1]

[GM2]

(Keyboard)

Key On

9nH

(n:Channel Number)

Key no. (0-127)

Key On :vv=1-127 Key Off :vv=0

[GM1]

[GM2]

(Keyboard)

Control Change

BnH

(00H)

Bank Select MSB

0-127

(00H…7FH)

(00) Normal

[GM2]

(Voice)

(01H)

Modulation

0-127

(00H…7FH)

Data

[GM1]

[GM2]

(05H)

Portamento Time

0-127

(00H…7FH)

Data

[GM2]

(06H)

Data Entry MSB

0-127

(00H…7FH)

Data

[GM2]

(07H)

Main Volume

0-127

(00H…7FH)

Data

[GM1]

[GM2]

(Voice)

(0AH)

Panpot

0-127

(00H…7FH)

L64…C…R63

[GM1]

[GM2]

(Duo)

(0BH)

Expression

0-127

(00H…7FH)

Data

[GM1]

[GM2]

(20H)

Bank Select LSB

0-127

(00H…7FH)

Data

[GM2]

(Voice)

(26H)

Data Entry LSB

0-127

(00H…7FH)

Data

[GM2]

(40H)

Sustain(Damper)

0-127

(00H…7FH)

Data

[GM1]

[GM2]

(Pedal)

(41H)

Portamento

0-127

(00H…7FH)

0…63, 64…127 (OFF, ON)

[GM2]

(42H)

Sostenuto

0-127

(00H…7FH)

0…63, 64…127 (OFF, ON)

[GM2]

(Pedal)

(43H)

Soft Pedal

0-127

(00H…7FH)

0…63, 64…127 (OFF, ON)

[GM2]

(Pedal)

(47H)

Harmonic Content

0-127

(00H…7FH)

-64…0…+63

[GM2]

(48H)

Release Time

0-127

(00H…7FH)

-64…0…+63

[GM2]

(49H)

Attack Time

0-127

(00H…7FH)

-64…0…+63

[GM2]

(4AH)

Brightness

0-127

(00H…7FH)

-64…0…+63

[GM2]

(4BH)

Decay Time

0-127

(00H…7FH)

-64…0…+63

[GM2]

(4CH)

Vibrate Rate

0-127

(00H…7FH)

-64…0…+63

[GM2]

(4DH)

Vibrate Depth

0-127

(00H…7FH)

-64…0…+63

[GM2]

(4EH)

Vibrate Delay

0-127

(00H…7FH)

-64…0…+63

[GM2]

(54H)

Portamento Control

0-127

(00H…7FH)

Key no. (0-127)

(5BH)

Effect1 Depth (Reverb Send Level)

0-127

(00H…7FH)

Data

[GM2]

(Voice)

(5DH)

Effect3 Depth (Chorus Send Level)

0-127

(00H…7FH)

Data

[GM2]

(Voice)

(5EH)

Effect4 Depth (Variation Send Level)

0-127

(00H…7FH)

Data

(60H)

RPN Increment

–

The data byte is ignored.

(61H)

RPN Decrement

–

The data byte is ignored.

(62H)

NRPN LSB

0-127

(00H…7FH)

Data

(63H)

NRPN MSB

0-127

(00H…7FH)

Data

100

(64H)

RPN LSB

0-127

(00H…7FH)

Data

[GM2]

101

(65H)

RPN MSB

0-127

(00H…7FH)

Data

[GM2]

Mode Message

BnH

(n:Channel Number)

120

(78H)

All Sound Off

(00H)

Data

[GM2]

121

(79H)

Reset All Controllers

(00H)

Data

[GM1]

[GM2]

122

(7AH)

Local Control

127

(00H)

(7FH)

OFF ON

123

(7BH)

All Note Off

(00H)

Data

[GM1]

[GM2]

124

(7CH)

Omni Off

(00H)

Data

[GM2]

125

(7DH)

Omni On

(00H)

Data

[GM2]

126

(7EH)

Mono

0-16

(00H…10H)

Data

[GM2]

127

(7FH)

Poly

(00H)

Data

[GM2]

Program Change

CnH

(n:Channel Number)

(00H…7FH)

Voice number (0-127)

–

[GM1]

[GM2]

(Voice)

Channel After Touch

DnH

(n:Channel Number)

(00H…7FH)

Data

–

[GM1]

[GM2]

Polyphonic After Touch

AnH

(n:Channel Number)

(00H…7FH)

Key no. (0-127)

(00H…7FH)

Data

Pitch Bend Change

EnH

(n:Channel Number)

(00H…7FH)

LSB

(00H…7FH)

MSB

[GM1]

[GM2]

Realtime Message

F8H

MIDI Clock

–

FAH

Start

–

FBH

Continue

–

FCH

Stop

–

FEH

Active Sens

–

[GM2]

FFH

System

Reset

–

MIDI CHANNEL MESSAGE (2)

NRPN (Non Registered Parameter Number)

NRPN		Data Entry		Parameter	Data Range	MIDI Formats	MIDI Reception		MIDI Transmission
MSB	LSB	MSB	LSB	Parameter	Data Range	MIDI Formats	Song	Main Layer Left	Panel (main genera- tion method)	Song
01H	08H	mmH	—	Vibrato Rate	mm : 00H-40H-7FH (-64…0…+63)		O	X	X	X
01H	09H	mmH	—	Vibrato Depth	mm : 00H-40H-7FH (-64…0…+63)		O	X	X	X
01H	0AH	mmH	—	Vibrato Delay	mm : 00H-40H-7FH (-64…0…+63)		O	X	X	X
01H	20H	mmH	—	Low Pass Filter Cutoff Frequency	mm : 00H-40H-7FH (-64…0…+63)		O	X	X	X
01H	21H	mmH	—	Low Pass Filter Resonance	mm : 00H-40H-7FH (-64…0…+63)		O	X	X	X
01H	30H	mmH	—	EQ BASS	mm : 00H-40H-7FH (-64…0…+63)		O	X	X	X
01H	31H	mmH	—	EQ TREBLE	mm : 00H-40H-7FH (-64…0…+63)		O	X	X	X
01H	34H	mmH	—	EQ BASS Frequency	mm : 04H-28H (32. 2.0k[Hz])		O	X	X	X
01H	35H	mmH	—	EQ TREBLE Frequency	mm : 1CH-3AH (500.. 16.0k[Hz])		O	X	X	X
01H	63H	mmH	—	EG Attack Time	mm : 00H-40H-7FH (-64…0…+63)		O	X	X	X
01H	64H	mmH	—	EG Decay Time	mm : 00H-40H-7FH (-64…0…+63)		O	X	X	X
01H	66H	mmH	—	EG Release	mm : 00H-40H-7FH (-64…0…+63)		O	X	X	X
14H	rrH	mmH	—	Drum Low Pass Filter Cutoff Frequency	rr : drum instrument note number mm : 00H-40H-7FH (-64…0…+63)		O	X	X	X
15H	rrH	mmH	—	Drum Low Pass Filter Resonance	rr : drum instrument note number mm : 00H-40H-7FH (-64…0…+63)		O	X	X	X
16H	rrH	mmH	—	Drum EG Attack Rate	rr : drum instrument note number mm : 00H-40H-7FH (-64…0…+63)		O	X	X	X
17H	rrH	mmH	—	Drum EG Decay Rate	rr : drum instrument note number mm : 00H-40H-7FH (-64…0…+63)		O	X	X	X
18H	rrH	mmH	—	Drum Pitch Coarse	rr : drum instrument note number mm : 00H-40H-7FH (-64…0…+63)		O	X	X	X
19H	rrH	mmH	—	Drum Pitch Fine	rr : drum instrument note number mm : 00H-40H-7FH (-64…0…+63)		O	X	X	X
1AH	rrH	mmH	—	Drum Level	rr : drum instrument note number mm : 00H-7FH (0…127)		O	X	X	X
1CH	rrH	mmH	—	Drum Pan	rr : drum instrument note number mm : 00H, 01H-40H-7FH (RND, L63…C…R63)		O	X	X	X
1DH	rrH	mmH	—	Drum Reverb Send Level	rr : drum instrument note number mm : 00H-7FH (0…127)		O	X	X	X
1EH	rrH	mmH	—	Drum Chorus Send Level	rr : drum instrument note number mm : 00H-7FH (0…127)		O	X	X	X
1FH	rrH	mmH	—	Drum Variation Send Level	rr : drum instrument note number mm : 00H-7FH (0…127)		O	X	X	X
24H	rrH	mmH	—	Drum HPF Cutoff Frequency	rr : drum instrument note number mm : 00H-40H-7FH (-64…0…+63)		O	X	X	X
30H	rrH	mmH	—	Drum EQ Bass Gain	rr : drum instrument note number mm : 00H-7FH (0…127)		X	X	X	X
31H	rrH	mmH	—	Drum EQ Treble Gain	rr : drum instrument note number mm : 00H-7FH (0…127)		X	X	X	X
34H	rrH	mmH	—	Drum EQ Bass Frequency	rr : drum instrument note number mm : 04H-28H (32. 2.0k[Hz])		X	X	X	X
35H	rrH	mmH	—	Drum EQ Treble Frequency	rr : drum instrument note number mm : 1CH-3AH (500……………………….. 16.0k[Hz])		X	X	X	X
40H	rrH	mmH	—	Drum VELOCITY PITCH SENS.	rr : drum instrument note number mm : 00H-0FH (0…15)		X	X	X	X
41H	rrH	mmH	—	Drum VELOCITY LPF CUTOFF SENS.	rr : drum instrument note number mm : 00H-0FH (0…15)		X	X	X	X

NRPN MSB: 14H-1FH (for drums) message is accepted as long as the channel is set with a drum voice.
Data Entry LSB: Ignored.

RPN (Registered Parameter Number)

NRPN		Data Entry		Parameter	Data Range	MIDI Formats	MIDI Reception (respond/ignored)		MIDI Transmission (generated data)
MSB	LSB	MSB	LSB	Parameter	Data Range	MIDI Formats	Song	Main Layer Left	Panel (main genera- tion method)	Song
00H	00H	mmH	—	Pitch Bend Sensitivity	mm : 00H-18H (0…+24[semitones])	[GM1] [GM2]	O	X	X	X
00H	01H	mmH	llH	Fine Tune	mm ll : 00H 00H -100[cent] … mm ll : 40H 00H 0[cent] … mm ll : 7FH 7FH 100[cent]	[GM1] [GM2]	O	X	X	X
00H	02H	mmH	—	Coarse Tune	mm : 28H-40H-58H (-24…0…+24[semitones])	[GM1] [GM2]	O	X	X	X
00H	05H	mmH	llH	Modulation Sensitivity	mm : Specified in semitone steps ll : Specified in 100/128 cent steps	[GM2]	O	X	X	X
7FH	7FH	—	—	Null	–	[GM2]	O	X	X	X

MIDI PARAMETER CHANGE TABLE

* Not Received when Receive Parameter SysEx is set to off.
* Not transmitted when Transmit Parameter SysEx is set to off.

MIDI Parameter Change table (XG SYSTEM)

Address (H)	Size (H)	Data (H)	Parameter	Description	XG Default (H)	MIDI Reception		MIDI Transmission
Address (H)	Size (H)	Data (H)	Parameter	Description	XG Default (H)	Song	Main Layer Left	Panel (main genera- tion method)	Song
00 00 00	4	00-0F 00-0F 00-0F 00-0F	MASTER TUNE	-102.4…0…+102.3[cent] 1st bit3-0gbit15-12 2nd bit3-0gbit11-8 3rd bit3-0gbit7-4 4th bit3-0gbit3-0	*Panel setting value	O		X	X
04	1	00-7F	MASTER VOLUME	0…127	7F	O	X	X	X
05	1	00-7F	MASTER ATTENUATOR	0…127	00	X	X	X	X
06	1	28-58	TRANSPOSE	-24…0…+24[semitones]	40	O	X	X	X
7D	1	N	DRUM SETUP RESET	N:Drum setup number	–	O	X	X	X
7E	1	00	XG SYSTEM ON	00=XG system ON	–	O	X	X	X
7F	1	00	ALL PARAMETER RESET	00=ON	–	O	X	X	X

MIDI Parameter Change table (SYSTEM INFORMATION)

Address (H)	Size (H)	Data (H)	Parameter	Description	MIDI Reception		MIDI Transmission
					Song	Main Layer Left	Panel (main genera- tion method)	Song
01 00 00 … 0D	E	20-7F … 20-7F	Model Name 1 … Model Name 14	32…127(ASCII CHARACTER) … 32…127(ASCII CHARACTER)	–	–	X	X
0E	1		NOT USED
0F	1		NOT USED

TOTAL SIZE 10
Transmitted in response to Dump Request. Not received.

MIDI Parameter Change table (EFFECT1)

Address (H)	Size (H)	Data (H)	Parameter	Description	XG Default (H)	MIDI Reception		MIDI Transmission
Address (H)	Size (H)	Data (H)	Parameter	Description	XG Default (H)	Song	Main Layer Left	Panel (main genera- tion method)	Song
02 01 00	2	00-7F	REVERB TYPE MSB	Refer to Effect Type List (page 15).	01(=HALL1)	O		O (Reverb Type)	X
02 01 00	2	00-7F	REVERB TYPE LSB	Refer to Effect Type List (page 15).	00	O		O (Reverb Type)	X
02	1	00-7F	REVERB PARAMETER 1	Refer to Effect Type List (page 15).	Depends on Reverb Type.	O (Depends on Reverb Type.)		X	X
03	1	00-7F	REVERB PARAMETER 2	Refer to Effect Type List (page 15).	Depends on Reverb Type.	O (Depends on Reverb Type.)		X	X
04	1	00-7F	REVERB PARAMETER 3	Refer to Effect Type List (page 15).	Depends on Reverb Type.	O (Depends on Reverb Type.)		X	X
05	1	00-7F	REVERB PARAMETER 4	Refer to Effect Type List (page 15).	Depends on Reverb Type.	O (Depends on Reverb Type.)		X	X
06	1	00-7F	REVERB PARAMETER 5	Refer to Effect Type List (page 15).	Depends on Reverb Type.	O (Depends on Reverb Type.)		X	X
07	1	00-7F	REVERB PARAMETER 6	Refer to Effect Type List (page 15).	Depends on Reverb Type.	O (Depends on Reverb Type.)		X	X
08	1	00-7F	REVERB PARAMETER 7	Refer to Effect Type List (page 15).	Depends on Reverb Type.	O (Depends on Reverb Type.)		X	X
09	1	00-7F	REVERB PARAMETER 8	Refer to Effect Type List (page 15).	Depends on Reverb Type.	O (Depends on Reverb Type.)		X	X
0A	1	00-7F	REVERB PARAMETER 9	Refer to Effect Type List (page 15).	Depends on Reverb Type.	O (Depends on Reverb Type.)		X	X
0B	1	00-7F	REVERB PARAMETER 10	Refer to Effect Type List (page 15).	Depends on Reverb Type.	O (Depends on Reverb Type.)		X	X
0C	1	00-7F	REVERB RETURN	-∞dB…0dB…+6dB(0…64…127)	40	O		X	X
0D	1	01-7F	REVERB PAN	L63…C…R63	40	O		X	X

02 01 10	1	00-7F	REVERB PARAMETER 11	Refer to Effect Type List (page 15).	Depends on Reverb Type.	O (Depends on Reverb Type.)	X	X
11	1	00-7F	REVERB PARAMETER 12	Refer to Effect Type List (page 15).	Depends on Reverb Type.	O (Depends on Reverb Type.)	X	X
12	1	00-7F	REVERB PARAMETER 13	Refer to Effect Type List (page 15).	Depends on Reverb Type.	O (Depends on Reverb Type.)	X	X
13	1	00-7F	REVERB PARAMETER 14	Refer to Effect Type List (page 15).	Depends on Reverb Type.	O (Depends on Reverb Type.)	X	X
14	1	00-7F	REVERB PARAMETER 15	Refer to Effect Type List (page 15).	Depends on Reverb Type.	O (Depends on Reverb Type.)	X	X
15	1	00-7F	REVERB PARAMETER 16	Refer to Effect Type List (page 15).	Depends on Reverb Type.	O (Depends on Reverb Type.)	X	X

Address (H)	Size (H)	Data (H)	Parameter	Description	XG Default (H)	MIDI Reception		MIDI Transmission
Address (H)	Size (H)	Data (H)	Parameter	Description	XG Default (H)	Song	Main Layer Left	Panel (main genera- tion method)	Song
02 01 20	2	00-7F	CHORUS TYPE MSB	Refer to Effect Type List (page 15).	41(=CHORUS1)	O		O	X
02 01 20	2	00-7F	CHORUS TYPE LSB	Refer to Effect Type List (page 15).	00	O		O	X
22	1	00-7F	CHORUS PARAMETER 1	Refer to Effect Type List (page 15).	Depends on Chorus Type.	O (Depends on Chorus Type.)		X	X
23	1	00-7F	CHORUS PARAMETER 2	Refer to Effect Type List (page 15).	Depends on Chorus Type.	O (Depends on Chorus Type.)		X	X
24	1	00-7F	CHORUS PARAMETER 3	Refer to Effect Type List (page 15).	Depends on Chorus Type.	O (Depends on Chorus Type.)		X	X
25	1	00-7F	CHORUS PARAMETER 4	Refer to Effect Type List (page 15).	Depends on Chorus Type.	O (Depends on Chorus Type.)		X	X
26	1	00-7F	CHORUS PARAMETER 5	Refer to Effect Type List (page 15).	Depends on Chorus Type.	O (Depends on Chorus Type.)		X	X
27	1	00-7F	CHORUS PARAMETER 6	Refer to Effect Type List (page 15).	Depends on Chorus Type.	O (Depends on Chorus Type.)		X	X
28	1	00-7F	CHORUS PARAMETER 7	Refer to Effect Type List (page 15).	Depends on Chorus Type.	O (Depends on Chorus Type.)		X	X
29	1	00-7F	CHORUS PARAMETER 8	Refer to Effect Type List (page 15).	Depends on Chorus Type.	O (Depends on Chorus Type.)		X	X
2A	1	00-7F	CHORUS PARAMETER 9	Refer to Effect Type List (page 15).	Depends on Chorus Type.	O (Depends on Chorus Type.)		X	X
2B	1	00-7F	CHORUS PARAMETER 10	Refer to Effect Type List (page 15).	Depends on Chorus Type.	O (Depends on Chorus Type.)		X	X
2C	1	00-7F	CHORUS RETURN	-∞dB…0dB…+6dB(0…64…127)	40	O		X	X
2D	1	01-7F	CHORUS PAN	L63…C…R63	40	O		X	X
2E	1	00-7F	SEND CHORUS TO REVERB	-∞dB…0dB…+6dB(0…64…127)	00	O		X	X

02 01 30	1	00-7F	CHORUS PARAMETER 11	Refer to Effect Type List (page 15).	Depends on Chorus Type.	O (Depends on Chorus Type.)	X	X
31	1	00-7F	CHORUS PARAMETER 12	Refer to Effect Type List (page 15).	Depends on Chorus Type.	O (Depends on Chorus Type.)	X	X
32	1	00-7F	CHORUS PARAMETER 13	Refer to Effect Type List (page 15).	Depends on Chorus Type.	O (Depends on Chorus Type.)	X	X
33	1	00-7F	CHORUS PARAMETER 14	Refer to Effect Type List (page 15).	Depends on Chorus Type.	O (Depends on Chorus Type.)	X	X
34	1	00-7F	CHORUS PARAMETER 15	Refer to Effect Type List (page 15).	Depends on Chorus Type.	O (Depends on Chorus Type.)	X	X
35	1	00-7F	CHORUS PARAMETER 16	Refer to Effect Type List (page 15).	Depends on Chorus Type.	O (Depends on Chorus Type.)	X	X

Address (H)	Size (H)	Data (H)	Parameter	Description	XG Default (H)	MIDI Reception		MIDI Transmission
						Song	Main Layer Left	Panel (main genera- tion method)	Song
02 01 40	2	00-7F	VARIATION TYPE MSB	Refer to Effect Type List (page 15).	05(=DELAY L,C,R)	O		X	X
		00-7F	VARIATION TYPE LSB	Refer to Effect Type List (page 15).	00
42	2	00-7F	VARIATION PARAMETER 1 MSB	Refer to Effect Type List (page 15).	Depends on Variation Type.	O (Depends on Variation Type.)		X	X
		00-7F	VARIATION PARAMETER 1 LSB	Refer to Effect Type List (page 15).
44	2	00-7F	VARIATION PARAMETER 2 MSB	Refer to Effect Type List (page 15).	Depends on Variation Type.	O (Depends on Variation Type.)		X	X
		00-7F	VARIATION PARAMETER 2 LSB	Refer to Effect Type List (page 15).
46	2	00-7F	VARIATION PARAMETER 3 MSB	Refer to Effect Type List (page 15).	Depends on Variation Type.	O (Depends on Variation Type.)		X	X
		00-7F	VARIATION PARAMETER 3 LSB	Refer to Effect Type List (page 15).
48	2	00-7F	VARIATION PARAMETER 4 MSB	Refer to Effect Type List (page 15).	Depends on Variation Type.	O (Depends on Variation Type.)		X	X
		00-7F	VARIATION PARAMETER 4 LSB	Refer to Effect Type List (page 15).
4A	2	00-7F	VARIATION PARAMETER 5 MSB	Refer to Effect Type List (page 15).	Depends on Variation Type.	O (Depends on Variation Type.)		X	X
		00-7F	VARIATION PARAMETER 5 LSB	Refer to Effect Type List (page 15).
4C	2	00-7F	VARIATION PARAMETER 6 MSB	Refer to Effect Type List (page 15).	Depends on Variation Type.	O (Depends on Variation Type.)		X	X
		00-7F	VARIATION PARAMETER 6 LSB	Refer to Effect Type List (page 15).
4E	2	00-7F	VARIATION PARAMETER 7 MSB	Refer to Effect Type List (page 15).	Depends on Variation Type.	O (Depends on Variation Type.)		X	X
		00-7F	VARIATION PARAMETER 7 LSB	Refer to Effect Type List (page 15).
50	2	00-7F	VARIATION PARAMETER 8 MSB	Refer to Effect Type List (page 15).	Depends on Variation Type.	O (Depends on Variation Type.)		X	X
		00-7F	VARIATION PARAMETER 8 LSB	Refer to Effect Type List (page 15).
52	2	00-7F	VARIATION PARAMETER 9 MSB	Refer to Effect Type List (page 15).	Depends on Variation Type.	O (Depends on Variation Type.)		X	X
		00-7F	VARIATION PARAMETER 9 LSB	Refer to Effect Type List (page 15).
54	2	00-7F	VARIATION PARAMETER 10 MSB	Refer to Effect Type List (page 15).	Depends on Variation Type.	O (Depends on Variation Type.)		X	X
		00-7F	VARIATION PARAMETER 10 LSB	Refer to Effect Type List (page 15).
56	1	00-7F	VARIATION RETURN	-∞dB…0dB…+6dB(0…64…127)	40	O		X	X
57	1	01-7F	VARIATION PAN	L63…C…R63	40	O		X	X
58	1	00-7F	SEND VARIATION TO REVERB	-∞dB…0dB…+6dB(0…64…127)	00	O		X	X
59	1	00-7F	SEND VARIATION TO CHORUS	-∞dB…0dB…+6dB(0…64…127)	00	O		X	X
5A	1	00-01	VARIATION CONNECTION	INSERTION, SYSTEM	00	O		X	X
5B	1	00-7F	VARIATION PART NUMBER	Reception : Part1…16(0…15) Transmission : Part1…16(0…15) AD(64) OFF(127)	7F	O		X	X
5C	1	00-7F	MW VARIATION CONTROL DEPTH	-64…0…+63	40	O		X	X
5D	1	00-7F	BEND VARIATION CONTROL DEPTH	-64…0…+63	40	O		X	X
5E	1	00-7F	CAT VARIATION CONTROL DEPTH	-64…0…+63	40	O		X	X
5F	1	00-7F	AC1 VARIATION CONTROL DEPTH	-64…0…+63	40	O		X	X
60	1	00-7F	AC2 VARIATION CONTROL DEPTH	-64…0…+63	40	O		X	X

02 01 70	1	00-7F	VARIATION PARAMETER 11	Refer to Effect Type List (page 15).	Depends on Variation Type.	O (Depends on Variation Type.)	X	X
71	1	00-7F	VARIATION PARAMETER 12	Refer to Effect Type List (page 15).	Depends on Variation Type.	O (Depends on Variation Type.)	X	X
72	1	00-7F	VARIATION PARAMETER 13	Refer to Effect Type List (page 15).	Depends on Variation Type.	O (Depends on Variation Type.)	X	X
73	1	00-7F	VARIATION PARAMETER 14	Refer to Effect Type List (page 15).	Depends on Variation Type.	O (Depends on Variation Type.)	X	X
74	1	00-7F	VARIATION PARAMETER 15	Refer to Effect Type List (page 15).	Depends on Variation Type.	O (Depends on Variation Type.)	X	X
75	1	00-7F	VARIATION PARAMETER 16	Refer to Effect Type List (page 15).	Depends on Variation Type.	O (Depends on Variation Type.)	X	X

MIDI Parameter Change table (MULTI EQ)

Address (H)	Size (H)	Data (H)	Parameter	Description	* The MULTI EQ Parameter cannot be reset to its factory setting with XG SYSTEM ON.	MIDI Reception		MIDI Transmission
Address (H)	Size (H)	Data (H)	Parameter	Description		Song	Main Layer Left	Panel (main genera- tion method)	Song
02 40 00	1	00-04	EQ TYPE	flat, jazz, pops, rock, classic		X		X	X
01	1	34-4C	EQ GAIN1	-12…0…+12[dB]		X		X	X
02	1	04-28	EQ FREQUENCY1	32. 2.0k[Hz]		X		X	X
03	1	01-78	EQ Q1	0.1…12.0		X		X	X
04	1	00-01	EQ SHAPE1	shelving, peaking		X		X	X
05	1	34-4C	EQ GAIN2	-12…0…+12[dB]		X		X	X
06	1	0E-36	EQ FREQUENCY2	100. 10.0k[Hz]		X		X	X
07	1	01-78	EQ Q2	0.1…12.0		X		X	X
08	1		NOT USED			–		–	–
09	1	34-4C	EQ GAIN3	-12…0…+12[dB]		X		X	X
0A	1	0E-36	EQ FREQUENCY3	100. 10.0k[Hz]		X		X	X
0B	1	01-78	EQ Q3	0.1…12.0		X		X	X
0C	1		NOT USED			–		–	–
0D	1	34-4C	EQ GAIN4	-12…0…+12[dB]		X		X	X
0E	1	0E-36	EQ FREQUENCY4	100. 10.0k[Hz]		X		X	X
0F	1	01-78	EQ Q4	0.1…12.0		X		X	X
10	1		NOT USED			–		–	–
11	1	34-4C	EQ GAIN5	-12…0…+12[dB]		X		X	X
12	1	1C-3A	EQ FREQUENCY5	0.5k. 16.0k[Hz]		X		X	X
13	1	01-78	EQ Q5	0.1…12.0		X		X	X
14	1	00-01	EQ SHAPE5	shelving, peaking		X		X	X

MIDI Parameter Change table (EFFECT2)

Address (H)	Size (H)	Data (H)	Parameter	Description	* The EFFECT 2 Parameter cannot be reset to its factory setting with XG SYSTEM ON.	MIDI Reception		MIDI Transmission
Address (H)	Size (H)	Data (H)	Parameter	Description		Song	Main Layer Left	Panel (main genera- tion method)	Song
03 n 00	2	00-7F	INSERTION EFFECT TYPE MSB	Refer to Effect Type List (page 15).		O		O (Voice)	X
03 n 00	2	00-7F	INSERTION EFFECT TYPE LSB	Refer to Effect Type List (page 15).		O		O (Voice)	X
02	1	00-7F	INSERTION EFFECT PARAMETER 1	Refer to Effect Type List (page 15).		O (Depends on Insertion Type.)		O (Voice)	X
03	1	00-7F	INSERTION EFFECT PARAMETER 2	Refer to Effect Type List (page 15).		O (Depends on Insertion Type.)		O (Voice)	X
04	1	00-7F	INSERTION EFFECT PARAMETER 3	Refer to Effect Type List (page 15).		O (Depends on Insertion Type.)		O (Voice)	X
05	1	00-7F	INSERTION EFFECT PARAMETER 4	Refer to Effect Type List (page 15).		O (Depends on Insertion Type.)		O (Voice)	X
06	1	00-7F	INSERTION EFFECT PARAMETER 5	Refer to Effect Type List (page 15).		O (Depends on Insertion Type.)		O (Voice)	X
07	1	00-7F	INSERTION EFFECT PARAMETER 6	Refer to Effect Type List (page 15).		O (Depends on Insertion Type.)		O (Voice)	X
08	1	00-7F	INSERTION EFFECT PARAMETER 7	Refer to Effect Type List (page 15).		O (Depends on Insertion Type.)		O (Voice)	X
09	1	00-7F	INSERTION EFFECT PARAMETER 8	Refer to Effect Type List (page 15).		O (Depends on Insertion Type.)		O (Voice)	X
0A	1	00-7F	INSERTION EFFECT PARAMETER 9	Refer to Effect Type List (page 15).		O (Depends on Insertion Type.)		O (Voice)	X
0B	1	00-7F	INSERTION EFFECT PARAMETER 10	Refer to Effect Type List (page 15).		O (Depends on Insertion Type.)		O (Voice)	X
0C	1	00-7F	INSERTION EFFECT PART NUMBER	Reception : Part1…16(0…15) Transmission : Part1…16(0…15) AD(64) OFF(127)		O		O (Voice)	X
0D	1	00-7F	MW INSERTION CONTROL DEPTH	-64…0…+63		O		X	X
0E	1	00-7F	BEND INSERTION CONTROL DEPTH	-64…0…+63		O		X	X
0F	1	00-7F	CAT INSERTION CONTROL DEPTH	-64…0…+63		O		X	X
10	1	00-7F	AC1 INSERTION CONTROL DEPTH	-64…0…+63		O		O (Voice)	X
11	1	00-7F	AC2 INSERTION CONTROL DEPTH	-64…0…+63		O		X	X

20	1	00-7F	INSERTION EFFECT PARAMETER 11	Refer to Effect Type List (page 15).	O (Depends on Insertion Type.)	O (Voice)	X
21	1	00-7F	INSERTION EFFECT PARAMETER 12	Refer to Effect Type List (page 15).	O (Depends on Insertion Type.)	O (Voice)	X
22	1	00-7F	INSERTION EFFECT PARAMETER 13	Refer to Effect Type List (page 15).	O (Depends on Insertion Type.)	O (Voice)	X
23	1	00-7F	INSERTION EFFECT PARAMETER 14	Refer to Effect Type List (page 15).	O (Depends on Insertion Type.)	O (Voice)	X
24	1	00-7F	INSERTION EFFECT PARAMETER 15	Refer to Effect Type List (page 15).	O (Depends on Insertion Type.)	O (Voice)	X
25	1	00-7F	INSERTION EFFECT PARAMETER 16	Refer to Effect Type List (page 15).	O (Depends on Insertion Type.)	O (Voice)	X

30	2	00-7F	INSERTION EFFECT PARAMETER 1 MSB	Refer to Effect Type List (page 15).	O (Depends on Insertion Type.)	X	X
		00-7F	INSERTION EFFECT PARAMETER 1 LSB	Refer to Effect Type List (page 15).
32	2	00-7F	INSERTION EFFECT PARAMETER 2 MSB	Refer to Effect Type List (page 15).	O (Depends on Insertion Type.)	X	X
		00-7F	INSERTION EFFECT PARAMETER 2 LSB	Refer to Effect Type List (page 15).
34	2	00-7F	INSERTION EFFECT PARAMETER 3 MSB	Refer to Effect Type List (page 15).	O (Depends on Insertion Type.)	X	X
		00-7F	INSERTION EFFECT PARAMETER 3 LSB	Refer to Effect Type List (page 15).
36	2	00-7F	INSERTION EFFECT PARAMETER 4 MSB	Refer to Effect Type List (page 15).	O (Depends on Insertion Type.)	X	X
		00-7F	INSERTION EFFECT PARAMETER 4 LSB	Refer to Effect Type List (page 15).
38	2	00-7F	INSERTION EFFECT PARAMETER 5 MSB	Refer to Effect Type List (page 15).	O (Depends on Insertion Type.)	X	X
		00-7F	INSERTION EFFECT PARAMETER 5 LSB	Refer to Effect Type List (page 15).
3A	2	00-7F	INSERTION EFFECT PARAMETER 6 MSB	Refer to Effect Type List (page 15).	O (Depends on Insertion Type.)	X	X
		00-7F	INSERTION EFFECT PARAMETER 6 LSB	Refer to Effect Type List (page 15).
3C	2	00-7F	INSERTION EFFECT PARAMETER 7 MSB	Refer to Effect Type List (page 15).	O (Depends on Insertion Type.)	X	X
		00-7F	INSERTION EFFECT PARAMETER 7 LSB	Refer to Effect Type List (page 15).
3E	2	00-7F	INSERTION EFFECT PARAMETER 8 MSB	Refer to Effect Type List (page 15).	O (Depends on Insertion Type.)	X	X
		00-7F	INSERTION EFFECT PARAMETER 8 LSB	Refer to Effect Type List (page 15).
40	2	00-7F	INSERTION EFFECT PARAMETER 9 MSB	Refer to Effect Type List (page 15).	O (Depends on Insertion Type.)	X	X
		00-7F	INSERTION EFFECT PARAMETER 9 LSB	Refer to Effect Type List (page 15).
42	2	00-7F	INSERTION EFFECT PARAMETER 10 MSB	Refer to Effect Type List (page 15).	O (Depends on Insertion Type.)	O (Voice)	X
		00-7F	INSERTION EFFECT PARAMETER 10 LSB	Refer to Effect Type List (page 15).

The second byte of the address is considered as an Insertion effect number.
n : insertion effect number
The Insertion Effect No. range is from 0 to 1. Values outside the range are handled as unknown and ignored.
For effect types that do not require MSB, the Parameters for Address 02-0B will be received and the Parameters for Address 30-42 will not be received.
For effect types that require MSB, the Parameters for Address 30-42 will be received and the Parameters for Address 02-0B will not be received.
When bulk dumps that include Effect Type data are transmitted, the parameters for addresses 02-0B will always be transmitted.
For effects that require MSB however, when a bulk dump is received, the parameters for addresses 02-0B will not be received.

MIDI Parameter Change table (MULTI PART)

Address (H)	Size (H)	Data (H)	Parameter	Description	XG Default (H)	MIDI Reception		MIDI Transmission
Address (H)	Size (H)	Data (H)	Parameter	Description	XG Default (H)	Song	Main Layer Left	Panel (main genera- tion method)	Song
08 nn 00	1	00-20	NOT USED			X	X	X	X
01	1	00-7F	BANK SELECT MSB	0…127	part10=7F, other parts=00	O	X	X	X
02	1	00-7F	BANK SELECT LSB	0…127	00	O	X	X	X
03	1	00-7F	PROGRAM NUMBER	1…128	00	O	X	X	X
04	1	00-0F, 7F	Rcv CHANNEL	1…16, OFF	Part No.	O	X	X	X
05	1	00-01	MONO/POLY MODE	MONO, POLY	01	O	X	X	X
06	1	00-02	SAME NOTE NUMBER KEY ON ASSIGN	SINGLE, MULTI, INST(for Drum)	01	O	X	X	X
07	1	00-03	PART MODE	NORMAL, DRUM, DRUMS1…2	part10=02, other parts=00	O	X	O (Voice)	X
08	1	28-58	NOTE SHIFT	-24…0…+24[semitones]	40	O	X	X	X
09	2	00-0F	DETUNE	-12.8…0…+12.7[Hz] 1st bit3-0gbit7-4	08 00	O	X	X	X
09	2	00-0F	DETUNE	-12.8…0…+12.7[Hz] 1st bit3-0gbit7-4	08 00	O	X	X	X
0B	1	00-7F	VOLUME	0…127	64	O	X	X	X
0C	1	00-7F	VELOCITY SENSE DEPTH	0…127	40	O	X	O (Voice)	X
0D	1	00-7F	VELOCITY SENSE OFFSET	0…127	40	O	X	O (Voice)	X
0E	1	00-7F	PAN	RND,L63…C…R63	40	O	X	X	X
0F	1	00-7F	NOTE LIMIT LOW	C-2…G8	00	O	X	X	X
10	1	00-7F	NOTE LIMIT HIGH	C-2…G8	7F	O	X	X	X
11	1	00-7F	DRY LEVEL	0…127	7F	O	X	X	X
12	1	00-7F	CHORUS SEND	0…127	00	O	X	X	X
13	1	00-7F	REVERB SEND	0…127	28	O	X	X	X
14	1	00-7F	VARIATION SEND	0…127	00	O	X	X	X
15	1	00-7F	VIBRATO RATE	-64…0…+63	40	O	X	X	X
16	1	00-7F	VIBRATO DEPTH	-64…0…+63	40	O	X	X	X
17	1	00-7F	VIBRATO DELAY	-64…0…+63	40	O	X	X	X
18	1	00-7F	FILTER CUTOFF FREQUENCY	-64…0…+63	40	O	X	X	X
19	1	00-7F	FILTER RESONANCE	-64…0…+63	40	O	X	X	X
1A	1	00-7F	EG ATTACK TIME	-64…0…+63	40	O	X	X	X
1B	1	00-7F	EG DECAY TIME	-64…0…+63	40	O	X	X	X
1C	1	00-7F	EG RELEASE TIME	-64…0…+63	40	O	X	X	X
1D	1	28-58	MW PITCH CONTROL	-24…0…+24[semitones]	40	O	X	X	X
1E	1	00-7F	MW LOW PASS FILTER CONTROL	-9600…0…+9450[cent]	40	O	X	X	X
1F	1	00-7F	MW AMPLITUDE CONTROL	-100…0…+100[%]	40	O	X	X	X
20	1	00-7F	MW LFO PMOD DEPTH	0…127	0A	O	X	X	X
21	1	00-7F	MW LFO FMOD DEPTH	0…127	00	O	X	X	X
22	1	00-7F	MW LFO AMOD DEPTH	0…127	00	O	X	X	X
23	1	28-58	BEND PITCH CONTROL	-24…0…+24[semitones]	42	O	X	X	X
24	1	00-7F	BEND LOW PASS FILTER CONTROL	-9600…0…+9450[cent]	40	O	X	X	X
25	1	00-7F	BEND AMPLITUDE CONTROL	-100…0…+100[%]	40	O	X	X	X
26	1	00-7F	BEND LFO PMOD DEPTH	0…127	00	O	X	X	X
27	1	00-7F	BEND LFO FMOD DEPTH	0…127	00	O	X	X	X
28	1	00-7F	BEND LFO AMOD DEPTH	0…127	00	O	X	X	X

30	1	00-01	Rcv PITCH BEND	OFF, ON	01	O	X	X	X
31	1	00-01	Rcv CH AFTER TOUCH(CAT)	OFF, ON	01	O	X	X	X
32	1	00-01	Rcv PROGRAM CHANGE	OFF, ON	01	O	X	X	X
33	1	00-01	Rcv CONTROL CHANGE	OFF, ON	01	O	X	X	X
34	1	00-01	Rcv POLY AFTER TOUCH(PAT)	OFF, ON	01	O	X	X	X
35	1	00-01	Rcv NOTE MESSAGE	OFF, ON	01	O	X	X	X
36	1	00-01	Rcv RPN	OFF, ON	01	O	X	X	X
37	1	00-01	Rcv NRPN	OFF, ON	XGmode=01, GMmode=00	O	X	X	X
38	1	00-01	Rcv MODULATION	OFF, ON	01	O	X	X	X
39	1	00-01	Rcv VOLUME	OFF, ON	01	O	X	X	X
3A	1	00-01	Rcv PAN	OFF, ON	01	O	X	X	X
3B	1	00-01	Rcv EXPRESSION	OFF, ON	01	O	X	X	X
3C	1	00-01	Rcv HOLD1	OFF, ON	01	O	X	X	X
3D	1	00-01	Rcv PORTAMENTO	OFF, ON	01	O	X	X	X
3E	1	00-01	Rcv SOSTENUTO	OFF, ON	01	O	X	X	X
3F	1	00-01	Rcv SOFT PEDAL	OFF, ON	01	O	X	X	X
40	1	00-01	Rcv BANK SELECT	OFF, ON	01	O	X	X	X
41	1	00-7F	SCALE TUNING C	-63…0…+63[cent]	40	O	X	X	X
42	1	00-7F	SCALE TUNING C#	-63…0…+63[cent]	40	O	X	X	X
43	1	00-7F	SCALE TUNING D	-63…0…+63[cent]	40	O	X	X	X
44	1	00-7F	SCALE TUNING D#	-63…0…+63[cent]	40	O	X	X	X
45	1	00-7F	SCALE TUNING E	-63…0…+63[cent]	40	O	X	X	X
46	1	00-7F	SCALE TUNING F	-63…0…+63[cent]	40	O	X	X	X
47	1	00-7F	SCALE TUNING F#	-63…0…+63[cent]	40	O	X	X	X
48	1	00-7F	SCALE TUNING G	-63…0…+63[cent]	40	O	X	X	X
49	1	00-7F	SCALE TUNING G#	-63…0…+63[cent]	40	O	X	X	X
4A	1	00-7F	SCALE TUNING A	-63…0…+63[cent]	40	O	X	X	X
4B	1	00-7F	SCALE TUNING A#	-63…0…+63[cent]	40	O	X	X	X
4C	1	00-7F	SCALE TUNING B	-63…0…+63[cent]	40	O	X	X	X
4D	1	28-58	CAT PITCH CONTROL	-24…0…+24[semitones]	40	O	X	X	X
4E	1	00-7F	CAT LOW PASS FILTER CONTROL	-9600…0…+9450[cent]	40	O	X	X	X
4F	1	00-7F	CAT AMPLITUDE CONTROL	-100…0…+100[%]	40	O	X	X	X
50	1	00-7F	CAT LFO PMOD DEPTH	0…127	00	O	X	X	X
51	1	00-7F	CAT LFO FMOD DEPTH	0…127	00	O	X	X	X
52	1	00-7F	CAT LFO AMOD DEPTH	0…127	00	O	X	X	X
53	1	28-58	PAT PITCH CONTROL	-24…0…+24[semitones]	40	O	X	X	X
54	1	00-7F	PAT LOW PASS FILTER CONTROL	-9600…0…+9450[cent]	40	O	X	X	X

55	1	00-7F	PAT AMPLITUDE CONTROL	-100…0…+100[%]	40	O	X	X	X
56	1	00-7F	PAT LFO PMOD DEPTH	0…127	00	O	X	X	X
57	1	00-7F	PAT LFO FMOD DEPTH	0…127	00	O	X	X	X
58	1	00-7F	PAT LFO AMOD DEPTH	0…127	00	O	X	X	X
59	1	00-5F	AC1 CONTROLLER NUMBER	0…95	10	O	X	O (Voice)	X
5A	1	28-58	AC1 PITCH CONTROL	-24…0…+24[semitones]	40	O	X	X	X
5B	1	00-7F	AC1 LOW PASS FILTER CONTROL	-9600…0…+9450[cent]	40	O	X	X	X
5C	1	00-7F	AC1 AMPLITUDE CONTROL	-100…0…+100[%]	40	O	X	X	X
5D	1	00-7F	AC1 LFO PMOD DEPTH	0…127	00	O	X	X	X
5E	1	00-7F	AC1 LFO FMOD DEPTH	0…127	00	O	X	X	X
5F	1	00-7F	AC1 LFO AMOD DEPTH	0…127	00	O	X	X	X
60	1	00-5F	AC2 CONTROLLER NUMBER	0…95	11	O	X	X	X
61	1	28-58	AC2 PITCH CONTROL	-24…0…+24[semitones]	40	O	X	X	X
62	1	00-7F	AC2 LOW PASS FILTER CONTROL	-9600…0…+9450[cent]	40	O	X	X	X
63	1	00-7F	AC2 AMPLITUDE CONTROL	-100…0…+100[%]	40	O	X	X	X
64	1	00-7F	AC2 LFO PMOD DEPTH	0…127	00	O	X	X	X
65	1	00-7F	AC2 LFO FMOD DEPTH	0…127	00	O	X	X	X
66	1	00-7F	AC2 LFO AMOD DEPTH	0…127	00	O	X	X	X
67	1	00-01	PORTAMENTO SWITCH	OFF, ON	00	O	X	X	X
68	1	00-7F	PORTAMENTO TIME	0…127	00	O	X	X	X
69	1	00-7F	PITCH EG INITIAL LEVEL	-64…0…+63	40	O	X	X	X
6A	1	00-7F	PITCH EG ATTACK TIME	-64…0…+63	40	O	X	X	X
6B	1	00-7F	PITCH EG RELEASE LEVEL	-64…0…+63	40	O	X	X	X
6C	1	00-7F	PITCH EG RELEASE TIME	-64…0…+63	40	O	X	X	X
6D	1	01-7F	VELOCITY LIMIT LOW	1…127	01	O	X	X	X
6E	1	01-7F	VELOCITY LIMIT HIGH	1…127	7F	O	X	X	X

70	1		NOT USED		–	–	–	–	–
71	1		NOT USED		–	–	–	–	–
72	1	00-7F	EQ BASS GAIN	-12dB…+12dB	40	O	X	X	X
73	1	00-7F	EQ TREBLE GAIN	-12dB…+12dB	40	O	X	X	X

74	1		NOT USED		–	–	–	–	–
75	1		NOT USED		–	–	–	–	–
76	1	04-28	EQ BASS FREQUENCY	32. 2.0k[Hz]	0C	O	X	X	X
77	1	1C-3A	EQ TREBLE FREQUENCY	500. 16.0k[Hz]	36	O	X	X	X
78	1		NOT USED		–	–	–	–	–
79	1		NOT USED		–	–	–	–	–
7A	1		NOT USED		–	–	–	–	–
7B	1		NOT USED		–	–	–	–	–
7C	1		NOT USED		–	–	–	–	–
7D	1		NOT USED		–	–	–	–	–
7E	1		NOT USED		–	–	–	–	–
7F	1		NOT USED		–	–	–	–	–

0A nn 40	1	00-7F	MW OFFSET LEVEL CONTROL	-100 – 100[%]	40	O	X	X	X
41	1	00-7F	BEND OFFSET LEVEL CONTROL	-100 – 100[%]	40	O	X	X	X
42	1	00-7F	CAT OFFSET LEVEL CONTROL	-100 – 100[%]	40	O	X	X	X
43	1	00-7F	PAT OFFSET LEVEL CONTROL	-100 – 100[%]	40	O	X	X	X
44	1	00-7F	AC1 OFFSET LEVEL CONTROL	-100 – 100[%]	40	O	X	X	X
45	1	00-7F	AC2 OFFSET LEVEL CONTROL	-100 – 100[%]	40	O	X	X	X

nn = PART NUMBER
If there is a Drum Voice assigned to the part, the following parameters are ineffective.

BANK SELECT LSB
PORTAMENTO
MONO/POLY
SCALE TUNING
POLY AFTER TOUCH
PITCH EG

MIDI Parameter Change table (DRUM SETUP)

Address (H)	Size (H)	Data (H)	Parameter	Description	XG Default (H)	MIDI Reception		MIDI Transmission
Address (H)	Size (H)	Data (H)	Parameter	Description	XG Default (H)	Song	Main Layer Left	Panel (main genera- tion method)	Song
3n rr 00	1	00-7F	PITCH COARSE	-64…0…+63	40	O	X	X	O
01	1	00-7F	PITCH FINE	-64…0…+63[cent]	40	O	X	X	O
02	1	00-7F	LEVEL	0…127	Depends on the note.	O	X	X	O
03	1	00-7F	ALTERNATE GROUP	OFF, 1…127	Depends on the note.	O	X	X	O
04	1	00-7F	PAN	RND, L63…C…R63	Depends on the note.	O	X	X	O
05	1	00-7F	REVERB SEND	0…127	Depends on the note.	O	X	X	O
06	1	00-7F	CHORUS SEND	0…127	Depends on the note.	O	X	X	O
07	1	00-7F	VARIATION SEND	0…127	7F	O	X	X	O
08	1	00-01	KEY ASSIGN	SINGLE, MULTI	00	O	X	X	O
09	1	00-01	Rcv NOTE OFF	OFF, ON	Depends on the note.	O	X	X	O
0A	1	00-01	Rcv NOTE ON	OFF, ON	01	O	X	X	O
0B	1	00-7F	LOW PASS FILTER CUTOFF FREQUENCY	-64…0…+63	40	O	X	X	O
0C	1	00-7F	LOW PASS FILTER RESONANCE	-64…0…+63	40	O	X	X	O
0D	1	00-7F	EG ATTACK RATE	-64…0…+63	40	O	X	X	O
0E	1	00-7F	EG DECAY1 RATE	-64…0…+63	40	O	X	X	O
0F	1	00-7F	EG DECAY2 RATE	-64…0…+63	40	O	X	X	O

20	1	00-7F	EQ BASS GAIN	-12…+12[dB]	40	X	X	X	X
21	1	00-7F	EQ TREBLE GAIN	-12…+12[dB]	40	X	X	X	X
22	1		NOT USED		–	–	–	–	–
23	1		NOT USED		–	–	–	–	–
24	1	04-28	EQ BASS FREQUENCY	32.. 2.0k[Hz]	0C	X	X	X	X
25	1	1C-3A	EQ TREBLE FREQUENCY	500. 16.0k[Hz]	36	X	X	X	X
26	1		NOT USED		–	–	–	–	–
27	1		NOT USED		–	–	–	–	–
28	1		NOT USED		–	–	–	–	–
29	1		NOT USED		–	–	–	–	–
2A	1		NOT USED		–	–	–	–	–
2B	1		NOT USED		–	–	–	–	–
2C	1		NOT USED		–	–	–	–	–
2D	1		NOT USED		–	–	–	–	–

n:Drum Setup Number (0-1)
rr:note number(0D-5B)
In the following cases, the instrument will initialize all Drum Setups.

XG SYSTEM ON received
GM SYSTEM ON received
GM LEVEL2 SYSTEM ON received
GS RESET received
DRUM SETUP RESET received (only when in XG mode)

NOTICE
When a part to which a Drum Setup is assigned receives a program change, the assigned Drum Setup will be initialized.
If the same Drum Setup is assigned to two or more parts, changes in Drum Setup parameters (including program changes) will apply to all parts to which it is assigned.

System Exclusive Messages (1)

* Not Received when Receive Parameter SysEx is set to off.
* Not transmitted when Transmit Parameter SysEx is set to off.

System Exclusive Messages (Universal Non-Real Time Messages)

MIDI Event	Data Format	MIDI Formats	MIDI Reception		MIDI Transmission
MIDI Event	Data Format	MIDI Formats	Song	Main Layer Left	Panel (main generation method)	Song
GM1 System On	F0 7E XN 09 01 F7 11110000 F0 = Exclusive status 01111110 7E = Universal Non-Real Time 0xxxnnnn XN = When N is received N=0-F,whichever is received. X=ignored 00001001 09 = Sub-ID #1=General MIDI Message 00000001 01 = Sub-ID #2=General MIDI On 11110111 F7 = End of Exclusive	[GM1] [GM2]	O	X	X	X*1
General MIDI System Off	F0 7E XN 09 02 F7 11110000 F0 = Exclusive status 01111110 7E = Universal Non-Real Time 0xxxnnnn XN = When N is received N=0-F,whichever is received. X=ignored 00001001 09 = Sub-ID #1=General MIDI Message 00000010 02 = Sub-ID #2=General MIDI Off 11110111 F7 = End of Exclusive	[GM1] [GM2]	O	X	X	X*1

System Exclusive Messages (2)

* Not Received when Receive Parameter SysEx is set to off.
* Not transmitted when Transmit Parameter SysEx is set to off.

System Exclusive Messages (XG)

MIDI Event	Data Format			MIDI Reception		MIDI Transmission
MIDI Event	Data Format			Song	Main Layer Left	Panel (main generation method)	Song
XG Parameter Change	F0	43 1n 4C 11110000 01000011 0001nnnn 01001100 0hhhhhhh 0mmmmmmm 0lllllll 0ddddddd … 11110111	hh mm ll dd … F7 F0 = Exclusive status 43 = YAMAHA ID 1n = Device Number n=always 0(when transmit), n=0-F(when receive) 4C = Model ID hh = Address High mm = Address Mid ll = Address Low dd = Data … F7 = End of Exclusive	O	X	O	X
				*Refer to		*Refer to
				Parameter		Parameter
				Change Table.		Change Table.
XG Bulk Dump	F0	43 0n 4C 11110000 01000011 0000nnnn 01001100 0aaaaaaa 0bbbbbbb 0hhhhhhh 0mmmmmmm 0lllllll 0ddddddd … 0ddddddd 0ccccccc 11110111	aa bb hh mm ll dd … dd cc F7 F0 = Exclusive status 43 = YAMAHA ID 0n = Device Number n=always 0(when transmit), n=0-F(when receive) 4C = Model ID aa = Byte Count MSB bb = Byte Count LSB hh = Address High mm = Address Mid ll = Address Low dd = Data … dd = Data cc = Checksum F7 = End of Exclusive	O	X	O	X
				*Refer to		*Refer to
				Parameter		Parameter
				Change Table.		Change Table.
XG Parameter Request	F0	43 3n 4C 11110000 01000011 0011nnnn 01001100 0hhhhhhh 0mmmmmmm 0lllllll 11110111	hh mm ll F7 F0 = Exclusive status 43 = YAMAHA ID 3n = Device Number n=always 0(when transmit), n=0-F(when receive) 4C = Model ID hh = Address High mm = Address Mid ll = Address Low F7 = End of Exclusive	O *Refer to Parameter Change Table.	X	X
	F0			(However, the request for address “0A nn 4v” will be ignored.)
XG Dump Request	F0	43 2n 4C 11110000 01000011 0010nnnn 01001100 0hhhhhhh 0mmmmmmm 0lllllll 11110111	hh mm ll F7 F0 = Exclusive status 43 = YAMAHA ID 2n = Device Number n=always 0(when transmit), n=0-F(when receive) 4C = Model ID hh = Address High mm = Address Mid ll = Address Low F7 = End of Exclusive	O *Refer to Parameter Change Table.	X	X
	F0			(However, the request for address “0A nn 40” will be ignored.)

System Exclusive Messages (Others)

MIDI Event

Data Format

MIDI Reception

(effective or not for each part)

MIDI Transmission

(generated data)

Song

Main Layer Left

Panel (main generation

method)

Song

MIDI Master Tuning

F0 43 1n 27 30 00 00 mm ll cc F7 11110000 F0 = Exclusive status 01000011 43 = YAMAHA ID

0001nnnn 1n n= always 0(when transmit), n=0-F(when receive)

00100111 27 = Model ID of TG100

00110000 30 = Address High

00000000 00 = Address Mid

00000000 00 = Address Low 0000mmmm 0m = Master Tune MSB 0000llll 0l = Master Tune LSB 0ccccccc cc = don’t care

11110111 F7 = End of Exclusive

System Exclusive Messages (Preset Voice)

MIDI Event	Data Format			MIDI Reception (effective or not for each part)		MIDI Transmission (generated data)
MIDI Event	Data Format			Song	Main Layer Left	Panel (main generation method)	Song
String Resonance Depth	F0	43 73 01 11110000 01000011 01110011 00000001 01010000 00010001 0000nnnn 00000010 0ddddddd 11110111	50 11 0n 02 dd F7 F0 = Exclusive status 43 = YAMAHA ID 73 = Clavinova ID 01 = Model ID (Clavinova common ID) 50 = SubID 11 = SubID 0n = Channel (00-0F) 02 = SubID(String Resonance Depth) dd = Depth(00-48) F7 = End of Exclusive	X	X	X	X
Sustain Sample Depth	F0	43 73 01	50 11 0n 03 dd F7	X	X	O	X
		11110000	F0 = Exclusive status			(Damper
		01000011	43 = YAMAHA ID			Resonance)
		01110011	73 = Clavinova ID
		00000001	01 = Model ID (Clavinova common ID)
		01010000	50 = SubID
		00010001	11 = SubID
		0000nnnn	0n = Channel (00-0F)
		00000011	03 = SubID(Sustain Sample Depth)
		0ddddddd	dd = Depth(00-48)
		11110111	F7 = End of Exclusive
Key Off Sampling Depth	F0	43 73 01 11110000 01000011 01110011 00000001 01010000 00010001 0000nnnn 00000100 0ddddddd 11110111	50 11 0n 04 dd F7 F0 = Exclusive status 43 = YAMAHA ID 73 = Clavinova ID 01 = Model ID (Clavinova common ID) 50 = SubID 11 = SubID 0n = Channel (00-0F) 04 = SubID(Key Off Sampling Depth) dd = Depth(00-50) F7 = End of Exclusive	O	X	X	X
Soft Pedal Depth	F0	43 73 01 11110000 01000011 01110011 00000001 01010000 00010001 0000nnnn 00000101 0ddddddd 11110111	50 11 0n 05 dd F7 F0 = Exclusive status 43 = YAMAHA ID 73 = Clavinova ID 01 = Model ID (Clavinova common ID) 50 = SubID 11 = SubID 0n = Channel (00-0F) 05 = SubID(Soft Pedal Depth) dd = Depth(00-7F) F7 = End of Exclusive	O	X	X	X

* For each Depth value, the reset value is 40H = voice parameter

Effect Type List(Panel)

Reverb Type List

Effect Name	Decimal		Hex
Effect Name	MSB	LSB	MSB	LSB
Off	0	0	0H	0H
Recital Hall	1	24	1H	18H
Concert Hall	1	4	1H	4H
Chamber	2	24	2H	18H
Club	3	24	3H	18H

DSP Type List

Effect Name	Decimal		Hex
Effect Name	MSB	LSB	MSB	LSB
Damper Resonance	123	8	7BH	8H

MIDI Implementation Chart

Function…			Transmitted		Recognized	Remarks
Basic Channel		Default Changed	1 o		1 – 16 o
Mode		Default	3		3
		Messages	x		x
		Altered	**************		x
Note	:	True voice	0 – 127		0 – 127
Number	:	True voice	**************		0 – 127
Velocity		Note ON Note OFF	o 9nH,v=1-127 o 8nH,v=64		o 9nH,v=1-127 o 9nH,v=0 or 8nH
After Touch		Key’s Ch’s	x x		o o
Pitch Bend			x	*2	o 0 – 24 semi	*1
		0,32	o	2 2 2 2 2 2 2 2 *2	o	Bank Select Expression Data Entry Pedal Portamento Sound Controller Portamento Control Effect Depth RPN Inc,Dec NRPN LSB,MSB RPN LSB,MSB
		1,5	x		o
		7,10	o		o
		11	x		o
Control Change		6,38 64,66,67 65 71-74 84	x o x x x		o o o o o
		91,93	o		o
		96-97	x		o
		98-99	x		o
		100-101	x		o
Prog Change	:	True #	o 0 – 127 **************		o 0 – 127
System Exclusive			o		o
Common	:	Song Pos.	x		x
	:	Song Sel.	x		x
	:	Tune	x		x
System : Clock Real Time: Commands			o o		x o
Aux :LRelsletlSoAulnld CFOnFtrFls Mseasg-es:AclolcaNoetOeNs/OOFF :Retsievt Sense			x xox		o(12210),126,127) o(123)-125) x
Notes:1 For some Voices (such as Piano or Harpsichord Voices), the pitch may not be changed according to the pitch bend setting range. 2 These Control Change messages cannot be transmitted by panel operations, but can be transmitted by Song/Rhythm playback data.
