Kenmore Elite 66513153k701 Undercounter Dishwasher User Manual (+ PDF)

Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean

DANER: You can be killed or seriously injured if you don’t immediately follow instructions.

WARNING: You can be killed or seriously injured if you don’t follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING: Tip Over Hazard

Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cuts,

You need to

Slowly open the dishwasher door while someone grasps th rear of the dishwasher. Remove shipping materials, drain hose and lower rack. Close dishwasher door until latched.
Observe all governing codes and ordinances.
Install this dishwasher as specified in these instructions.
Installation should be performed by a qualified service technician. The dishwasher must be installed to meet all electrical and plumbing national and local codes and ordinances.

Installation Requirements

Tools and Parts

Gather the required tools and parts before starting installation.

All installations

Tools needed

pliers
Phillips screwdriver
5/16″ and 1/4″ nut drivers or hex sockets
measuring tape or ruler
10″ adjustable wrench that opens to 1-1/8″ (2.9 cm) + flat-blade screwdriver
utility knife
2 twist-on wire connectors which are the proper size to connect your household wiring to 16-gauge wiring in the dishwasher
small level
flashlight
shallow pan
5/8″ open-end wrench
bath towel
wood block

Parts needed

90° elbow with 3/8″ N.RI external threads on one end. (The other end must fit your water supply line.)
Teflon tape or pipe joint compound
shims (if installed with the built-up floor)

In addition, new installations

Tools needed

electric drill with 1/2″, 3/4″ and 1-1/2″ hole saw bits
small tubing cutter
wire stripper
1-1/2″-2″ screw-type clamp if connecting to waste-tee

Parts needed

copper tubing (3/8″ recommended) or flexible stainless steel braided fill line
clamp connector or conduit connector to fit a 7/8″ (2.2 cm) diameter hole

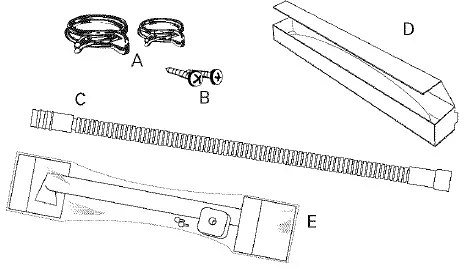

Parts supplied

A. 2 – drain hose clamps, 1 large and 1 small
B. 2 – # 10 x 1/2″ Phillips-head screws
C. drain hose

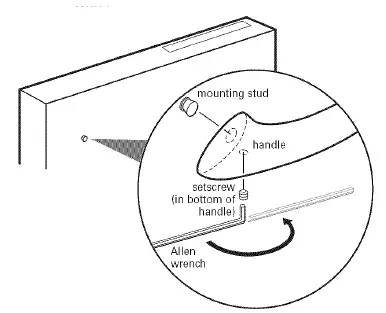

D. on some Kenmore Elite models, carton containing handle, Allen wrench and 3 set screws.
E. on Kenmore PRO (TM) models, assembly containing handle, 2-5/8″ mounting screws, 2 backing plates and handle installation instruction sheet.

Make sure all these parts are included. If not included, call 1-800-4MY-HOME. See separate parts list for accessories available for your dishwasher.

Location Requirements

Do not run drain lines, water lines or electrical wiring where they can interfere with or contact dishwasher motor or legs. The location where the dishwasher will be installed must provide clearance between motor and flooring. Motor should not touch the floor. Do not install dishwasher over carpeted flooring. Protect dishwasher and water lines leading to dishwasher against freezing. Damage from freezing is not covered by the warranty.

A side panel kit is available from your dealer for installing your dishwasher at the end of your cabinetry.A moisture barrier accessory (Part No. 4396277) is available from your dealer for installing underneath the countertop, but is not required.This may also be obtained by calling 1-800-4MY-HOME. Check location where dishwasher will be installed.The location must provide:

easy access to water, electricity and drain. convenient access for loading and unloading dishes.
Corner locations require a 2″ (5.1 cm) minimum clearance between the side of the dishwasher door and the wall or cabinet.
square opening for proper operation and appearance. cabinet front perpendicular to floor.
level floor. (If floor at front of opening is not level with floor at rear of opening, shims may be needed to level dishwasher.)

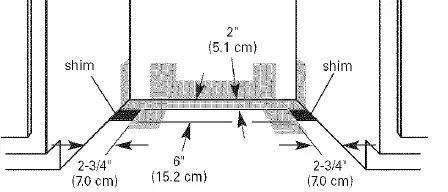

NOTE: To prevent shifting during dishwasher operation, shims must be securely attached to the floor.

If dishwasher will be left unused for a period of time or in a location where it may be subject to freezing, have it winterized by authorized service personnel. Make sure pipes, wires and drain hose are within the shaded area shown in the “Cutout dimensions” section.

HelpfuITip: If the floor in the dishwasher opening is uneven (example: tile flooring only partway into opening) you will need to pay attention to measuring dimensions and leveling the dishwasher.

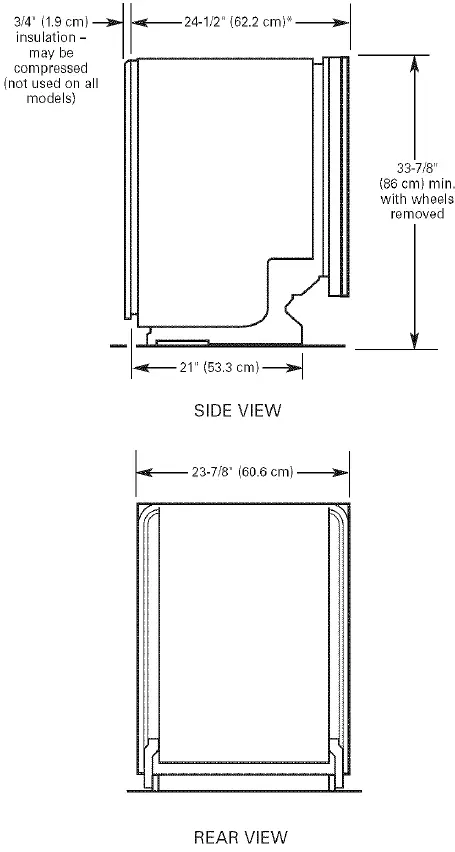

Product dimensions

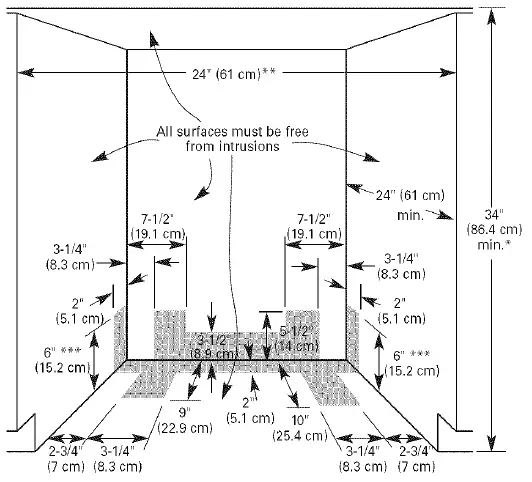

Cutout dimensions

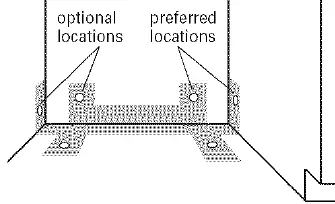

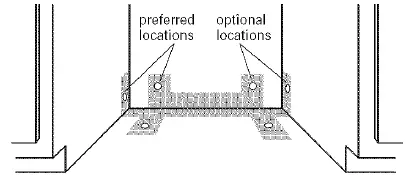

Cut holes in shaded area of cabinet walls or floor as specified below:

water line- 1/2″ (1.3 cm)
drain line- 1-1/2″ (3.8 cm)
direct wire – 3/4″ (1.9 cm)
power supply cord- 1-1/2″ (3.8 cm)

Measured from the lowest point on the underside of countertop. May be reduced to 33-7/8″ (86 cm) by removing wheels from dishwasher.
Minimum, measured from narrowest point of opening.
May be increased to 6-5/8″ (16.6 cm) if height of opening is 34-1/2 (876 cm) at its lowest point.

Drain Requirements

Use the new drain hose supplied with your dishwasher. If this is not long enough, use a new drain hose with a maximum length of 12 feet (3.7 m) that meets all current AHAM/IAPMO test standards, is resistant to heat and detergent, and fits the 1″ (2.5 cm) drain connector of the dishwasher.
Connect drain hose to waste tee or disposer inlet above drain trap in house plumbing and 20″ (50.8 cm) minimum above the floor. It is recommended that the drain hose either be looped up and securely fastened to the underside of the counter, or be connected to an air gap.

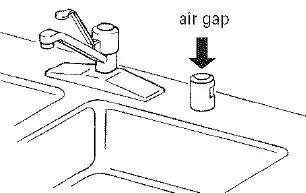

Use an air gap if the drain hose is connected to house plumbing lower than 20″ (50.8 cm) above subfloor or floor.
Use 1/2″ minimum I.D. drain line fittings.

Water Supply Requirements

A hot water line with 20-120 psi (138-862 kPa) water pressure.
120OF (49oC) water at dishwasher.
3/8″ O.D. copper tubing with compression fitting or flexible stainless steel braided fill line (1/2″ minimum plastic tubing is not recommended).
A 90 ° elbow with 3/8″ N.RT. external pipe threads on one end.
Do not solder within 6″ (15.2 cm) from water inlet valve.

Electrical Requirements

Contact a qualified electrician. Assure that the electrical installation is adequate and in conformance with all national and local codes and ordinances.

You must have

120-volt, 60 Hz, AC-only, 15 or 20 amp., fused electrical supply.
Copper wire only.

We recommend

A time-delay fuse or circuit breaker.
A separate circuit.

If direct wiring dishwasher

Use flexible, armored or non-metallic sheathed, copper wire with grounding wire that meets the wiring requirements for your home and local codes and ordinances.
Use strain relief method provided with house wiring junction box or install a UL listed/CSA certified clamp connector to the house wiring junction box. If using conduit, use a UL listed/CSA certified conduit connector.

If connecting the dishwasher with a power supply cord

Use Power Supply Cord Kit (Part No. 4317824) marked for use with dishwashers. Kit contents include:
- Volex, Inc., UL listed 16 gauge 3 wire power supply cord with 3 prong grounded plug.
- Neer C-500 7/8 inch strain relief.
- 3 wire connectors.
- Part No. 302797 grommet
Follow the kit instructions for installing the power supply cord.
Power supply cord must plug into a mating three prong, grounded outlet, located in the cabinet next to the dishwasher opening. Outlet must meet all local codes and ordinances.

Installation Instructions

WARNING: Electrical Shock Hazard

Disconnect electrical power at the fuse box or circuit breaker box before installing dishwasher.
Failure to do so can result in death or electrical shock.

Disconnect power.
Turn off water supply.

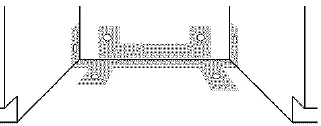

Prepare cabinet opening using existing utility hookups

Follow the steps in this section if you are installing the dishwasher in an existing cabinet opening with utility hookups.
If you are installing the dishwasher in a cabinet opening that does not have hookups, follow the steps under “Prepare cabinet opening where there are no existing utility hookups” section.

Check that the water line reaches to the front left of opening where the water connection will be made.
Check that the direct wire reaches to the front right of opening where the electrical connection will be made.

If the water line and the direct wire reach far enough into the opening, proceed to the next section “Install the drain hose:’ If they do not reach far enough, follow the steps under “Prepare cabinet opening where there are no existing utility hookups.

Install the drain hose

IMPORTANT: Always use a new drain hose even when installing a new replacement dishwasher.

Drill a 1-1/2″ (3.8 cm) diameter hole in cabinet wall or floor on the side of the opening closest to the sink.
Connect drain hose to waste tee or waste disposer using one of the following methods:
- Option 1, Waste disposer- with air gap
- Option 2, No waste disposer- with air gap
- Option 3, Waste disposer- no air gap
- Option 4, No waste disposer- no air gap

an air gap is recommended.

Helpful Tip: To reduce the vibration of the hose, keep the hose away from the floor and the edge of the hole where it passes through the cabinet.

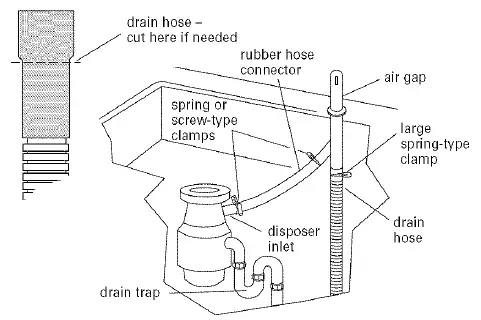

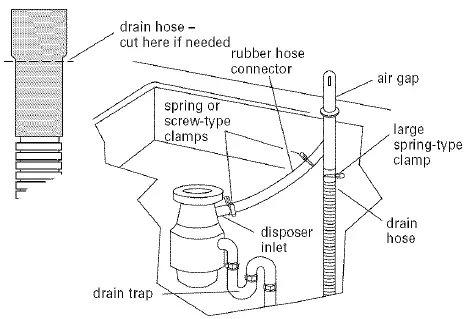

Option 1, Waste disposer – with air gap

Remove the disposer knockout plug. Cut end of drain hose if needed (do not cut ribbed section).
Attach drain hose to air gap with large spring-type clamp. If the drain hose was cut, use a 1-1/2″ to 2″ (3.8 to 5 cm) screw-type clamp*.
Use a rubber hose connector with spring or screwtype clamps to connect air gap to disposer inlet. This connection must be before the drain trap and at least 20″ (50.8 cm) above the floor where the dishwasher will be installed.
Insert drain hose through hole cut in cabinet to the front center of opening where drain connection will be made.

Parts available from local plumbing supply stores.

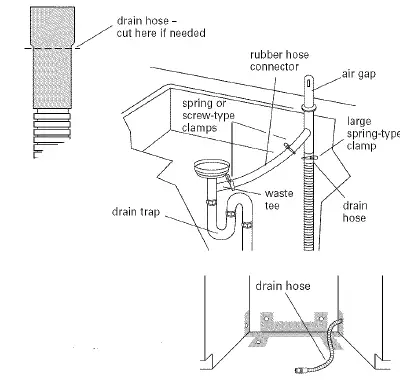

Option 2, No waste disposer – with air gap:

Cut end of drain hose if needed (do not cut ribbed section).
Attach drain hose to air gap with large spring-type clamp. If the drain hose was cut, use a 1-1/2″ to 2″ (3.8 to 5 cm) screw-type clamps.
Use a rubber hose connector* with spring or screw-type clamps to connect air gap to waste tee. This connection must be before the drain trap and at least 20″ (50.8 cm) above the floor where dishwasher will be installed.
Insert drain hose through hole cut in cabinet to the front center of opening where drain connection will be made.

Parts available from local plumbing supply stores.

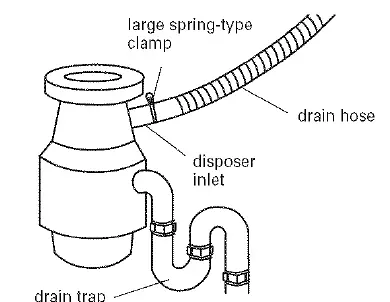

Option 3, Waste disposer – no air gap

Remove the disposer knockout plug. Do not cut end of drain hose.
Attach drain hose to disposer inlet with large spring type clamp. This connection must be before the drain trap and at least 20″ (50.8 cm) above the floor where dishwasher will be installed. It is recommended that the drain hose be looped up and securely fastened to the underside of the counter.

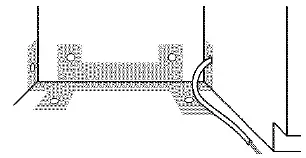

Insert drain hose through hole cut in cabinet to the front center of opening where drain connection will be made.

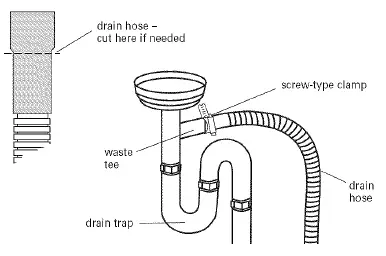

Option 4, No waste disposer – no air gap

Cut end of drain hose if needed (do not cut ribbed section).
Attach drain hose to waste tee with 1-1/2″ to 2″ (3.8 to 5 cm) screw-type clamp. This connection must be before the drain trap and at least 20″ (50.8 cm) above the floor where dishwasher will be installed, it is recommended that the drain hose be looped up and securely fastened to the underside of the counter.
Insert drain hose through hole cut in cabinet to the front center of opening where drain connection will be made.

Parts available from local plumbing supply stores.

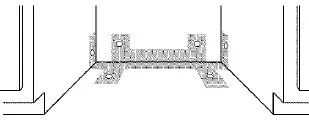

Prepare cabinet opening where there are no existing utility hookups

Electrical connection

Option1, Direct wire method

HelpfulTip: Wiring the dishwasher will be easier if you route wire into the cabinet opening from the right side.

Drill a 3/4″ (1.9 cm) hole in right-hand cabinet side, rear or floor. Preferred and optional locations are shown.
Wood cabinet: Sand hole until smooth.
- Metal cabinet: Cover hole with grommet, not provided.
Run wire into house wiring junction box.
Install a UL listed/CSA certified clamp connector (strain relief) for flexible-type wire. If installing conduit, attach a UL listed/CSA certified conduit connector to the junction box.
Run other end of wire through cabinet hole. Cable must extend to the right front of cabinet opening.

Option2, Powersupplycord method

NOTE: A mating, three prong, ground-type wall receptacle is required in a cabinet next to the dishwasher opening.

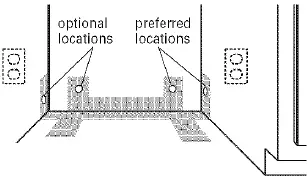

Drill a 1-1/2″ (3.8 cm) hole in the cabinet rear or side. Preferred and optional locations are shown.
Wood cabinet: Sand hole until smooth.
- Metal cabinet: Cover hole with grommet (Part No. 302797) included with power supply cord kit.

install the water line

HelpfulTip: Routing the water line through the left side of cabinet opening will make water connection easier.

Drill a minimum 1/2″ (1.3 cm) hole in the cabinet side rear or floor. Preferred and optional locations are shown.
Measure overall length of copper tubing required.
Attach copper tubing to the water line with a manual shutoff valve.
Slowly feed copper tubing through hole in cabinet. Copper tubing will bend and kink easily, so be gentle.The copper tubing should be far enough into the cabinet opening to connect it to dishwasher inlet on the front left of the dishwasher.
Turn water shutoff valve to “ON” position. Flush water into a shallow pan to get rid of particles that may clog the inlet valve.
Turn shutoff valve to “OFF” position.

Install the drain hose

IMPORTANT: Always use a new drain hose.

Drill a 1-1/2″ (3.8 cm) diameter hole in cabinet wall or floor on the side of the opening closest to the sink.
Connect drain hose to waste tee or waste disposer using one of the following methods:
- Option 1, Waste disposer- with air gap
- Option 2, No waste disposer- with air gap
- Option 3, Waste disposer- no air gap
- Option 4, No waste disposer- no air gaps

an air gap is recommended.

HelpfulTip: To reduce the vibration of the hose, keep the hose away from the floor and the edge of the hole where it passes through the cabinet.

Option 1, Waste disposer – with air gap

Remove the disposer knockout plug. Cut end of drain hose if needed (do not cut ribbed section).
Attach drain hose to air gap with large spring-type clamp. If the drain hose was cut, use a 1-1/2″ to 2″ (3.8 to 5 cm) screw-type clamp.
Use a rubber hose connector* with spring or screw-type clamps to connect air gap to disposer inlet. This connection must be before the drain trap and at least 20″ (50.8 cm) above the floor where dishwasher will be installed.
Insert drain hose through hole cut in cabinet to the front center of opening where drain connection will be made.

Parts available from local plumbing supply stores.

Option2, Nowastedisposer- with the airgap

Content of drain hose if needed (do not cut ribbed section).
Attach drain hose to air gap with large spring-type clamp. If the drain hose was cut, use a 1-1/2″ to 2″ (3.8 to 5 cm) screw-type clamps.
Use a rubber hose connector* with spring or screw-type clamps* to connect air gap to waste tee. This connection must be before the drain trap and at least 20″ (50.8 cm) above the floor where dishwasher will be installed.
Insert drain hose through hole cut in cabinet to the front center of opening where drain connection will be made.

Parts are available from local plumbing supply stores.

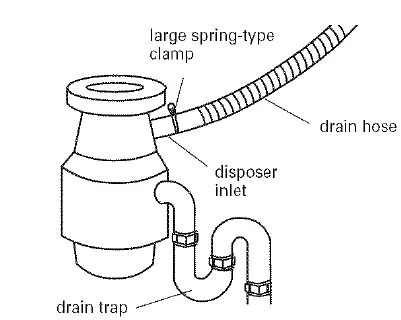

Option 3, Waste disposer – no air gap

Remove the disposer knockout plug. Do not cut end of drain hose.
Attach drain hose to disposer inlet with large spring type clamp. This connection must be before the drain trap and at least 20″ (50.8 cm) above the floor where dishwasher will be installed. It is recommended that the drain hose be looped up and securely fastened to the underside of the counter.
Insert drain hose through hole cut in cabinet to the front center of opening where drain connection will be made.

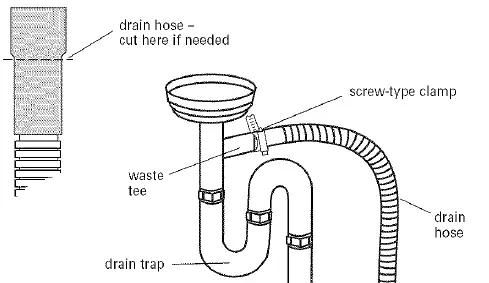

Option 4, No waste disposer – no air gap

Cut end of drain hose if needed (do not cut ribbed section).
Attach drain hose to waste tee with 1-1/2″ to 2″ (3.8 to 5 cm) screw-type clamp s. This connection must be before the drain trap and at least 20″ (50.8 cm) above the floor where dishwasher will be installed. It is recommended that the drain hose be looped up and securely fastened to the underside of the counter.
Insert drain hose through hole cut in cabinet to the front center of opening where drain connection will be made.

Parts available from local plumbing supply stores.

Prepare dishwasher

WARNING: Tip Over Hazard

Do not use dishwasher until completely installed.
Do not push down on the open door.
Doing so can result in serious injury or cuts.

WARNING: Excessive Weight Hazard

Use two or more people to move and install dishwasher.
Failure to do so can result in back or other injury.

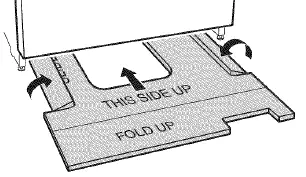

Put corner posts from packaging behind dishwasher. Grasp sides of dishwasher door frame and put dishwasher on its back, resting on top of the corner posts.

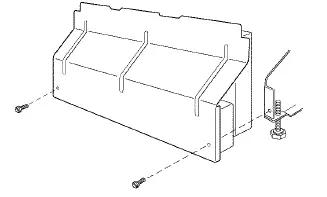

Remove two screws attaching access panel and lower panel to dishwasher using a 1/4″ hex socket, nut driver or Phillips screwdriver.
Remove panels and set panels aside on a protective surface.

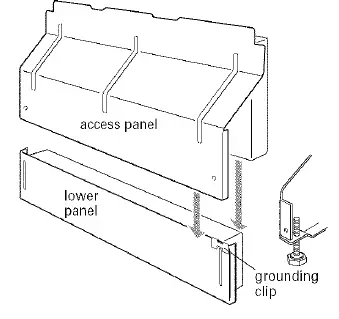

Check that grounding clip is attached to the lower panel.

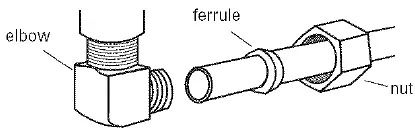

ApplyTeflon tape or pipe joint compound to 90 ° elbow fitting and connect fitting to water inlet valve.
Tighten elbow until snug, and be sure that it faces to the rear.
Remove terminal box cover.

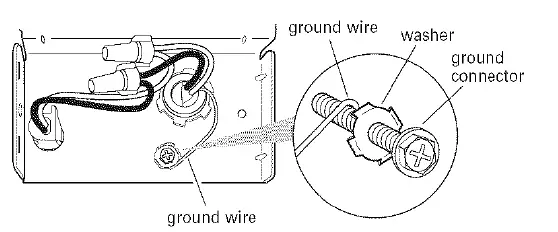

- If you are direct wiring: install a UL listed/CSA certified clamp connector to the terminal box. If using conduit, use a UL listed/CSA certified conduit connector.
- If you are installing a power supply cord kit, do so now, following kit instructions.

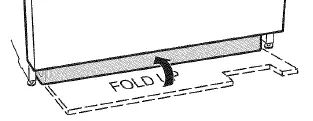

- HelpfulTip: Put cardboard under dishwasher until it is installed in cabinet opening.The cardboard will help protect floor covering during installation.

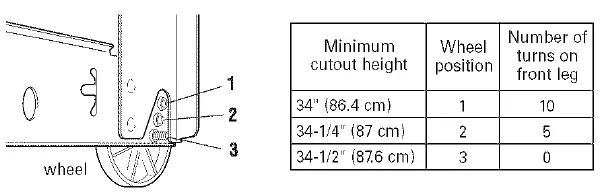

Measure height of cabinet opening from underside of countertop to floor where dishwasher will be installed (you need the lowest point). Check chart for that height opening. Put wheels in the required position.
Turn both front leveler legs to the same height. If the minimum cutout height is less than 34″ (86.4 cm), the rear wheels can be removed for additional clearance.This will allow the dishwasher to fit into a 33-7/8″ (86 cm) high cutout, but the dishwasher will be more difficult to move into position. If the wheels are removed, protect the floor when moving the dishwasher.

if you have built-up floors

Measure height of opening from underside of countertop to buit-u floor. If the height is at least 33-3/4″ (85.7 cm), the dishwasher will fit into the opening without modification to the countertop or flooring.
Put wheels in position 1 and turn the front leveler legs up all the way.
Add shims as needed in the area shown to bring dishwasher up to proper height.

NOTE: Shims must be securely attached to floor to prevent their movement when the dishwasher is operated.

Install custom door panel kit (on some models)

If installing a custom door panel kit, install it now following instructions included with kit.

Install the door handle {someKenmore Elite models)

IMPORTANT: Do not scratch the front panel during this procedure.

Remove the door handle and hardware bag containing the setscrews and Allen wrench from the cardboard box.
Start set screws in handle.
Place handle on mounting studs.The handle should appear as a “smile” when installed, with the set screws facing down.
Push the door handle tightly against the door. Insert the short end of the Allen wrench into the setscrews. Tighten the setscrews 1/4 turn past snug. Retain Allen wrench with Installation Instructions.

Install the door handle (KenmorePROTM models)

IMPORTANT: Do not scratch the front panel during this procedure.

Remove the door handle assembly from the upper dishrack of the dishwasher.
Remove and discard the handle packaging. Be sure to retain the handle installation instructions and mounting hardware.
Install the door handle per handle installation instructions provided with the handle assembly.

Choose attachment option

WARNING: Excessive Weight Hazard

Use two or more people to move and install the dishwasher.
Failure to do so can result in back or another injury.

Using two or more people, stand the dishwasher up.

Option 1, Countertop attachment

The dishwasher must be secured to the cabinet. There are two brackets that can be attached to the countertop if it is wood, laminate or another similar surface. If your countertop is marble, granite or another hard surface, the brackets may be moved to th sides of the dishwasher.

NOTE: Do not attach the dishwasher, this will be done later.

Option 2, Dishwasher side attachment

(for marble, granite or another hard surface countertop)

To remove the brackets from the top, flatten tab at back of the brackets with pliers, and pull the brackets out of the slots.
Break offthe end of the bracket along the scored line.
With another person holding the dishwasher to prevent it from tipping, open dishwasher door, and place towel over pump assembly and spray arm of dishwasher.This will prevent screws from falling into pump area when securing dishwasher to cabinet.
Push the plastic buttons out of the side of the tub.
- NOTE: Save the buttons to cover the holes after dishwasher is installed.
Push bracket into slot on the side of dishwasher, and bend tab in towards the side of the dishwasher so that it keeps the bracket in place.
- NOTE: Do not attach the dishwasher, this will be done later.

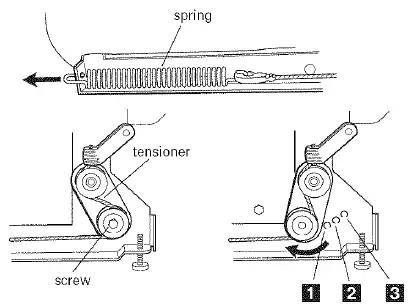

Check door spring tension

With another person holding the dishwasher to prevent it from tipping, open and close the door a few times. If the door closes or falls open under its own weight, the door tension will need to be adjusted.
To adjust the door spring tension, unhook the spring from the rear leg of dishwasher.
With a 5/16″ nut driver or hex socket, remove the screw from the tensioner.
The screw can be put into one of three holes Ill, 1_41, B in front leg of dishwasher. If the door closes by itself, move the tensioner to a higher number hole and replace screw. When door is unlatched, if it opens by itself, move tensioner to a lower numbered hole and replace screw.
Re-attach door spring to rear leg.Tensioners on both sides of dishwasher should be secured at same holes.

Move dishwasher into cabinet opening

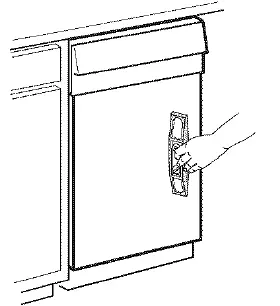

Grasp the sides of the dishwasher at the edges of the door panel.
Tilt dishwasher backwards on wheels and move dishwasher close to cabinet opening. Do not push on the front of the panel or on the console–they may dent.
If dishwasher has a power supply cord, insert power supply cord into hole cut into cabinet. If using direct wire, check that it is on the right front side of opening.
Check that water line is on the left side of opening and drain hose is near the center of the hole in the cabinet.
Slowly move dishwasher completely into cabinet opening. Do not kink or pinch copper tubing, drain hose, power supply cord or direct wire between dishwasher and cabinet.
- HelpfulTip: Once the dishwasher is in position, you may have to support the front of the dishwasher by raising, lowering or shimming front feet.
Remove cardboard from under dishwasher.

NOTE: It is all right if dishwasher fits tightly into cabinet opening. Do not remove insulation blanket –the blanket reduces the sound level.

Level the dishwasher

Align front of dishwasher door panel with cabinet doors.You may need to adjust alignment to be even with your cabinets.

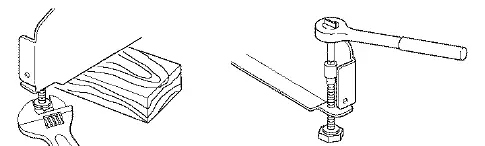

- HelpfulTip: Prop up one side of frame to hold dishwasher up off floor when adjusting front legs. With some installations, it may be easier to adjust the front leg using the 3/16″ hex head.
Check that leveling legs are firmly against the floor.
Close and latch the door, and place level against the front panel. Check that dishwasher is plumb. If needed, adjust leveling leg or add shims under rear wheel until dishwasher is plumb.
Repeat for other side of dishwasher.
- NOTE: Shims must be securely attached to floor to prevent their movement when the dishwasher is operated.
Place level against top front opening of tub. Check that dishwasher is level from side to side. If dishwasher is not level, adjust front legs up or down until dishwasher is level.

Make Electrical Connection

Check “Electrical requirements” section.

You need to: have the correct electrical supply and recommended grounding method.

If you are

direct wiring, use Option 1
using a power supply cord, use Option 2

Option 1, Direct wire method

Route direct wire so that it does not touch dishwasher motor or lower part of dishwasher tub.
Pull direct wire through hole in terminal box.

Helpful Tip

Select the proper size twist-on connectors to connect your household wiring to 16-gauge dishwasher wiring.
Insert wire ends into twist-on connector. Do not pre-twist bare wire.
Twist connector.
Gently tug on wires to be sure both are secured.

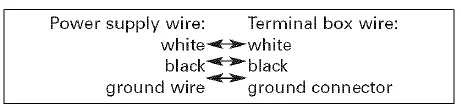

Connect the wires as follows using twist-on connectors sized to connect direct wire to 16-gauge dishwasher wire

WARNING: Electrical Shock Hazard

Electrically ground dishwasher.
Connect ground wire to green ground connector in terminal box.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.

Form bare ground wire into a U-shaped hook. Wrap ground wire hook clockwise around ground connector and under the washer.
Securely tighten ground connector.
Tighten clamp connector or conduit connector screws.
Reinstall terminal box cover with wires inside terminal box. The cover must be outside the box on the left side.
Make sure no wires are pinched by cover.

Option 2, Power supply cord method

WARNING: Electrical Shock Hazard

Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.

Plug into a grounded 3 prong outlet.
Check that power supply cord does not touch dishwasher motor or lower part of dishwasher tub.

Connect to water supply

Helpful Tip

Compression fittings

Slide nut onto copper tubing about 1″ (2.5 cm).
Slide ferrule onto the tubing. Do not position ferrule on the end of the tubing.
Put the tubing into the elbow as far as it will go.
Slide the nut and ferrule forward and start the nut onto the elbow threads. Be gentle when handling and positioning the copper tubing, it bends and kinks easily.

To prevent vibration during operation, route the wate supply line so that it does not touch the dishwasher base, frame or motor.
With copper tubing pushed into compression fitting as far as it will go, use a wrench and tighten compression fitting nut to elbow on water inlet valve.
Place paper towel under elbow. Turn on water supply and check for leaks.

Connect to drain

To help minimize vibration, route drain hose to avoid contact with motor, door springs, water line, cabinet, flooring or the edge of the hole where it passes through the cabinet.
Do not remove drain loop from side of dishwasher.
Place pan under end of drain hose. Pan will collect any water in drain hose.
Place the smaller drain hose clamp onto the small end of the drain hose.
Push the drain hose into the connector up to the stop on the drain hose.

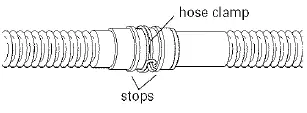

Use pliers to open clamp and slide clamp onto connector between stops on connector as shown.

Secure dishwasher in cabinet opening

WARNING: Tip Over Hazard

Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cuts.

If you have not already done so, open dishwasher door and place towel over pump assembly and spray arm of dishwasher.This will keep screws from falling int pump area if you unintentionally drop them when securing dishwasher to countertop.
Check that dishwasher is still level and centered side to side in the opening.

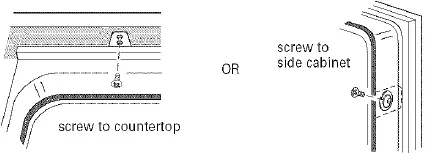

Secure dishwasher to countertop or sides of cabinet with two, #10 x 1/2″ Phillips-head screws.The dishwasher must be secured to keep it from tipping when door is opened.
Open door about 3 inches (7.6 cm) and check that space between inner door and tub is equal on both sides. If spacing is not equal, loosen bracket screws and shift tub.Tighten bracket screws.
Check that top of door does not contact screws, brackets, or countertop. If it does, dishwasher must be lowered and re-leveled.
If securing to sides of cabinel replace the plastic buttons.
Remove towel from dishwasher.
Reinstall the lower dishrack.

Bottom sound pad installation (on some models)

Remove the bottom sound pad from inside the dishwasher and take it out of the plastic bag.
Place pad on the floor in front of the dishwasher, making sure lettering is facing up and vinyl pad faces down.
Fold up and hold the side panels down. Carefully slide the pad toward the back of the dishwasher as far as it will go, making sure not to push or pull any wires or hoses. (Do not force.) Side panels will open to proper position.
- NOTE: If there are pipes or other obstructions coming up through the floor, you will need to cut a slit in the pad to fit around the obstacle.
Fold the front end of the pad up into position. Make sure the vinyl pad is tucked up behind the door and the dishwasher front legs, as shown.

Complete installation

Check that grounding clip is attached to the lower panel.
Place the lower panel behind the access panel. Some models have insulation on the access panel which must fall behind the insulation on the lower panel.
Hold the two panels together and place them against dishwasher leg.
Reinstall the screws through the holes in the access panel and the slots in the lower panel. Install right side screw first.
Check that the lower edge of the lower panel contacts the floor.
Tighten the screws.

Direct wire method

WARNING: Electrical Shock Hazard

Electrically ground dishwasher.
Connect ground wire to green ground connector in terminal box.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.

Power supply cord method

WARNING: Electrical Shock Hazard

Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.

Reconnect power or plug in dishwasher.

Check operation

Read the Use and Care Guide that came with your dishwasher.
Check that all parts have been installed and no steps were skipped.
Check that you have all the tools you used.
Start dishwasher and allow it to complete the shortest wash cycle. After the first two minutes, unlatch door, wait five seconds, then open door.
Check to see that there is water in the bottom of the dishwasher tub. Check that dishwasher is working properly.
If not, disconnect power or unplug dishwasher and see “If dishwasher does not operate” section.

if dishwasher does not operate

First try the solutions suggested here to possibly avoid the cost of a service call.
