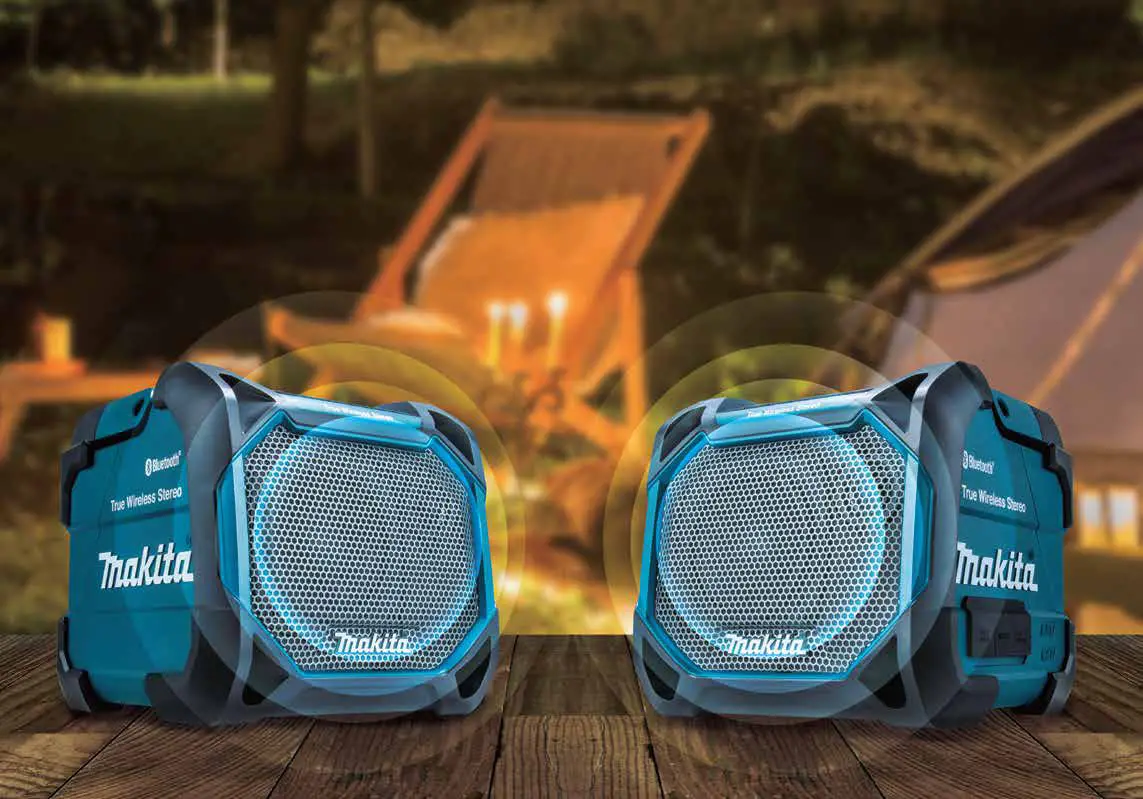

DMR203 12V Job Site Speaker
Instructions Manual
 | |
| Left | Right |
Powerful &
Deep Stereo Sound
Wireless Stereo Pairing
Multi-speaker connection

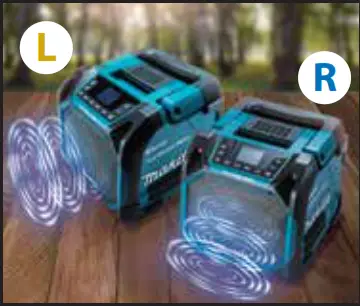

True Wireless Stereo
True Wireless Stereo (TWS) technology allows to wirelessly pair two DMR203’s via Bluetooth multi-pairing and to enjoy a deep, rich and powerful stereo sound.

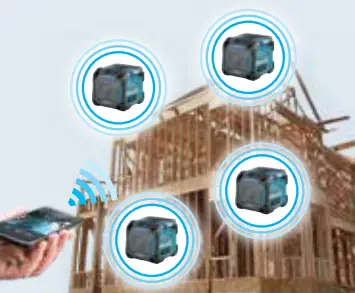

Group chain
Up to ten DMR203s, can be paired and connected to one mobile device to play the same sound simultaneously.

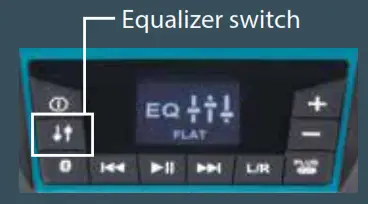

7 Selectable sound modes
Sound mode can be selected to suit the music genre.
• MY EQ (my equalizer) mode enables me to individually adjust treble, midrange, and bass for the desired sound quality.
Equalizer
FLAT / JAZZ / ROCK / CLASSIC / POP / NEWS / MY EQ
Dust and water resistance (only with DC power)
IP65
For use in outdoor applications or harsh environments
Continuous run time (approx): hour
On a single full battery charge
| 12V max | Bluetooth | AUX IN |
| BL1016 (1.5Ah) | 8.5 | 9.5 |
| BL1021B (2.0Ah) | 11 | 12 |
| BL1041B (4.0Ah) | 22 | 25 |
| 18V | Bluetooth | AUX IN |
| BL1815N(1.5Ah) | 7.5 | 8.5 |
| BL1830B(3.0Ah) | 14 | 16 |
| BL1850B(5.0Ah) | 26 | 35 |
| BL1860B(6.0Ah) | 32 | 29 |

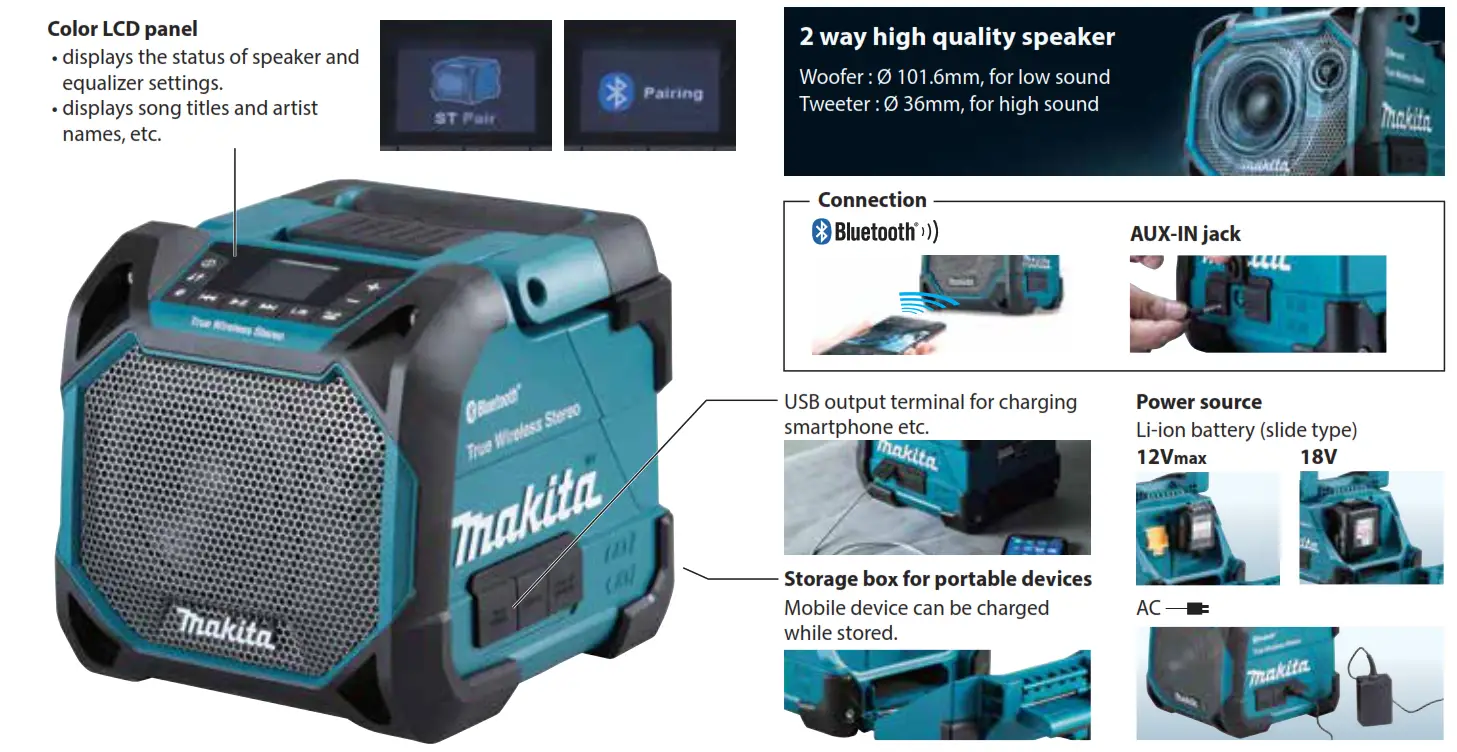

| Job Site Speaker | DMR203 12V max-18 V / AC |
| Speaker Size | Woofer/Tweeter: Ø101.6 / Ø36 mm |
| Max Output | 18V / 12Vmax / AC : 10 / 3.5 / 3.5 W |
| Bluetooth | Version: 5.0 |
| Profile: A2DP / SCMS-T / AVRCP Supported Codec: SBC Max Transmission Range (Optimum): 10 m (33 ft) Max Transmission Range (Possible): 30 m (100 ft) | |
| Dimensions | w/ Handle in Retracted Position: 217x206x199 mm (8-1/2″x8-1/8″x7-7/8″) |
| (L x W x H) | w/ Handle in Upright Position: 217x206x285 mm (8-1/2″x8-1/8″x11-1/4″) |
| Net weight | 2.7 – 3.4 kg (6.0 – 7.5 lbs.) |
| Standard Equipment : | AC Adapter |
The weight may differ depending on the attachment(s), including the battery cartridge. The lightest and heaviest combinations, according to EPTA-Procedure 01/2014, are shown in the table.
Items of standard equipment and specifications may vary by country or area.
