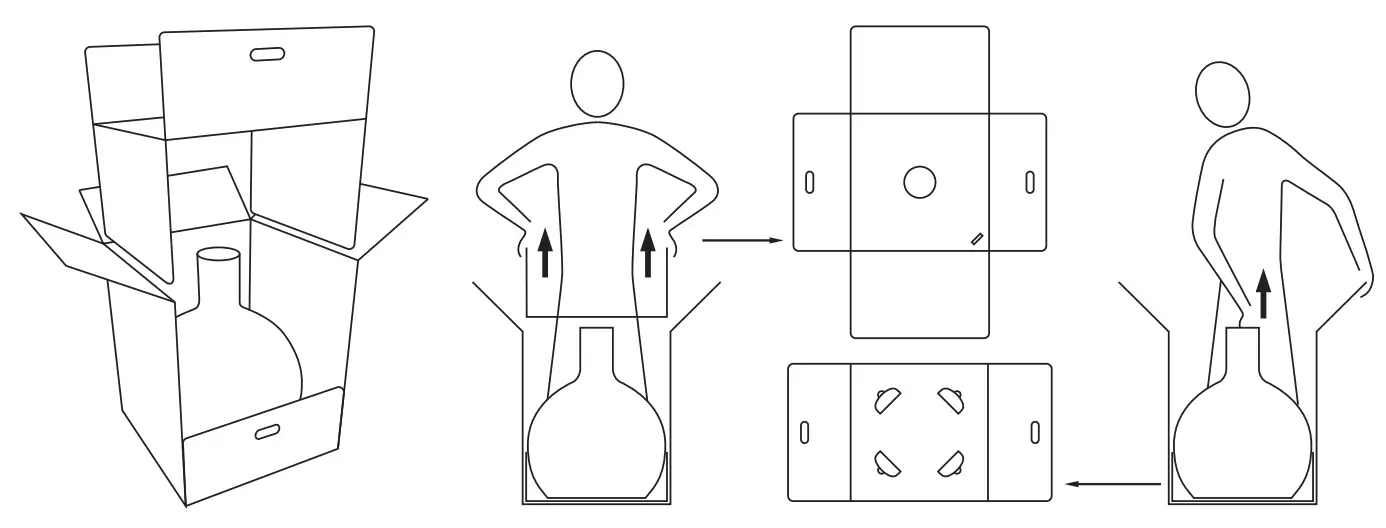

Octo 4240 | Opening Instructions

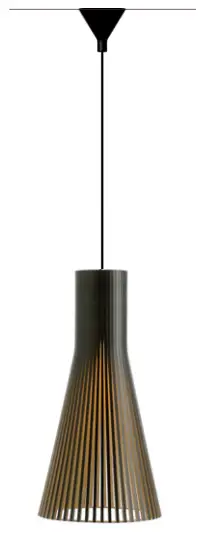

Handmade birch pendant by Secto Design Design by Seppo Koho
Ceiling cup by all
| Finish | White or black soft matt lacquer |
| Height | 112 mm (120 mm with the additional ring) |
| Upper diameter | 118 mm inner / 122 mm outer (122/131 mm with ring) |
Textile cable: white or black, standard length 8 feet, unearthed, E26 (max. 22 W) or GU24 (max. 17 W)
Metal ceiling plate with hook and grounding wire to cover junction box in the ceiling.
Wiring materials are included.
This Secto Design pendant uses the patented ceiling suspension by Dell.
Easy and quick to install, enabling the ceiling cup to sit perfectly tight against the ceiling.
Installation
 |  |

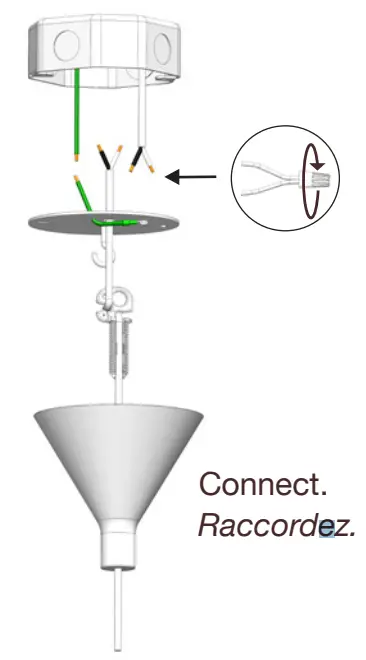

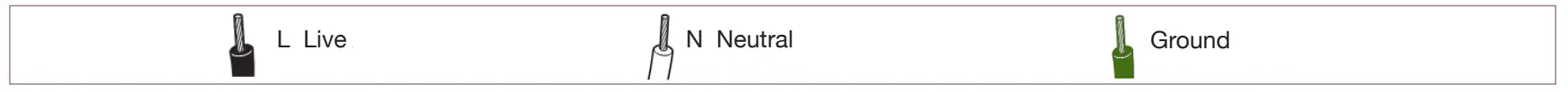

| Fasten the cable into the screw at the desired hanging height. | Connect by using the screw nuts for each cable; live, neutral and earth. |
 |  |

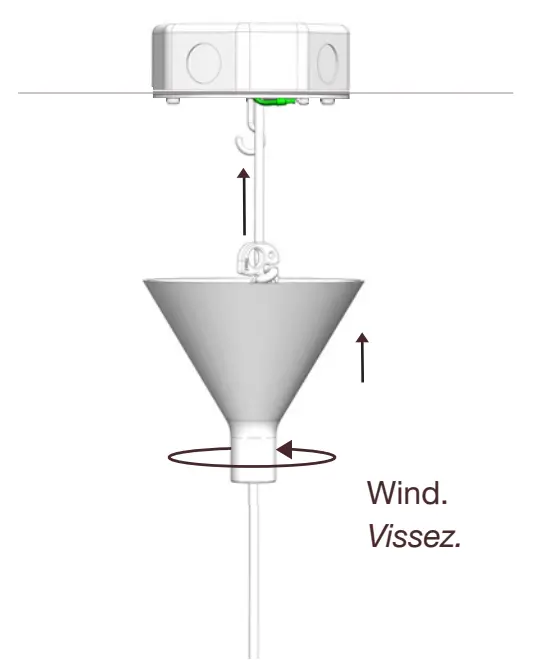

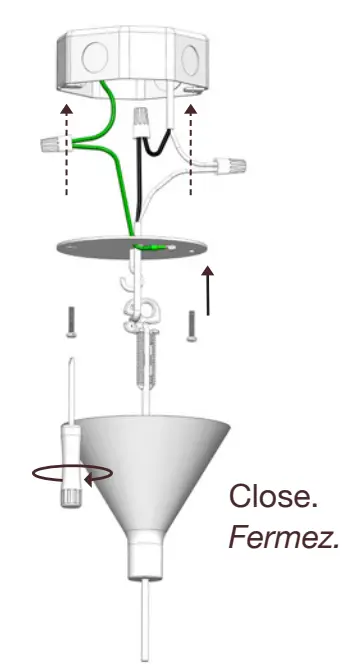

| Screw the metal ceiling plate to the junction box in the ceiling. | Hang the screw on the hook and wind the ceiling cup upwards until it sits tightly against the ceiling. |
For more details visit www.sectodesign.fi/products
03/2020
Secto Design Oy | Kauppalantie 12 | 02700 Kauniainen, Finland | t. +358 9 505 0598 | [email protected] | www.sectodesign.fi
