Gustavsberg LOGIC VZ 100 Bath Screen Elox-Gloss
Installation instructions for skilled craftsmen!Following installation, hand the installation instructions over to the end customer.

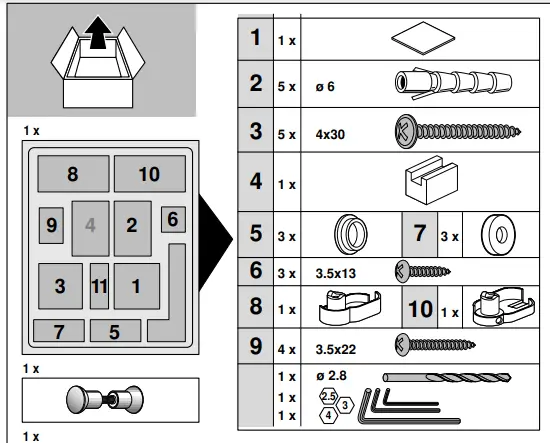

- Please check that all products are present and undamaged before commencing installation.
- We will not be held responsible for visible defects after the product is installed.
- Before fitting, clean the glass around the clamping areas using standard glass cleaner.
- Do not use thinners. Use sanitary silicon only.
- After unpacking the glass, always protect it (for example with cardboard) when placing on the floor. Avoid knocking to the edges and corners of the glass.
- For design reasons, perfect sealing is not possible on frameless splash shields. Fitting the provided sealing lips provided assures the maximum leak tightness which can be achieved.
- All dimensions are in mm.

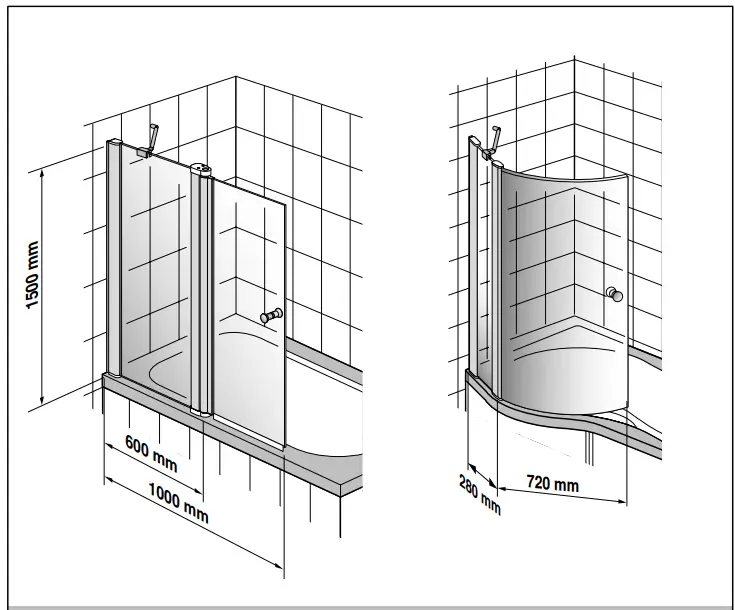

DIMENSION

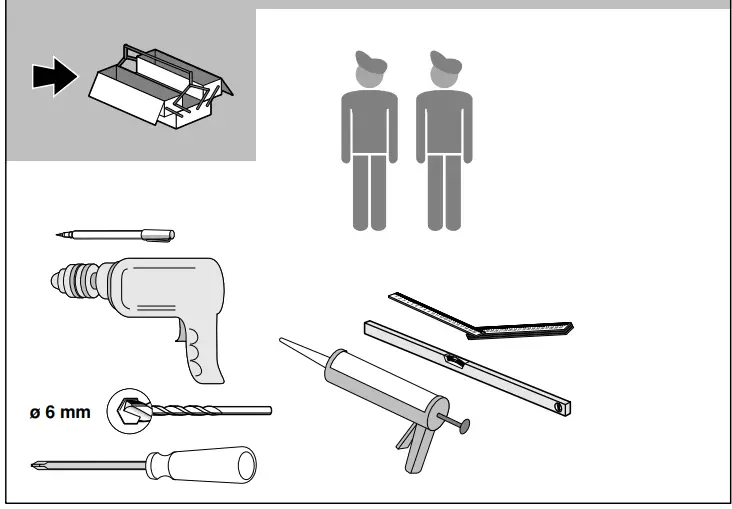

TOOLS

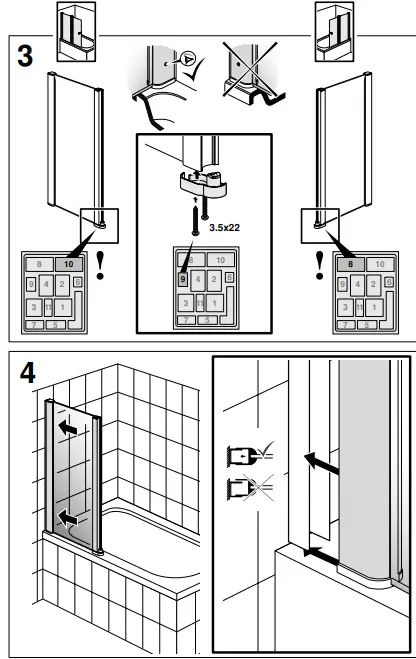

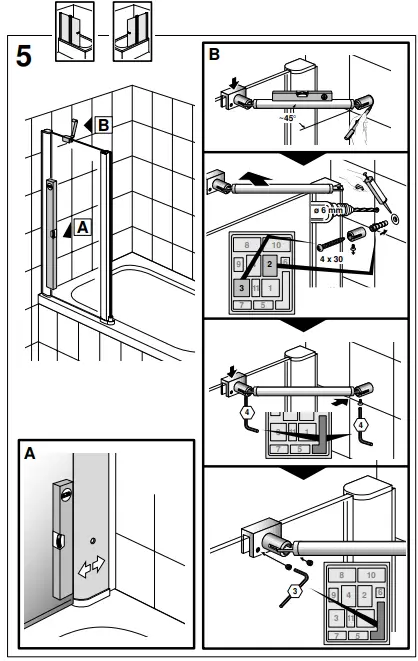

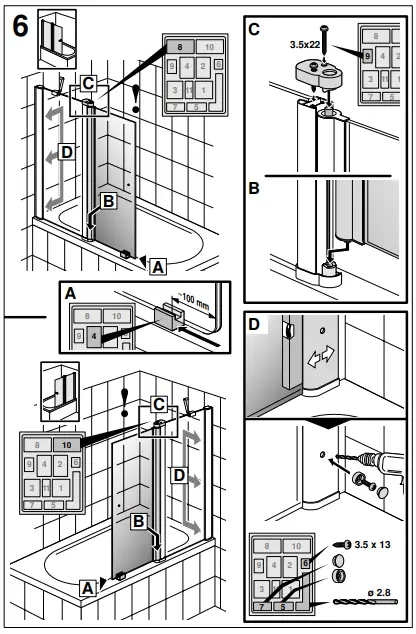

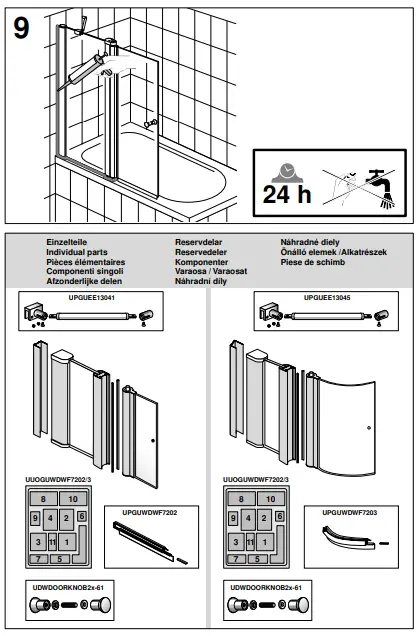

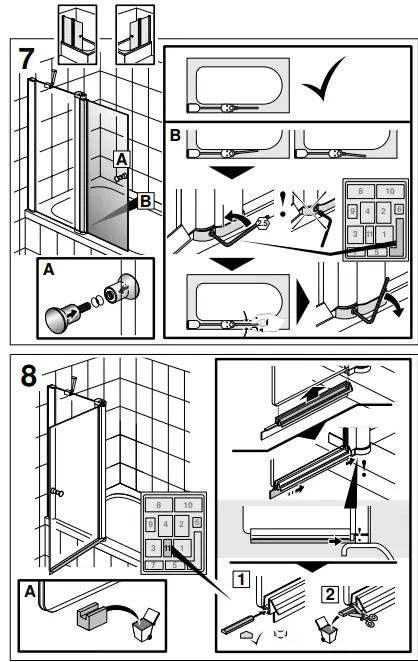

INSTALLATION
Villeroy & Boch Gustavsberg AB
Box 400, 134 29 Gustavsberg, Sweden
Tel.: 08-570 391 00 / Fax: 08-570 320 36
www.gustavsberg.se
[email protected]
