MILLION DOLLAR BABY logoClassic M23302 Nantucket Changing Table
Instruction ManualMILLION DOLLAR BABY Classic M23302 Nantucket Changing Table

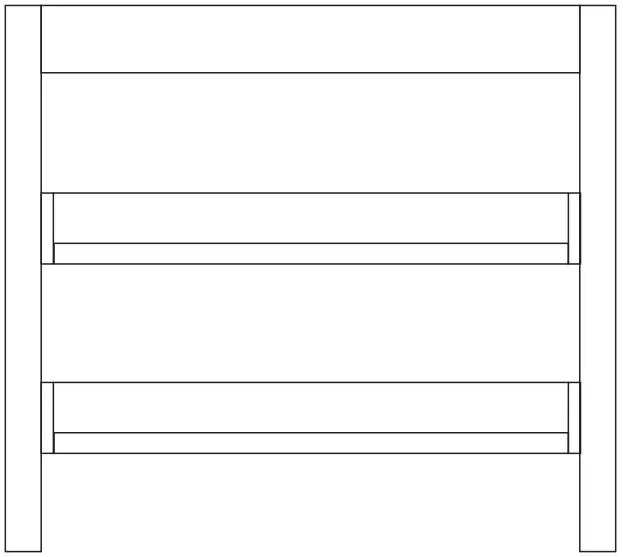

M23302 Nantucket Changing Table

Warning-icon.png WARNING
READ ALL INSTRUCTIONS BEFORE USE OF THE CHANGING TABLE.
WELCOME HOME
We havehave carefully designed and crafted each piece of furniture to be with your family for years to come.
Here’s to new memories of bedtime stories, goodnight kisses, holiday mornings, and baby’s first steps. We hope you share your family’s story with us on Instagram @milliondollarbabyclassic so we can celebrate with you.
From our family to yours, MILLION DOLLAR BABY CLASSIC

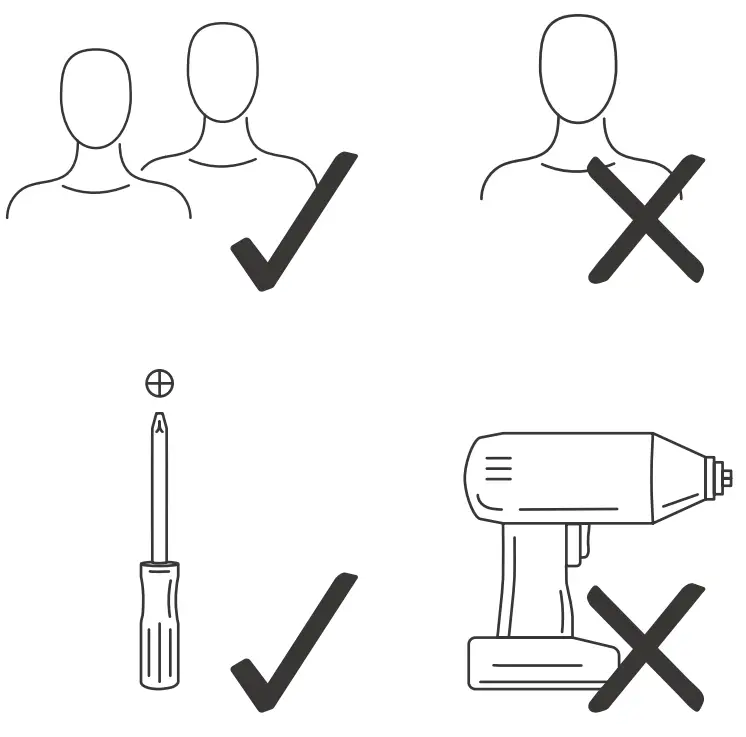

GETTING STARTED

MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 1As always, for additional questions, please contact us and we’ll be more than willing to help!
Milliondollarbaby.com/support
( 3 2 3 ) 9 0 9 – 5 0 1 9

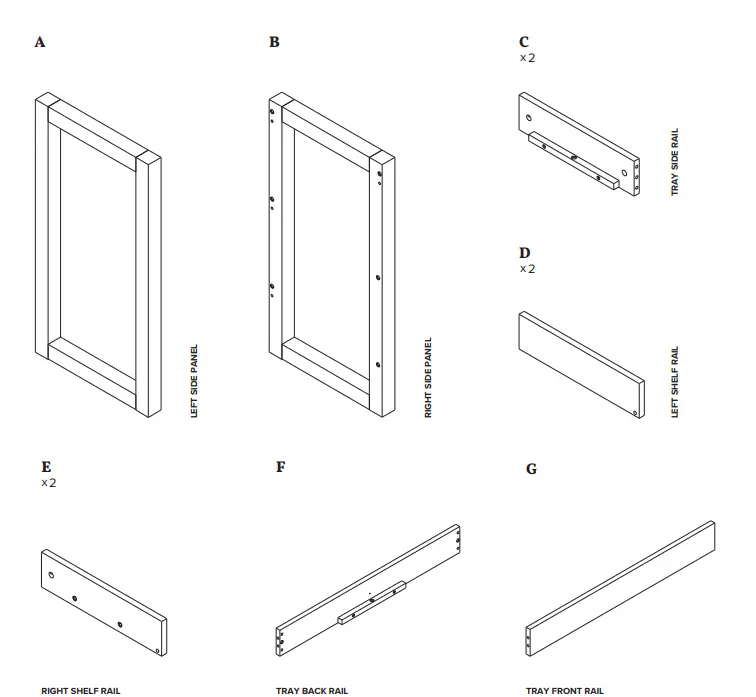

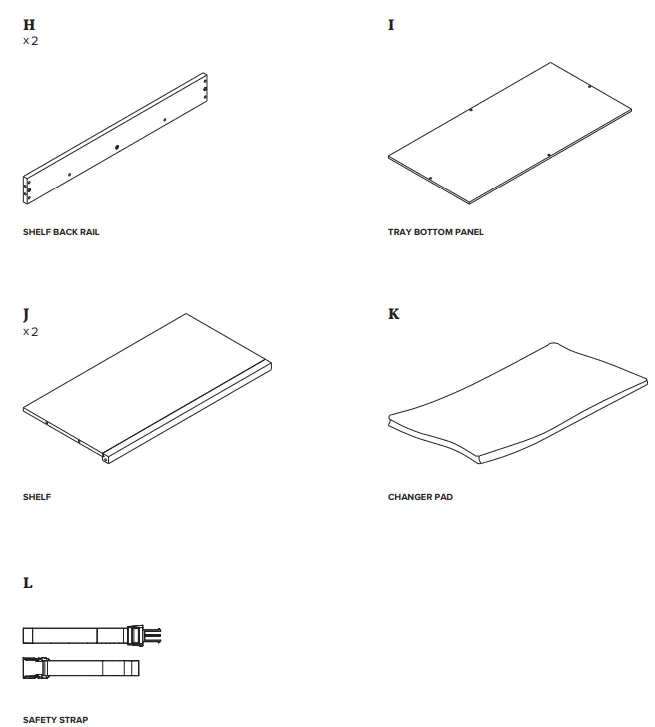

PARTS

NOT TO SCALE MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 2MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 3

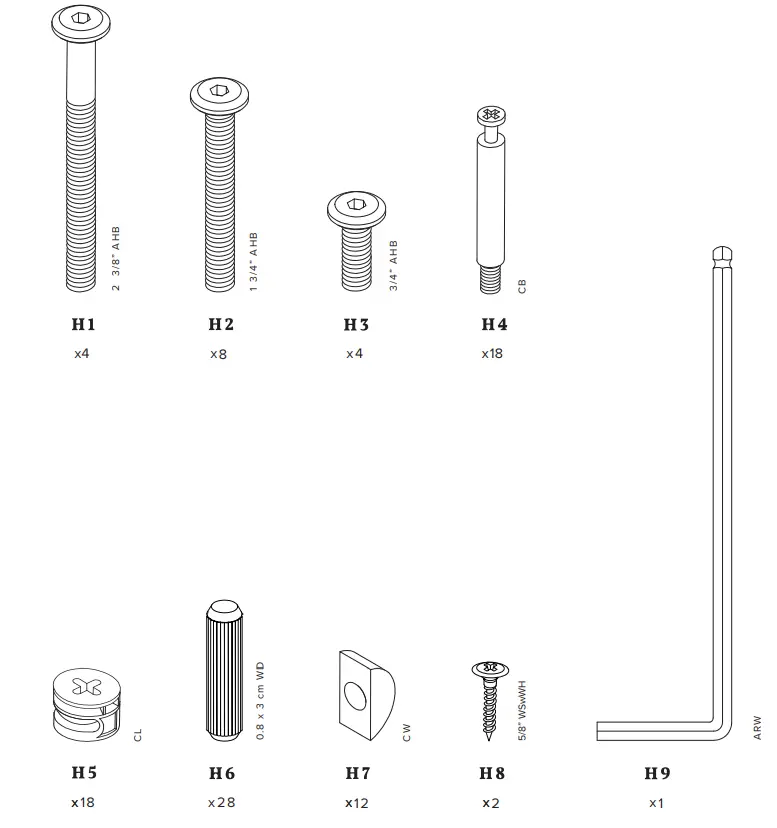

HARDWARE

ACTTUAL SIZEMILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 4

ASSEMBLYINS TRUCTIONS

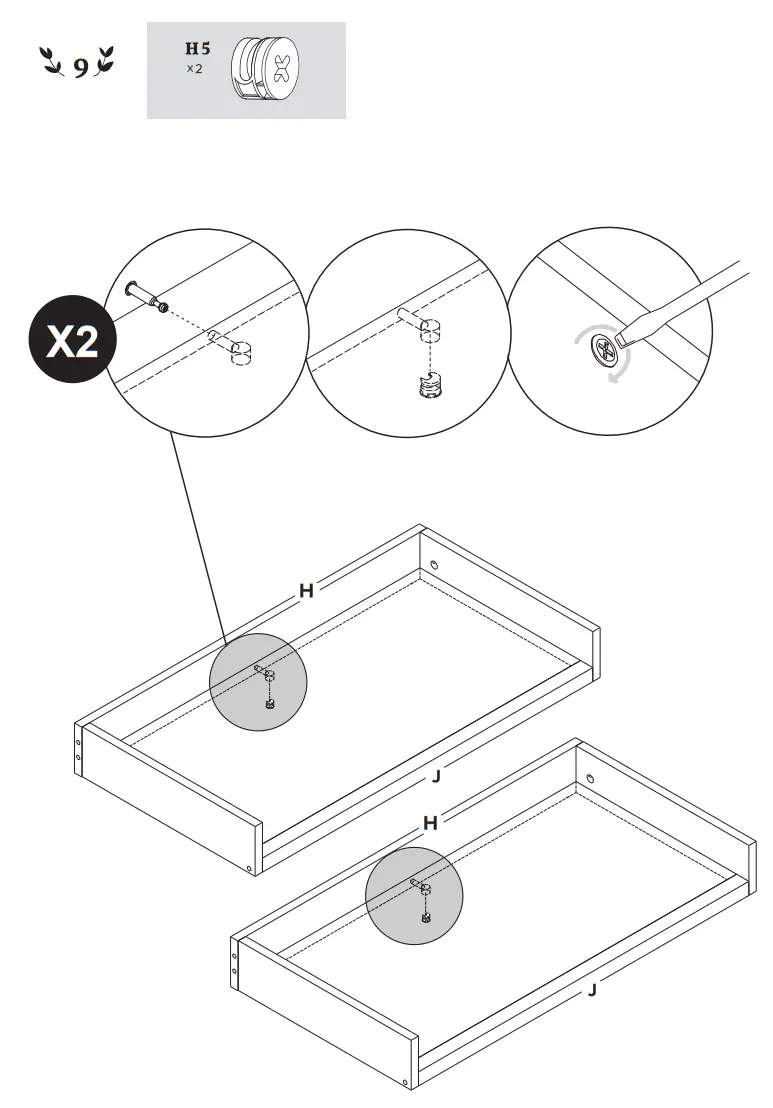

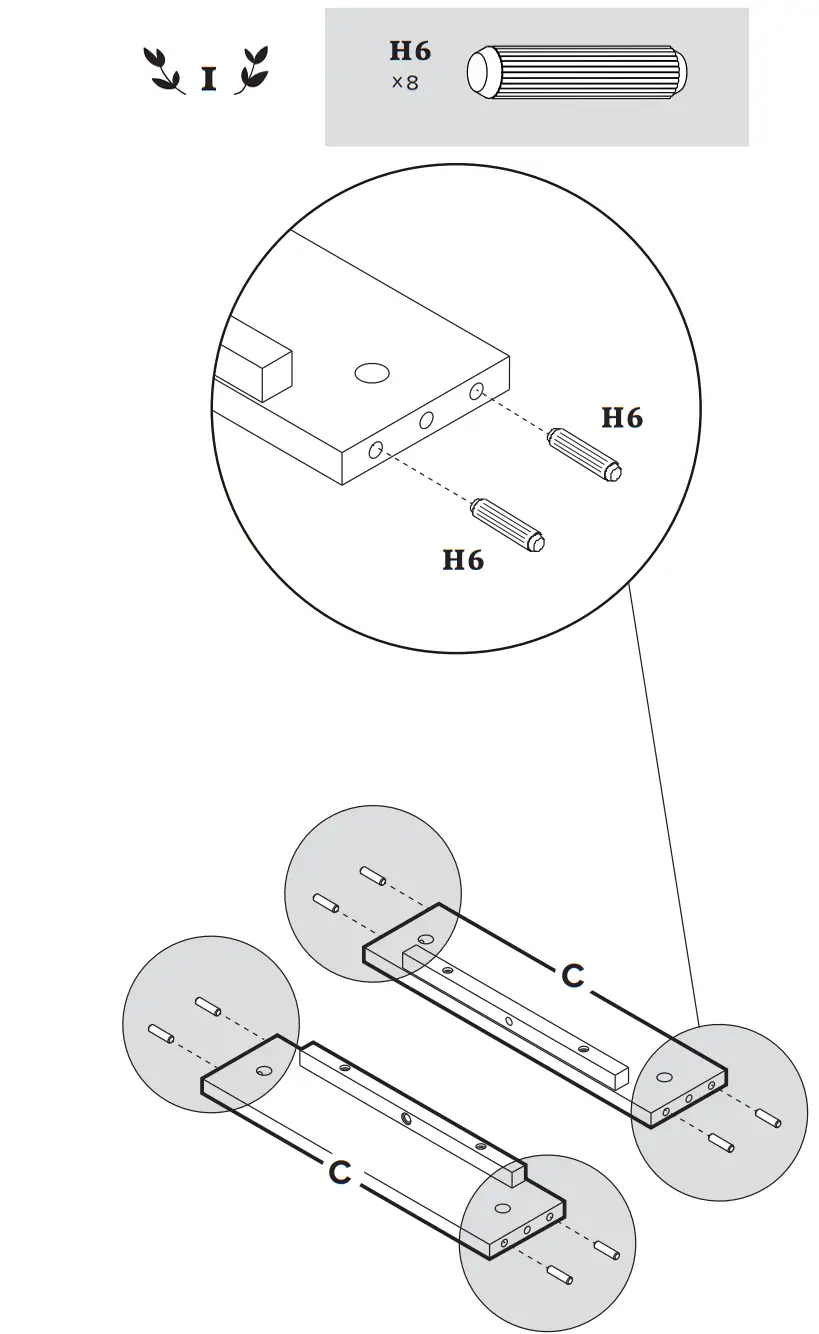

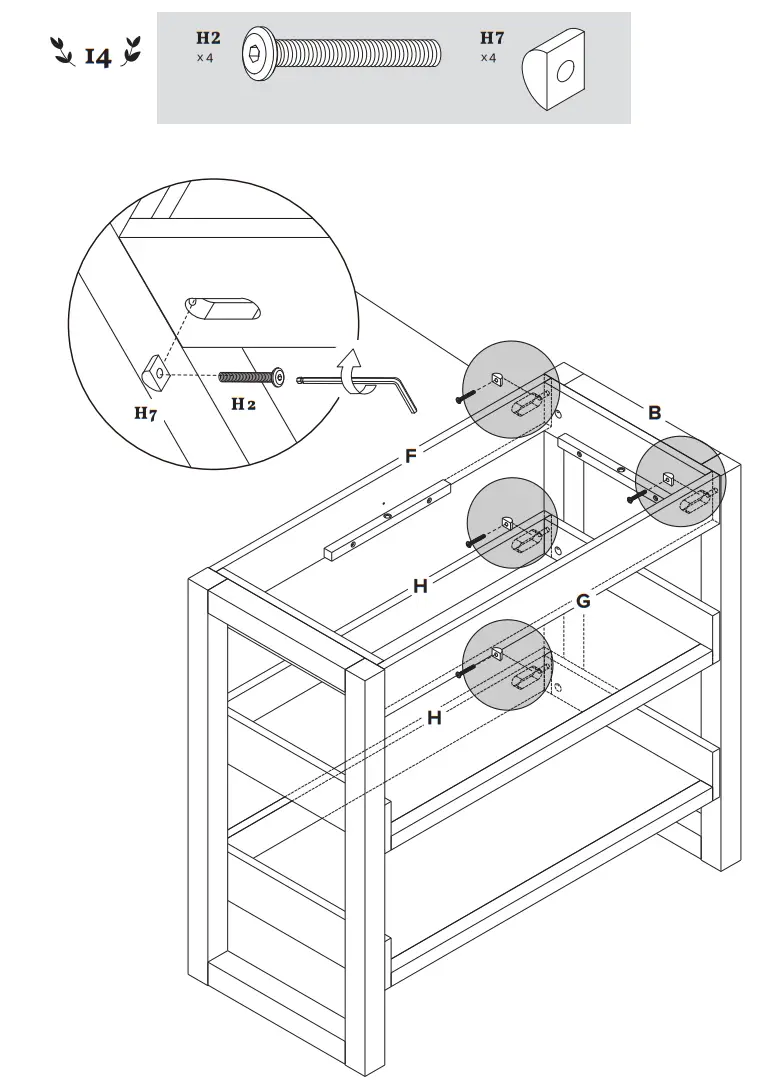

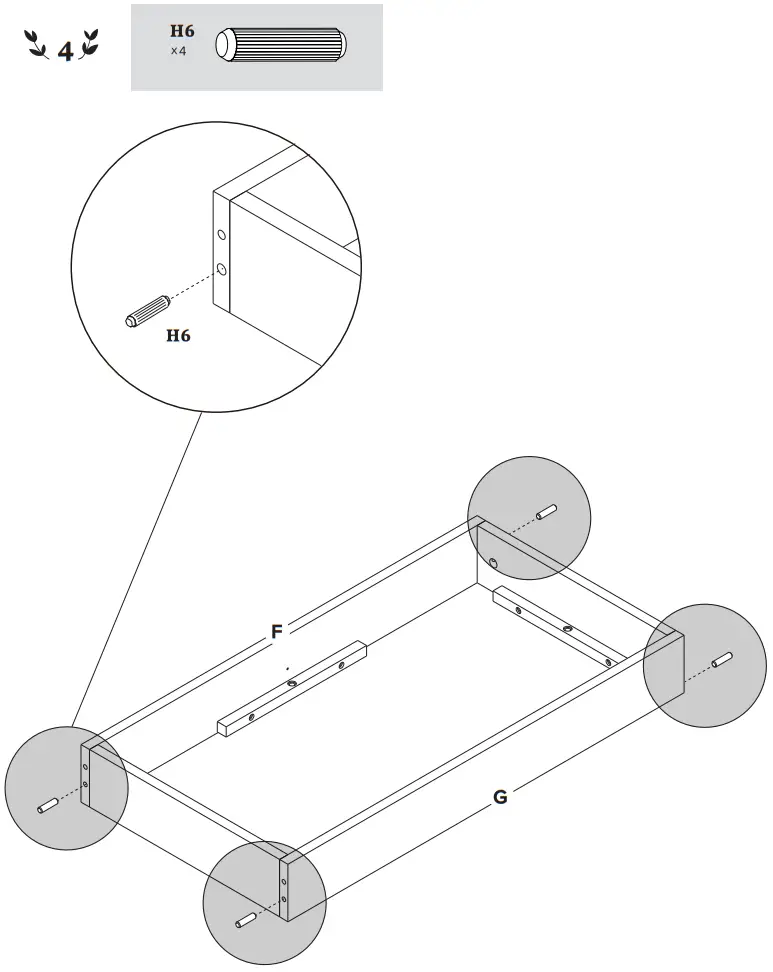

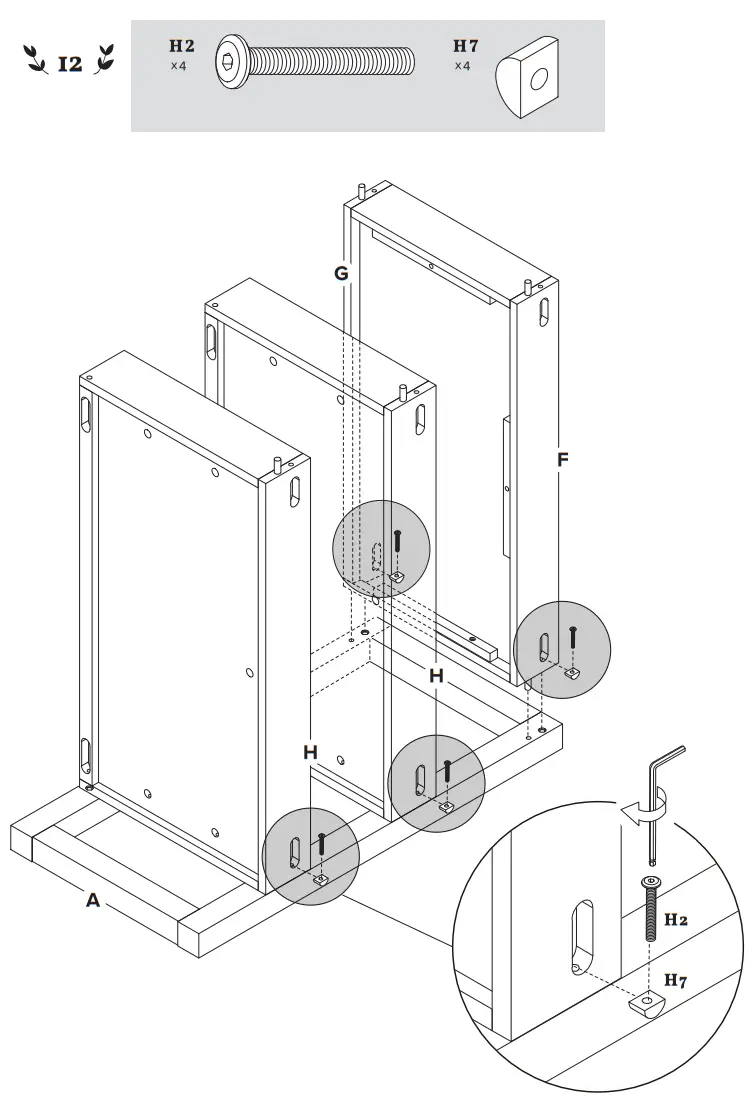

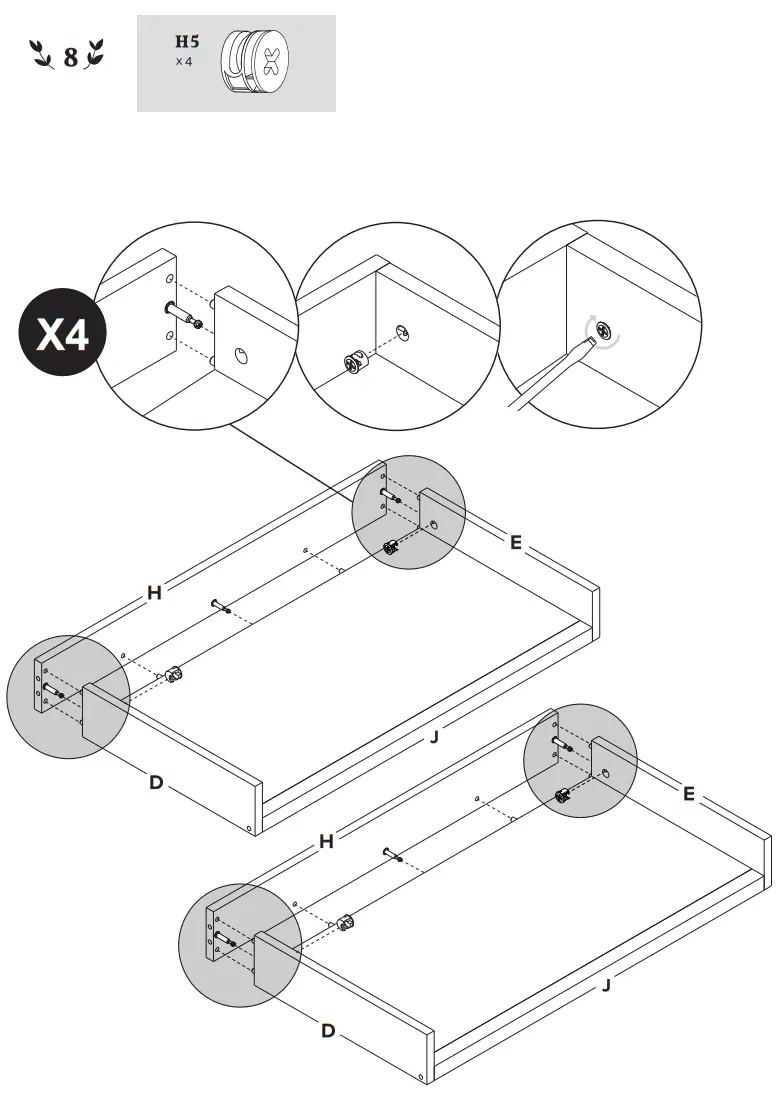

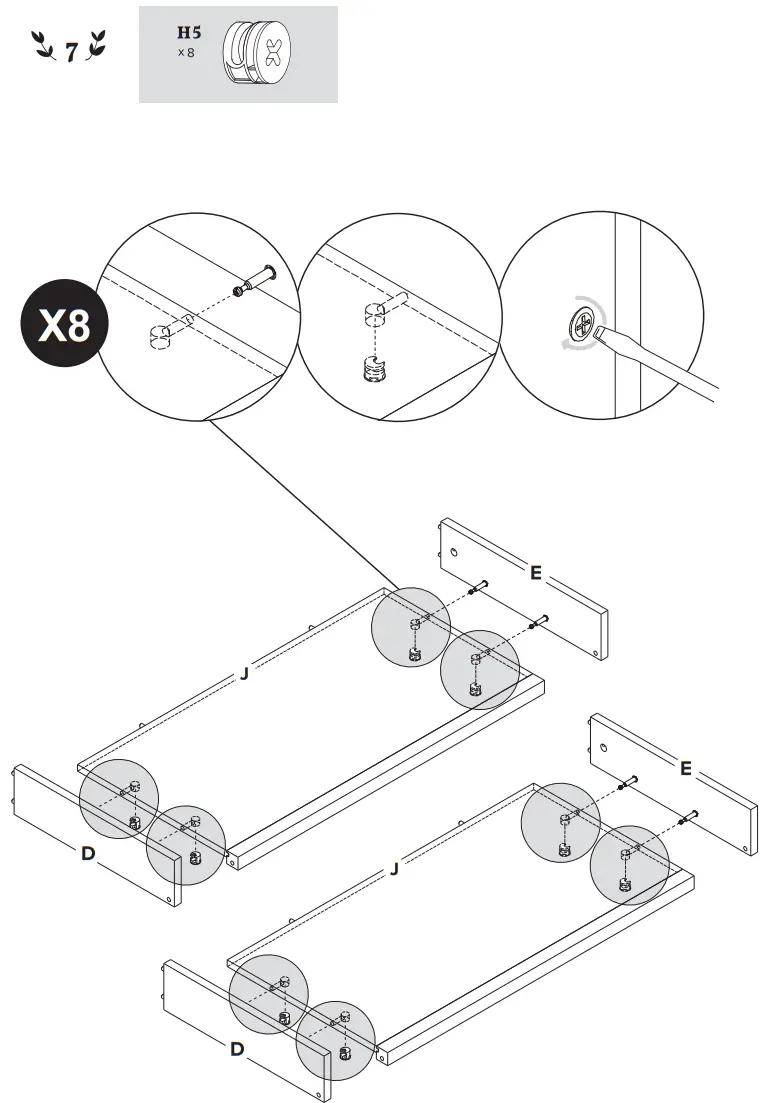

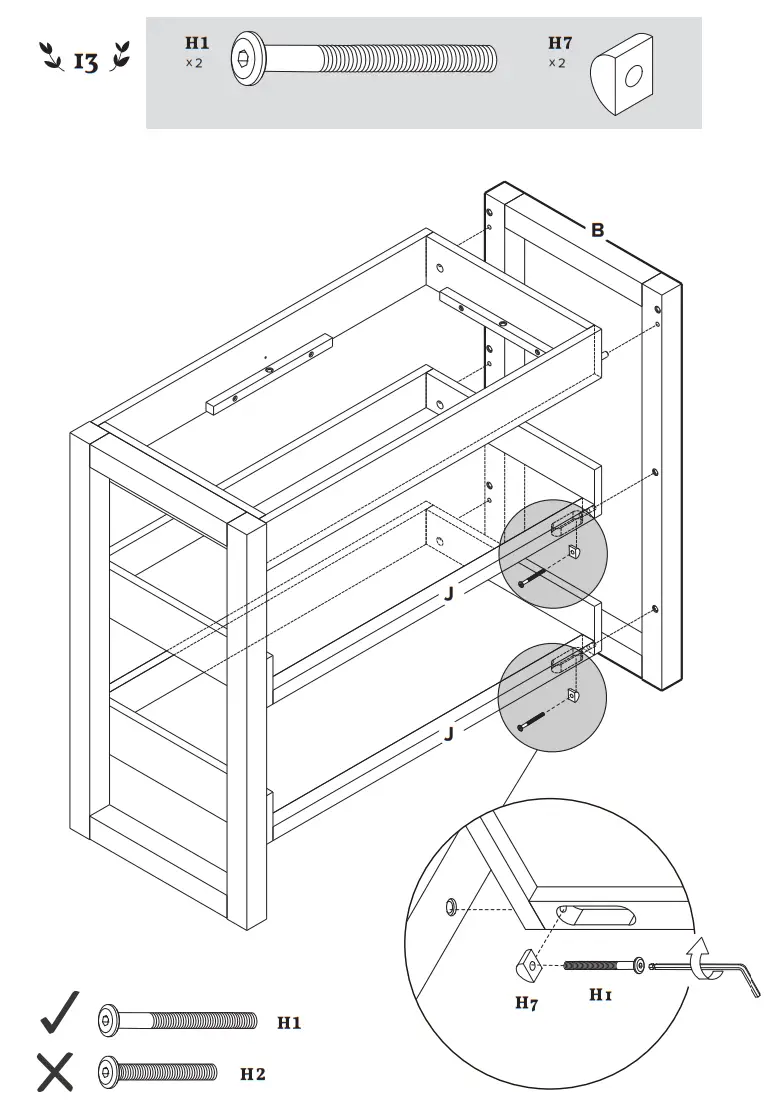

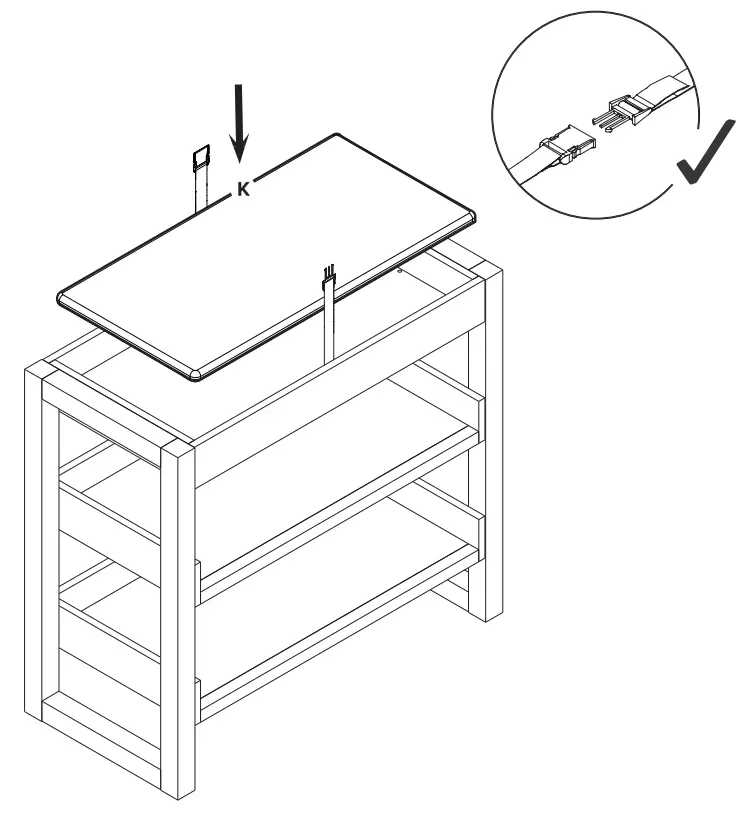

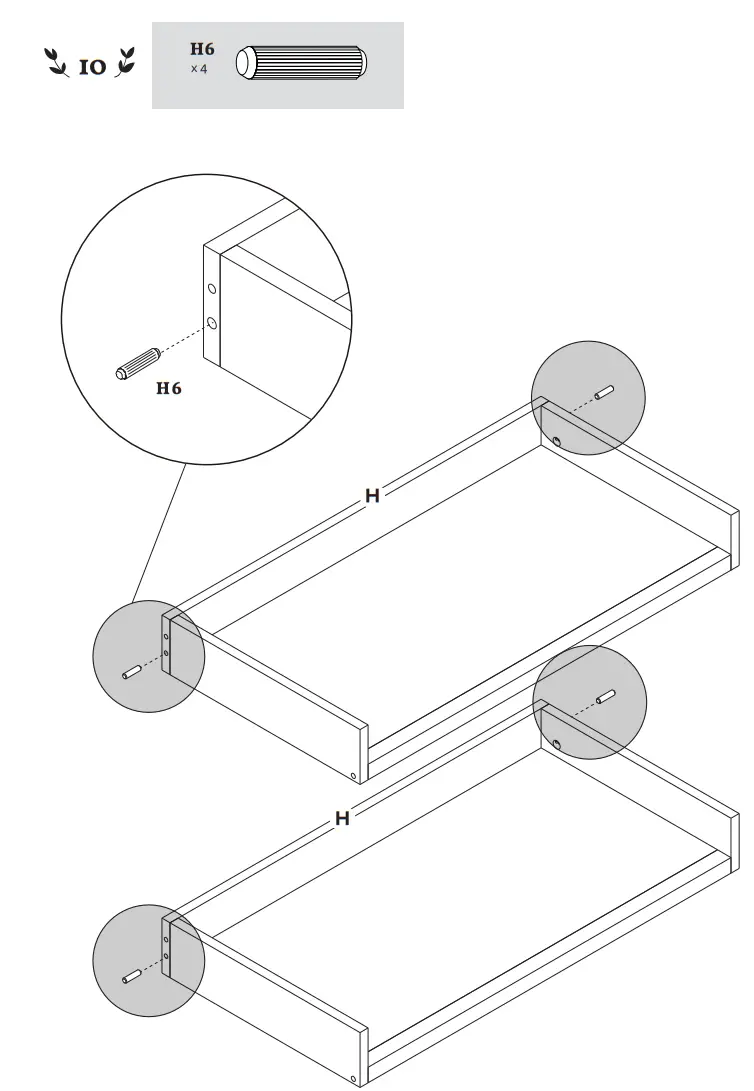

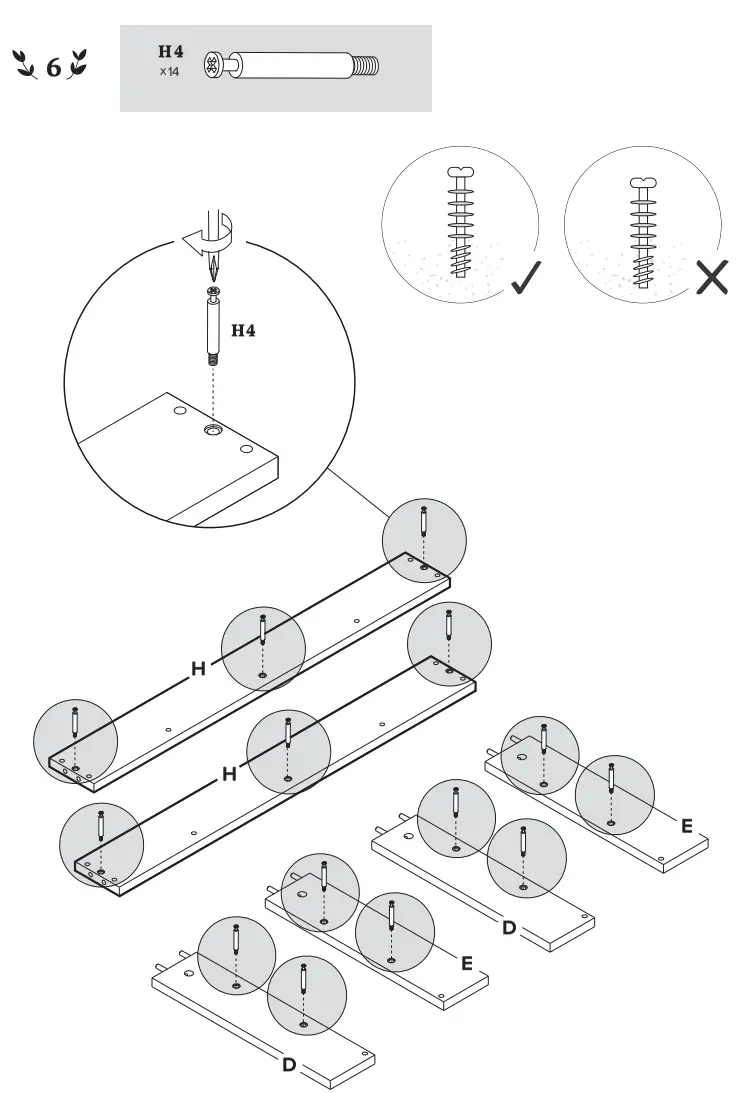

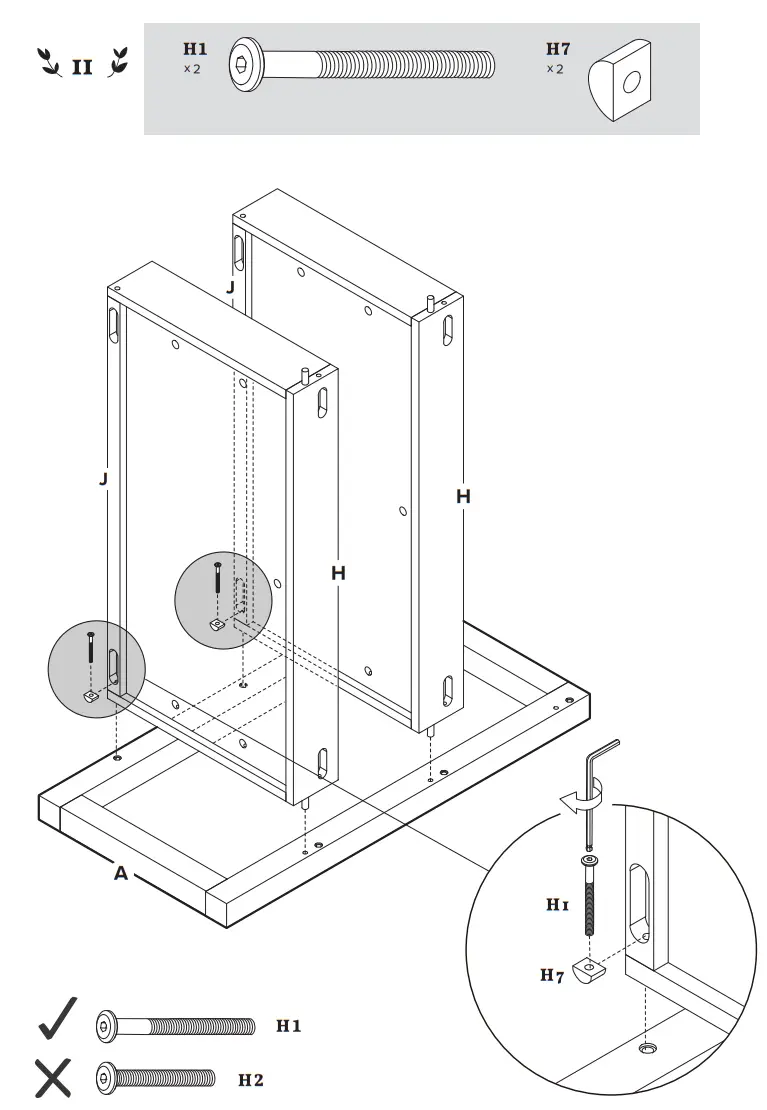

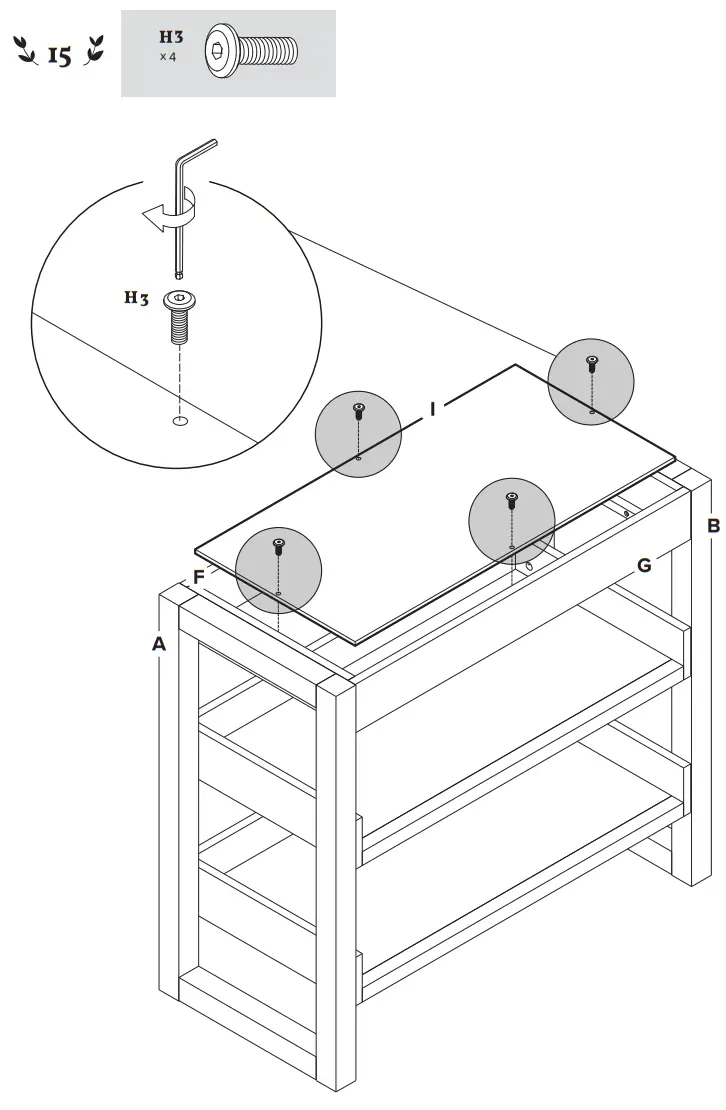

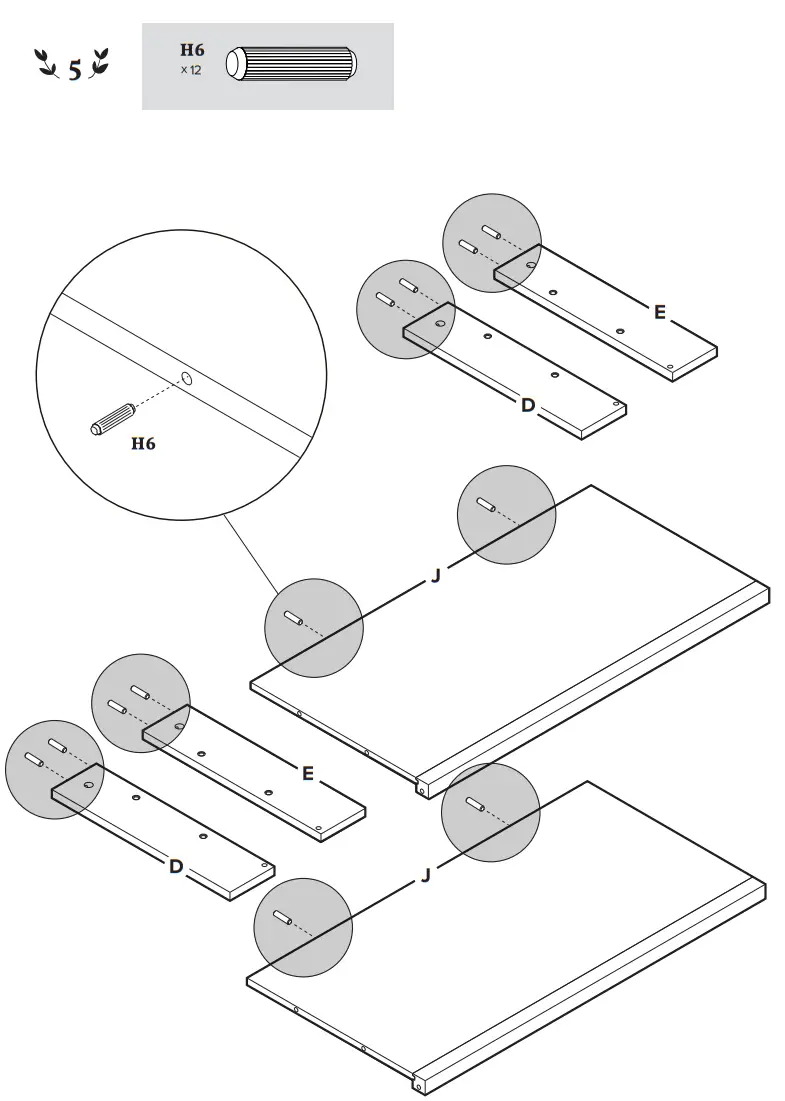

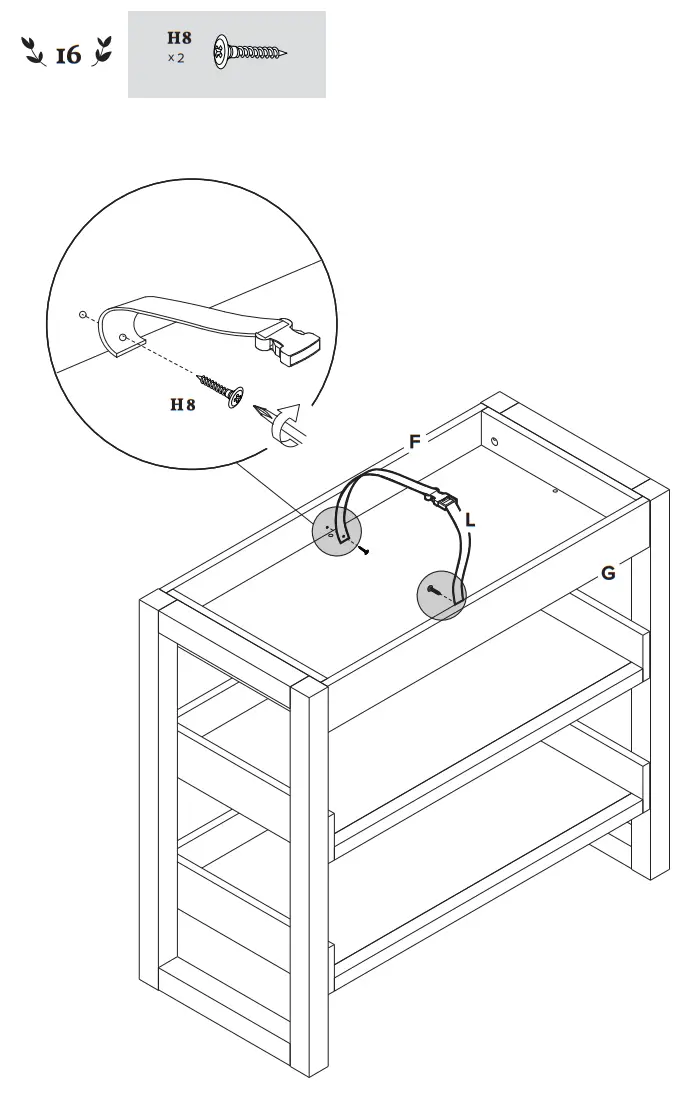

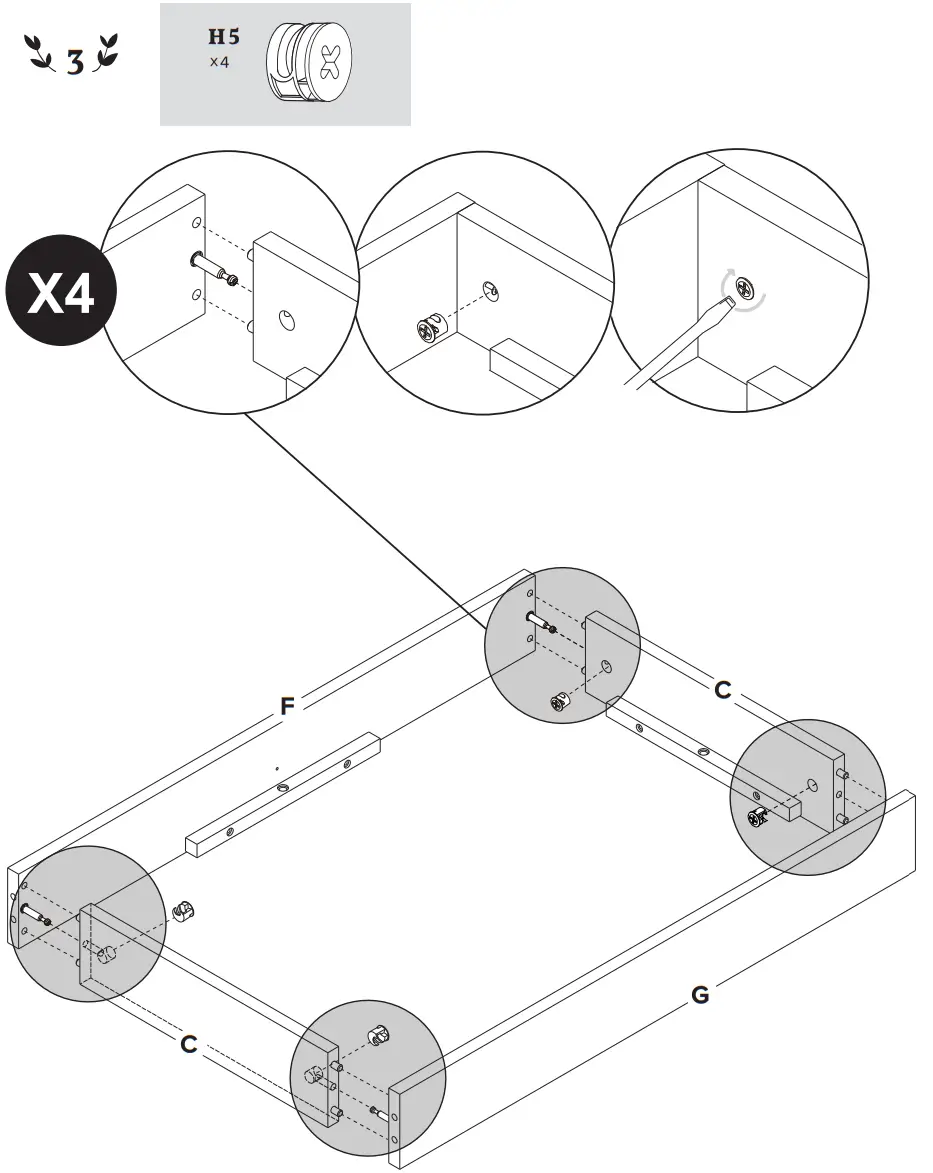

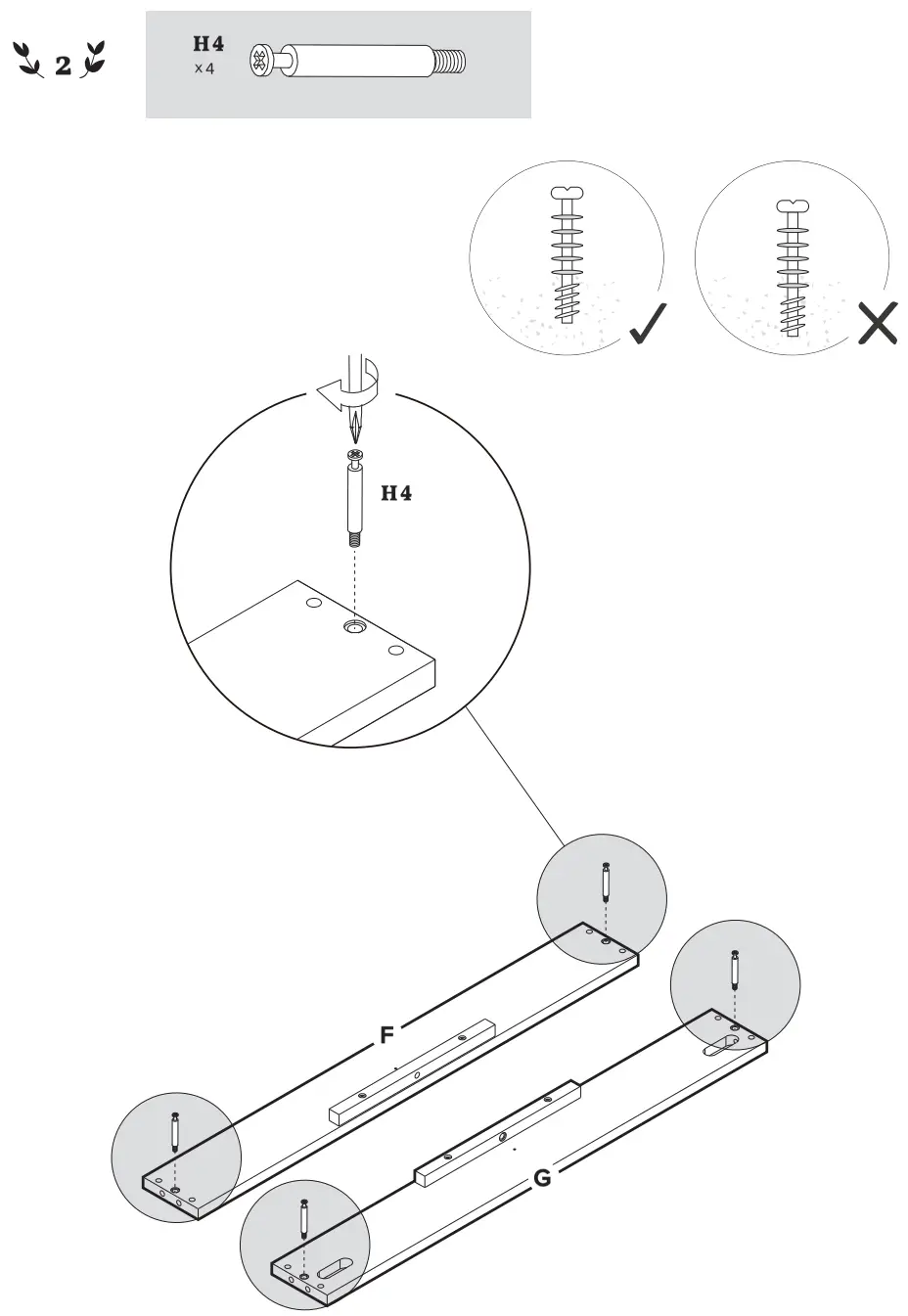

MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 5MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 6MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 7MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 8MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 9MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 10MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 11MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 12MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 13MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 14MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 15MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 16MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 17MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 18MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 19MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 20* Make sure the safety strap goes over the pad. Adjust the length of the safety strap. Test the locking mechanism by sliding the male connector into the female connector and locking them together. Recheck all connections.MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 21

ANTI-TIP KIT INSTALLATION

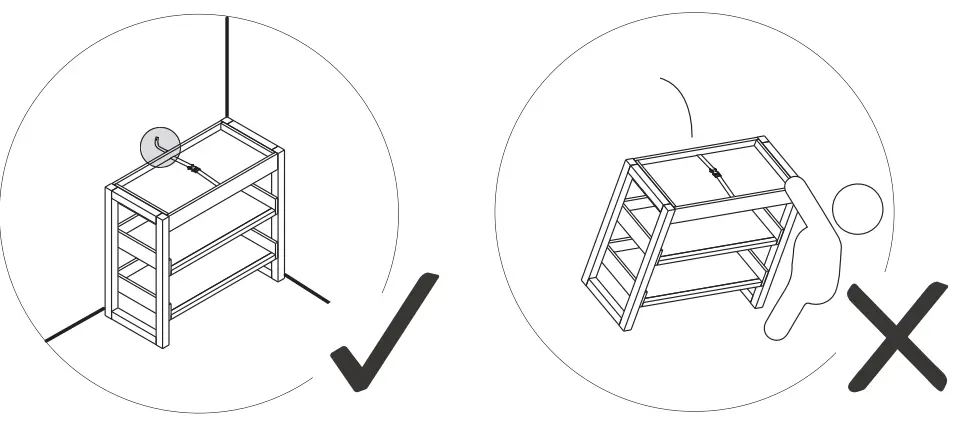

MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 22

Warning icon Children have died from furniture tipover. To reduce the risk of furniture tipover, ALWAYS install tip over restraint provided.

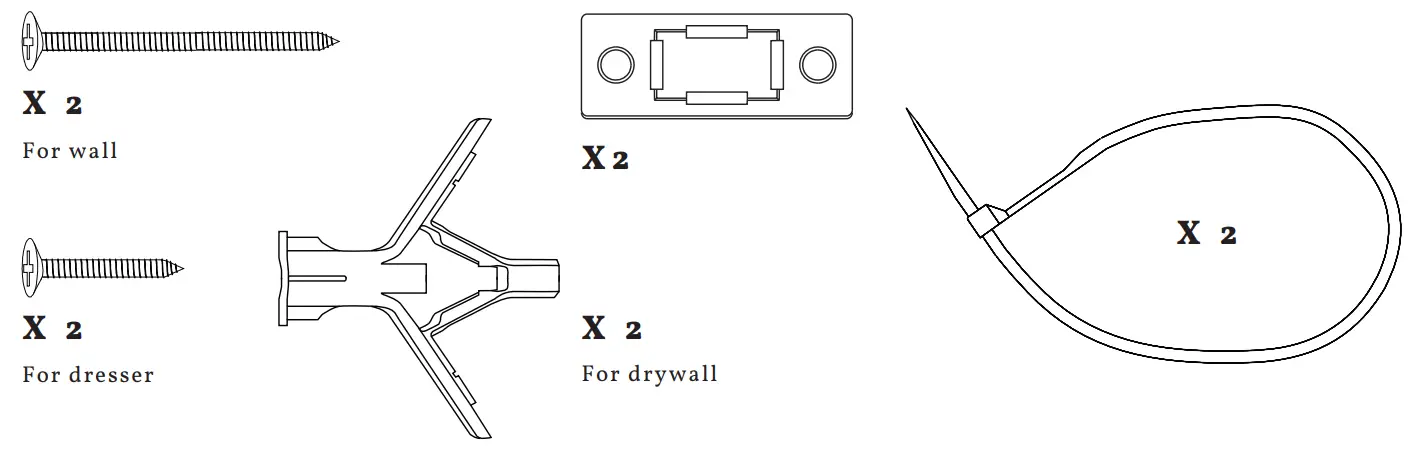

HARDWARE
ACTUAL SIZE
MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 23Find your wall material and follow steps to attach the anti-tip kit to your wall.
Drywall or plaster with available wood stud:
– Holding the bracket 1” to 2” (25-50 mm) below top of dresser, mark the attachment holes with a pencil.
– Drill 1/8-inch (3 mm) diameter pilot holes into the wood stud, on the pencil marks.
– Following the appropriate pictogram instructions on the following pages, drive two screws through the bracket and tighten screws firmly into the wood.
Drywall without available wood stud:
– Holding the bracket 1” to 2” (25-50 mm) below top of dresser, mark the attachment holes with a pencil.
– Drill 3/8-inch (9 mm) diameter holes through the wall, on the pencil marks.
– Drive the plastic anchors into the holes, using a hammer if needed.
– Following the appropriate pictogram instructions on the following pages, drive two screws through the bracket and tighten screws firmly into the plastic anchors in the wall. Do not over-tighten.
If your wall material is not listed here, or if you have any questions, consult your local hardware store.

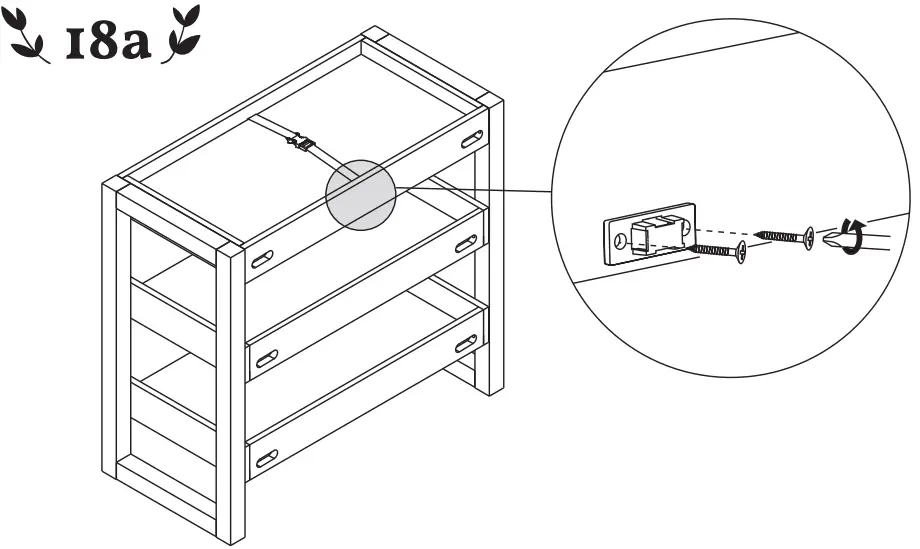

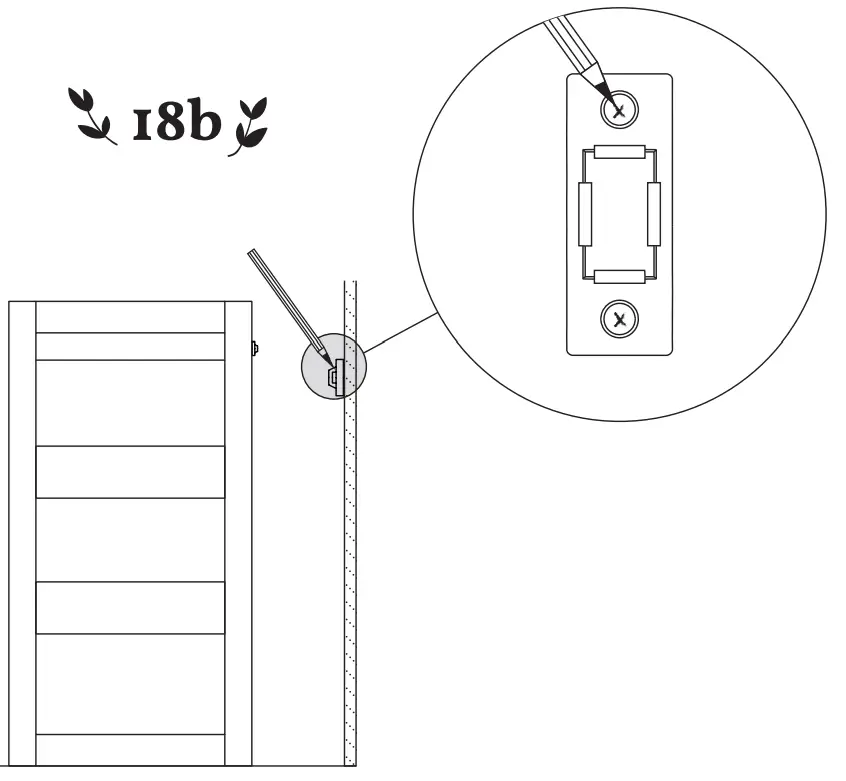

Fasten bracket to back of changing table.MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 24Place second bracket on the wall 1-2” (25-50mm) below the top of the changing table and mark holes. MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 25

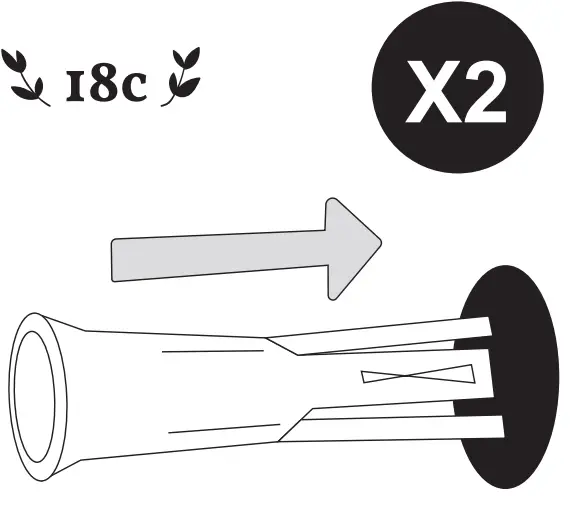

Follow the “Find Your Wall Material” instructions on the previous page. Drill a 3/8″ (9mm) hole and insert plastic anchor into hole (If needed).

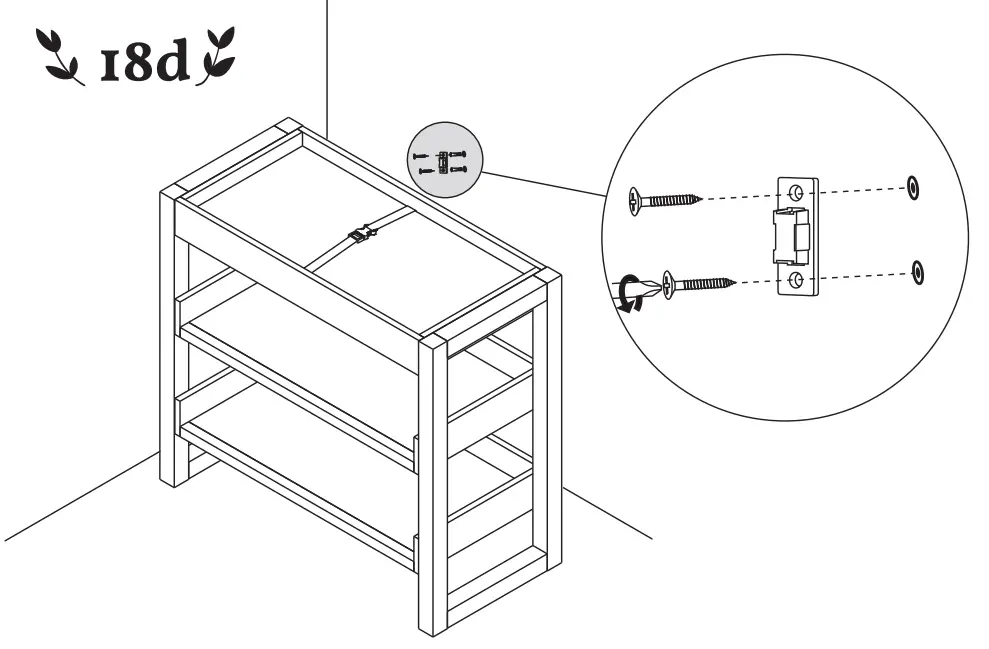

MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 26Fasten second bracket by screwing into plastic anchors or wood stud.MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 27

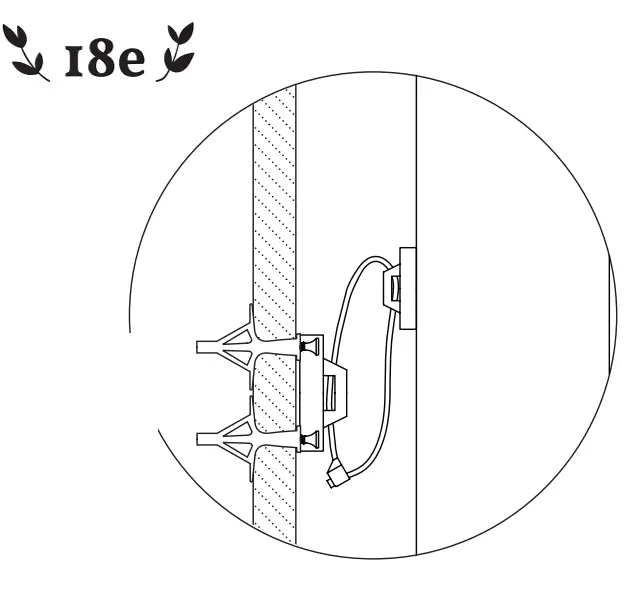

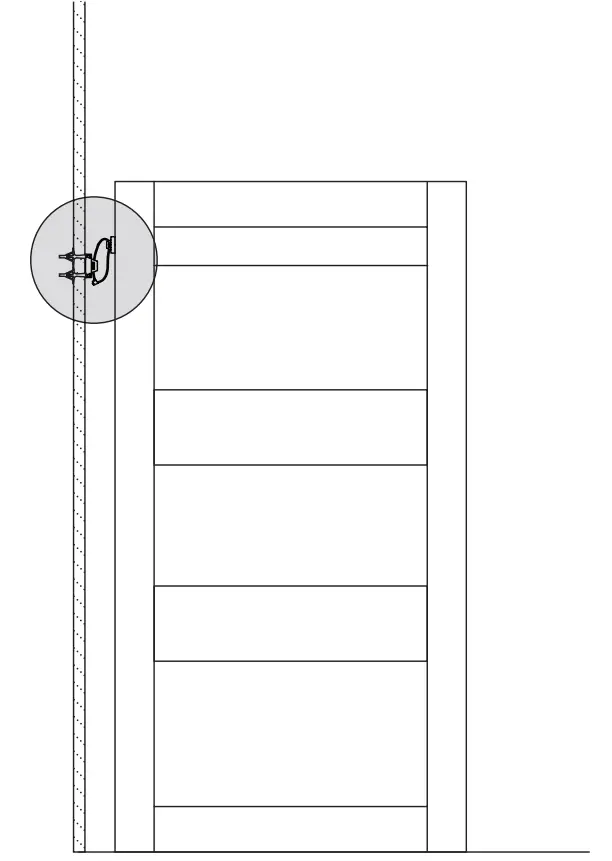

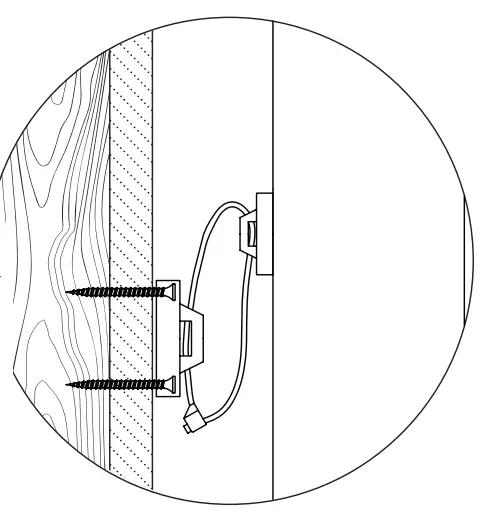

Drywall without available wood stud.MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 28* Drywall or plaster with available wood stud.MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 29Loop provided tie through both brackets and secure tightly.MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 30WEL COME HOMEMILLION DOLLAR BABY Classic M23302 Nantucket Changing Table

Warning icon WARNING
BEFORE USE

  • Read all instructions before use of the changing table.
  • Keep instructions for future use.
  • Do not use changing table if it is damaged or broken.
  • This product is not intended to be used as a changing table without adult supervision. Use of the product without this may result in death or serious injury to your child from falling. Follow all instructions on attaching and using the changing table.
  • Recommended maximum weight of the occupant for which the changing table, is 30 lb (13.6 kg).

SUFFOCATION HAZARD

  • Babies have suffocated while sleeping on changing areas: changing area is not designed for safe sleep. NEVER allow baby to sleep on changing area.

FALL HAZARD

  • Children have suffered serious injuries after falling from changing areas. Falls can happen quickly.
  • STAY in arm’s reach of your child.
  • ALWAYS secure this unit to the support surface by using the provided hardware. See instructions.

REGISTRATION
Registering your product is simple. MILLIONDOLLARBABY.COM/REGISTRATIONS
PART REPLACEMENT
If you would like to order replacement or missing parts, please visit us at, MILLIONDOLLARBABY.COM/PARTS or you can contact us by mail at, 8700 REX RD. PICO RIVERA, CA 90660
ONE YEAR LIMITED WARRANTY
Rest assured, your Million Dollar Baby Classic product is covered under warranty for one year after the date of purchase. For more details on our warranty policy, please visit,
MILLIONDOLLARBABY.COM/WARRANTY
CARE AND CLEANING
To clean wood or metal parts, use a lint-free, soft cloth with a non-toxic cleaner. Wipe dry immediately. To avoid scratches or other damages, do not use abrasive chemicals or materials. For fabrics, we recommend using a non-toxic foaming fabric cleaner or leather cleaner where appropriate. Touch up kits are available for purchase by contacting us at, (323) 909-5019 or MILLIONDOLLARBABY.COM/PARTS
STORAGE

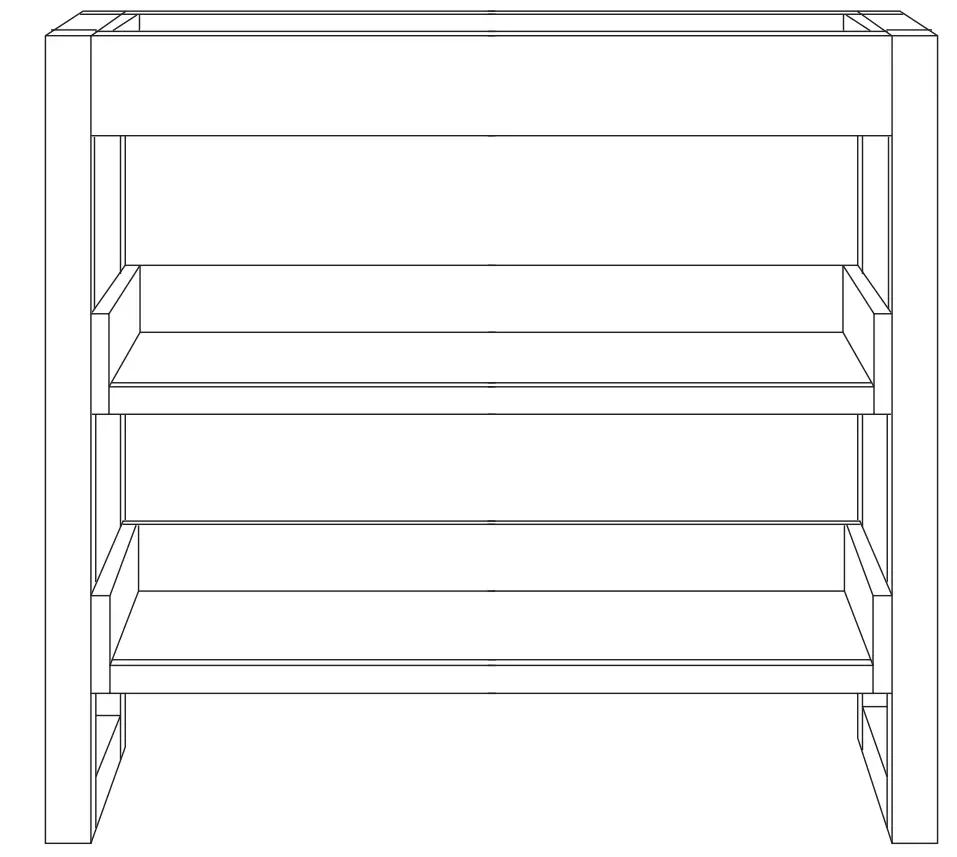

Because materials respond to temperature and humidity, it is important to store furniture in controlled environments. Furniture should not be placed in direct sunlight or near air-conditioning outlets, radiators, heaters, or humidiffers. Any changes such as extreme heat or cold, dampness, or dryness, may cause noticeable shrinkage or swelling of wood. Direct sunlight may affect the coloring of materials over time.MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 31RESTRAINT SYSTEM
Warning icon WARNING
:

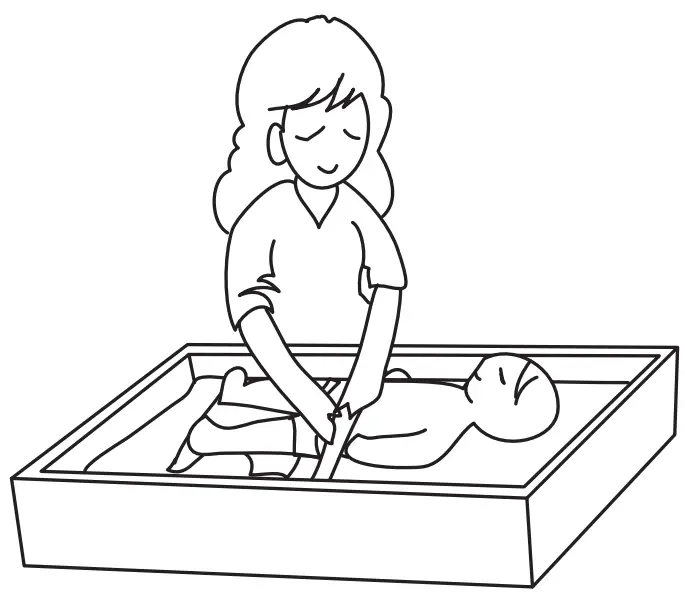

Secure your baby on the pad with the straps and buckle.MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 32After changing, unbuckle the straps.MILLION DOLLAR BABY Classic M23302 Nantucket Changing Table - fig 33Never leave your baby unattended on the changing tray.Warning icon
