WL1068P1 10kg Top Loader Washing Machine
User Guide
WL1068P1 10kg Top Loader Washing Machine
QUICK REFERENCE GUIDE > WL1068P1
Top Loader Washing Machine, 10kg
Series 7 | Top Load
WhiteWith plenty of room for large loads and 12 wash cycles including Towels, this top loader caters to every type of load.
- 12 wash cycles including Allergy, Towels, and Bulky
- Includes extra wash feature Soak, for helping clean tough stains
- Energy saving with Eco-ActiveTM 4 star energy and
- 4-star water rating

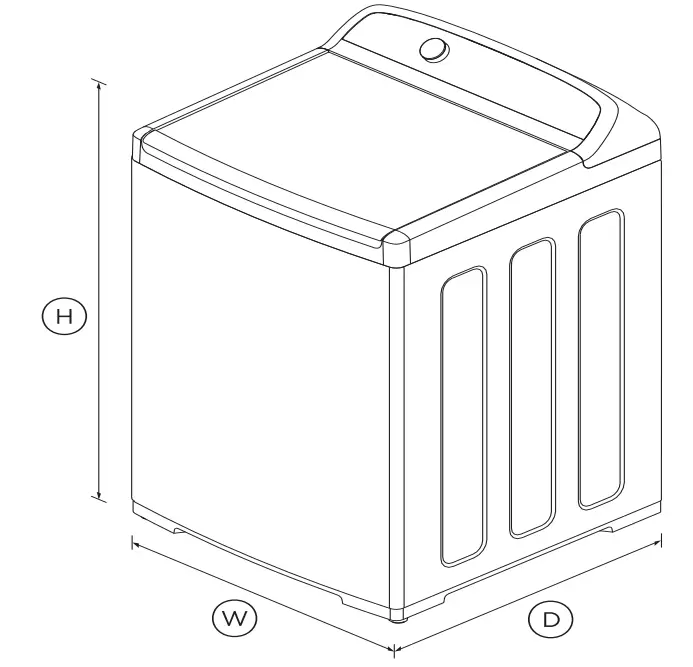

DIMENSIONS
| Height | 1060 – 1090mm |
| Width | 685mm |
| Depth | 700mm |
FEATURES & BENEFITS
Eco-ActiveTM wash
Eco-ActiveTM recirculates water and detergent through clothes so less hot water is used to remove stains, dirt, and bacteria.
Soft close lid
The tough glass lid delivers quality and durability. Its soft close mechanism makes it family safe, avoids slamming, and allows for hands-free operation.
Easy to use
This machine has a cycle to suit every type of load including Allergy, Handwash, and Sheets. Select a cycle with the easy-to-use SmartTouchTM control dial.
Robust construction
Designed with durable, quality materials from the real stainless steel wash basket through to the powder-coated metal lid.
Quicker drying
Drying times are reduced due to a fast spin speed of 1100RPM which helps remove more water.
Perfect pair
Our washing machines and dryers make the perfect pair. Not only do they care for your clothes, they also look stylish together in your laundry.
SPECIFICATIONS
| Consumption | |
| Annual energy consumption | 380kWh |
| Annual water consumption | 102L |
| Energy rating | 4 star |
| Water rating | 4 star (WELS) |
| Features | |
| Adjustable alert beeps | • |
| Agitator | Low profile |
| Auto out of balance correction | • |
| Automatic water level | • |
| Controlled cold | • |
| Delay start | • |
| Detergent dispenser | • |
| Fabric softener dispenser | • |
| Lid lock | • |
| No spin / Spin Hold | • |
| Rinse options | 4 |
| SmartTouch™ control dial | • |
| Soak | • |
| Soil levels | 3 |
| Spin speeds | 3 |
| Stainless steel drum | • |
| Water temperature controls | 5 |
| Performance | |
| Auto-Lint disposal | • |
| Load sensing | • |
| Maximum spin speed | 1100 rpm |
| Number of spin speeds | 3 |
| SmartDrive™ technology | • |
| Product dimensions | |
| Depth | 700mm |
| Height | 1060 – 1090mm |
| Height (Lid open) | 1420 – 1460mm |
| Width | 685mm |
| Warranty | |
| Parts and labour | 2 years |
| Parts only SmartDrive™ Motor | 10 years |
| Wash Cycles | |
| Allergy | • |
| Bulky | • |
| Conventional | • |
| Easy Iron | • |
| Eco-Active™ | • |
| Handwash | • |
| Heavy | • |
| Number of wash cycles | 12 |
| Quick | • |
| Regular | • |
| Sheets | • |
| Spin | • |
| Towels | • |
| SKU | 93264 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
