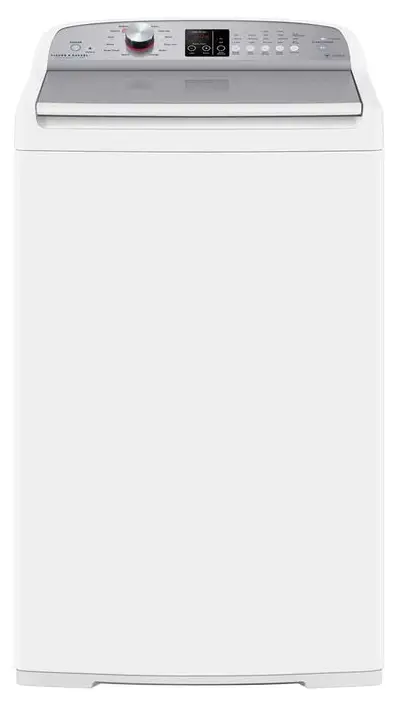

FISHER PAYKEL WA8560P1 8.5kg Top Loader Washing Machine

FISHER-PAYKEL-WA8560P1-8.5kg-Top-Loader-Washing-Machine-featured

With room for large loads, this top loader runs on SmartDrive™ technology for a quieter, quicker wash.

  • 12 wash cycles including Allergy, Sports and Wool, and a 30 minute Quick cycle to cater to busy lives
  • Energy saving with Eco-Active™
  • 4-star energy and 3.5 star water rating

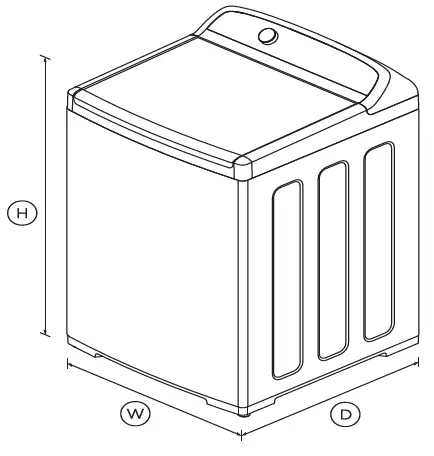

DIMENSIONS

  • Height 1045 – 1075mm
  • Width 600mm
  • Depth 600mmFISHER-PAYKEL-WA8560P1-8.5kg-Top-Loader-Washing-Machine-fig-1

FEATURES & BENEFITS

SmartDrive™ Technology
Our world-first SmartDrive™ technology is made up of just three main parts. This means our washing machines can sense each load, use less water and run with less moving parts for greater reliability.

Fast full load
Fast cycle times allow you to wash a full 8.5kg load in as little as 59 minutes.

Eco-Active™ wash
Eco-Active™ recirculates water and detergent through clothes so less hot water is used to remove stains, dirt and bacteria.

Easy to use
This machine has a cycle to suit every type of load including Delicate, Sports and Wool. Select a cycle with the easy to use SmartTouch™ control dial.

Easy installation
Self-levelling feet make installation easy and ensure the washer stays level, to reduce vibration and keep noise to a minimum.

Perfect pair
Our washing machines and dryers make the perfect pair. Not only do they care for your clothes, they also look stylish together in your laundry.

Soft-close lid
The tough glass lid delivers quality and durability. Its soft close mechanism makes it family safe, avoids slamming and allows for hands-free operation.

SPECIFICATIONS

Consumption

Annual energy consumption313kWh
Annual water consumption96L
Energy rating4 star
Water rating3.5 star (WELS)

Features

Adjustable alert beeps
AgitatorFlexible finned
Auto out of balance correction
Automatic water level
Controlled cold
Delay start
Detergent dispenser
Eco rinse
Fabric softener dispenser
Keylock
Lid lock
No spin / Spin Hold
Rinse options5
SmartTouch™ control dial
Soak
Soil levels3
Spin speeds3
Stainless steel drum
Water temperature controls5

Performance

Auto-Lint disposal
Load sensing
Maximum spin speed1100 rpm
Number of spin speeds3
SmartDrive™ technology

Product dimensions

Depth600mm
Height1045 – 1075mm
Height (Lid open)1350 – 1380mm
Width600mm

Warranty

Parts and labour2 years
Parts only SmartDrive™ Motor10 years

Wash Cycles

Allergy
Bulky
Conventional
Delicate
Easy Iron
Eco-Active™
Heavy
Number of wash cycles12
Quick
Regular
Rinse
Spin
Sports
Wool
SKU93262

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020.
