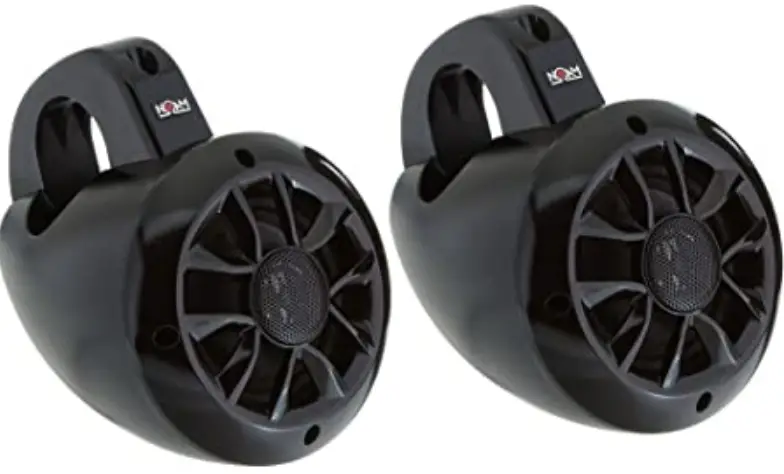

NOAM FBA_N4 4 Inch 2-Way Marine Speaker
FEATURES
- 4″ High-Quality Poly Injection Cone
- Butyl Rubber Surround
- Shiny Black Plastic Enclosure
- 1″ High-Temperature KEISV Voice Coil
- 1″ PEI Neodymium Dome Tweeter
- 100 Watts
- Frequency Response: 100Hz-20KHz
- Impedance: 4 Ohms
- Speaker Enclosure Dimensions: 5.43 “(L) x 7.4′”(W) x 7.28″(H)
SPEAKER INSTALLATION INSTRUCTIONS

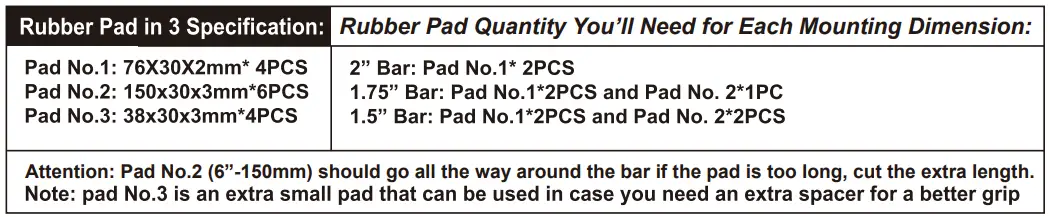

Please note: The below instructions refer to most common bar sizes; 1.5, 1.75″ and 2″ but using the supplied rubber pads will allow you to mount these speakers on any bar size measured between 1.5″ and 2″

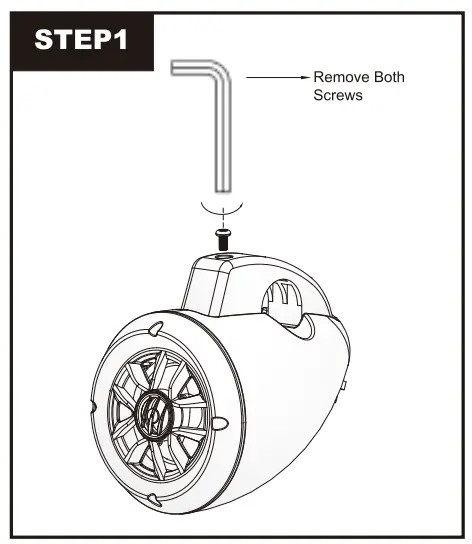

- YOU’LL NEED: H5 ALLEN WRENCH Remove the two screws from the bracket to separate the Speaker pod and the bracket.

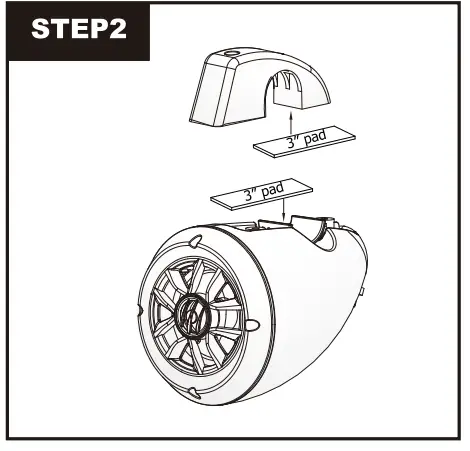

- YOU’LL NEED 3″ (76 mm) pads. Remove the backing off the pad and place it in the inner side of both the pod and the mounting bracket.
- YOU’LL NEED:6″ (150 mm) pads. Remove the backing off the pad and wrap it around the bar. *The pad should go all the way around the bar. if the pad is too long, cut the extra length. ** the glue on the pad is there only to make installation easier. Holding the speakers is not its purpose!

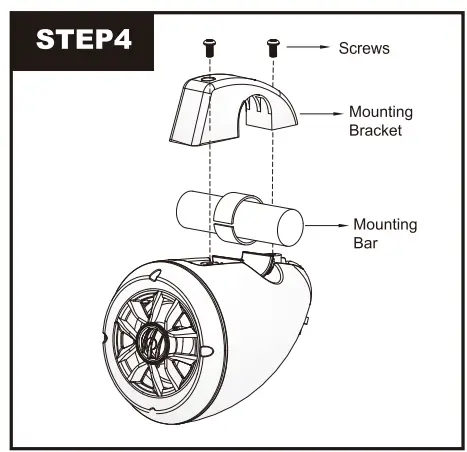

- Screw the clamp to the pod and you should be good to GO!!! Use the 1.5″ pad if more padding is required.
NOTE
