HYUNDAI A40V Detachable Towbar
SAFETY INSTRUCTIONS

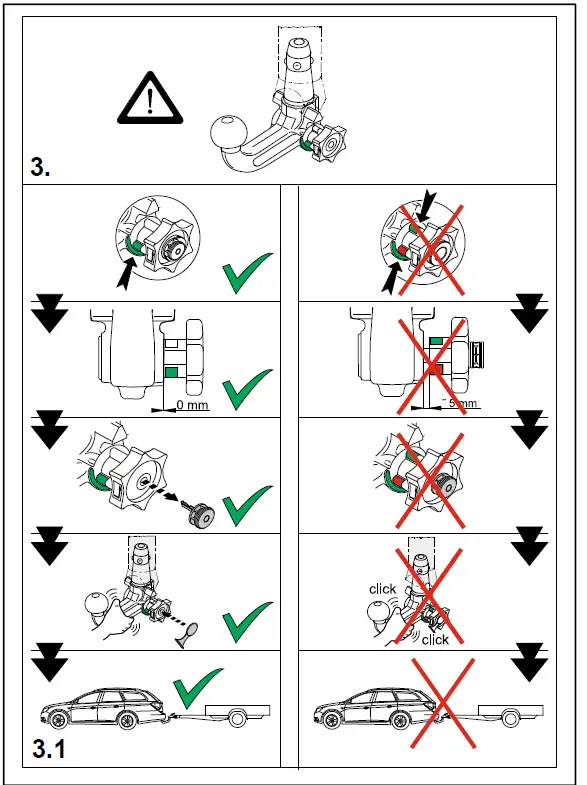

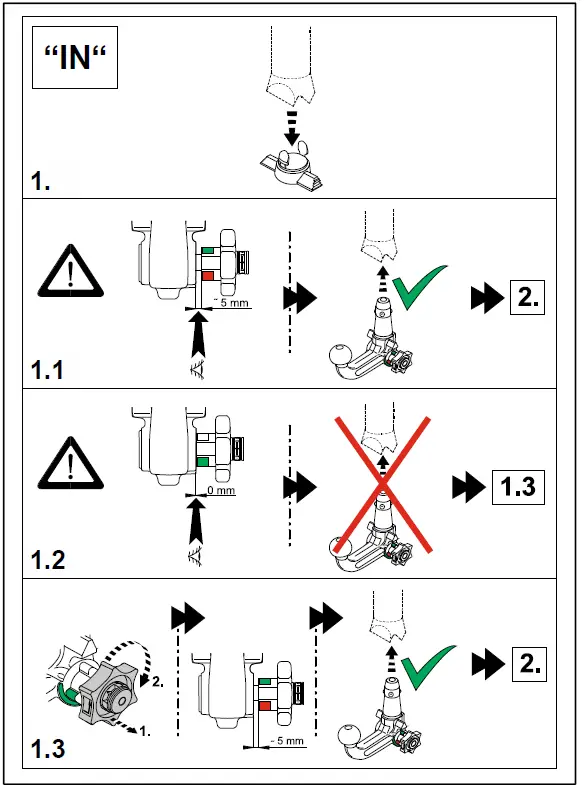

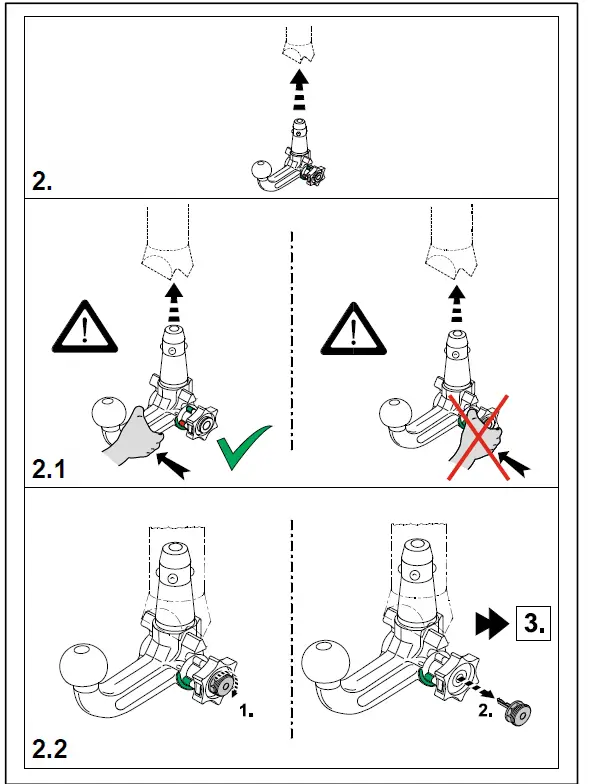

- After inserting the ball rod (2.), make sure that there is no gap between the hand wheel and the ball rod (3.1), that the green indicator is within the green area (3.1), remove the key (3.1) and cover the lock (3.1).
- Before driving with a trailer or bike carrier, check to ensure that it is hitched securely
IMPORTANT

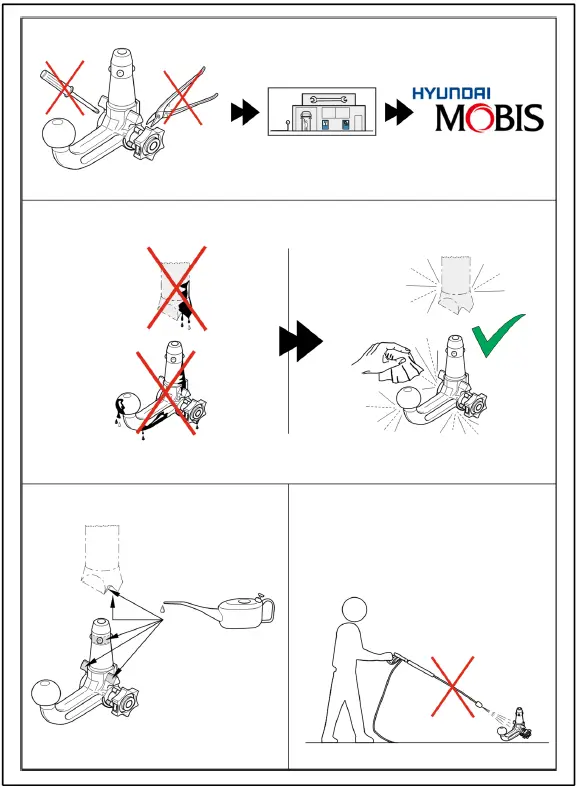

- Keep the ball rod and receiving sleeve clean

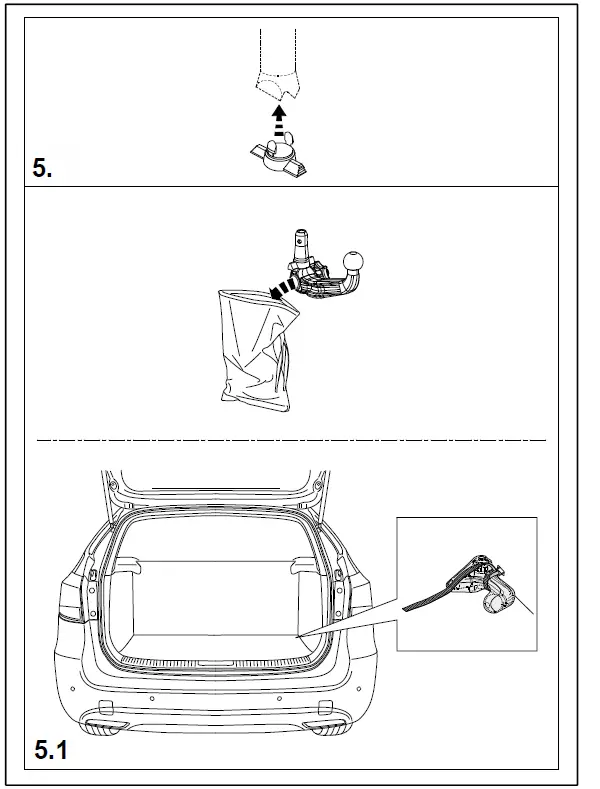

- Close the receiving sleeve with the dummy plug (5)
- Fasten removed ball rod in the vehicle (5.1)
- All repairs to the hitch must be performed by the manufacturer
