Micro Inverter Wireless Series-R3

Green Energy —
Smart Inverter Expert —

IoT Monitoring Platform

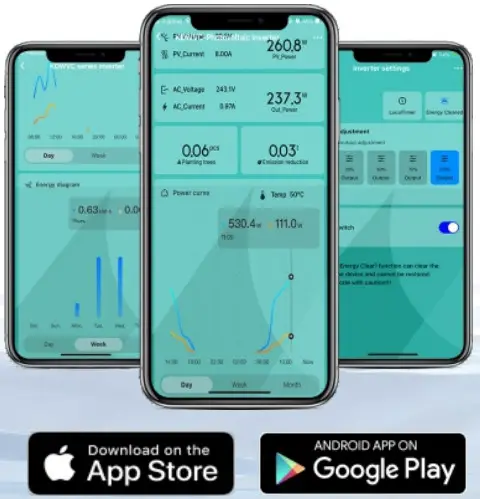

Smart mobile “core” life

• CO-2 induced environmental analysis
• Daily and total energy generation in kWh
• Actual DC input voltage, current and power
• Actual AC output voltage, current and power
• Inverter temperature
• Historical (daily, weekly, monthly) power curve
• Power losses due to weather induced effects
• Optional limitation of power output
• Online switch for the inverter start stop

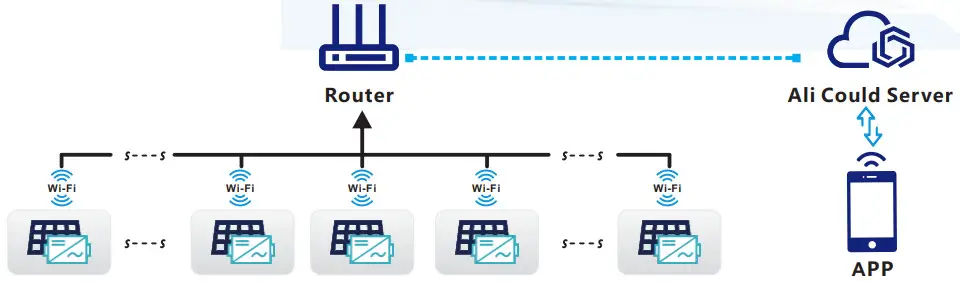

Communication mode

CO-2 induced environmental analysis
Daily and total energy generation in kWh
Actual DC input voltage, current and power
Actual AC output voltage, current and power
Inverter temperature
Optional limitation of power output
Online switch for the inverter start stop
Historical (daily, weekly, monthly) power curve

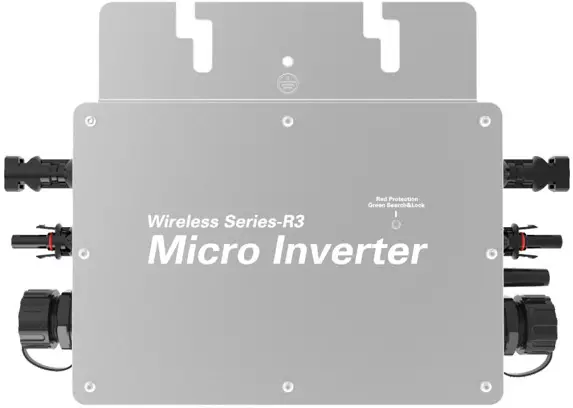

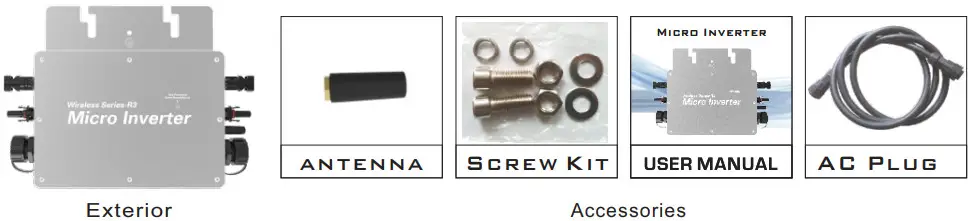

Appearance and technical features

Packing weight

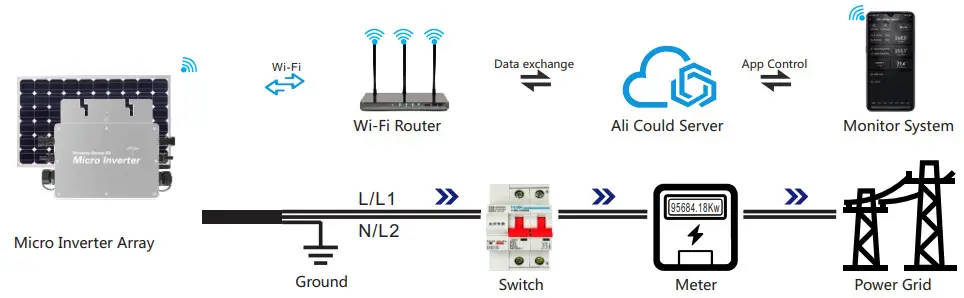

DetailedSystem diagram

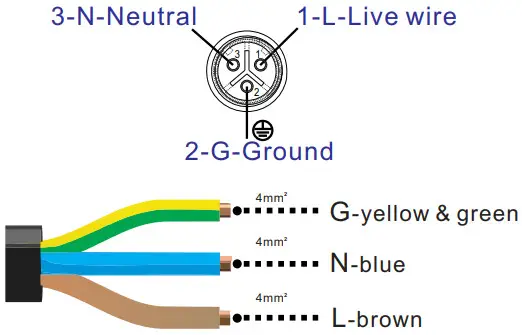

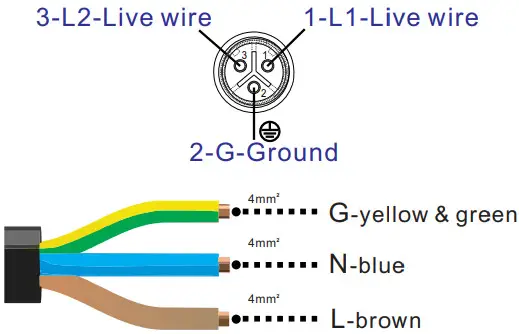

With N wire connection (Single phase 120/230V)	No N wire connection(Single phase 120V)

Note: You can purchase a professionally customized AC bus with a T-type connector.
Use this AC bus as the AC bus for each branch. Connect it hand in hand to form a modular micro-inverter branch wiring system.
LED indicator function of micro inverter

1. Red light keeps on ——————————–The equipment enters the preparatory working state;
2. Red light flashes ———————————- The device enters the delayed start-up state;
3. Blue light flashes quickly ————————MPPT maximum power point search status;
4. Blue light keeps on——————————–MPPT maximum power point locked state;
5. Blue light turns to red light for a long time—- a) Island protection; b)Frequency protection; c)Fault; d) Software shutdown;
   e) AC voltage over-voltage protection; f)DC voltage over-voltage protection;

Normal working indicator flashing process
Connect the micro-inverter correctly to the AC and DC terminals and then power on:
The red light keeps on for 3 seconds → the red light flashes for 30 seconds → the blue light flashes quickly (MPPT maximum power point search) → the blue light keeps on, (MPPT lock).
DOWNLOAD

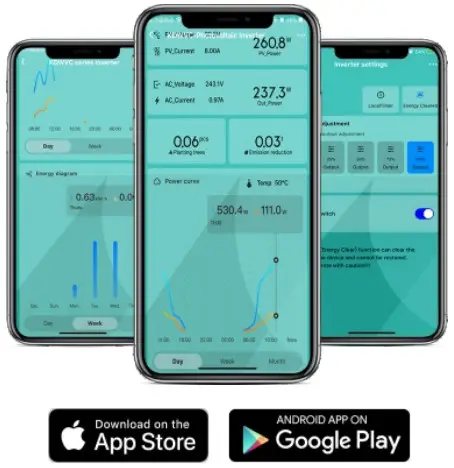

Cloud Intelligence APP
Please use the QR code to scan and install the “Cloud Intelligence” client application,System version: Android 5.0, IOS 9 and above

https://g.aliplus.com/ilop/d.html?locale=all&pk=a1yqVqG7C8r

Note
Please strictly observe the following installation conditions
a) Connect the communication antenna on the inverter;
b) Put the inverter in a place with good Wifi signal;
c) The connected Wi-Fi network needs to be in 2.4G mode;
d) Please reset the inverter for the first use;
Reset
Long press the reset button, when the LED indicator lights up again and turns into a “blue light”Release the reset button after the status is displayed for a long time, and the inverter will automatically complete the reset.

1. Add Device
   Open the intelligent monitoring software “Cloud Intelligence” APP to log inAccount, click the “+” icon in the upper right corner to start addingEquipment program; *If there is a device under the current account, click on the deviceIcon to enter the details page)
2. Entry equipment

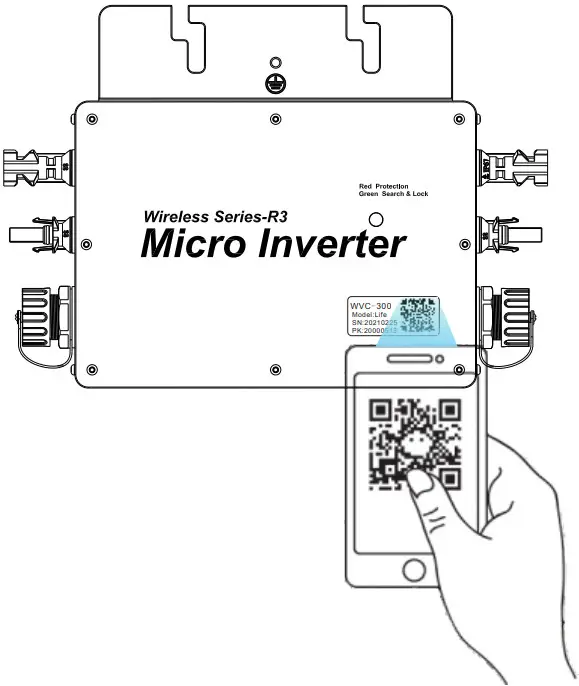

   When the smart APP changes to the QR code scanning state, scan the QR code label on the inverter body. At this time, the APP will automatically collect the inverter code and automatically jump to the Wi-Fi connection page, enter Click Next after the current Wi – Fi password;
3. Disribution network

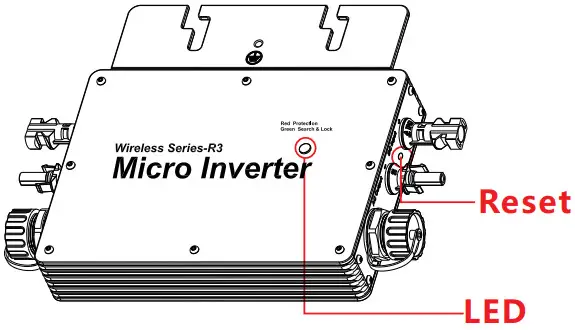

   Connect the inverter to the power supply as required, and quickly press the “Reset” button. At this time, the “LED” indicator will change to flashing blue and red alternately. At this time, the inverter enters the standby state of the distribution network;
4. Initialization

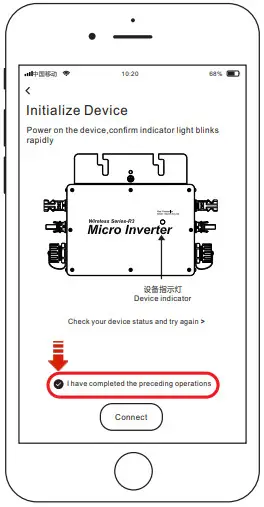

   When the inverter is in standby mode, return to the mobile phone APP to initialize the device operation page, check the “I have completed the above operations” below and click the “Start Connection” button. At this time, the page will jump to the signal search page. The LED indicator on the converter changes from red and blue alternately flashing state to “blue” long-bright display state when the network distribution is completed. The page will automatically jump to the system completion confirmation page, please click “Finish”.
5. Inverter Control

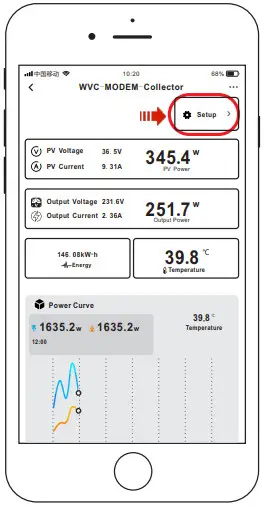

   Click the “Settings” button in the upper right corner of the system details page. In the settings page, you can adjust the inverter’s output power, timing, remote start and stop, etc. according to actual needs.Remarks
   1. When multiple inverters need to be added, theIn the English state, “,” comma separated and ended. Such as: 60001234, 6000E312,
   2. Each Modem can monitor 60 inverters at the same time;3. A total of 2 lists, each list can be filled with 30 inverter codes;

Features

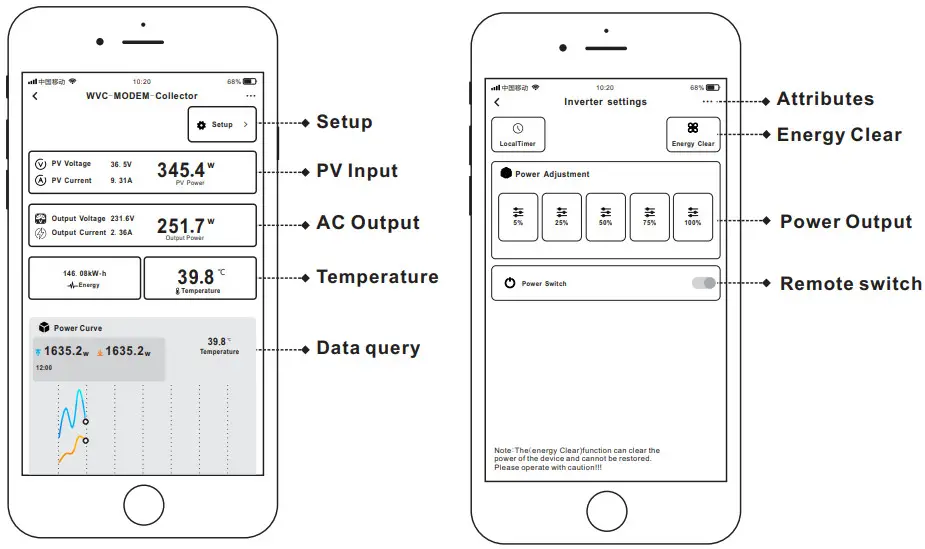

Smart APP can realize real-time data transmission with the cooperation of Alibaba Cloud IoTThrough graphs and graphic displays in time, users can understand the operation of the power station. The user can monitor the operation and adjust the output power function of the system.

Cloud Intelligence APP

INTELLIGENT Iot MONITORING MODEM
Number of data collectors per Modem
Built-in WiFi IoT data terminal
Can be used on any smart device (Android/iOS)

• CO-2 induced environmental analysis
• Daily and total energy generation in kWh
• Actual DC input voltage, current and power
• Actual AC output voltage, current and power
• Inverter temperature
• Historical (daily, weekly, monthly) power curve
• Power losses due to weather induced effects
• Optional limitation of power output
• Online switch for the inverter start stop
