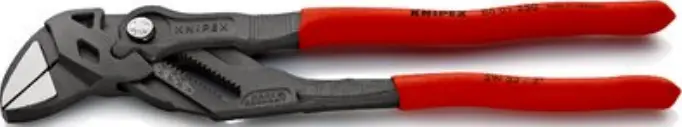

KNIPEX 86 01 250 Water Pump Pliers 52mm 250mm
Product information
Pliers Wrench
Pliers and a wrench in a single tool
- Replaces the need for sets of metric and imperial spanners
- Smooth jaws for damage free installation of plated fittings – working directly on chrome!
- With scaling for presetting the width apart from the workpiece
- Adjustable tightening tool

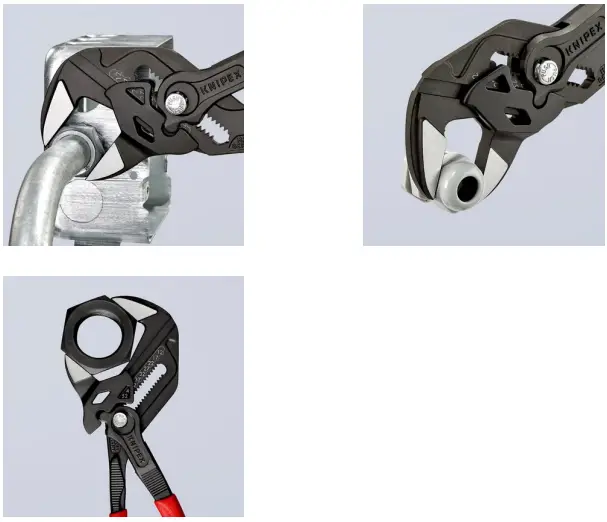

- Also excellent for gripping, holding, pressing and bending workpieces
- Push the button for adjustment on the workpiece
- Zero backlash jaw pressure prevents damage to edges of sensitive components
- Parallel jaws give a more solid grip; its design allows flexible adjustment of all widths up to the specified maximum size
- Reliable catching of the hinge bolt: no unintentional shifting
- The ratchet type principle allows quick and easy tightening and release of all bolted connections
- Lever transmission greater than 10 : 1 for strong gripping power
- Chrome vanadium electric steel, forged, oil-hardened
General
| General | |
| Article No. | 86 01 250 |
| EAN | 4003773082385 |
| Pliers | black atramentized |
| Head | polished |
| Handles | with non-slip plastic coating |
| Weight | 465 g |
| Dimensions | 250 x 52 x 17 mm |
| REACH compliant | no |
| RohS compliant | no |
Technical details | |

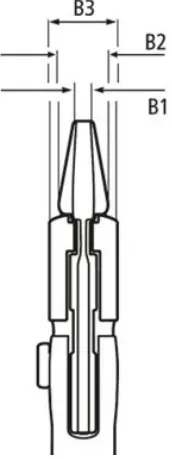

| Jaw thickness (joint) (B2) | 8.0 mm |
| Joint thickness (B3) | 14.0 mm |
| Tips thickness (B1) | 8.0 mm |
| Adjustment positions | 19 |
| Capacities for nuts | Ø 2 Inch |
| Capacities for nuts | 52 mm |
Classification
| Classification | |
| eCl@ss 5.1.4 | 21043826 |
| proficl@ss 6.0 | AAA936c004 |
| UNSPSC 13.1 | 27112112 |
Accessories
| Accessories | |
| 86 09 250 V01 | Protective jaws for 86 XX 250, 3 pairs |
technical change and errors excepted
Opening width lasered onto the pliers head (metric on the front and imperial on the back)
KNIPEX Werk – C. Gustav Putsch KG – 42337 Wuppertal
