EXPLODED VIEWS

Note:

• -XX and -X mean standardized parts, so they may have some difference from the original one.
• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.
• The mechanical parts with no reference number in the exploded views are not supplied.
• Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED)
• Abbreviation

CND : Canadian model
AR : Argentina model
SP : Singapore model
TH :Thai model
TW :Taiwan model

The components identifi ed by mark or dotted line with mark are critical for safety. Replace only with part number specifi ed.

The components identifi ed by mark contain confi dential information. Strictly follow the instructions whenever the components are repaired and/or replaced.

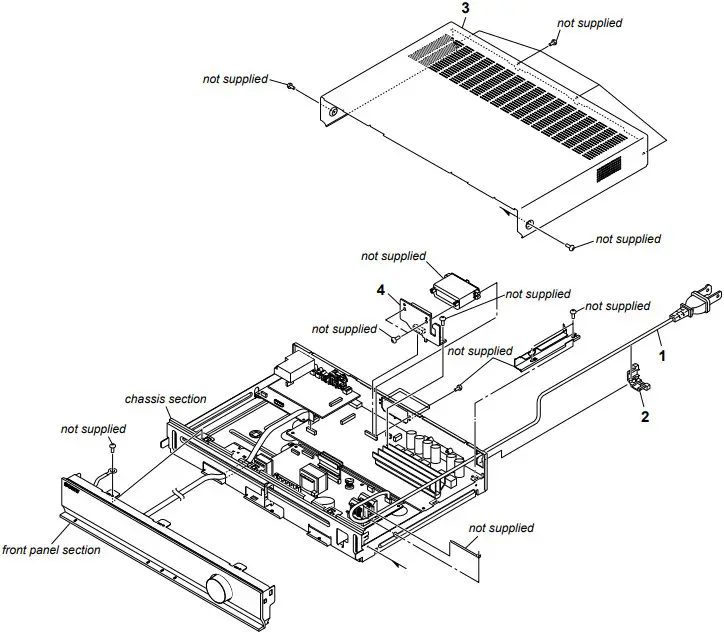

CASE, S-AIR BOARD SECTION

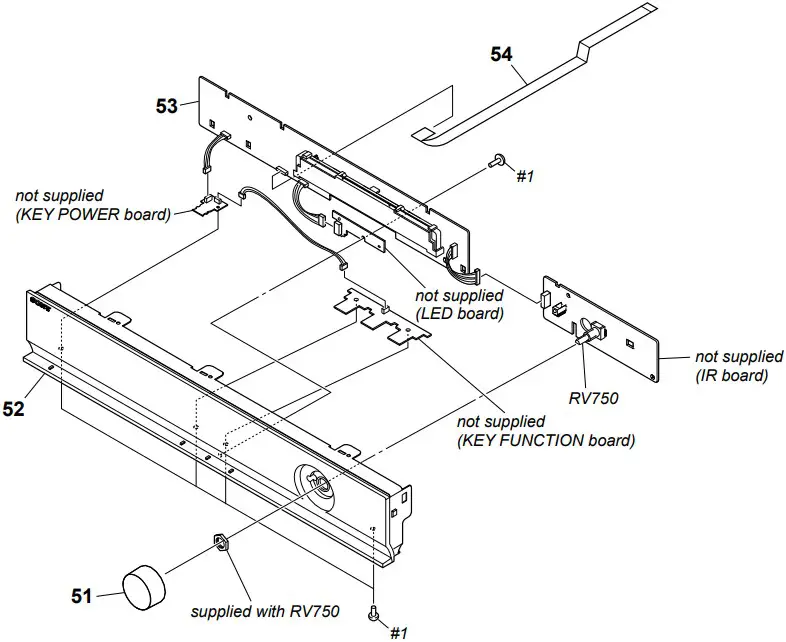

FRONT PANEL SECTION

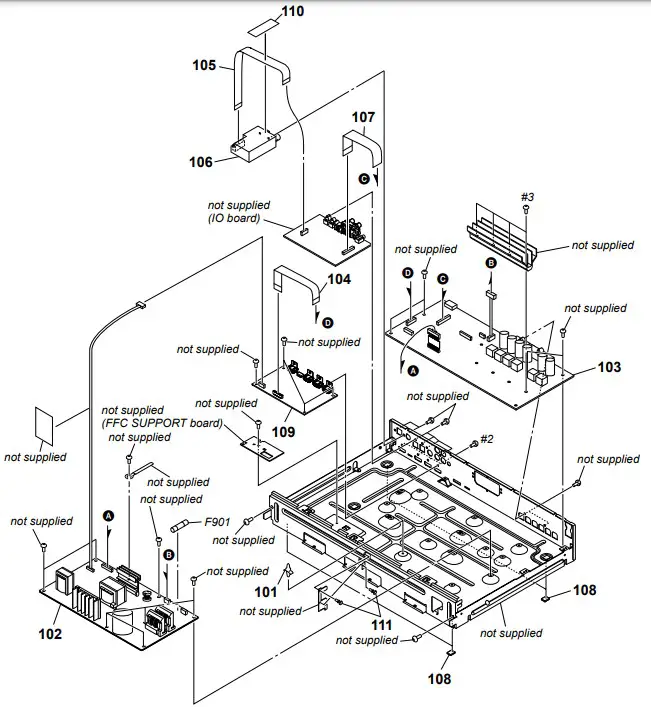

CHASSIS SECTION

Note: If wire (fl at type) is replaced, install it after bending it in the same form as that before replacement.
