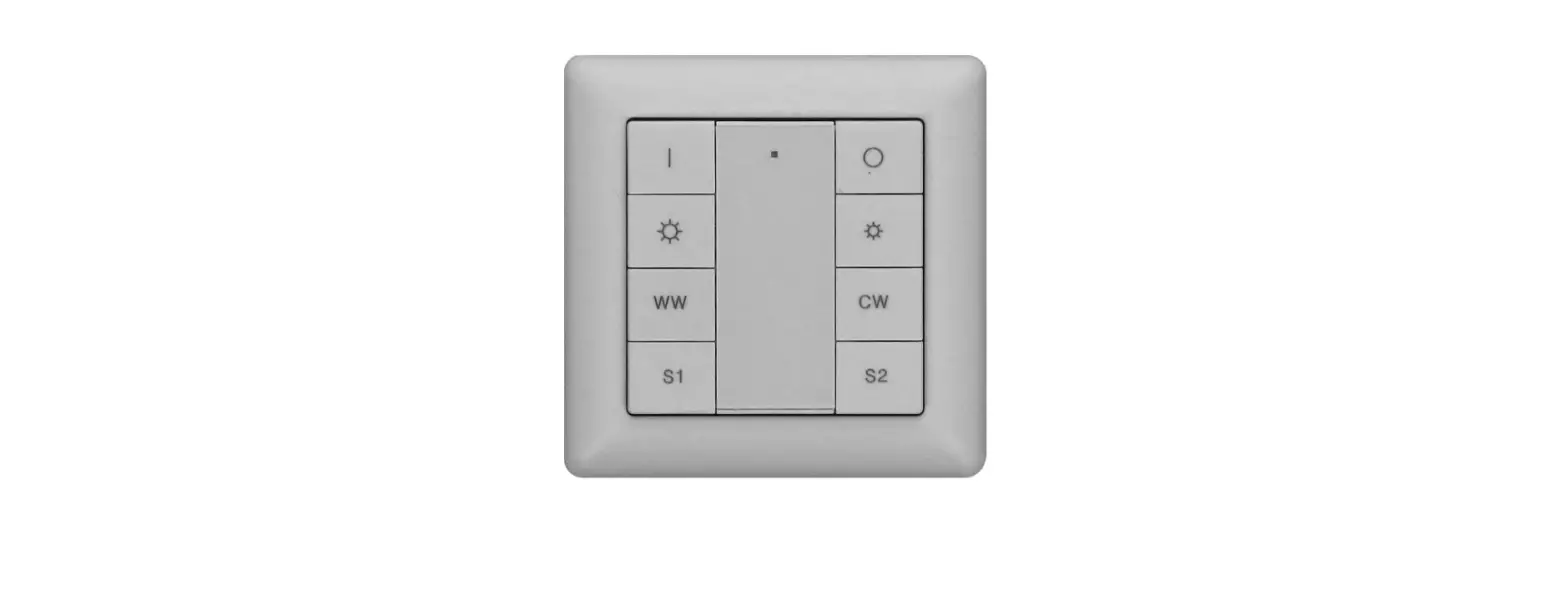

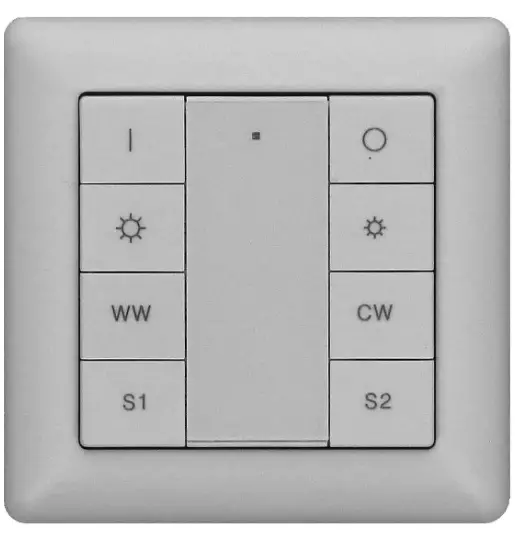

JIBE SR-SB9001K8-CCT RF+Bluetooth CCT Wall Mounted Remote

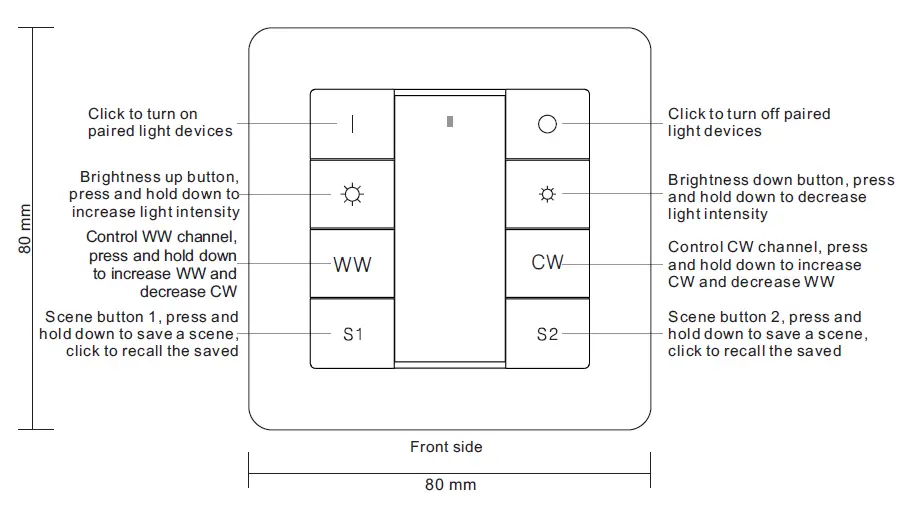

Function introduction

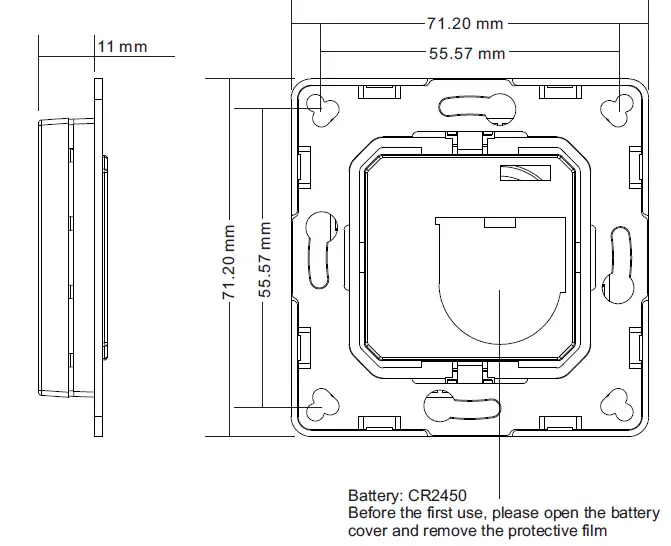

Product Data

• RF+Bluetooth CCT remote
•  Control 1 zone of RF+Bluetooth receiver
• Enables to save and recall 2 scenes for each zone
• Easy & quick pairing to the RF+Bluetooth receivers by simply pushing the buttons
• Mesh network for further control distance, receivers can transmit signal to each other
• Each remote can control numerous receivers
• Each receiver can be paired to max. 8 remote controls
• The controlled receiver status can be quickly synchronized to the smart APP
•  Transmission range between every two neighbor devices up to 30m
• Bluetooth low power consumption technology, long battery life
• Waterproof grade: IP20

Safety & Warnings

• This device contains a button lithium battery that shall be stored and disposed properly.
• DO NOT expose the device to moisture.

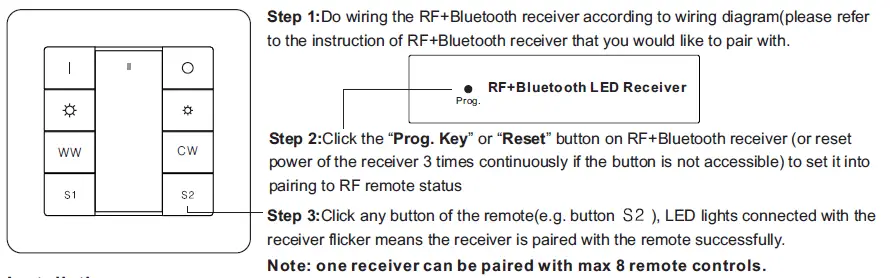

Pair with RF+Bluetooth receiver

Installation

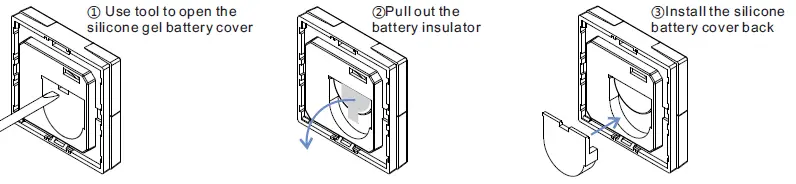

1. Remove battery insulator
2. Install the controller to wall(2 methods)

Method 1:Stick 3M glue on the back of the bracket and then stick the bracket to the wall

Method 2:Screw the bracket to the wall

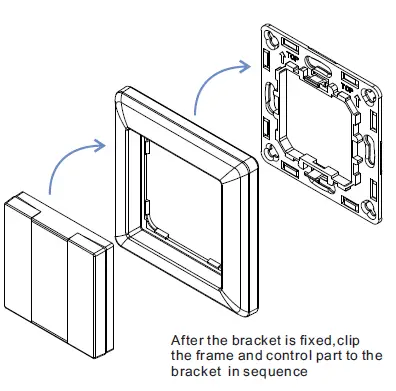

After the bracket is fixed,clip the frame and control part to the bracket in sequence

The key part of this controller is a universal, standard size design switch element that can be integrated in numerous frames by different manufacturers as below list:

• BEKER: S1, B1, B3, B7 glass
• GIRA: Standard55, E2, Event, Esprit
• JUNG: A500, Aplus
• MERTEN: M-smart, M-Arc, M-Plan
