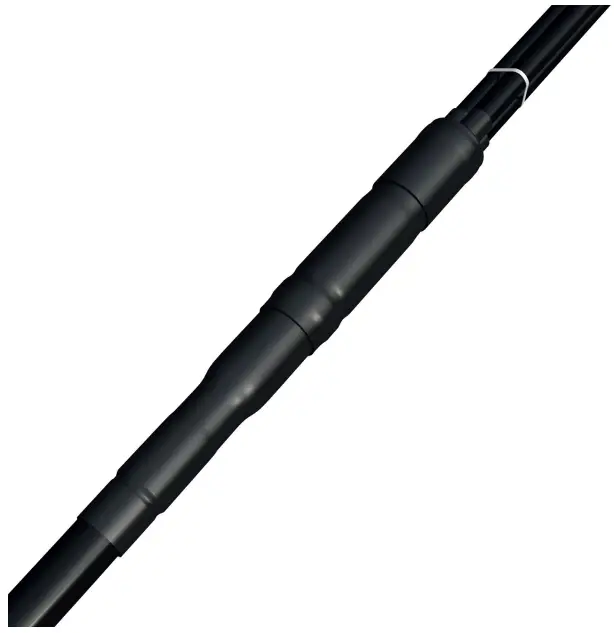

ENSTO SJE44 Solutions for Underground Cable Networks User Guide

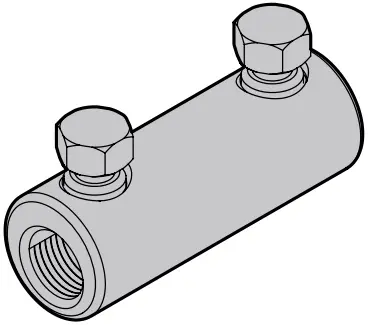

Contents

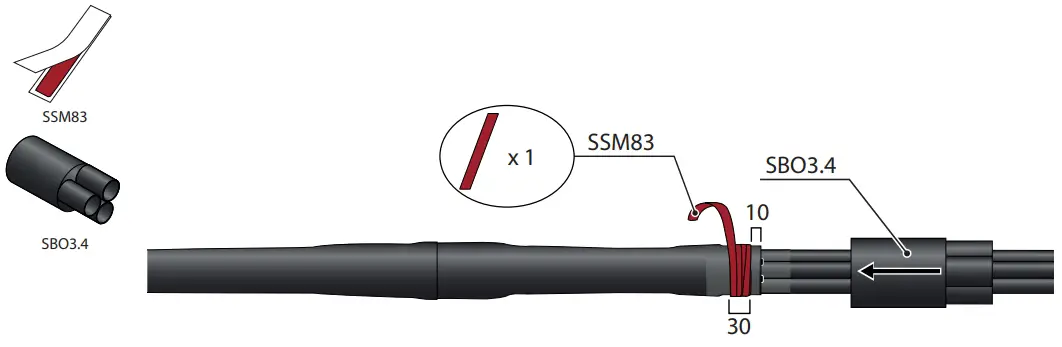

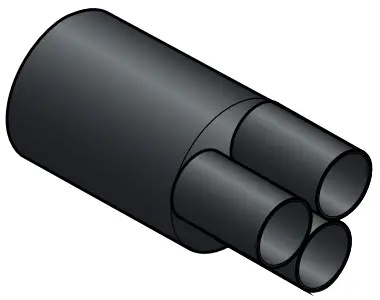

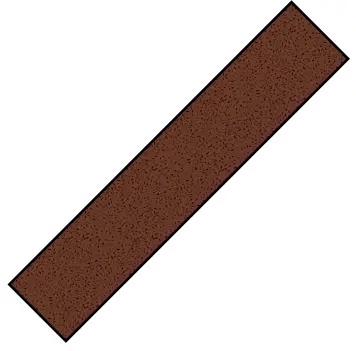

• SBO3.4 x1

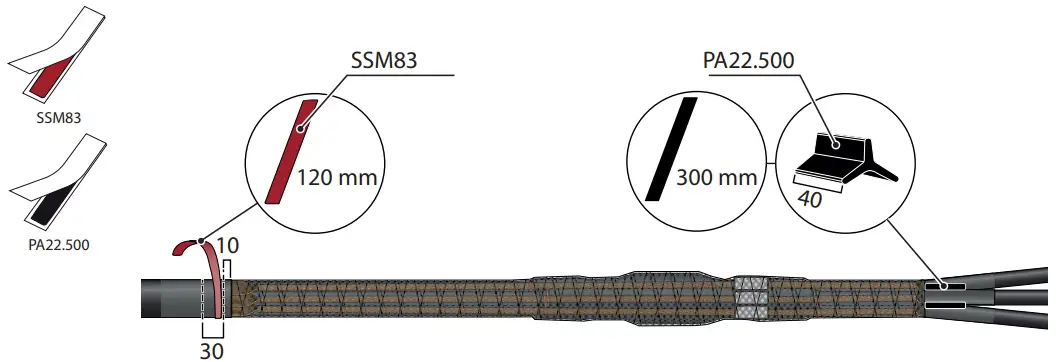

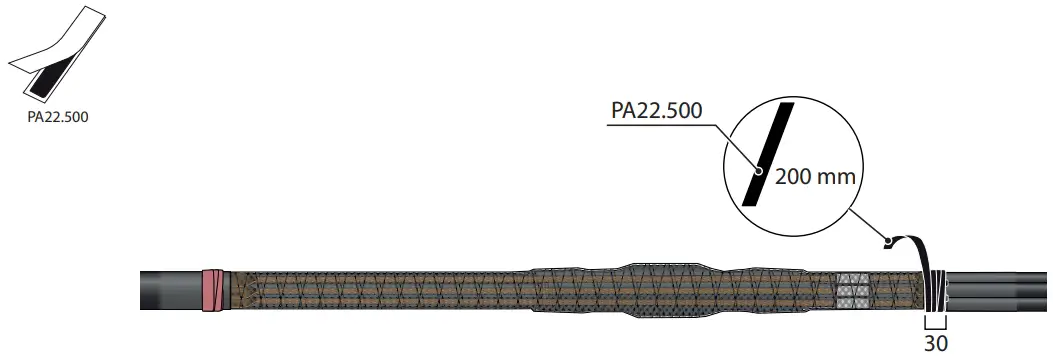

• PA22.500 x1

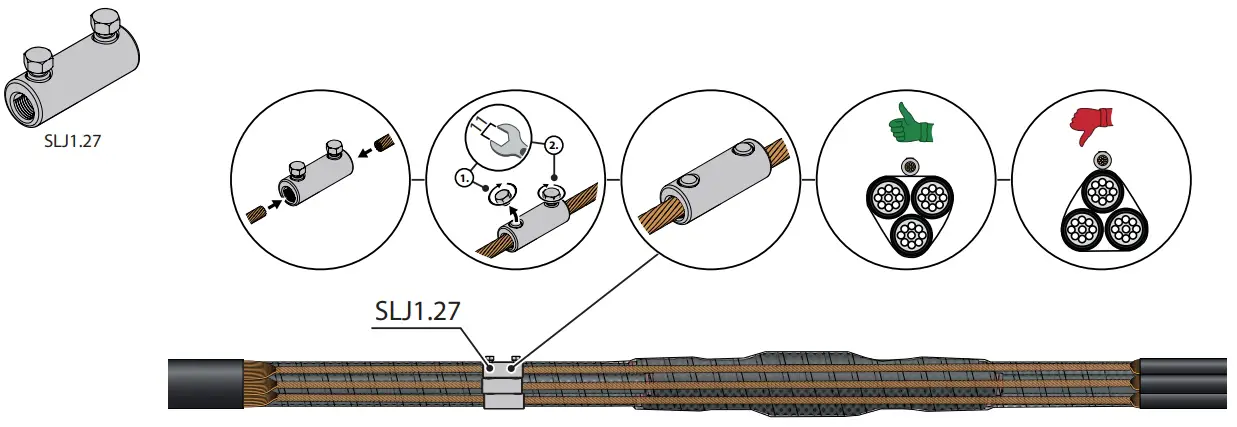

• SLJ1.27 x2

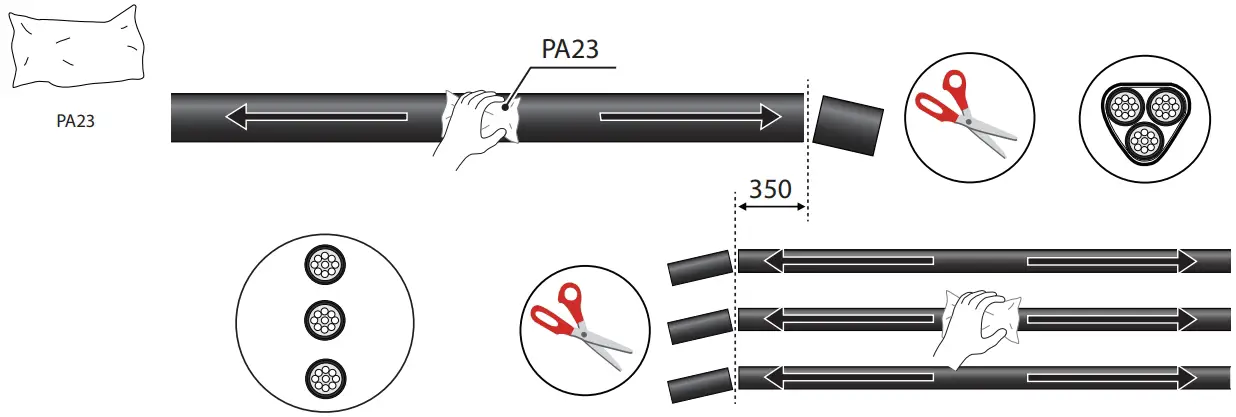

• PA23 x1

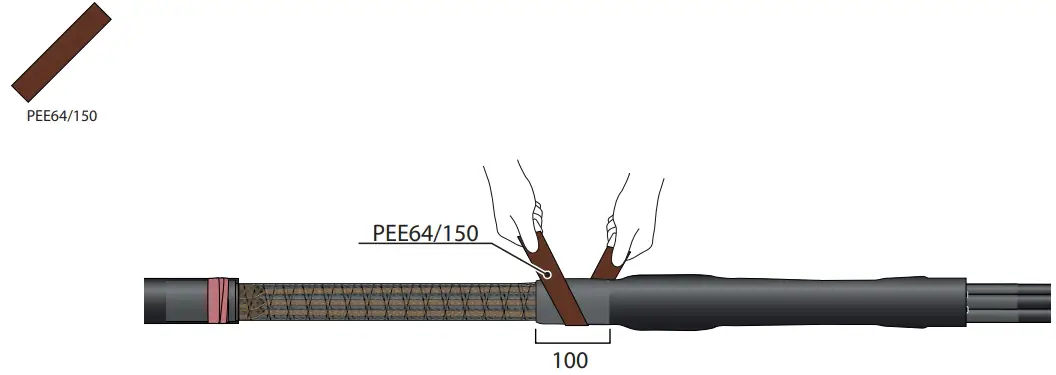

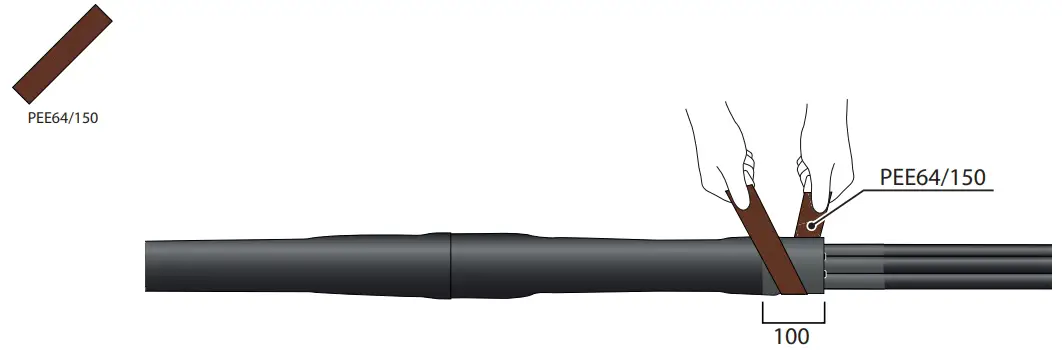

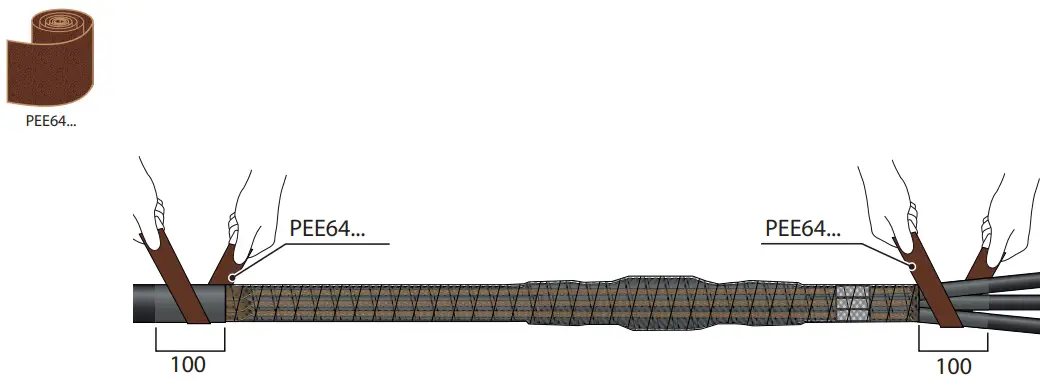

• PEE64/150 150 mm x1

• PEM-SJE44 x1

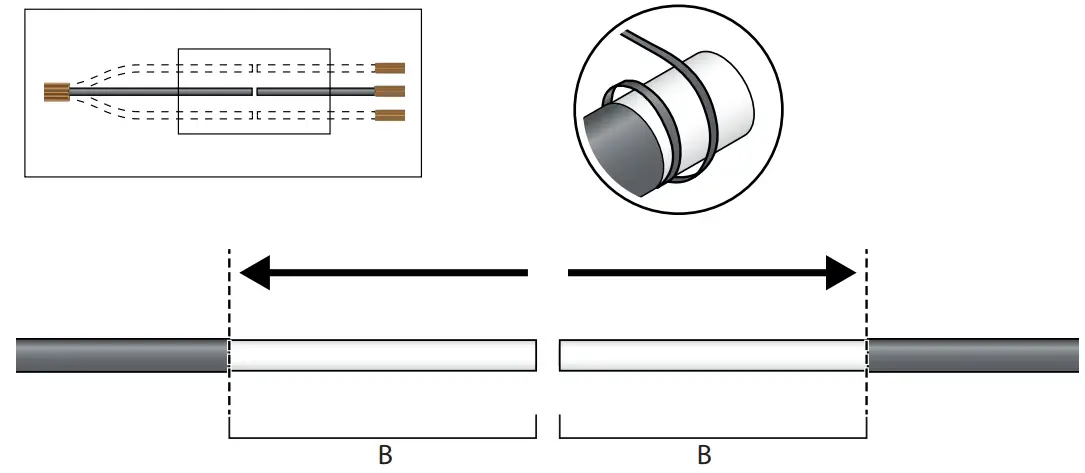

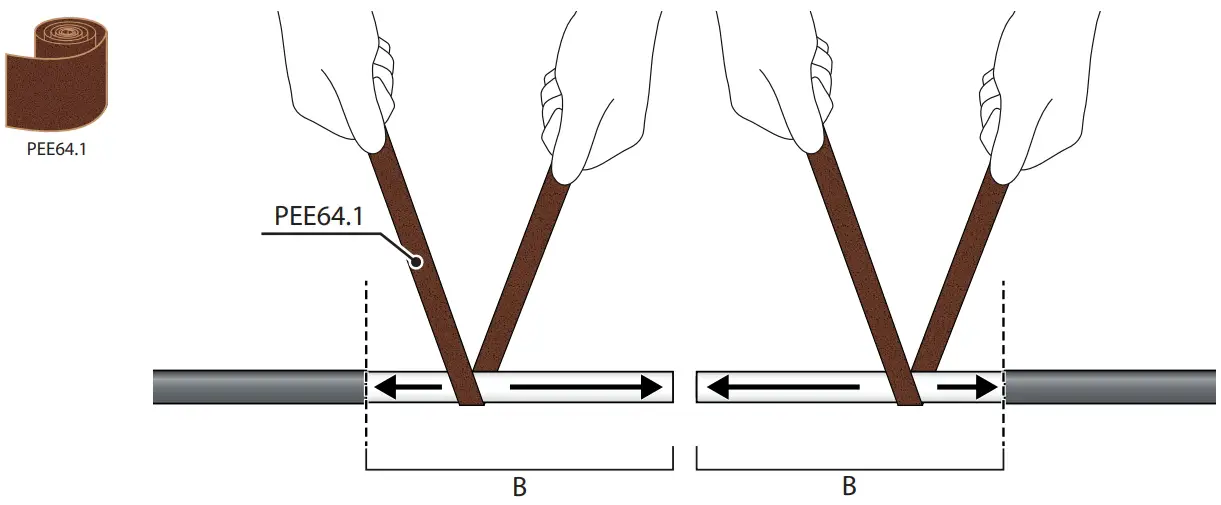

		12 kV mm2	24 kV mm2	B mm
HJ33.1202C	PEM-HJ33_1202C	35-95		130
HJ33.2402C	PEM-HJ33_2402C	50-95	10-95	150
CJH33.1202C	PEM-CJH33_1202C	50-95		110
CJH33.2402C	PEM-CJH33_2402C	70-95	25-95	140

Induction

LEGAL NOTICE

• The product must be installed only by a competent person with sufficient training in installation practices and with sufficient knowledge of good safety and installation practices in respect of electrical equipment. If local legislation contains provisions in respect of such training or sufficient knowledge in respect of installation of electrical equipment such provisions shall be fulfilled by the said person.
• Ensto accepts no liability concerning claims resulting from misuse, incorrect installation or ignored national safety regulations or other national provisions.
• WARNING: Failure to follow the installation instructions may result in damage to the product and serious or fatal injury.
