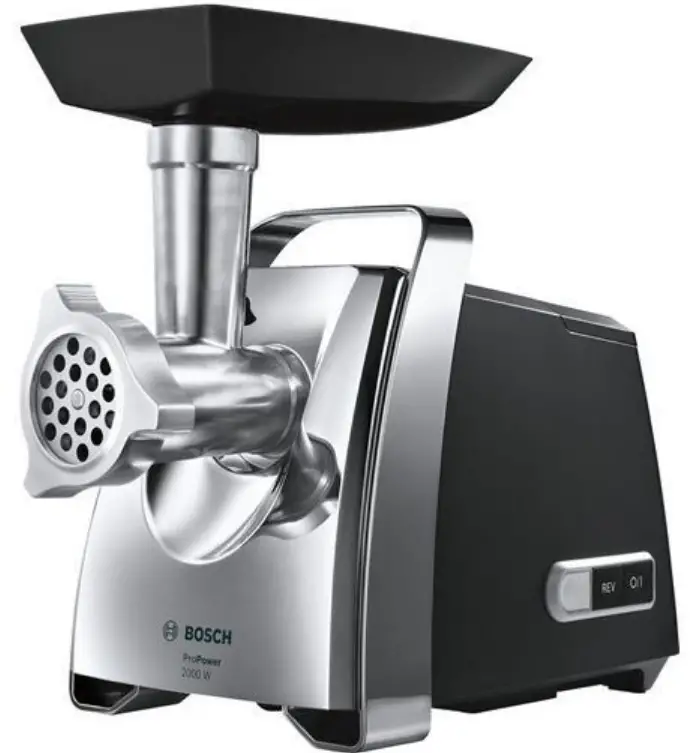

BOSCH MUZS2FWW Meat Mincer

Safety

Read this instruction manual carefully.
Observe the instructions for the base unit.

Only use the accessories:

with a kitchen machine from the same series MUMS2.
With genuine parts and accessories.
For cutting up raw or cooked food, e.g. meat, fish and vegetables.
For additional applications described in these instructions.
Do not reach into the filling shaft.
Only use the pusher to push down ingredients.
Never assemble the accessories on the base unit.
Only attach and remove accessories once the drive has stopped and the appliance has been unplugged.
The accessories should only be used in the intended operating position.

Avoiding material damage

Do not process food that contains hard components, e.g. bones, gristle or stones.
Do not insert objects into the filling shaft or housing, e.g. wooden spoons.
Before use, check the filling shaft and housing for foreign objects.

QR code

Scan the QR code or visit the website to open the Further Notices for Use. You can find additional information about your appliance or accessory here.

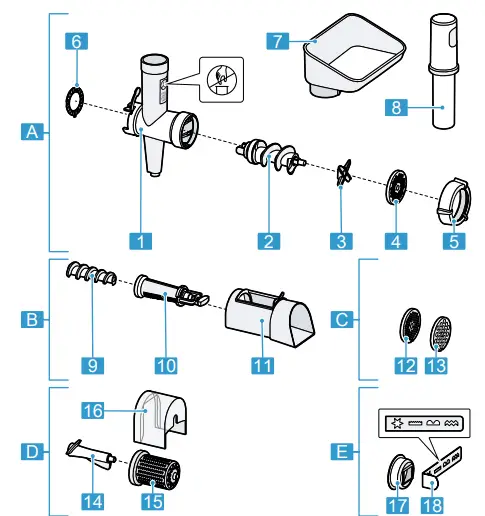

Components

A Meat mincer attachment
B Juicer attachment1
C Perforated discs1
D Grater attachment1
E Viennese whirl attachment1

Housing
Worm gear with agitator paddle
Knife
Perforated disc, medium
hreaded ring
Seal
Filling tray
Pusher
Worm gear for juicer attachment
Strainer housing
Juicer housing
Perforated disc, fine
Perforated disc, coarse
Worm gear for grater attachment
Grater drum
Cover
Holder for shape plate
Shape plate

Special accessory

You can find an overview of the special accessories and how to use them here.

Perforated discs
The fine and the coarse perforated disc are suitable for additional processing functions.

Juicer attachment

The juicer attachment is suitable for squeezing soft fruit and vegetables, e.g. berries, tomatoes, apples, pears, rose hips.

Notes

Do not press fruit whose pips are similar in diameter to the hole diameter in the strainer insert, e.g. raspberries.
Cook hard food before squeezing to make it soft enough, e.g. rose hips.

Viennese whirl attachment

The Viennese whirl attachment is suitable for shaping biscuit dough or shortcrust pastry.

Grater attachment

The grater attachment is suitable for grating hard foods, e.g. almonds, nuts, chocolate, hard cheese or dry bread rolls.
Note: Only process dry nuts and almonds in small quantities.

Overload protection

The overload protection system prevents the motor and other components from being damaged through being overloaded.
If the meat mincer is overloaded or blocked, the agitator paddle on the worm gear will break at the predetermined breaking point.
Note: Spare parts with a predetermined breaking point are not covered by our warranty obligations. A new agitator paddle is available from customer service under order number 00418076.

Replacing the agitator paddle

Remove the faulty agitator paddle.
Insert the new agitator paddle.

Controls

Preparing the base unit

Note: The food processor shown in the pictures may differ from your model in terms of shape and features.

Set up the base unit as described in the main operating instructions.
Press the release button and move the swivel arm down until it engages in the vertical position.
- The swivel arm is fixed in position 3.
Rotate the base unit to the operating position.

Inserting the seal

Insert the seal into the housing and press in firmly.
The recesses must match up exactly.

Assembling the attachments

Note: To use the special accessory, you need the parts of the meat mincer, except for the knife and perforated disc.

Assembling the meat mincer
Assembling the juicer attachment1

Follow the illustrated instructions.

Assembling the Viennese whirl attachment1

Follow the illustrated instructions.

Assembling the grater attachment1

Follow the illustrated instructions.Fitting the attachment
Recommended speeds

Observe the recommended speeds for optimum results.
Note: Your model is equipped with a 4- or 7-level rotary switch depending on the features of the appliance. The recommended speeds for the 4-level rotary switch are always shown in brackets in these instructions for use.

Processing food

Processing food with the juicer attachment1

Note: When working with the juicer attachment, note the following special features.

Place two containers under the relevant openings.
Before starting processing, turn the setting screw anticlockwise and open.
During processing use the setting screw to select the desired consistency of the fruit purée and pulp.

Removing the attachment
