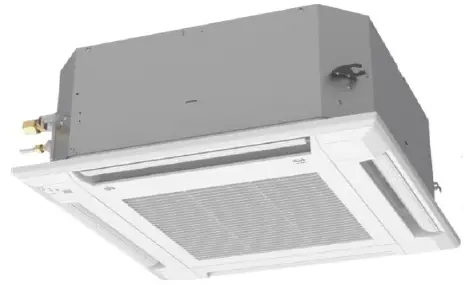

FUJITSU ACUH18LUAS1 18k BTU Compact Ceiling Cassette with Grille
PRODUCT FEATURES
- Automatic airflow adjustment
- Auto/Cool/Dry/Fan/Heat/modes
- 24 Hr. timer
- Powerful mode
- Fresh Air Knockout
- Fresh Air Kit
- Auto changeover
- Cold prevention
- Compact size Grid fit
| MODEL NUMBERS | ||||
| Indoor Unit | ACUH18LUAS1 | |||
| Nominal Capacity | 18,000 | |||
| LINESET REQUIREMENTS | ||||
| Connection Method | Flare | |||
| Liquid | in (mm) | Ø1/4 (Ø 6.35) | ||
| Gas | Ø1/2 (Ø 12.70) | |||
| Drain hose | Material | PVC | ||
| in | Ø 1 (I.D.), Ø 1-1/4 (O.D. | |||
| mm | Ø 25 (I.D.), Ø 32 (O.D.) | |||

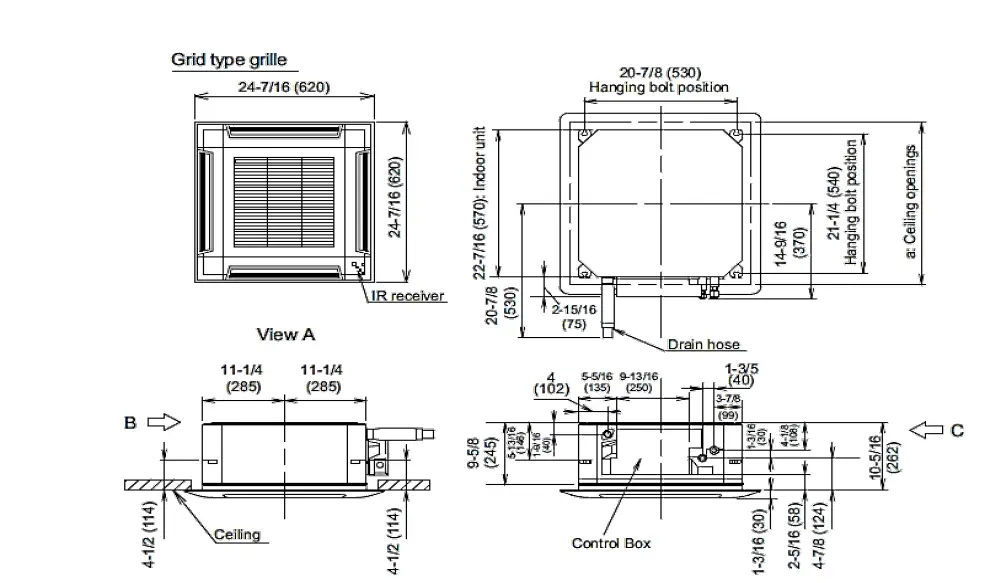

| INDOOR DIMENSIONS & WEIGHT | ||||
| Net H x W x D | in | 9-5/8 × 22-7/16 × 22-7/16 | ||
| mm | 245 × 570 × 570 | |||
| Gross (H x W x D | in | 10-7/16 × 28-3/4 × 24-5/8 | ||
| mm | 265 × 730 × 625 | |||
| Net Weight | lb (kg) | 33 (15) | ||
| Gross Weight | 42 (19) | |||
| ELECTRICAL SPECIFICATIONS | ||||
| Voltage/Frequency/Phase | 208/230 V ~ 60 Hz | |||
| Voltage Range | 187—264 V | |||
| Running Current | A | 0.3 | ||
| Input Power | W | 23 | ||
| SOUND PRESSURE | ||||
|
Indoor Unit | Cooling | High |
dB (A) | 42 |
| Medium | 37 | |||
| Low | 33 | |||
| Quiet | 29 | |||
| Heating | High | 44 | ||
| Medium | 40 | |||
| Low | 37 | |||
| Quiet | 30 | |||
| FAN DATA | ||||
|
Airflow Rate | Cooling | High |
CFM m3/h | 441 (750) |
| Medium | 359 (610) | |||
| Low | 306 (520) | |||
| Quiet | 241 (410) | |||
| Heating | High | 471 (800) | ||
| Medium | 418 (710) | |||
| Low | 353 (600) | |||
| Quiet | 265 (450) | |||
Warranty Information
- 7 Year Compressor, 5 Year Parts out of the box Warranty.
- 10 Year Compressor, 10 Year Parts Warranty when registered within 60 days of installation in a residence.
- 12 Year Compressor, 12 Year Parts Warranty when registered within 60 days of installation in a residence, and installed by a Fujitsu Elite contractor.
| ENCLOSURE | ||
| Enclosure | Material | Polystyrene |
| Color | White | |
| ACCESSORIES | ||
| UTY-XWZXZG | External Connect Kit | |
| UTY-TFSXZ2 | Wireless LAN Interface | |
| UTY-RNRUZ Series | Wired Remote Controller | |
| UTY-RHRY | Simple Remote Controller | |
| UTY-RSRY | Simple Remote Controller | |
| UTY-LNTU | Wireless Remote Controller | |
| UTZ-VXAA | Fresh Air Intake | |
| UTR-YDZB | Air Outlet Shutter Plate | |
| UTZ-VMSX | MODBUS Converter | |
| FJ-AC-BAC-1L | BACnet Gateway | |
| UTG-CCGFGA | Cassette Grille | |
Due to continuous product improvements, specifications are subject to change without notice. Please log in to the Fujitsu Portal for the most up to date documentation https://portal.fujitsugeneral.com
Inverter Driven Heat Pump

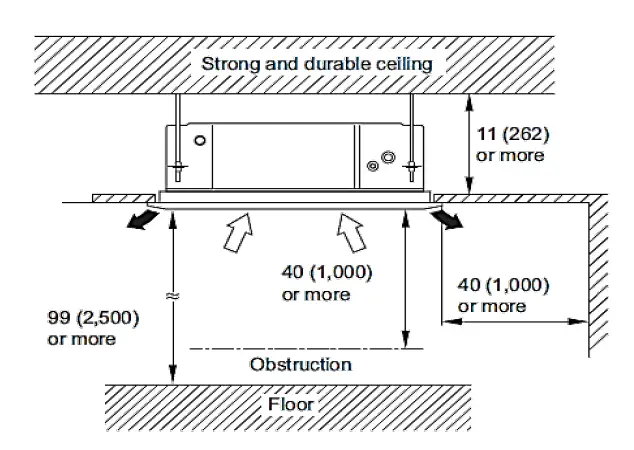

Installation Space Reqiremant
The Fujitsu logo is a worldwide trademark of Fujitsu General Limited. The Halcyon logo and name is a worldwide trademark of Fujitsu General Limited and is a registered trademark in Japan, the USA and other countries or areas. Copyright 2022 Fujitsu General America, Inc. Fujitsu’s products are subject to continuous improvements. Fujitsu reserves the right to modify product design, specifications and information in this brochure without notice and without incurring any obligations.
Note
Specifications are based on the following conditions
Cooling
Indoor temperature of 80°F (26.7°C) DB/67°F (19.4°C) WB, and outdoor temperature of 95°F (35°C) DB/75°F 23.9°C WB.
Heating
Indoor temperature of 70°F (21.1°C) DB/60°F (15.6°C) WB, and outdoor temperature of 47°F (8.3°C) DB/43°F (6.1°C) WB. Pipe length: 25ft. (7.5m), Height difference: 0ft. 0m Outdoor unit indoor unit.
FUJITSU GENERAL United States & Canada
