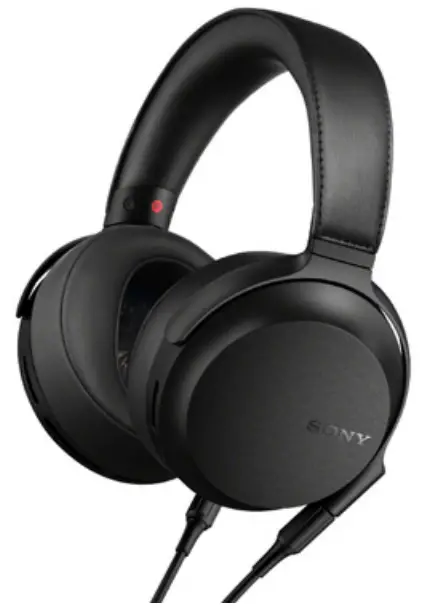

Sony MDR-Z7M2 Hi-Res Stereo Overhead Headphones

The MDR-Z7M2 headphones are quality, comfortable Hi-Res headphones with precision in sound and performance, featuring a wide frequency range that brings the brilliance out of every note. Newly developed 70mm drivers with Fibonacci Pattered Grills bring smooth ultra-high frequency characteristics, making full use of the richness of Hi-Res audio files.

Features

  • Enjoy premium sound with High-Resolution Audio
    Take your digital music collection to another level with High-Resolution Audio. By digitally capturing music at a higher rate than CD, High-Resolution Audio allows you to get closer to the original studio recording and enjoy your music just as the artist intended.
  • 70mm HD driver units delivers high quality sound
    Newly developed HD driver units with a large diameter of 70mm, designed to cover most people’s ears, produce a plane wave front similar to that in a natural sound field and reproduce frequencies from 4Hz-100kHz. Every note stays precise and clear across a spacious sound stage, reproducing the emotion and energy of the original recording, with true vocal clarity and precise bass response.
  • Fibonacci-patterned grill for smooth ultra-highs
    Fibonacci-patterned grill inherited from MDR-Z1R, reproduces the intended sound properties smoothly. It is made of stiff resin to achieve both thinness and strength and minimize sound damping from the grill at ultra high frequencies.
  • Aluminum-coated LCP diaphragm for more precision
    An aluminum-coated liquid crystal polymer diaphragm gives a more consistent and precise sound across the entire frequency range. Combining aluminum and LCP, material-specific resonance is canceled and delivers natural sound with low coloration.
  • 225% bigger Dynamic Neodymium Magnet
    With a newly developed magnetic circuit and bigger magnet, double the size of the MDR-Z7, the MDR-Z7M2 establishes more driving power and a fast response to high resolution signals, which results in sharp clarity of sound.
  • 4.4mm balanced cable connection
    Enjoy clear, precise and dynamic sound with a 4.4mm balanced connection cable, which separates left and right sound signals and reduces noise from the output signal.
  • Silver-coated oxygen free copper cable
    Silver-coated oxygen-free copper cables, enables to minimize resistance and signal-transmission loss. The result is less sound degradation, finer detail and smoother treble sounds.
Specifications
General Features(Headphone)




CableLength

Headphone cable (Approx. 118 1/8 in (3 m), silver-coated OFC strands, Gold- plated stereo mini plug), Balanced-connection headphone cable (Approx. 47 1/4 in (1.2 m), silvercoated OFC strands, L-shaped gold plated balanced standard plug)
Cable TypeDetachable Y type
DiaphragmAluminum-coated LCP diaphragm
Driver Unit70 mm, dome type (CCAW Voice Coil)
Frequency Response4 Hz – 100,000 Hz (JEITA)
Headphone TypeClosed, dynamic (circum-aural)
Impedance56 Ω at 1 kHz
MagnetNeodymium
PlugHeadphone cable (Gold-plated stereo mini plug), Balanced-connection headphone cable (L-shaped gold plated balanced standard plug)
Power Handling Capacity2,000 mW (IEC)
Sensitivity98 dB/mW
Wearing StyleCircum-aural
Weights (Approx.) *excl.cable erights340g

2018 Sony Electronics, Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony and the Sony logo are registered trademarks of Sony Corporation. All other trademarks are trademarks of their respective owners. Features and specifications are subject to change without notice.
Updated: October 25, 2018

FAQS

Can i use with my sony nw-wm1z?

For sure! You can use these headphones with the NW-WM1Z Walkman via a wired connection. …

Can i use it with my astell kern sp1000? do i need an additional amp to drive it?

the unit is supplied with both a standard headphone cable and a balanced-connection headphone cable. It will depend on which connection your MP3 player supports.

Are these noise cancelling?

No, they do not have Active Noise Cancelling

How is the bass? Will you feel like at the club or have a woofer on your ears?

Bass is just right. Not overwhelming

What usb-c adapter should i use for my samsung galaxy s21 + and samsung tab s7 + in order not to lose sound quality?

Yes

Is this compatible with the sony walkman nw-wm1a?

I use the WM1A with the Z7M2. They are perfect together.

How is the bass? Will you feel like at the club or have a woofer on your ears?

From what I’ve heard, they are replaceable and there is a screw under the pad you need to unscrew to remove them.

Does the box include a standard 1?4″ 6.5 mm connector for direct plug into integrated stereo amp with 2 watt amplification at the headphone connector?

Yes it does

Will the balanced 4.4 cable terminate with only Sony products? Or will it fit any standard 4.4 input?

The supplied unimatch plug adaptor is intended for use with the headphone cable only. It cannot be used with a balanced-connection headphone cable.

Other than sony dacs/amps and music players, what other amps and players have balanced connector outputs that will connect to the balanced cable ?

Yes, these headphones support L-shaped balanced standard plug.

So, its $ 200 more than the mdr-z7 i guess m1, as this is the m2….. whats the big price hike get you ?

Stronger bass

does this have an international warranty?

The manufacturer warranty is only valid from where the product was purchased.

Do I need to buy a separate amp for this or can I just plug this into my iPod directly and play music?

Yes just plug in. If you want more sound and volume add a DAC

Can i use with my sony nw-wm1z?

For sure! You can use these headphones with the NW-WM1Z Walkman via a wired connection.

Can i use it with my astell kern sp1000? do i need an additional amp to drive it?

the unit is supplied with both a standard headphone cable and a balanced-connection headphone cable. It will depend on which connection your MP3 player supports.
