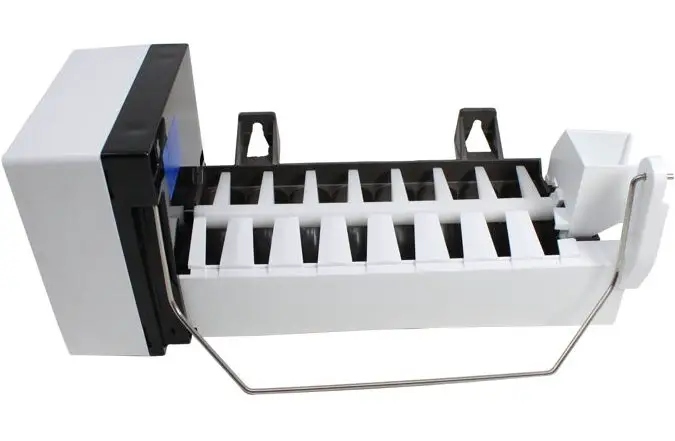

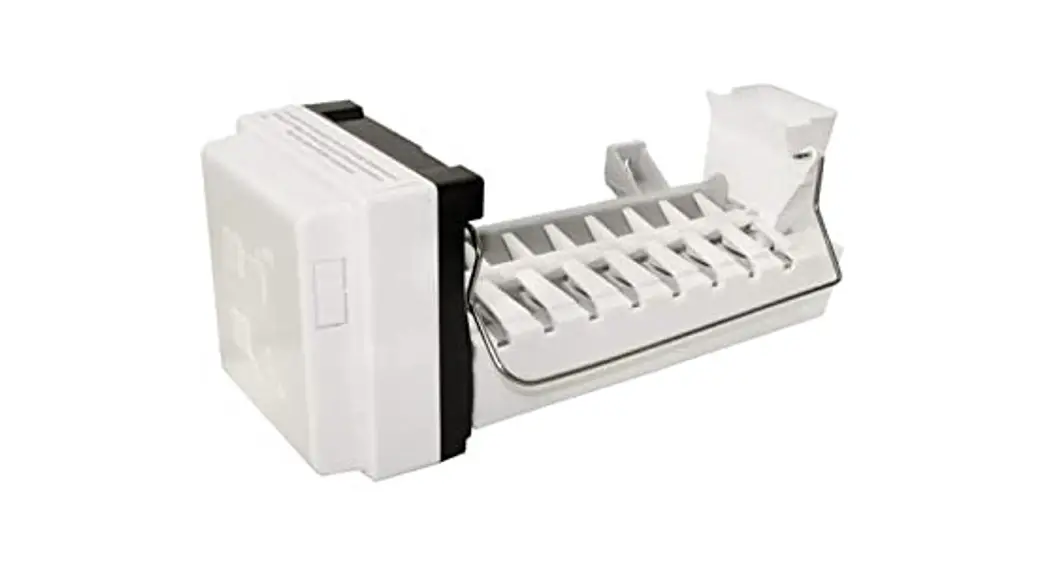

AMANA TRI25VE Ice Maker
ICE MAKER COMPONENT GUIDE
Components

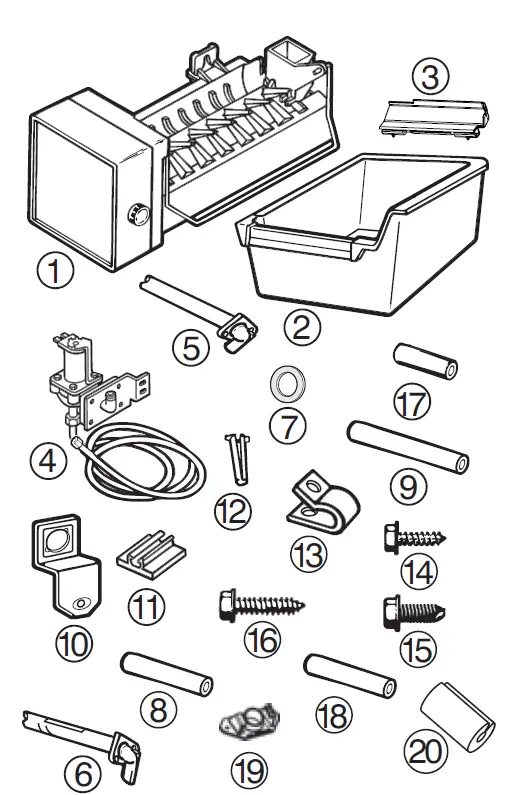

Remove the contents from the shipping carton and set them on a table where they can be easily identified and located. Check all of the components in the kit against the following list to help you become familiar with them. When you identify a component, place a check mark (✓) after it. The KEY numbers correspond to the Component Illustrations.
IMPORTANT: When you remove the water valve and flexible tubing from the plastic foam packing insert, do not remove the tubing from the valve. It has been factory-installed and leak tested. Do not disturb the compression nut that connects the tubing to the valve, or the valve may leak after you connect it to the water supply.
Do not discard any of the packing material until you account for all of the components. If you need to order a replacement part for the ice maker, a replacement parts list is provided on
| KEY | QTY. | DESCRIPTION |
| 1 | 1 | Ice maker |
| 2 | 1 | Ice bucket |
| 3 | 1 | Ice bucket extension |
| 4 | 1 | Water valve with tubing |
| 5 | 1 | Fill tube |
| 6 | 1 | Fill tube 128 mm (all except ***) |
| 7 | 1 | Gasket */** only |
| 8 | 1 | 71.6 mm (short) extension tube ** |
| 9 | 1 | 123.0 mm (long) extension tube * |
| 10 | 2 | Ice maker clips * |
| 11 | 2 | Tubing clips |
| 12 | 1 | Metal water tube insert |
| 13 | 1 | Water valve tubing clamp |
| 14 | 4 | 1/2” hex-head sheet-metal screws |
| 15 | 2 | 1/2” hex-head machine screws |
| 16 | 2 | 3/4” hex-head sheet screws |
| 17 | 1 | 63.5 mm extension tube ****/***** |
| 18 | 1 | 85.7 mm extension tube *** |
| 19 | 1 | Bracket fill tube *** |
| 20 | 1 | Grommet condenser** |
- For installation In Side-By-Side models only.
- For installation In 14 to 19 cu. ft. Top Freezer Models. *** For installation In 11 cu. ft Top Freezer Models only (kit 24ECKMF).
- For installation In 21 cu. ft Top Freezer Models.
- For installation in 14 to 16 cu. ft Top Freezer Models.

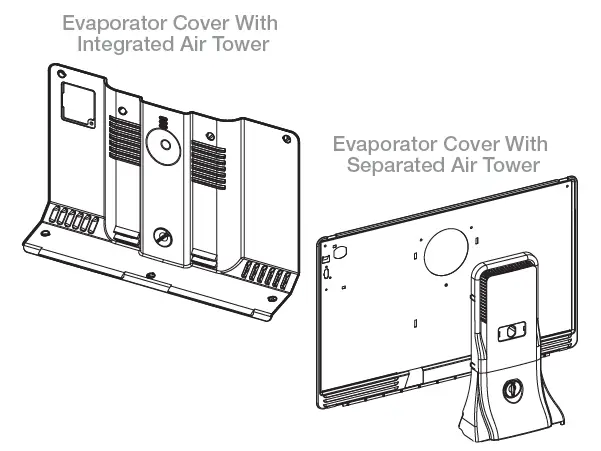

- (evap cover with integrated air tower).
