Toboli 63518 Firewood Rack Outside 185x70x185cm Powder-coated Metal Instruction Manual

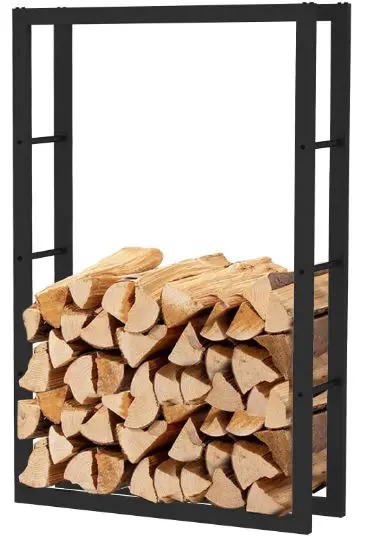

toboli 63518 Firewood Rack Outside 185x70x185cm Powder-Coated Metal

Product Information

The product with item number 63518 requires assembly and comes with screws and accessories. The assembly manual provides step-by-step instructions to assemble the product. The product comes with:

• 12-foot pieces (G)
• 1 M6 socket wrench (H)
• 1 M8 socket wrench (I)
• 4 angle pieces
• 1 M6 wrench (K)
• 1 M8 wrench (L)
• 72 screw-nut components (F)

Product Usage Instructions

1. Start with Step 1 in the assembly manual provided.
2. Use the M6 socket wrench (H) to attach the foot pieces (G) to the angle pieces.
3. Attach the M8 socket wrench (I) to the angle pieces and tighten.
4. Attach the screw-nut components (F) to the angle pieces using the M6 wrench (K).
5. Repeat steps 2-4 for all four corners of the product.
6. Attach the remaining screw-nut components (F) to the middle sections of the product using the M8 wrench (L).
7. Repeat steps 2-6 for all remaining sections of the product.
8. Once assembled, ensure all screws and nuts are tightened securely.
9. Refer to the product manual for any additional usage instructions or safety precautions.

Note: Reproduction and any commercial use of parts of this operating manual require written permission from WilTec Wildanger Technik GmbH.

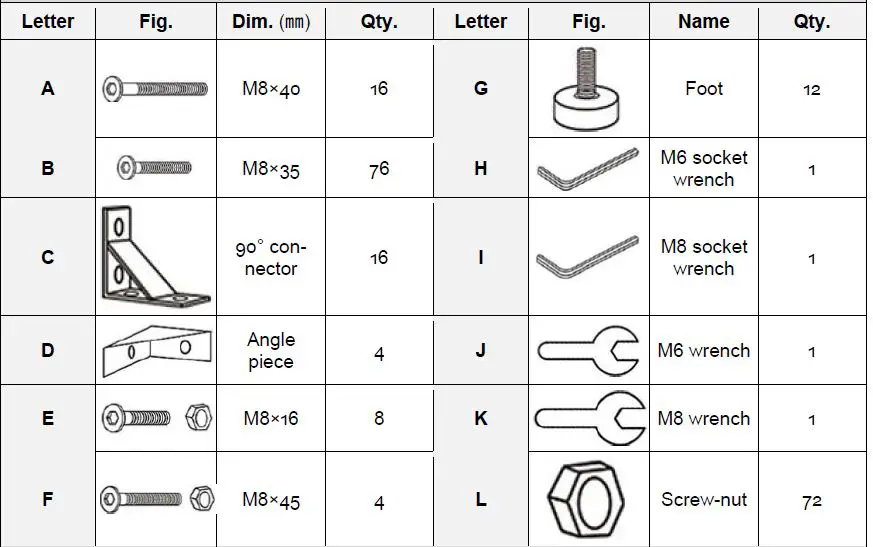

Screws and accessories

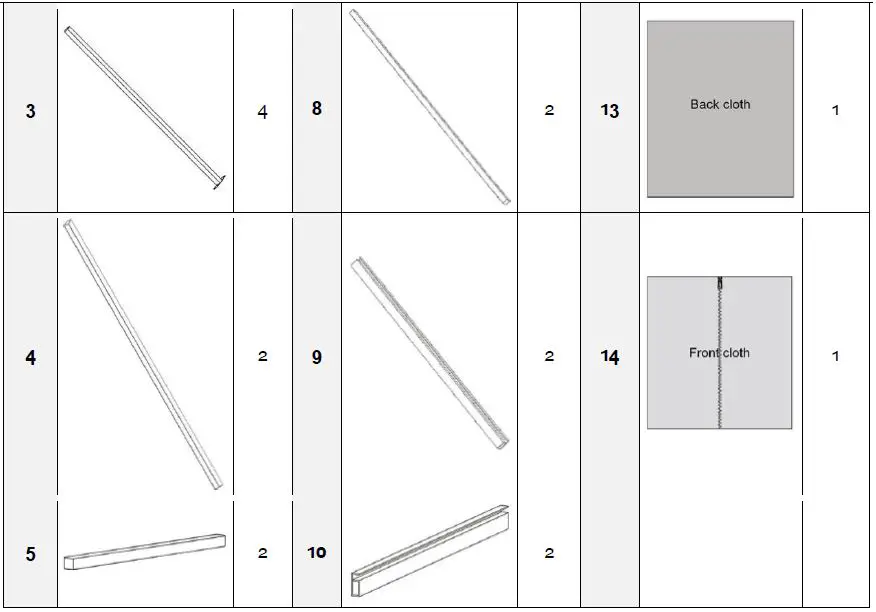

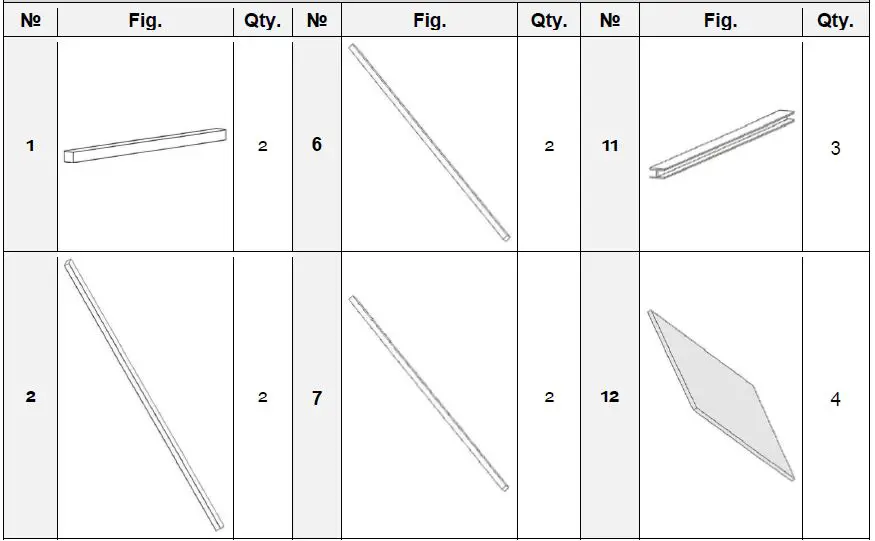

Components

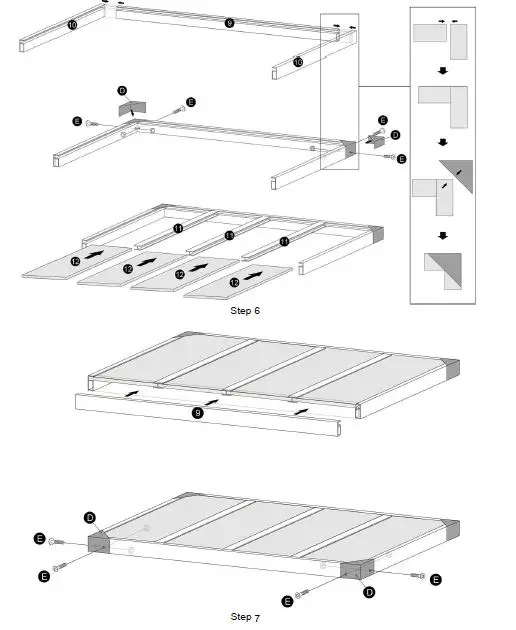

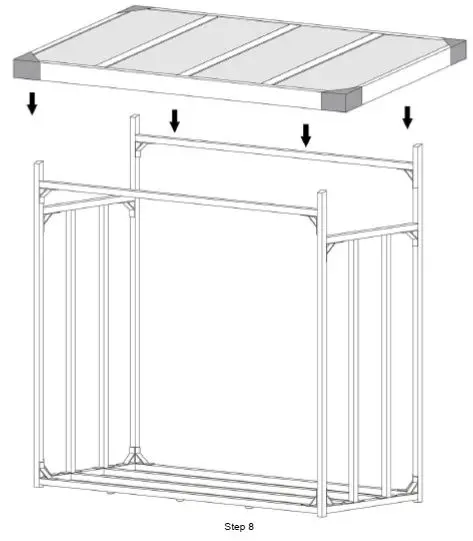

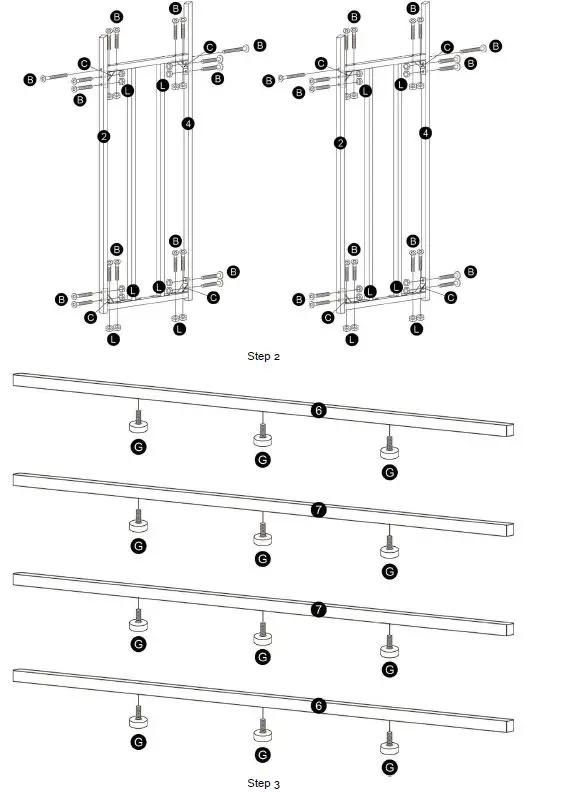

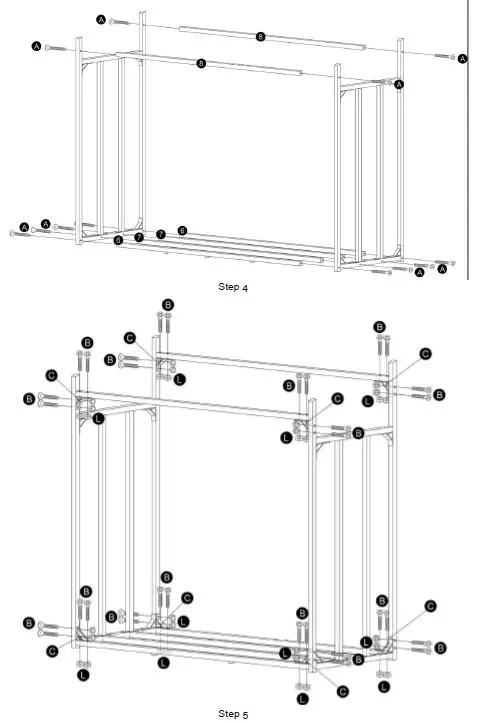

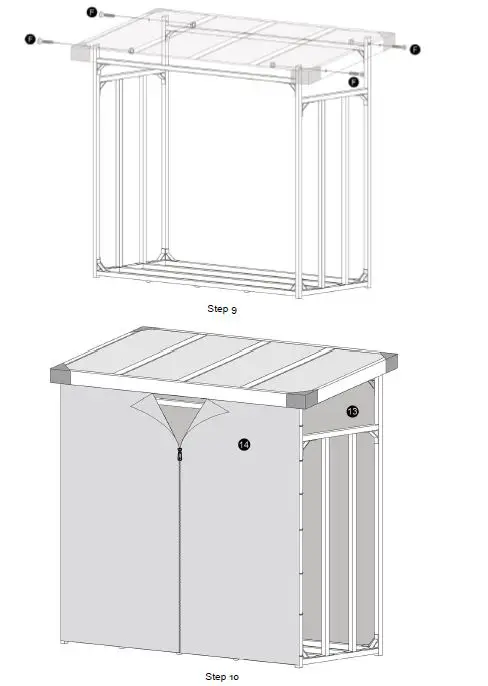

ASSEMBLY

Important Note: Reproduction and any commercial use (of parts) of this operating manual, requires the written permission of WilTec Wildanger Technik GmbH.
© by WilTec Wildanger Technik GmbH Item 63518 Page 7 http://www.toboli.com.
