Radiator Manifold Flex
Instruction Manual
Assembly instruction

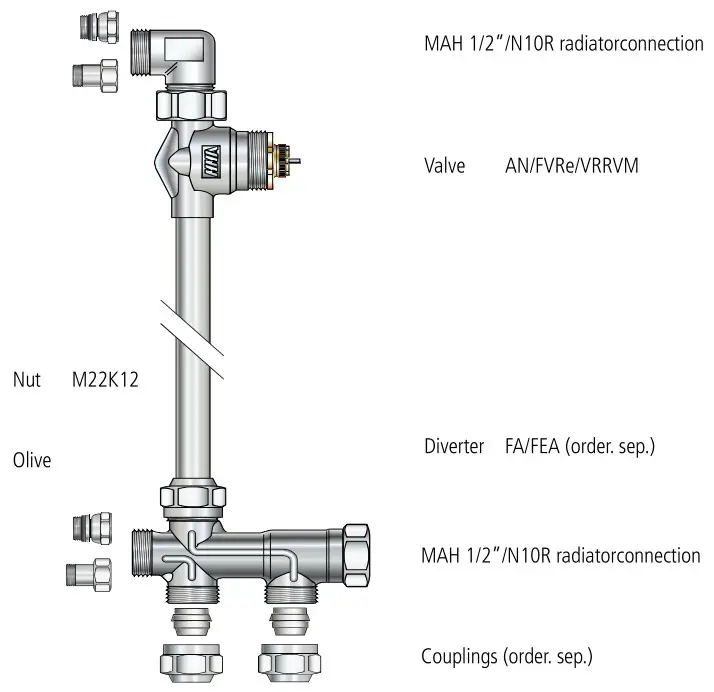

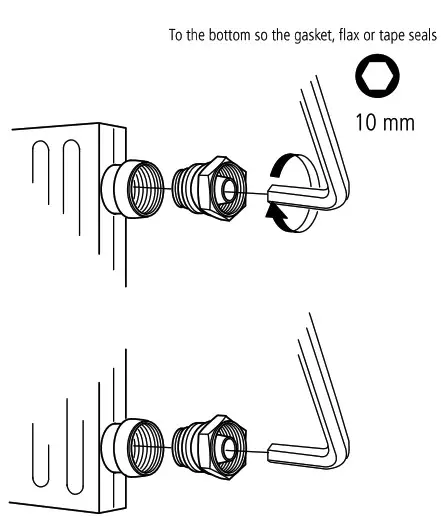

MAH 1/2″.

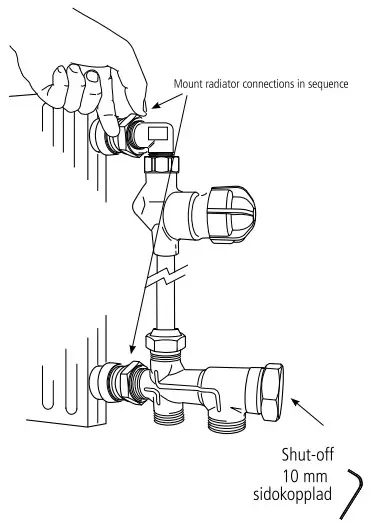

Diverter.

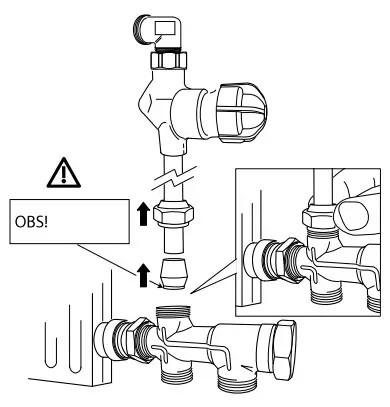

Nut and olive M22K12.
Valve type AN/FVRe/VRM.

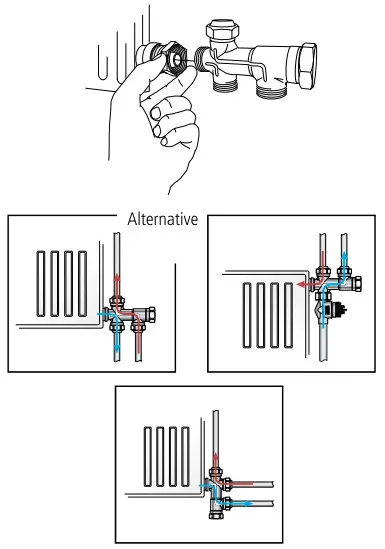

Connect to heating system.

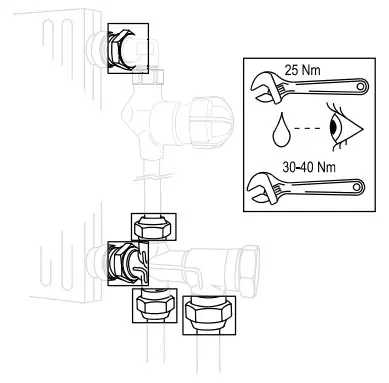

Pull tight check for leakage.
Pre-setting
| Radiatorflode ettrorssystem | Kv2K | Kvs |
| VRVM-koppel FVRe-koppel | 26% 20% | 29% |

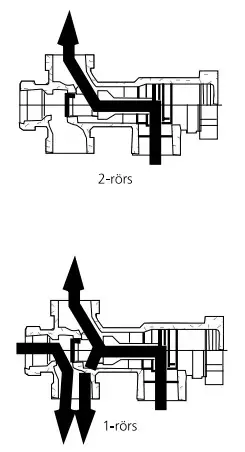

Settings diverter FA/FEA
| FEA VRVM (Kvs) | |||
| Vary | % till radiators | Kv total | Kv radiator |
| 0 | 0% | 1,81 | 0,00 |
| 0,25 | 0% | 1,82 | 0,01 |
| 0,5 | 0% | 1,82 | 0,01 |
| 0,75 | 1% | 1,83 | 0,02 |
| 1 | 3% | 1,85 | 0,05 |
| 1,25 | 4% | 1,89 | 0,08 |
| 1,5 | 7% | 1,94 | 0,14 |
| 1,75 | 11% | 2,01 | 0,22 |
| 2 | 16% | 2,12 | 0,34 |
| 2,25 | 23% | 2,26 | 0,53 |
| 2,5 | 27% | 2,34 | 0,64 |
| 2,75 | 29% | 2,37 | 0,68 |
| 3 | 29% | 2,38 | 0,69 |
| FEA VRVM (Kv2K) | |||
| Vary | % till radiators | Kv total | Kv radiator |
| 0 | 0% | 1,82 | 0,00 |
| 0,25 | 0% | 1,82 | 0,01 |
| 0,5 | 0% | 1,82 | 0,01 |
| 0,75 | 1% | 1,83 | 0,02 |
| 1 | 3% | 1,86 | 0,05 |
| 1,25 | 5% | 1,89 | 0,09 |
| 1,5 | 7% | 1,94 | 0,14 |
| 1,75 | 11% | 2,01 | 0,22 |
| 2 | 16% | 2,10 | 0,33 |
| 2,25 | 22% | 2,23 | 0,48 |
| 2,5 | 25% | 2,31 | 0,58 |
| 2,75 | 26% | 2,33 | 0,60 |
| 3 | 26% | 2,34 | 0,61 |
Purmo Group Sweden AB
Tel. +46 (0)433 737 00
482 80 40
220127 rev. 09
