Operating manual

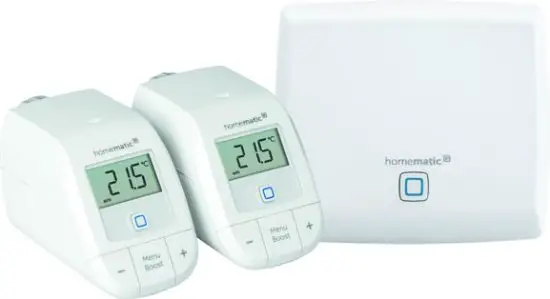

Homematic IP Starter Set Heating Control
HmIP-SK16 // 156538 // V1.0 (05/2021)
Documentation © 2021 eQ-3 AG, Germany
All rights and changes reserved. Printed in Hong Kong.
An authorized representative of the manufacturer:
eQ-3 AG
Maiburger Straße 29
26789 Leer – Germany
www.eQ-3.com
Read the manual carefully and keep it in a safe place.
Attention! Please note a hazard
Additional important information.
Click here to go to the detailed operating manuals
https://www.homematic-ip.com/produkte/detail/homematic-ip-starter-set-heating-control.html
Function
Homematic IP Access Point The Access Point is the central unit of the Homematic IP system.
It connects smartphones via the Homematic IP cloud with all Homematic IP devices and transmits configuration data and control commands from the app to all Homematic IP devices.
Homematic IP Radiator Thermostat – basic
The Radiator Thermostat enables you to conveniently regulate room temperatures according to individual needs.
Declaration of conformity
eQ-3 AG, Marburger Straße 29, 26789 Leer, Germany hereby declares that the radio equipment type Homematic IP HmIP-SK16 is compliant with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at www.homematic-ip.com
Adapter for heating valves
For installation on Danfoss RA valves, the supplied adapter is required.
An overview of compatible valves and adapters is available at www.homematic-ip.com.
Notes on operation
Homematic IP Access Point
When selecting the installation location, check for electrical wires and power supply cables. For power supply, use only the original power supply unit (5 VDC/550 mA) delivered with the device. Connect the device only to an easily accessible power socket outlet. Disconnect the mains plug in the event of a hazard.
Homematic IP Radiator Thermostat – basic Observe the correct polarity of the batteries.
Caution! There is a risk of explosion if the battery is not replaced correctly. Replace only with the same or equivalent type. Never recharge non-rechargeable batteries. Do not throw the batteries into a fire. Do not expose batteries to excessive heat. Do not short-circuit batteries.
| Device short description |
| Supply voltage |
| Plug-in mains adapter: Supply voltage (input) Power consumption (max.) |
| Power consumption in standby |
| Current consumption (max.) |
| Battery life in years (type) |
| Ambient temperature |
| Degree of pollution |
| Method of operation |
| Connection |
| Controlling torque |
| Valve travel |
| Maximum travel position |
| Minimum travel position |
| Software class |
| Dimensions (W x H x D) |
| Weight (including batteries) |
| Typical open area RF range |
| Network |
| Degree of protection |
| Radiofrequency band |
| Maximum radiated power |
| Receiver category |
| Duty cycle |
