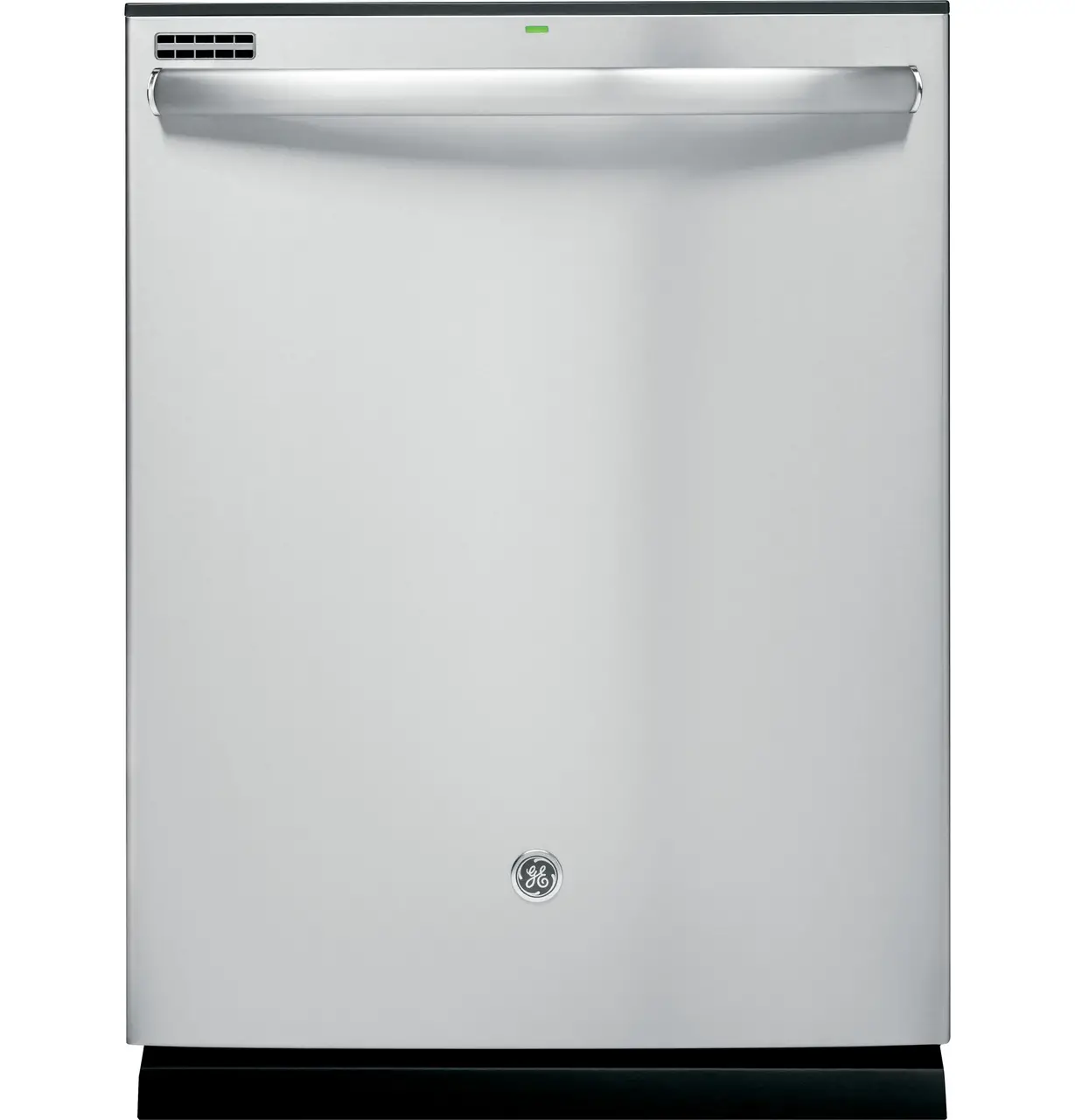

GE Hybrid Stainless Steel Interior Dishwasher Hidden Controls

product

FEATURES AND BENEFITS

  • WiFi – Monitor performance, check status and automatically reorder detergent using your mobile device.
  • Dry Boost – Gets hard-to-dry items up to 3 times dryer than standard dry cycles
  • 4 Bottle Wash Jets – Clean hard-to-reach areas inside tall items with up to 4 dedicated jets integrated into the upper rack that shower water deep inside for the ultimate clean
  • Wash Zones – Wash a true half-load in either the upper or lower rack without sacrificing cycles and options available on a full wash
  • Three-level 600 Series Wash System – Get full wash coverage from three pressurized wash zones.
  • Steam Prewash – Loosens tough soils before any cycle virtually eliminating the need for soaking or pre-rinsing dishes
  • Dedicated Silverware Jets – Get table-ready silverware thanks to powerful jets that focus on silverware baskets
  • Piranha Hard Food Disposer – To ensure consistently clean items, this stainless steel blade rotates at 3,600 RPM to pulverize food particles and helps to prevent large particles from clogging the wash arms
  • 1 Hr Wash – Enjoy a quality clean when you’re short on time
  • Auto Sense cycle – Automatically adjusts to soil level to maximize energy savings and ensure clean dishes dBA48
    Model GDT635HSMSS – Stainless steel

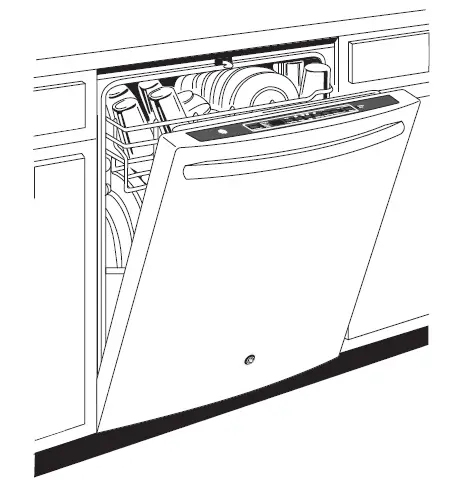

    Model GDT635HMMES – Slateimage 3

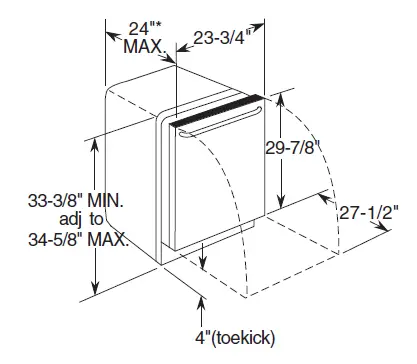

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

ELECTRICAL RATING

Voltage AC…………………………………………120
Hertz…………………………………………………60
Total connected load amperage……………..7.1
Calrod® heater watts…………………….800/500
For use on adequately wired 120-volt, 15-amp circuit having 2-wire service with a separate ground wire. This appliance must be grounded for safe operation.image 1

Add 2.4″ for handle.image 2

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000
