WiFi Everywhere™ Powerline 1200 AV2 Wireless Kit

TPL-430APK (v2.0R)

• Powerline 1200 networking over existing electrical lines
• Powerline kit includes TPL-423E and TPL-430AP
• TPL-430AP features a dual-band wireless AC1200 accesspoint with three gigabit ports
• Enhanced Powerline performance and range from MIMO with Beam forming technology.
• Easy installation – TRENDnet adapters auto-connect out ofthe box
• Pre-encrypted for your convenience
• Powerline range of up to 300m (984 ft.) over existing electrical lines
• WiFi Clone button copies your existing wireless network settings to the TPL-430AP for faster network integration.

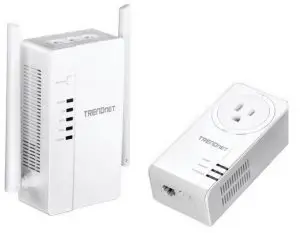

TRENDnet’s WiFi Everywhere™ Powerline 1200 AV2 Wireless Kit, model TPL-430APK, uses your existing electrical outlets to create or expand a wireless network. Easily install the included TRENDnet Powerline adapters to create a high-speed powerline network. Connect the TPL-423E Powerline adapter to the router and plug the TPL-430AP WiFi Powerline adapter into a power outlet in another room where WiFi connectivity is needed. The WiFi Clone button conveniently copies your existing wireless network settings to the TPL-430AP WiFi Powerline adapter for faster network integration.

• Easy Installation

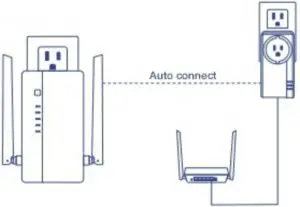

  Simply plug in the TRENDnet Powerline adapter and WiFi Powerline adapter, and they will auto-connect to each other right out of the box.

• WiFi Everywhere™

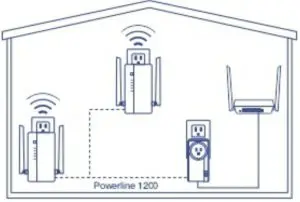

  By combining wireless and Powerline technologies, you can enjoy wireless connectivity from any power outlet in your household.

• WiFi Clone

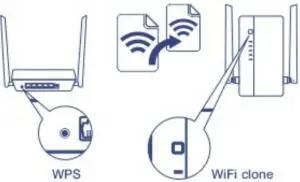

  Use your router’s WPS button and the TPL-430AP’s WiFi Clone button to conveniently copy your existing wireless network name and password for quick network integration.


NETWORKING SOLUTION

FEATURES

Powerline

1. Sync Button
   Press the Sync button to change existing Powerline encryption keys
2. Gigabit Ports
   Convenient gigabit ports to hard wire computers, smart TVs, or other network enabled devices
3. Powerline 1200
   Powerline 1200 networking over existing electrical lines using all three
   electrical wires: the live, neutral, and ground wires to achieve faster throughput speeds
4.   MIMO with Beamforming
   Technology Enhanced performance and range
5. Compatibility
   Powerline adapters are backward compatible with Powerline 600, 500, and 200 adapters
6. Multiple Adapters
   Use up to 8 Powerline adapters on a single Powerline network
7. Easy Installation
   TRENDnet Powerline adapters and WiFi Powerline adapters auto-connect out of the box

Wireless

1. Concurrent Dual-Band
   AC1200: concurrent 867Mbps WiFi AC + 300Mbps WiFi N bands
2. WiFi Clone
   Use your router’s WPS button and the TPL-430AP’s WiFi Clone button to conveniently copy your existing Nwireless network name and password for quick network integration
3. Wireless Coverage
   Expand your wireless coverage with MIMO antenna technology
4. Pre-Encrypted
   For your convenience, the wireless on the WiFi Powerline adapter is preencrypted with a unique password

SPECIFICATIONS

Device Interfaces

Frequency Band

Special Features

Power

• Input: 100 – 240V AC, 50/60Hz, 0.2A
• Max. consumption 12W

Operating Temperature

• 0° – 40° C (32° – 104° F)

Operating Humidity

• Max. 90% non-condensing

Certifications

• FCC
• IC

Dimensions

• 255 x 130 x 75mm (10.04 x 5.11 x 2.95in.)

Weight

• 332g (11.7 oz.)

Warranty

• 3 year

Standards

• IEEE 3
• IEEE 3u
• IEEE 3x
• IEEE 3ab
• IEEE 1901

Device Interfaces

• 1 x Gigabit LAN ports
• Sync button
• Reset button
• LED indicators
• Power plug
• Type B (NEMA 5–15) (10A @ 120V AC)

Frequency Band

• 2 – 5MHz

Data PHY Rate

• Up to 1200Mbps

Networking Distance

• Powerline: Up to 300m (984 ) linear distance over electrical power lines***

Encryption

• Powerline: 128-bit AES (Advanced Encryption Standard)

Powerline Nodes

• Up to 8 (max.)

Overlapping Powerline Networks

• Up to 4 (per electrical system)

Special Features

• Built-in power socket
• Auto-connects to other TRENDnet Powerline adapters
• IPv6 support
• IGMP / MLDv2 Streams

Power

• Input: 100 – 240V AC, 50/60Hz, 2A
• consumption: Active mode: 4W; Standby mode: 0.5W

Operating Temperature

• 0° – 50° C (32° – 122° F)

Operating Humidity

• 90% non-condensing

Certifications

• FCC
• IC

Dimensions

• 120 x 60 x 65mm (4.73 x 4 x 2.6 in.)

Weight

• 176g (6.2 )

Warranty

• 3 year

Package Contents

• TPL-430AP
• TPL-423E
• Quick Installation Guide
• 2 x Network cable (1.5m / 5 )

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
