INSTRUCTIONS MANUAL

21.5 INCH LED CCTV MONITOR

Model ULE-217A

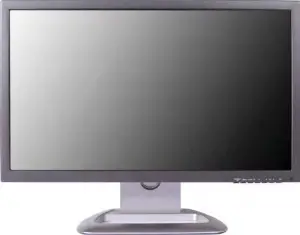

Ikegami 21.5 INCH LED CCTV MONITOR 1

Please read this manual thoroughly before use, and keep it handy for future reference.

This Monitor was manufactured by ISO 9001 Certified Factory

– 1 –

SAFETY INSTRUCTION

Important Safety Instruction

  1. Read these instructions.
  2. Keep these Instructions.
  3. Heed all warnings.
  4. Follow all instructions.
  5. Do not use this apparatus near water.
  6. Clean only with dry cloth.
  7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  9. Do not defeat the safety purpose of the polarized or grounding-type plug.
    A polarized plug has two blades with one wider than the other.
    A grounding type plug has two blades and a third grounding prong.
    The wide blade or the third prong are provided for your safety.
    If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
    10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit from the apparatus.
    11. Only use attachment/accessories specified by the manufacturer.
    12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
    13. Unplug this apparatus during lightning storms or when unused for long periods of time. Safety sign 1
    14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus the apparatus has been exposed to rain or moisture does not operate normally or has been dropped.

– 2 –

SAFETY INSTRUCTION

– The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed no the apparatus.
14 Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation.

“WARNING ­ To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.”

“The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.”

WARNING ICONE

CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN

Warning Icon
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER. NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

WARNING ICONE This symbol is intended to alert the user to the presence of uninsulated: dangerous voltage with in the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Warning Icon This symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance.

– 3 –

CAUTIONS

CAUTION
The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible.
ATTENTION

CAUTION TO SERVICE PERSONNEL
POWER SUPPLY CORD IS USED AS MAIN POWER DISCONNECTS DEVICE IN THIS PRODUCT. UNPLUG THIS PRODUCT FROM THE WALL OUTLET BEFORE REMOVING THE BACK COVER AND SERVICING

EMISSION CHARACTERISTICS TESTED BY SEMKO
THIS PRODUCT HAS BEEN TESTED AND HAS SHOWN COMPLIANCE WITH THE NATIONAL SPECIFICATIONS SUCH AS SWEDISH MPR 1990.10.(MPR II)

  • NEVER REMOVE THE BACK COVER
    Removal of the back cover should be carried out only by qualified personnel.
  • DO NOT USE IN HOSTILE ENVIRONMENTS
    To prevent shock or fire hazard, do not expose the unit to rain or moisture. This unit is designed to be used in the office or home. Do not subject the unit to vibrations, dust of corrosive gases.
  • KEEP IN A WELL VENTILATED PLACE
    Ventilation holes are provided on the cabinet to prevent the temperature from rising. Do not cover the unit or place anything on the top of unit.
  • AVOID HEAT
    Avoid placing the unit in direct sunshine or near a heating appliance.
  • TO ELIMINATE EYE FATIGUE
    Do not use the unit against a bright back ground and where sunlight or other light sources will shine directly on the monitor.
  • BE CAREFUL OF HEAVY OBJECT
    Neither the monitor itself nor any other heavy object should rest on the power cord. Damage to a power cord can cause fire or electrical shock.

– 4 –

FCC RF INTERFERENCE STATEMENT

NOTE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio, TV technician for help.
– Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the users authority to operate such equipment.

  • DOC COMPLIANCE NOTICE
    This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the radio interference regulation of Canadian Department of communications.

– 5 –

INSTALLATION

Before setting up the monitor, ensure that the power to the monitor and other attached devices are turned off.

Notice Stand & Screws are optional 1 Notice: Stand & Screws are optional

A. Connecting the stand

  1. Place the monitor with its front facing downward on a soft cloth.
  2. Assemble the Stand Base into the Stand Body in the correct direction using the included screws in the accessory box.

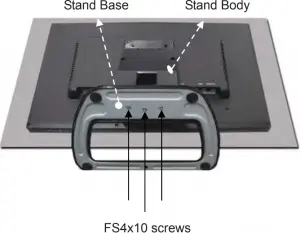

Connecting the stand
Stand Base, Stand Body, FS4x10 screws

3. Once assembled take the monitor up carefully and face the front side.

B. Positioning your display

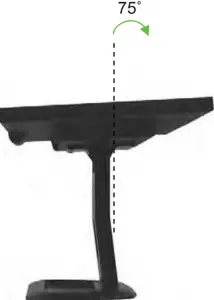

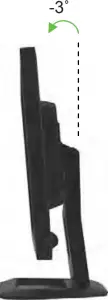

Adjust the position of the panel in various ways for maximum comfort. (Tilt Range: -3°~75°)

Positioning your display 1Positioning your display 2

– 6 –

CONNECTING WITH EXTERNAL EQUIPMENT

Rear Connection

Rear Connections

1. SDI OUT
2. SDI IN
3. AV2 IN
4. AV1 OUT
5. AV1 IN
6. TRIGGER IN
7 & 8. AUDIO R&L (AV1 & AV2)
9. PC STEREO IN (VGA & DVI)
10. VGA
11. DVI
12. HDMI
13. DC 12VG

– 7 –

REMOTE FUNCTIONS

Remote Controller(Optional)

  1. POWER(KoolMore Commercial Undercounted Ice Machine - Power icon)
    Turns the power ON or OFF. There will be a few seconds delay before the display appears.
  2. SOURCE
    Selects an input source.
  3. AUTO
    Auto geometry adjustment in the RGB-PC source.
  4. HOLD
    Stops the Trigger & Auto switching functions.
  5. MUTE
    Mutes the sound.
  6. MENU
    Activates and exits the On Screen Display.
  7. EXIT
    Exits the On Screen Display.
  8. VOL( previous icon& Next icon )
    Increases or decreases the level of audio volume.
  9. UP/DOWN
    Moves upwards or downwards in the OSD menu.
  10. ENTER
    Enters an OSD submenu or accepts your selection.
  11. INFO
    Displays the information about input source.
  12. STILL
    Pauses the picture.
  13. PIP (Picture In Picture)
    Activates the PIP mode.
  14. P.INPUT
    Changes the source of sub-picture in the PIP mode.
  15. P.POS
    Changes the position of sub-picture in the PIP mode.
  16. P.SIZE
    Changes the sizes of sub and main pictures in the PIP mode.
  17. SWAP
    Alternates between sub and main pictures in the PIP mode.
  18. ARC (Aspect Ratio Control)
    Selects a screen ratio.
  19. APC (Auto Picture Control)
    Selects a picture mode.
  20. ACC (Auto Color Control)
    Selects a color mode.
  21. S.SET
    Selects the source of sound between main and sub pictures in the PIP mode.
  22. PC
    Selects PC mode(PC, DVI & HDMI).
  23. AV
    Selects AV mode(AV1 & AV2).
  24. COMP
    Selects Component mode(Unavailable).

– 8 –

CONTROLS AND FUNCTIONS

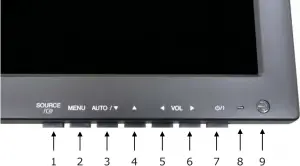

Bottom Key Control

Bottom Key Control

1. SOURCE/Source Sign
Selects an input source.
Enters a submenu or accepts your selection in the OSD menu.
2. MENU
Activates or exits the OSD.
Moves previous menu or status in the OSD.
3 & 4. AUTO Down Arrow Key/ &  Up Arrow Key
Moves another option in the OSD.
The AUTO/Down Arrow Key button is auto adjustment function in the VGA input.
The up(Up Arrow Key) button is HOLD function and stop the Trigger & Auto switching functions.
5 & 6. Left Arrow Key VOL Right Arrow Key
Adjust the volume or menu settings.
7. Power Button/ I
Turns the power on or off. There will be a few seconds delay before the display appears.
8. LED
Turned on: Blue color.
Turned off: Red color.
9. IR Sensor
Remote controller sensor.

– 9 –

CONTROLS AND FUNCTIONS

OSD Menu Description
All picture, sound settings and setup for the monitor can be adjusted in the OSD menu.
(On Screen Display)
To adjust the OSD screen:

1. Press the MENU button to enter the OSD menu.
2. Press the Up Arrow Key / Down Arrow Key buttons to select the desired option. The selected option is highlighted.
3. Press the Right Arrow Key button to enter the submenu for adjusting items.
4. Change the value you wish to adjust by using the Left Arrow Key/Right Arrow Key buttons.
5. Press the Left Arrow Key button to exit the submenu for adjusting items.
6. Press the MENU button to exit the OSD menu.

A. Custom

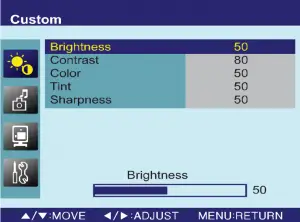

OSD Custom Menu Description
custom, Brightness, Contrast, Color, Tint, Sharpness, Move, Adjust, Menu, Return

OptionFunctionValue
BrightnessAdjusts brightness of the screen.0 ~ 100
ContrastAdjusts intensity of the image.0 ~ 100
Color 1)Adjusts color of the picture.0 ~ 100
Tint 1)2)Adjusts tint of the picture.0 ~ 100
Sharpness 1)Adjusts sharpness of the picture.0 ~ 100

1) Unavailable in RGB-PC, DVI, HDMI and HD-SDI.
2) Unavailable in PAL system.

– 10 –

CONTROLS AND FUNCTIONS

B. Picture/Sound

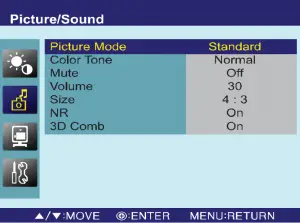

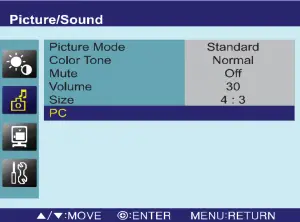

OSD Picture Sound Menu Description 1
Picture/Sound, Mode, Color Tone, Mute, Volume, Size, NR, 3D Comb, Standard, Normal, Off, On, Move, Enter, Menu Return
OSD Picture Sound Menu Description 2
Picture/Sound, Mode, Color Tone, Mute, Volume, Size, Standard, Normal, Off, Move, Enter, Menu Return, PC

OptionFunctionValue
Picture ModeSets picture mode.See table below
Color ToneSets color tone.See table below
MuteMutes speaker sound.Off or On
VolumeAdjust the level of audio volume.0 ~ 100
SizeDisplay picture size.See table below
NR 1)Reduces noise of the picture.On or Off
3D Comb 1)Activates the 3D comb filter.On or Off
PC 2)See table below.

1) Unavailable in RGB-PC, DVI, HDMI and HD-SDI.
2) Only available in RGB-PC.

Picture Mode

CustomApplies user selected values.(Brightness, Contrast, Color, Tint and Sharpness)
DynamicProvides enhanced contrast and sharpness.
StandardProvides standard contrast and sharpness.
MovieIs recommended for viewing film-based content.
MildReduces contras and sharpness.

– 11 –

CONTROLS AND FUNCTIONS

Color Tone

CoolGives the white color a bluish tint.
NormalGives the white color a neutral tint.
WarmGives the white color a reddish tint.
UserTo manually adjust the color tones(Red, Green, and Blue).

Size

4:3Sets the image size to 4:3
Panorama 1)Sets the image to panorama
Zoom1 1)Expands the image size about two times to upward and downward
Zoom2 1)Expands the image size about one and half times to upward and downward
WideSets the image size to wide
Under 2)Adjusts the image size to display resolution without overscan
1:1 1)Adjusts the image size to input resolution with overscan

1) Unavailable in RGB PC, DVI, HDMI and HD-SDI.
2) Unavailable in RGB PC.

PC

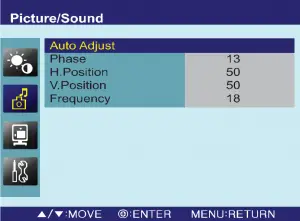

OSD Picture Sound Menu Description 3
Picture/Sound, Auto Adjust, Phase, H.Position, V.Position, Frequency, Move, Enter, Menu Return
OptionFunctionValue
Auto AdjustAuto geometry adjustment.
PhaseAdjusts the number of horizontal picture elements.0 ~ 100
H-PositionAdjusts the horizontally picture position.0 ~ 100
V-PositionAdjusts the vertically picture position.0 ~ 100
FrequencyAdjusts the vertical noise of screen image.0 ~ 100

– 12 –

CONTROLS AND FUNCTIONS

C. PIP

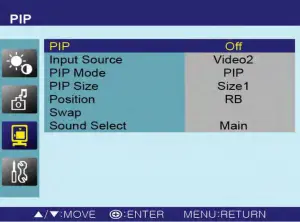

OSD PIP Menu Description 4
PIP, Input Source, PIP Mode, Size, Position, Swap, Sound Select, Main, RB, Size 1, Video2, Move, Enter, Menu Return

OptionFunctionValue
PIPActivates the PIP feature.Off or On
Input SourceSelects the input source for the PIP area.See table below
PIP ModeEnables 3 screen size.4:3 side by corner, 4:3 side by 4: 3, and full screen side by side.PIP, PBP1 or PBP2
PIP SizeSelects the size of PIP screen.Size1, Size2 or Size3
PositionSelects the position of PIP screen. Right of Bottom, Left of Bottom, Left of Top and Right of Top.RB, LB, LT or RT
SwapAlternates between the main and sub picture
Sound SelectSelects the sound source from either the Main or PIPMain or Sub

Input Source

MainSub
Available combinationAV1 or AV2AV1 or AV2
AV1 or AV2RGB-PC, DVI, HDMI or HD-SDI
RGB-PC, DVI, HDMI or HD-SDIAV1 or AV2
Unavailable combinationRGB-PC, DVI, HDMI or HD-SDIRGB-PC, DVI, HDMI or HD-SDI

– 13 –

CONTROLS AND FUNCTIONS

D. Setup

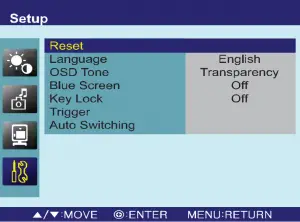

OSD Setup Menu Description 5
Setup, Reset, Language, OSD Tone, Blue Screen, Key Lock, Trigger, Auto Switching, English, Transparency, Off, Move, Enter, Menu Return

OptionFunctionValue
ResetResets the monitor settings to the factory default.
LanguageSets the language of the OSD menu.English, French, Deutsch, Italian, Spanish, Portuguese or Nederland
OSD ToneChanges background of monitor menus. (e.g. input source & information)Transparency or On
Blue ScreenDisplays a blue screen if the monitor receives no signal.Off or On
Key Lock 1)Locks all buttons of the monitor.
Note: Use remote controller to unlock.
Off or On
TriggerSee table below
Auto SwitchingSee table below

1) How to unlock

1 On the front key: Press the MENU and Up Arrow Key button at the same time over 3 seconds.
2 On the Remote Controller: The Remote Controller operates well because the Key Lock function is only allowed for the front key of this product.

– 14 –

CONTROLS AND FUNCTIONS

Trigger

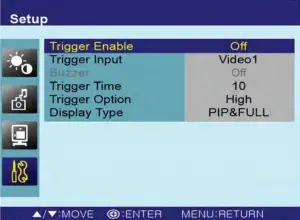

OSD Trigger Menu Description 6
Setup, Tigger Enable, Off, Input, Buzzer, Time, Option, Type, 10, High, PIP&FULL, Move, Enter, Menu Return

OptionFunctionValue
Trigger EnableActivates the trigger feature.Off or On
Trigger InputSelects the input source for the Trigger.AV1, AV2, RGB-PC, DVI, HDMI or HD-SDI
BuzzerInactivated.
Trigger TimeSelects the amount of time, in seconds, that the monitor displays the trigger Input image.3 ~ 100
Trigger OptionSelects the type of physical trigger input.See table below.
Display TypeSelects the mode in which the monitor displays the Trigger Input. The monitor takes one of the following actions:

– PIP & FULL: Displays the Trigger Input in the PIP of the current video input source.

Note: The main video source must support the Trigger Input source as a PIP option. See section “Input Source” in “C. PIP”.

– FULL: Switches the display to show the Trigger Input in the full screen.

PIP & FULL or FULL

– 15 –

CONTROLS AND FUNCTIONS

N/C(Normally Closed):

The Trigger function is activated when the trigger cable is opened.

Normally Closed Trigger function 1
N/O(Normally Opened):

The Trigger function is activated when the trigger cable is closed.

Normally Opened Trigger function 2
High:

The Trigger function is activated when the trigger signal is DC 2~5[V].

High DC Trigger function 3
Low:
The Trigger function is activated when the trigger signal is DC 0~0.6[V].
Note: In this case, trigger port has high status electrically, so the trigger cable has to have ground(or earth) status to be activated.
Low DC Trigger function 4

Auto Switching

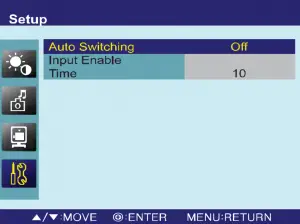

OSD Auto Switching Menu Description 7
Setup, Auto Switching, Off, Input Enable, Time, Move, Enter, Menu Return
OptionFunctionValue
Auto SwitchingActivates the Auto Switching feature.Off or On
Input EnableOpens another menu and you can select the input sources to include in the Auto Switching cycle.AV1, AV2, RGB-PC, DVI, HDMI and HD-SDI
TimeSelects the amount of time, in seconds, that the monitor displays each selected input source.3 ~ 100

– 16 –

MOUNTING GUIDE

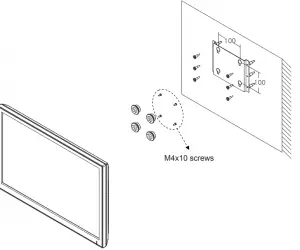

Wall mounting (Optional)
The LCD monitor is suitable for wall mounting by using the VESA 100 standard wall mount (not included in the delivery).

Wall mounting
M4x10 screws

Notice Stand & Screws are optional 1Attention!
You must use four M4x10 screws to assemble this monitor and the wall mount bracket.

Notice Stand & Screws are optional 1WARNING!
If user use longer than M4x10mm, it may cause the damage on the unit.
Please follow instructed bolt size & length.

– 17 –

D-SUB CONNECTOR
PIN ASSIGNMENTS

Right Arrow KeyPin Assignments

Pin 1RED VIDEO9
2GREEN VIDEO10SIGNAL CABLE DETECT
3BLUE VIDEO11GROUND
4GROUND12SDA(for DDC)
5GROUND13H-SYNC.(or H+V SYNC.)
6RED GROUND14V-SYNC.
7GREEN GROUND15SCL(for DDC)
8BLUE GROUND

D-SUB

D-SUB

Right Arrow KeyAccessories

  1. Power cord.
  2. Power adaptor
  3. User manual.
  4. VGA(RGB-PC) cable.
  5. Stand base & FS4x10 screws 3EA.
  6. Trigger cable (Optional)
  7. Stereo cable (Optional).
  8. Remote controller (Optional).
  9. Batteries (Optional).
  10. Wall mount (Optional).

– 18 –

POWER MANAGEMENT

Power Consumption

ModePower Consumption
Turned On< 21.6W
Turned Off< 1W

LED Indicator
The power management feature of the monitor is comprised of two stages:
Turned on(blue) and turned off(red).

ModeLEDMonitor Operation
Turned OnBlueNormal Operation
Turned OffRedNot Operation

– 19 –

SPECIFICATIONS

21.5”

LCD-Type21.5” Diagonal AM-TFT(Active-Matrix)
Pixel pitch(mm): 0.24825(H) x 0.24825(V)
Brightness: 250cd/m² (Typical)
Contrast ratio: 1000:1 (Typical)
Viewing angle: 170°/160°(H/V)
Response time: 5ms (Typ., on/off)
RESOLUTION (H x V)1920X1080@60Hz
FREQUENCYHorizontal: 31~80kHz, Vertical: 56~75Hz
INPUT SIGNALVIDEO (2ch input 1.0Vp-p, 75Ω terminated, 1ch loop-through out)
HDMI (High Definition Multimedia Interface)
DVI (Digital Video Interface)
VGA (RGB-PC)
PC Stereo In.
AV(composite) Sound R & L
3G/HD/SD-SDI (BNC, 75ohm, 1ch input / 1ch loop-through out)
ACTIVE SCREEN SIZ476.64mm x 268.11mm
PACKING DIMENSIONS (W x H x D)580mm x 440mm x 145mm (22.83” x 17.32” x 5.71”)
WEIGHTNet: 5.42Kg (11.95 lbs)
Gross: 7.22Kg (15.92 lbs)
ELECTRICAL RATINGS12V Ele icon1.8A (100-240V~, 50/60Hz)

* SDI Support Mode Table

SDISupport Resolution
Input / Loop through3G1080P (60/59.94/50)
HD1080i (60/59.94/50)
1080p (30/29.97/25/24/23.98)
720p (60/59.94/50)
SD480i (59.94)
576i (50)

Right Arrow KeyRight Arrow Key NOTE: Technical specifications are subject to change without notice.

– 20 –

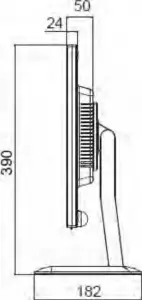

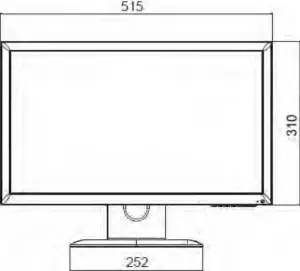

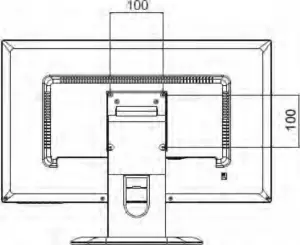

DIMENSION

(Unit: mm)

Dimension 1   Dimension 2

Dimension 3

– 21 –

TROUBLESHOOTING GUIDE

TROUBLETROUBLESHOOTING TIP
No image on display screen1. Check that power cord of the Monitor have been connected securely into wall outlet or grounded extension cable or strip.

2. Power switch should be in the ON position and LED is lit.

3. Check that the Brightness and/or the Contrast adjustments of the Display have not been turned down to minimum levels.

“NO SIGNAL” message on screen1. The signal cable should be completely connected to the video card/computer.

2. The video card should be completely seated in its slot and the computer is switched ON.

Display image is not centered, too small or too large in PC modePush the down key in front side or Auto key in remote controller.



Vertical or Horizontal noise is present in the pictureAdjust Clock and Phase in the OSD.

WEEE Symbols

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Trash

– 22 –

MEMO




















MEMO






















Ikegami logo

Ikegami Tsushinki Co., Ltd.

5-6-16, Ikegami, Ohta-ku, Tokyo, Japan 146-8567
Phone:(03)5700-1111 Fax:(03)5700-1137

Ikegami Electronics (U.S.A.), Inc.

300E State Route 17S, Mahwah, NJ 07430 USA
Phone:(201)368-9171, Fax:(201)569-1626

Ikegami Electronics (Europe) GmbH

Ikegami Strasse 1, D-41460 Neuss, Germany
Phone:(02131)123-0, Fax:(02131)102820

Property of

L39ME0333 Rev.0

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
