GOLF CART UNDERBODY
INSTALLATION GUIDE

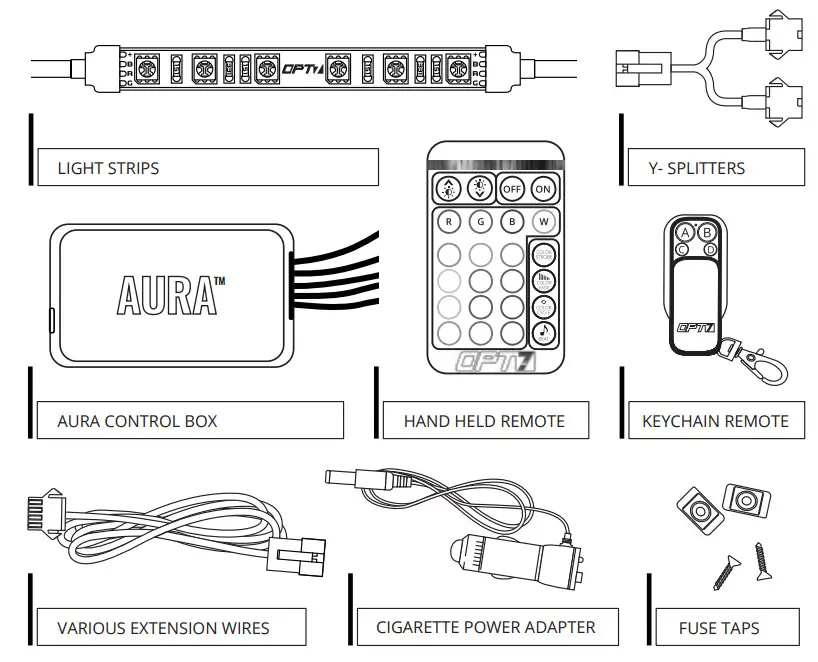

MAIN COMPONENTS
INSTALLATION
STEP 1

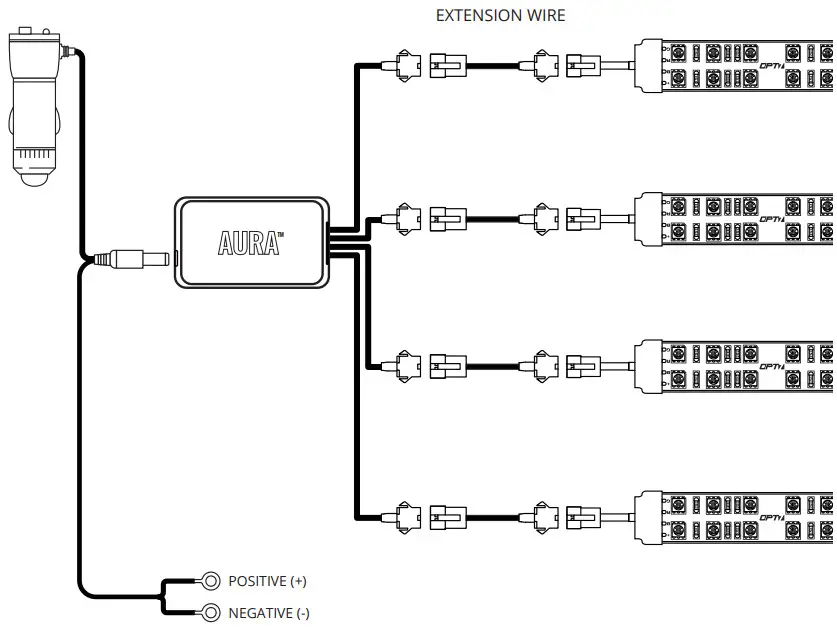

Decide where to locate the light strips and ensure wiring has enough length for the control box to be installed in the desired location.

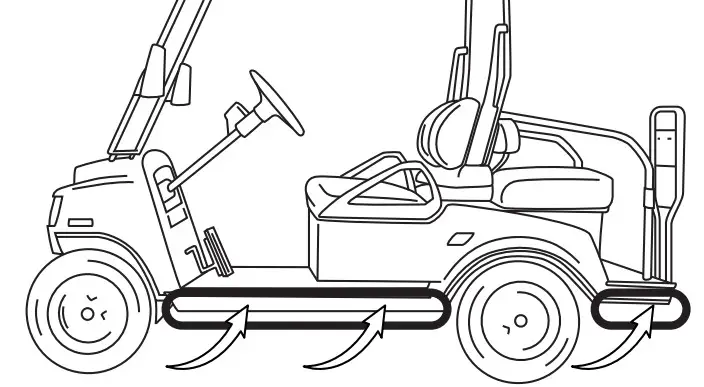

EXAMPLES
STEP 2

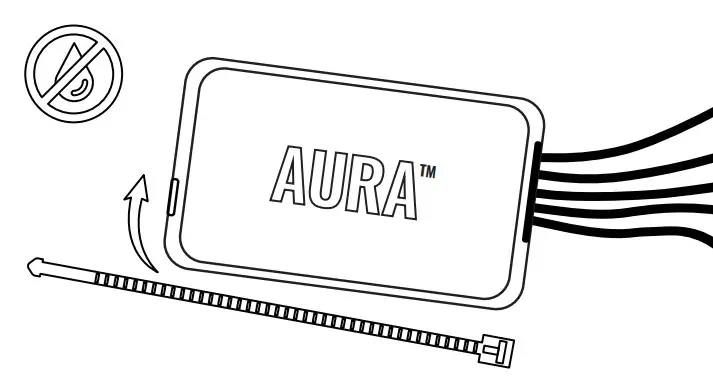

Secure Control box in the desired location with Velcro or zip ties.
* CONTROL BOX NOT WATERPROOF Ensure the control box is safely and securely hidden from exposing elements of moisture.
STEP 3

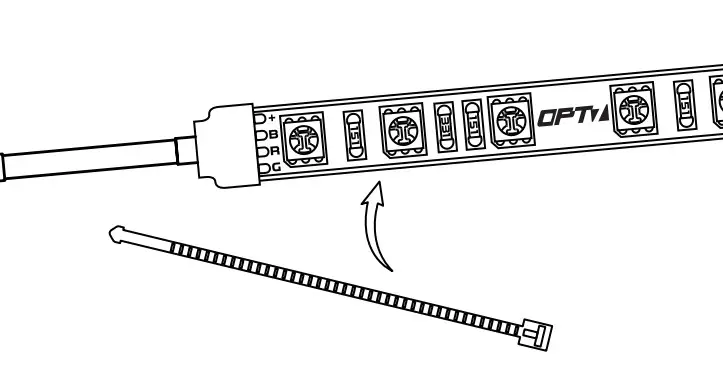

Use the zip ties to tie all wiring away from all moving components.
STEP 4

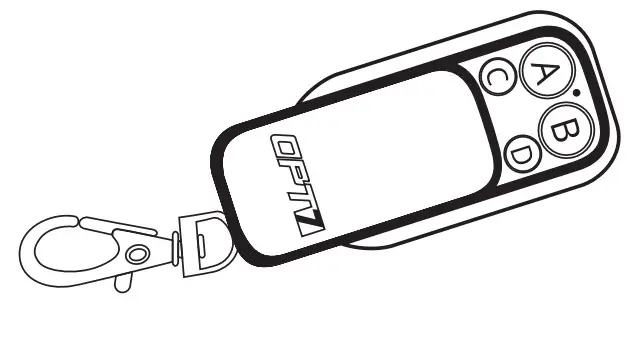

Use the included E-Z Remote or Keychain Remote to select your desired color or pattern.
A – ON/OFF
B – Pattern Control UP
C – Pattern Control Down
D – Speed Control

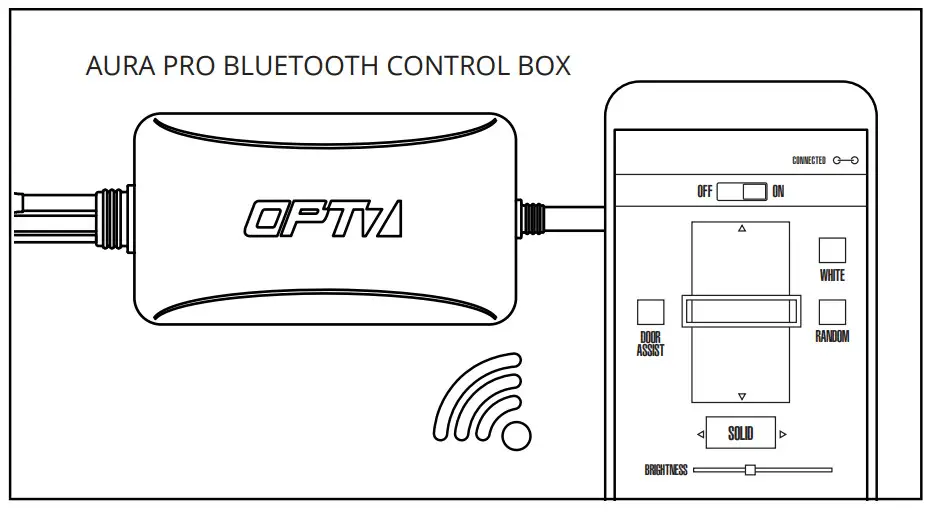

OPTIONAL UPGRADE
Upgrade your Aura Original Control Box to the Aura Pro Bluetooth Control Box. All new AURA Pro Bluetooth is App-enabled by a smartphone controller (iOS & Android Compatible).
DISCLAIMER
OPT7 Lighting is not liable for damages or personal injuries while installing this product. The Installation Guide is intended as assistance to reduce setup time. OPT7 Lighting assumes no responsibility for improper installation.
If you are unfamiliar with your vehicle or inexperienced with aftermarket upgrades, please seek professional assistance.
