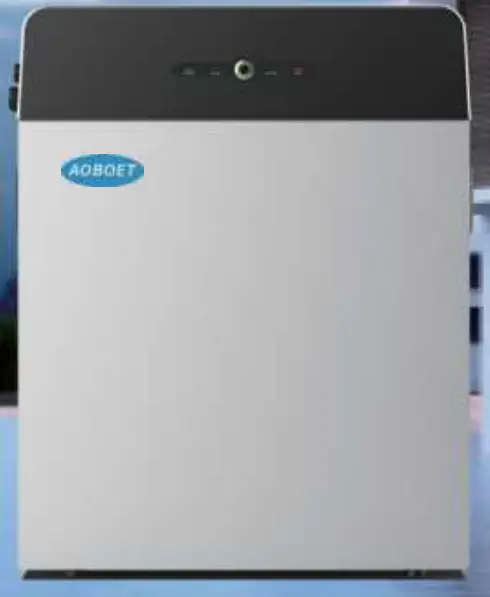

AOBOET Uhome-LFP 5kWh-LV 48v 51.2v Lithium Battery
CONTACT
- T: +86 0510 85366880
- F: +86 0510 83203470
- M: +86 15208987124(CHN)
- [email protected]
- Add:1 Qianluo Rd, HuishanDistrict,Wuxi,JiangsuProvince,China.
Key Features
- Digital monitoring system APP
- High inverter compatibility
- Reliable LFP cells
- CANbus standard connection
- Natural cooling system
- Scalable up to 20-40kWh（4 Parallel)
- 10 Years limited warranty
- IP65
Technical Specifications
| Model | Uhome-LFP 5kWh/LV | |
| Total Energy* | 5kWh | |
| Usable Energy(DC)* | 4.6kWh | |
| Nominal Dis-/Charge Power | 3.0kW | |
| Peak Power(Only Discharge) | 7kW for 3s | |
| Constant Current(Only Discharge) | 100A | |
| Voltage | 48~56Vd.c | |
| Nominal Voltage | 51.2Vd.c | |
| Nominal Current | 60A | |
| Max. Charge Voltage | 57.6Vd.c | |
| Weight | 55kg | |
| Dimension(mm) | 525*635*238mm | |
| Max.recommended DOD | 90% | |
| Operating Condition | Indoor or outdoor | |
| Operating Temperature | Charge | From 0~45℃ |
| Discharge | From -10~50℃ | |
| WIFI Frequency Range | 2400MHz~2483MHz | |
| Humidity | 4~100%(No condensed water) | |
| Pollution Degree | 3 | |
| Over Voltage Category | II | |
| Cooling Type | Natural cooling | |
| Case Material | Metal + Plastic | |
| Color | Black+Silver grey or White | |
| Installation | Free standing | |
| IP rating | IP 65 | |
| Protective Class | I | |
| Max. Number of Parallel | 4 | |
| Warranty | 10 years | |
| Life Span | >15 years | |
| Communication | CAN/ RS485 | |
| Protection Mode | Triple hardware protection | |
| Battery Protection | Over-current/Over-voltage/Short circuit/ Under-voltage/Over temperature | |
| Safety | Cell UL 1973 | |
| CE | ||
| Hazardous Material Classification | 9 | |
| Transportation | UN 38.3 | |
| Testing conditions based on temperature 25℃ at the beginning of life. *Total Energy/Usable Energy measured under specific conditions from AOBOET 0.2C CC-CV | ||
