GIMA 24046 Urine Analyzer and Urine Strips User Manual

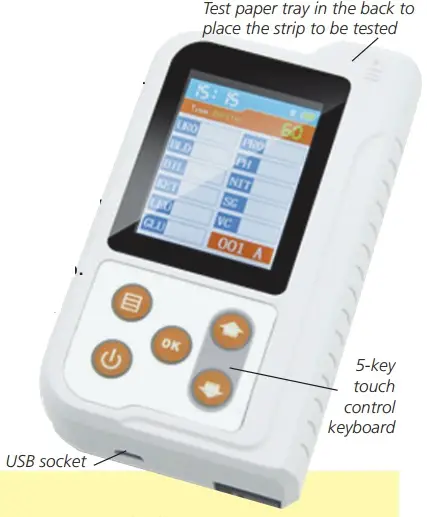

PRODUCT OVERVIEW

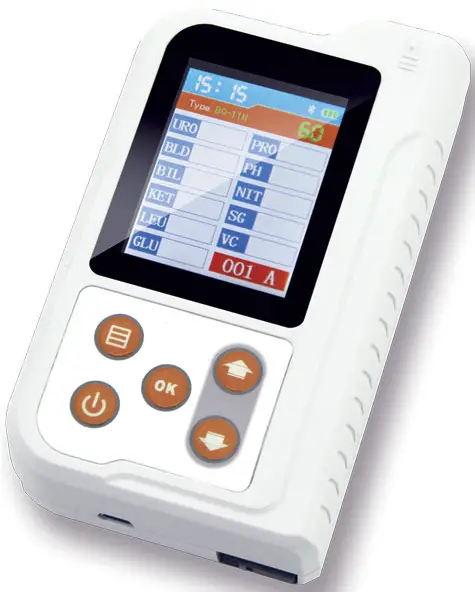

24046 GIMA URINE ANALYZER
Gima urine analyzer is a high-precision instrument with advanced technologies for clinical inspection of urine. It offers easy and quick operation, exact results and good repeatability
Features:
- high-luminance, white LED, features long life and good stability
- large LCD display
- user-friendly interface
- monitoring the whole testing process, and audible-control prompt
- data transmission function.
Application:
- convenient point of care testing for doctor
- chronic diseases, long-term monitoring for nephrotic patients
- health examination
- use as telemedicine terminal.
Tested parameters
Glucose (GLU), Bilirubin (BIL), Specific gravity (SG), PH, Ketone
body (KET), Occult blood (BLD), Protein (PRO), Urobilinogen (URO), Nitrite (NIT), Leukocytes (LEU), Ascorbic acid (VC). Can be used only with Urinalysis strips 24076.
PHMS App
Free App to save data, check report and results.
Multilingual manual and box: GB, FR, IT, ES.
- Download PHMS App on
TECHNICAL SPECIFICATIONS
- Working mode: One-step
- Internal language: Italian and English
- Display: 2.4″ LCD, resolution: 320×240
- Data storage: 500 sample data
- Principle: RGB tricolor test theory
- Communication interface: Micro USB interface, Bluetooth wireless communication
- Repeatability: CV ≤1%
- Stability: CV ≤1%
- Record mode: LCD display, flash ROM data storage
- Power supply: Built-in rechargeable lithium battery 3.7 V, 1800 mAh
- Host computer: DC 5 V, 1 A
- Adapter: AC 100-240 V, 50/60 Hz
- Test range: Refer to grads table on www.gimaitaly.com
- Dimension – Weight: 126×73.5xh 30 mm – 0.18 kg

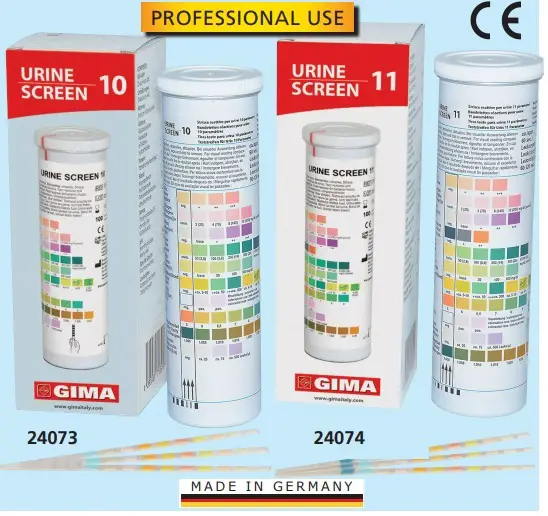

GIMA URINE SCREEN VISUAL STRIPS
- 24073 10 PARAMETER STRIPS – tube of 100 strips
- 24074 11 PARAMETER STRIPS – tube of 100 strips
These strips can be used by professionals for visual tests Global check/screening for general health condition.
For use in preliminary screening tests for diabetes, liver diseases, hemolytic diseases, urogenital and kidney disorders and metabolic abnormalities
Multilingual box: GB, FR, IT, ES, PT, DE, NL, GR, NO, SE, FI, DK, mRU, CZ, PL, TR, BG, MT, HU, HR, RO, SK, SL, LV, LT, GA, ET and instructions: GB, FR, IT, ES, PT, DE, NL.
All other European languages instructions available on www.gimaitaly.com.
GIMA URINE SCREEN | ||
Parameters | 24073 | 24074 |
| Glucose | • | • |
Ascorbic Acid | • | • |
| Ketones | • | • |
Protein | • | • |
| pH-Value | • | • |
Blood | • | • |
| Nitrite | • | • |
Leucocytes | • | • |
| Spec. Gravity | • | • |
Bilirubin | • | • |
| Urobilinogen | • | • |

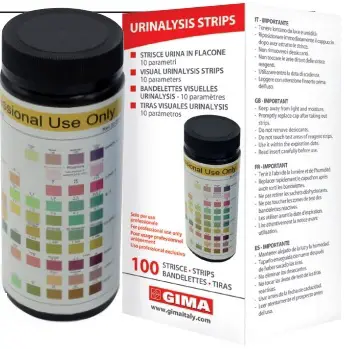

URINALYSIS VISUAL STRIPS
24076 10 PARAMETERS STRIPS – tube of 100 strips Urinalysis strips can be used by professionals for medical organization testing and analysis of urine specimen with visual results. Strips can also be examined with Gima urine analyzer (24046).
| URINALYSIS VISUAL STRIPS | ||
| Parameters | Testing and reading time (s) | Cut-off value |
| Glucose | 30 s | 2.8 ~ 5.5 mmol/L |
| Ketone | 40 s | 0.5 ~ 1.0 mmol/L |
| Protein | 60 s | 0.15 ~ 0.3 g/L |
| pH-Value | 60 s | 0.5 |
| Blood | 60 s | 5 – 15 Ery/µL |
| Nitrite | 60 s | 13 ~ 22 µmol/L |
| Leucocytes | 120 s | 5 – 15 Leuko/µL |
| Specific Gravity | 45 s | 0.005 |
| Bilirubin | 30s | 8.6 – 17 µmol/L |
| Urobilinogen | 60 s | 3.3 – 16 µmol/L |
- anti-VC interference ability;
- global check/screening for general health condition;
- rapid results: from 30 to 120 seconds;
- high quality colours chart;
- cut-off value measures for each parameter.
Multilingual instructions: GB, FR, IT, E
