QUICKSTART GUIDE BC
TUNE710BT
WHAT’S IN THE BOX

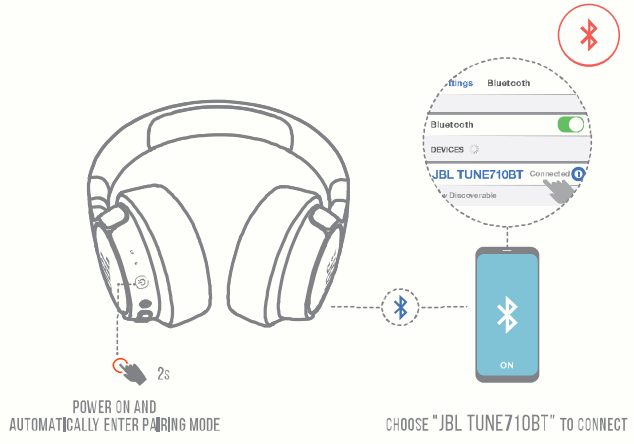

POWER ON & CONNECT
MANUAL PAIRING
WIRED LISTENING

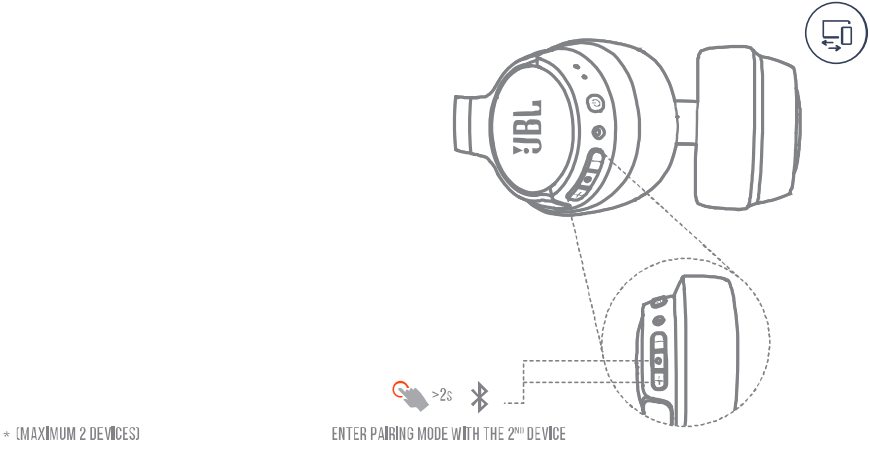

MULTI-POINT CONNECTION
- TO SWITCH MUSIC SOURCES PAUSE THE MUSIC ON THE CURRENT DEVICE AND SELECT PLAY ON THE 2ND DEVICE.
- PHONE CALLS WILL ALWAYS TAKE PRIORITY.
- IF ONE DEVICE GOES OUT OF BLUETOOTH RANGE TO POWER OFF, YOU NEED TO MANUALLY RECONNECT THE REMAINING DEVICE.
- SELECT “FORGET THIS” ON YOUR BLUETOOTH DEVICE TO DISCONNECT MULTI-POINT.

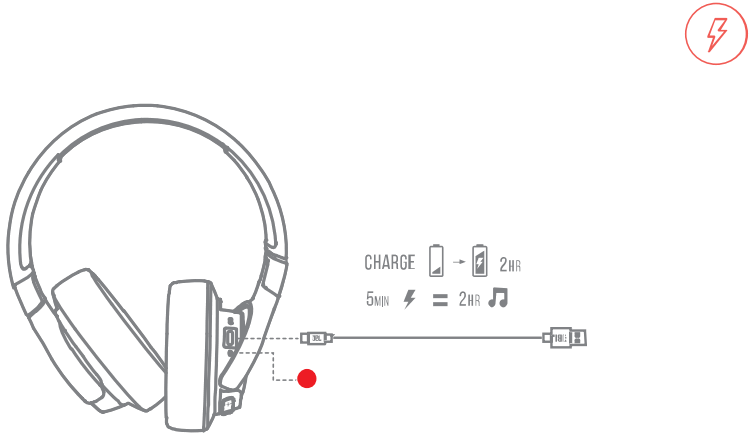

CHARGING
LED BEHAVIORS
TECH SPEC
| Model: | TUNE710BT |
| Driver size: | 40 mm Dynamic Driver |
| Power supply: | 5V  1A |
| Weight: | 220 g/0.485 lbs |
| Headset battery type: | Polymer Li-ion battery (610 m Ah/3.7 V) |
| Charging time: | < 2 hrs from empty |
| Music play time with BT on: | up to 27 hrs |
| Frequency response: | 20 Hz – 20 kHz |
| Impedance: | 32 ohm |
| Sensitivity passive mode: | 105 dB SPL/1mW |
| Sensitivity active mode: | 110 dB SPL/1mW |
| Maximum SPL: | 93dB |
| Microphone sensitivity: | -15 dBV/Pa |
| Bluetooth version: | 5.0 |
| Bluetooth profile version: | A2DP 1.2, AVRCP 1.5, HFP 1.6, HSP 1.2 |
| Bluetooth transmitter frequency range: | 2.402 GHz – 2.430 GHz |
| Bluetooth transmitter power: | < 5 dBm |
| Bluetooth transmitted modulation: | GFSK, π/4 DQPSK, 8DPSK |
| Maximum operation temperature: | 45 °C |
