Knightsbridge Flex-cut Led Flex Lighting 24 W Daylight User Manual

knightsbridge FLEX-CUT LED Flex Lighting 24 W Daylight

INTRODUCTION

Knightsbridge LED Flex lighting is extremely versatile and
adaptable, ideal for creating stunning ambient effects across a wide range of applications.
Our full offering of LED Flex lighting and accessories provides our customers everything they need in one convenient place, which can be easily ordered and configured via our bespoke online cutting service, FLEX-CUT

FLEX-CUT

THE BESPOKE ONLINE LED STRIP CUTTING SERVICE

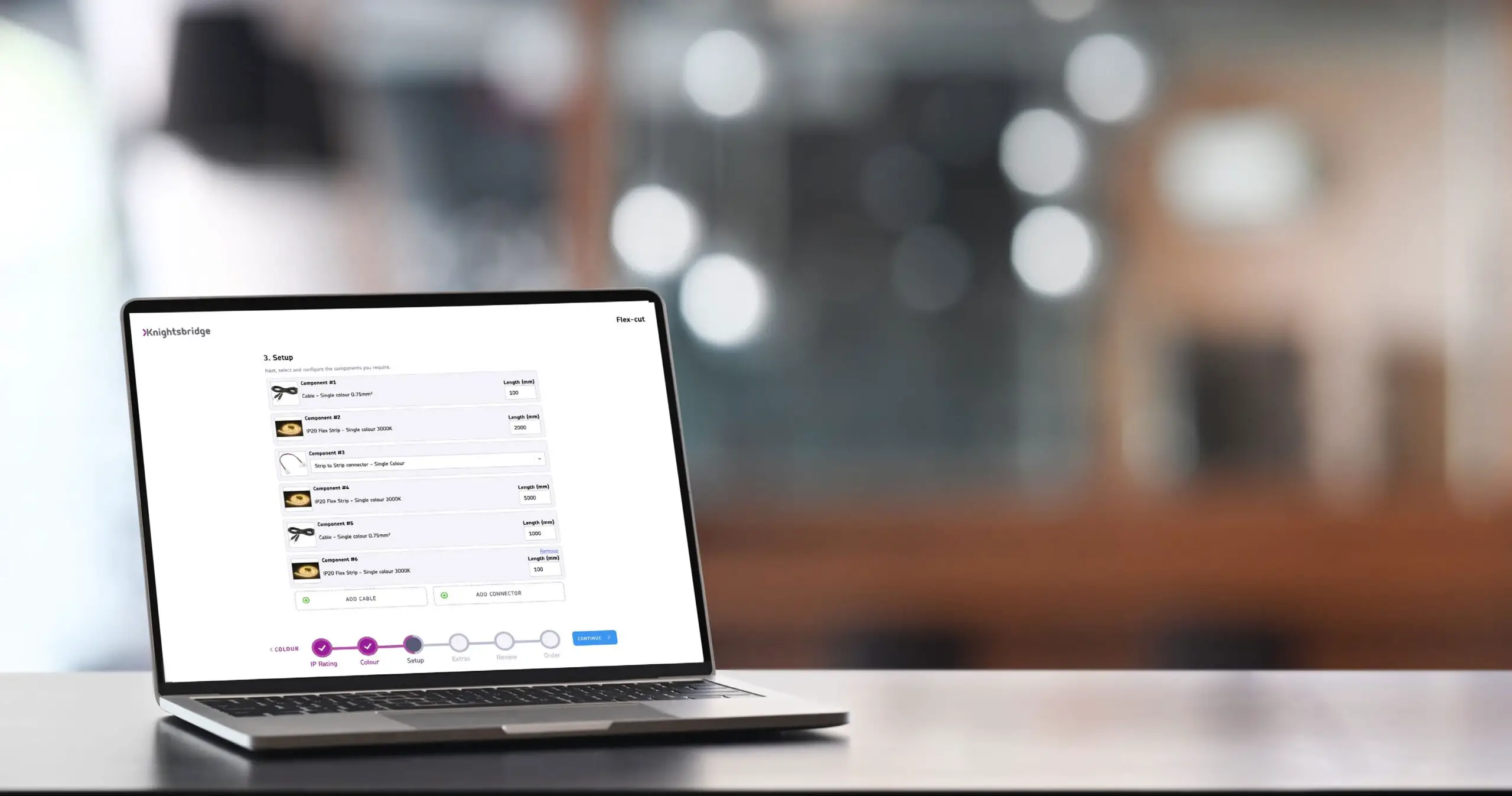

With FLEX-CUT, buying LED Flex has never been simpler.
Knightsbridge customers can easily order bespoke LED Flex configurations tailored to their specific needs, via the simple online tool.
Not a customer? You can still use the tool to generate PDF component lists that you can send over to your electrical wholesaler.

INSTANTQUOTES

ONLINE ORDER TRACKING

48 HOUR TURNAROUND TIME

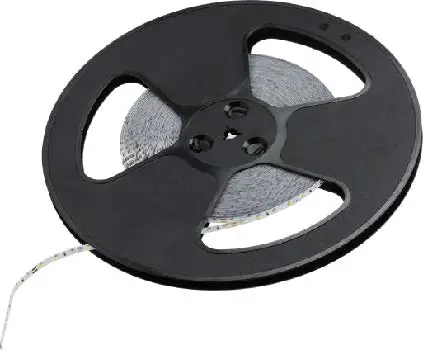

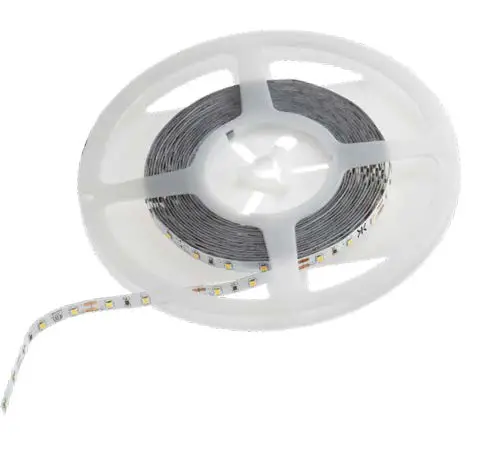

AVAILABLE REELS5meters
12V single colour

Ideal for smaller projects

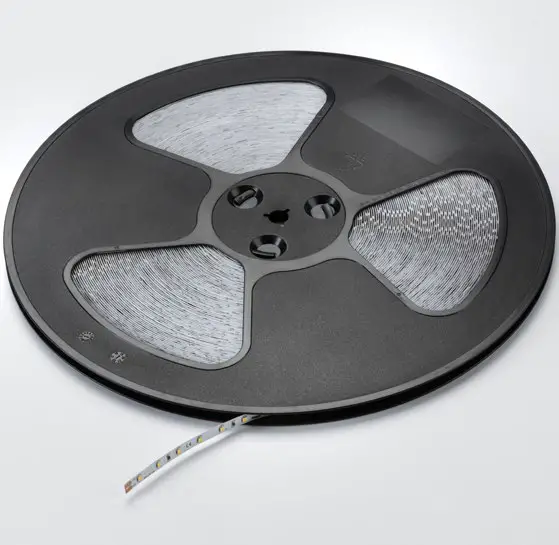

30meters

• 24V colour-changing
• 24V high lumen
• 24V IP67

Ideal for lager projects requiring colour-changing, high lumen, or IP67 LED Flex
50 metres

24V single colour
Ideal for larger projects requiring multiple runs of single colour LED Flex

FLEX CUT

• 24V colour-changing
• 24V high lumen
• 24V IP67
• 24V single colour

For all bespoke LED
Flex lengths, providing a step-by-step guide to buying LED Flex and all available accessories

WHY LED FLEX?

HIGHLY VERSATILE
Our LED Flex range is extremely versatile and adaptable, with a huge array of different lighting colours and outputs, including colour-changing, high lumen and IP67 options. Whatever the application, we’re sure to have the perfect fit!

AMBIENT LIGHTING EFFECTS

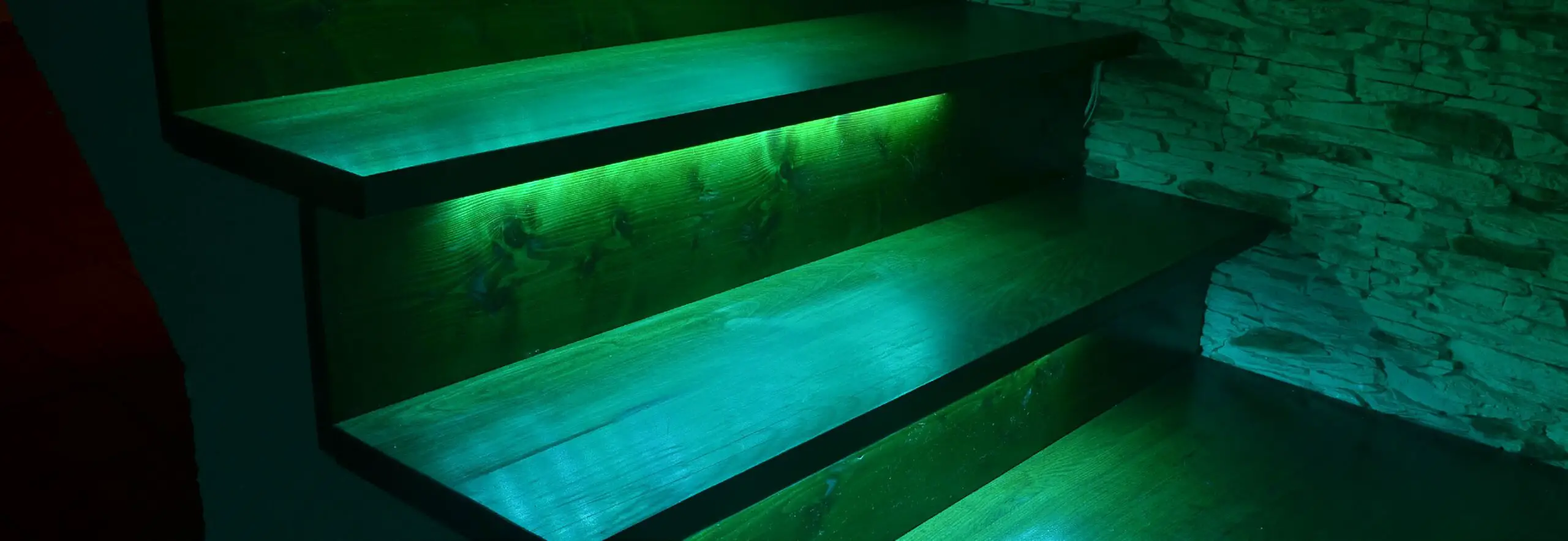

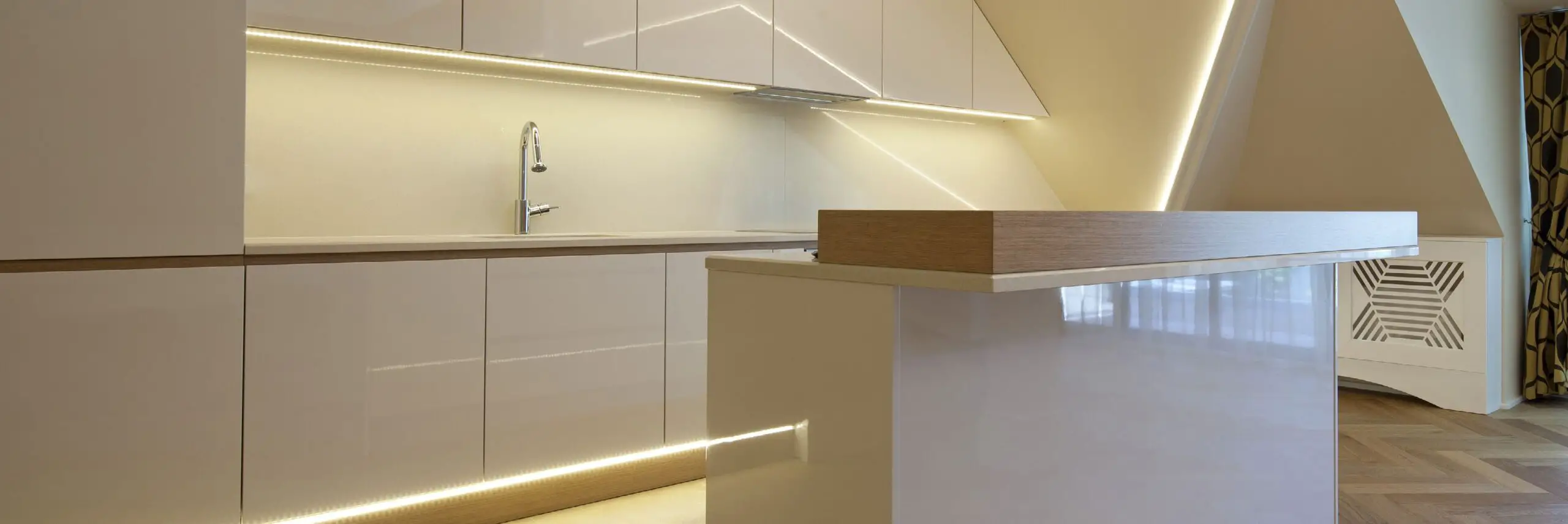

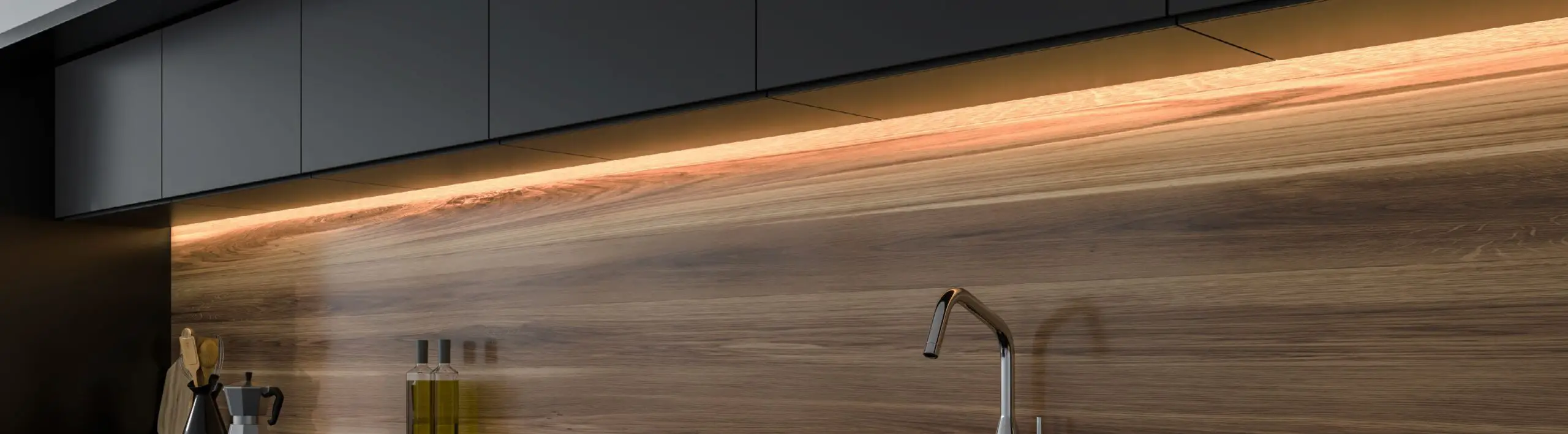

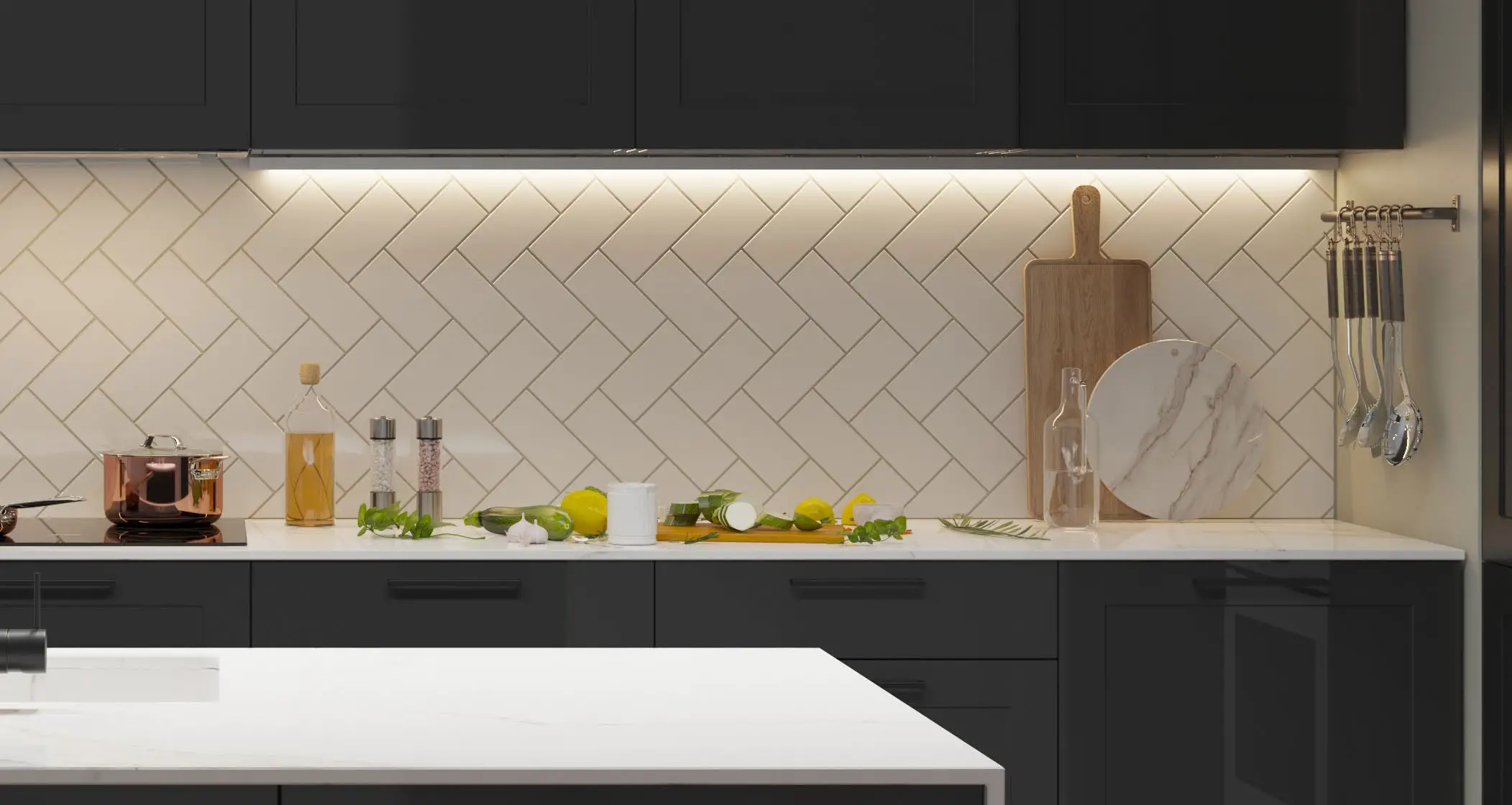

Create stunning ambient lighting effects anywhere indoors or outdoors, with subtle tones that can complement any space. LED Flex can be particularly effective for illuminating under-cabinet spaces in kitchens, but the possibilities are endless!

REMOTE CONTROL
Our range of LED Flex lighting can be controlled remotely, either by a remote control or (when installed with our Smart LEDFWIFI Controller) via the SmartKnight App on your smartphone. The SmartKnight app enables scene control, geo-fencing, and other creative and convenient ways to control your lighting.

THE MARK OF QUALITY
Our LED Flex undergoes extensive in-house quality control, at 4 separate stages, before it is delivered to you.

BEST PRACTICE

1. Clean the surface area before installation
   This ensures the longevity of the self-adhesive tape, included on all LED Flex lighting
2. Be sure to use the correct fixing method Some surfaces, such as uneven stone or any exterior surface, are better suited for screw-in clips rather than the self-adhesive tape.
   USING FLEX-CUT? DON’T WORRY – WE’LL MANAGE THESE BELOW PARTS FOR YOU!
3. Ensure the best driver for the total wattage is chosen [Wattage per meter] x [Length of LED Flex run] = Total Wattage

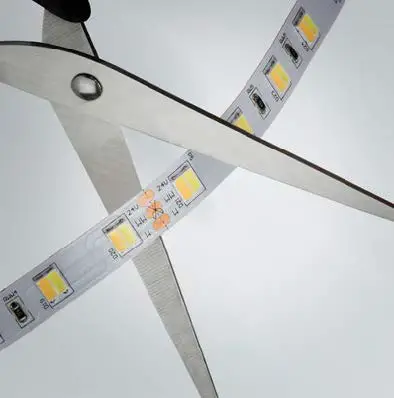

4. Ensure the copper connecting points are cut evenly This minimizes the risk of broken electrical currents.
5. Ensure the IP rating is maintained
   When cutting IP67 LED Flex, ensure the connection points are properly closed off (this can be done with silicone glue, rubber end caps, and heat shrinkable tubing

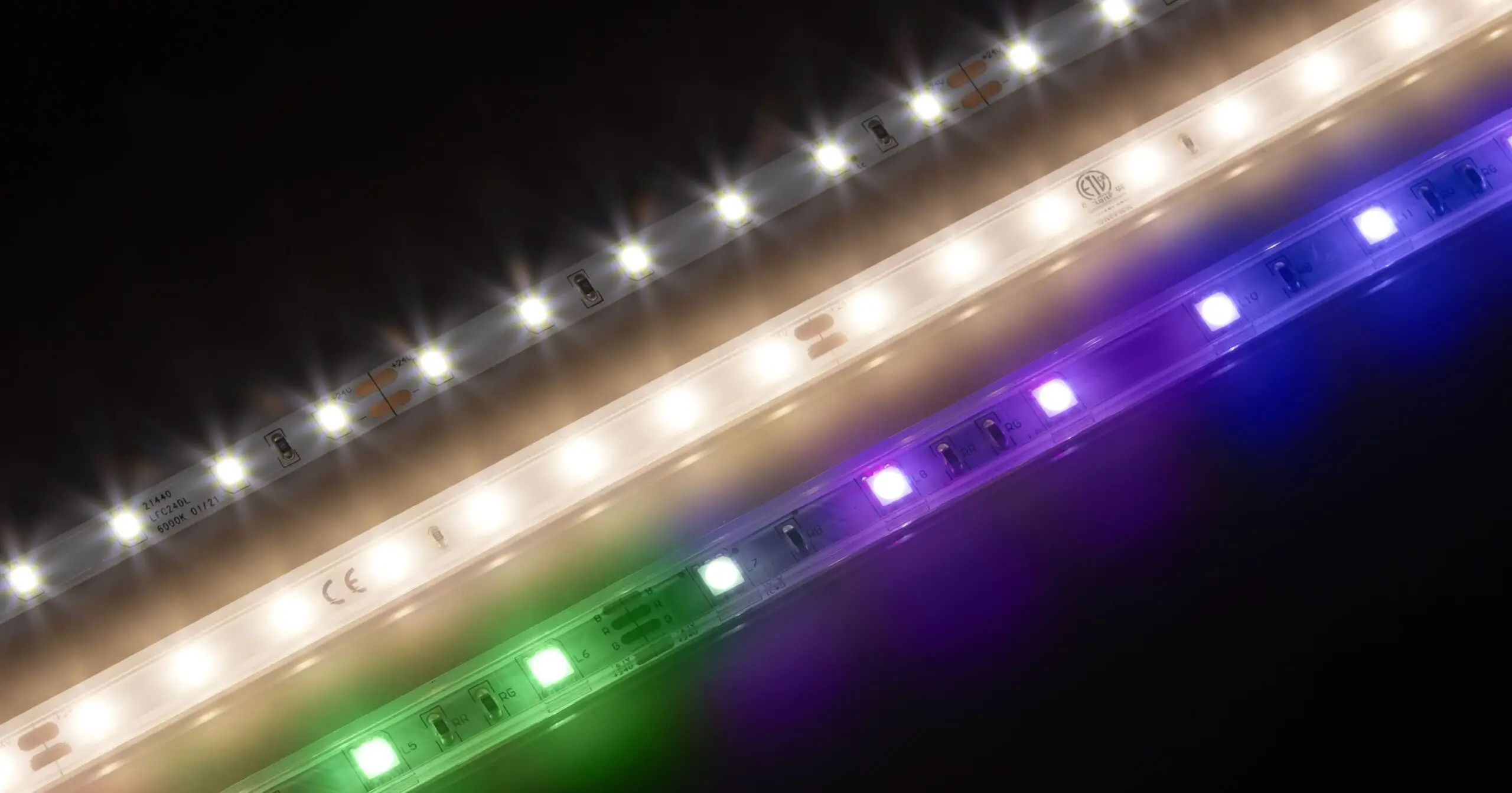

LED FLEX
PRODUCT LISTINGS

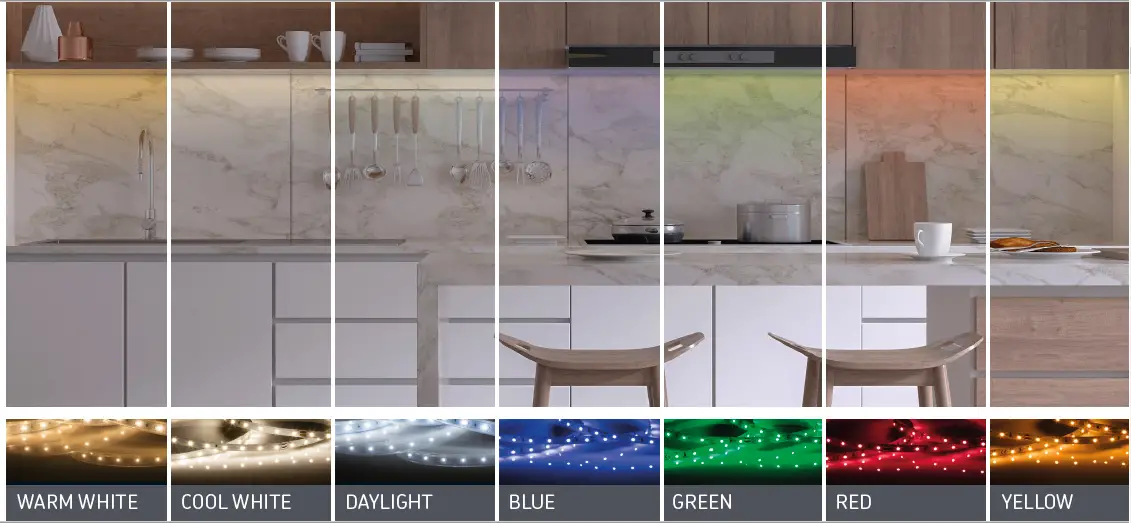

SINGLE COLOUR LED STRIP LIGHTING
Our range of single colour LED Flex lighting comprises a choice of seven different colours, providing numerous options for ambient lighting effects around homes,
hotels, stores, or any other indoor location.

• Supplied with 3M self-adhesive tape
• Requires 24V constant voltage driver
• Dimmable with appropriate control

COLOUR-CHANGING LED
STRIP LIGHTING
When you require a more bespoke colour option, or simply need something more flexible, our range of colour-changing LED Flex offers a near-unlimited choice of colour options. With the appropriate controller, automated lighting displays can be easily programmed to create dynamic ambient effects.

• Supplied with 3M self-adhesive tape
• Requires 24V constant voltage driver
• Adjustable colour/lighting output with appropriate control gear

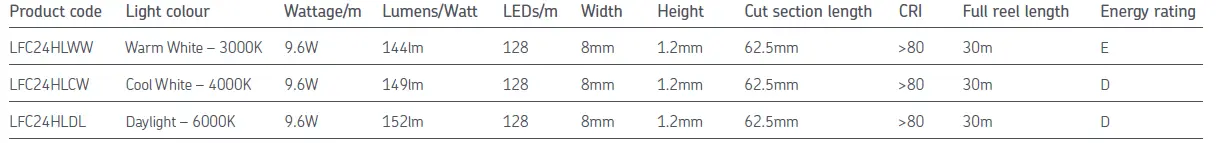

HIGH LUMEN LED
STRIP LIGHTING
When you require a much brighter level of lighting, that provides a functional level of illumination to indoor spaces, our high lumen options are the perfect option. Compared to standard options, these strips hold more than twice the number of LEDs per metre, illuminating surrounding spaces with up to 150lm/W.

• Supplied with 3M self-adhesive tape
• Requires 24V constant voltage driver
• Dimmable with appropriate control

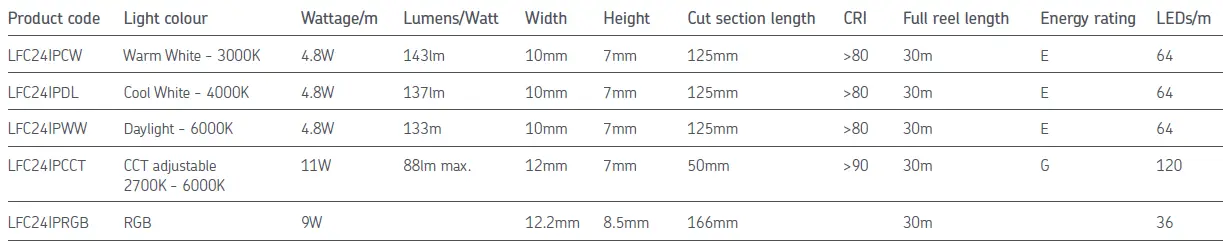

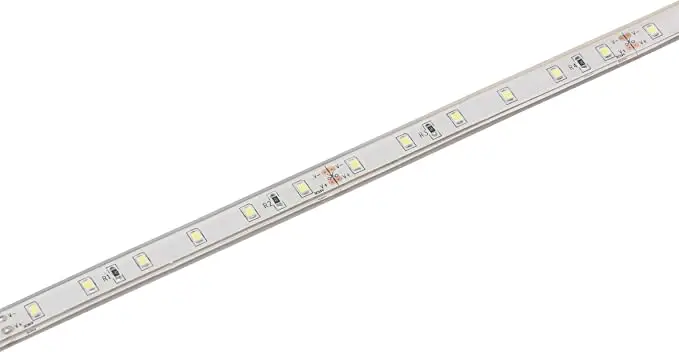

IP67 LED STRIP LIGHTING

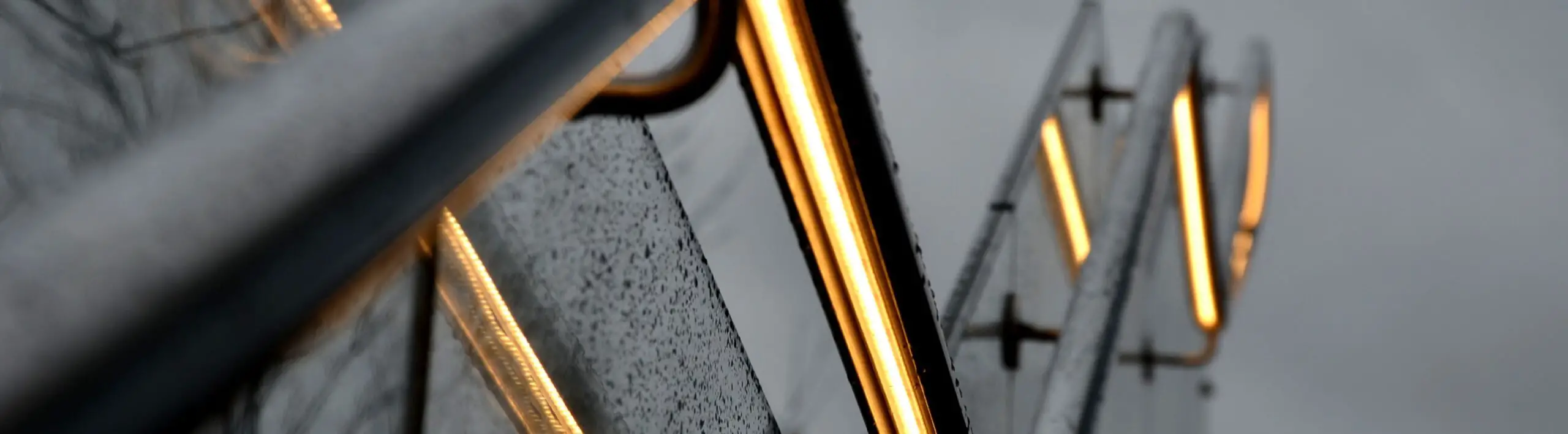

For outdoor projects that require a level of protection from weather conditions, our IP67 LED Flex options are the safest choice. These strips are encased in a protective silicone sleeve, providing protection against the ingress of dust and water.

• Dimmable with appropriate control gear
• Supplied with 3M self-adhesive tape
• Requires 24V constant voltage driver
• Fixing kit and IP end caps available (sold separately)
• IP end caps LFCFIX10 or LFCFIX12 (sold separately)

ALUMINIUM  PROFILES
PRODUCT LISTINGS

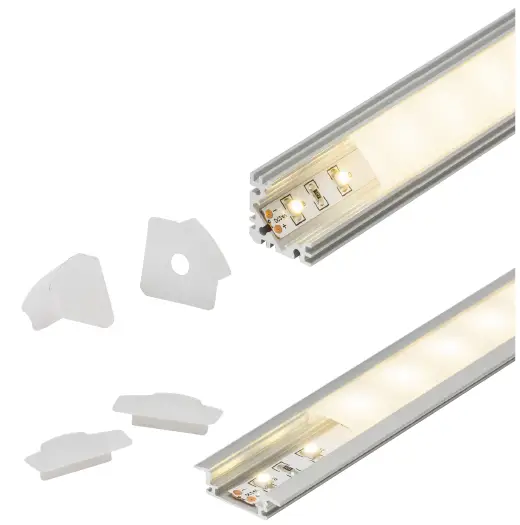

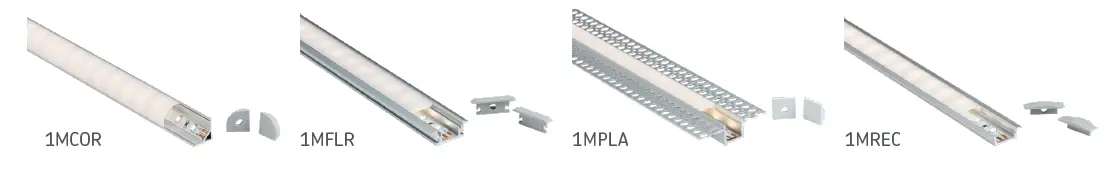

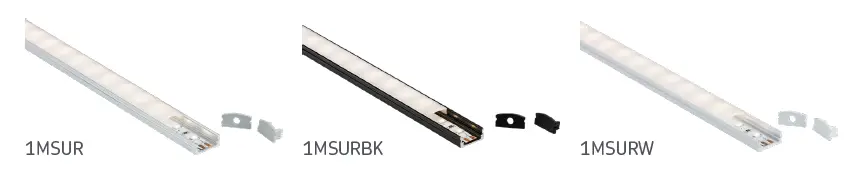

ALUMINIUM PROFILES
Aluminum profiles provide an additional level of protection to installed LED Flex, preventing anyone from being able to directly touch the exposed strip. They’re also more aesthetic: providing with a tidier means of fixing LED strip lighting in place, and enhancing the consistency of the illumination via the opal diffuser

1MPSC

• Ideal for mounting under cabinets or shelving
• Includes 3 mounting clips, 1 metre opal diffuser and 2 end caps

1MPRF

• Ideal for recessed mounting
• Includes 3 mounting clips, 1 metre opal diffuser and 2 end caps

CONTROLLERS
 PRODUCT LISTINGS

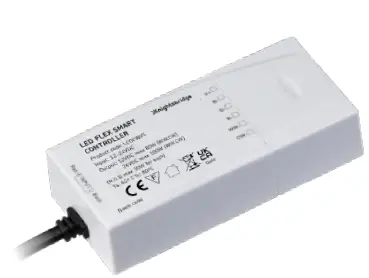

SMART WIFI CONTROLLER
With the SmartKnight app, you can easily control LED flex lighting via your smartphone. Simply download it for free from Google Play or the App Store to get started!

NO HUB REQUIRED
Products connect directly via Wi-Fi enabling global remote access.
No space and money wasted on additional hubs / gateway devices .

TIMERS
Set up schedules within the home using the timer function to automate when devices turn on/off.

VOICE CONTROL
Voice control works with Hey Google or Amazon Alexa.

GEOFENCING
Don’t come home to darkness; program lights to automatically turn on/off based on your GPS location.

SCENES
Utilise preset scenes such as ‘Movie’, or create your own.

Amazon, Alexa and all related logos  are trademarks of Amazon.com, Inc. or its affiliates.

Google is a trademark of Google LLC.Product code   Model
LEDFWIFI    12V/24V

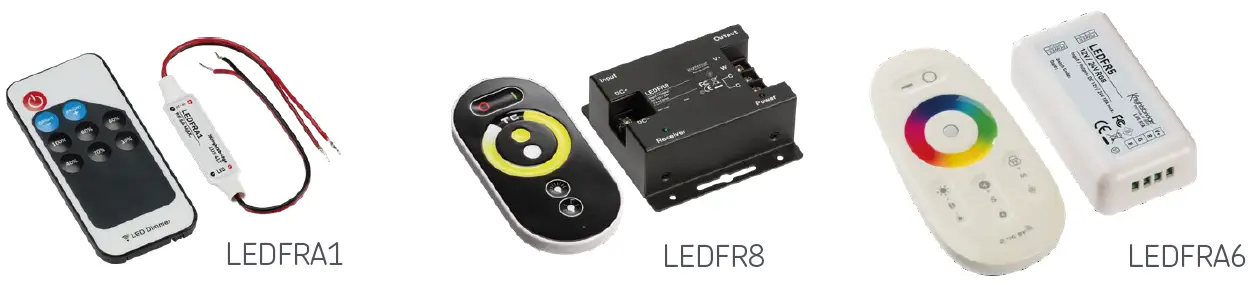

12V/24V CONTROLLERS

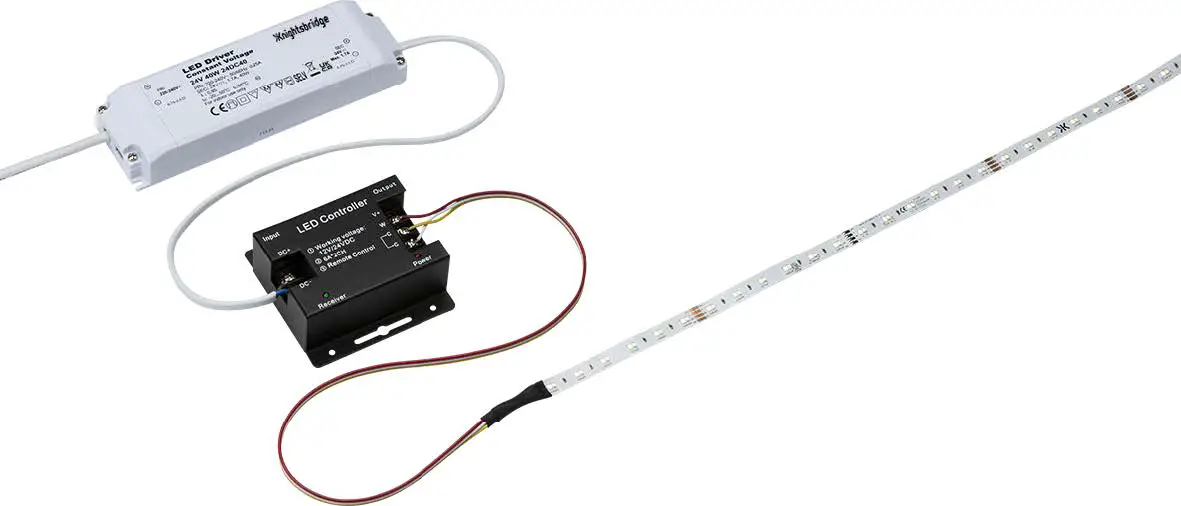

Our selection of remotes and controllers allows users more control of their LED Flex lighting, enabling colour-changing, dimming, and even lighting automations.

CONNECTORS & ACCESSORIES
PRODUCT LISTINGS

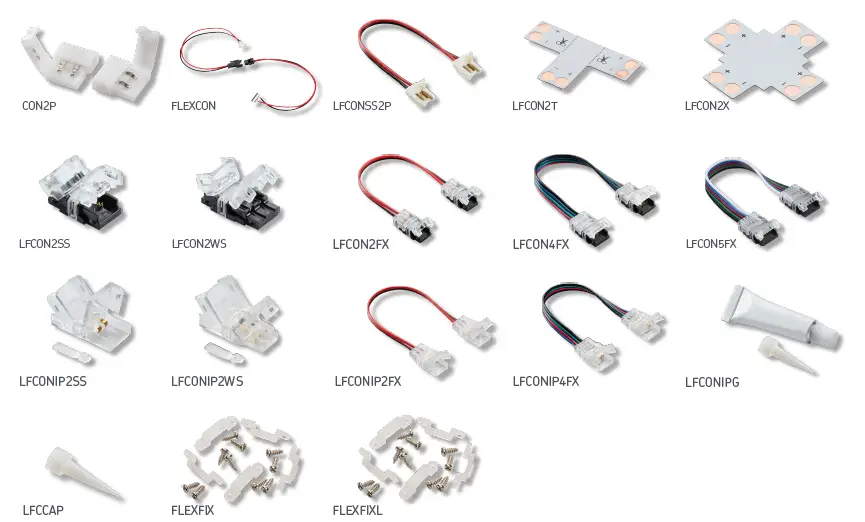

12V/24V LED FLEX CONNECTORS
Our expansive range of connectors and accessories enables installers to create seamless lighting effects with LED Flex.

BASICS

• CON2P Connector – Pack of 2 – Single Colour
• FLEXCON Male and Female connectors with cable
• LFCONSS2P Strip to Strip Connector – Single Colour

CONNECTING PIECE

• LFCON2T 3-way T-connector – Single Colour
• LFCON2X 4-way X-connector – Single Colour

HIPPO IP20

• LFCON2SS Strip to Strip Connector – Single Colour
• LFCON2WS Wire to Strip Connector – Single Colour
• LFCON2FX Strip to Strip Cable – Single Colour
• LFCON4FX Strip to Strip Cable – RGB / CCT
• LFCON5FX Strip to Strip Connector – RGBW

HIPPO IP65

• LFCONIP2SS IP65 Strip to Strip Connector – Single Colour
• LFCONIP2WS IP65 Wire to Strip Connector – Single Colour
• LFCONIP2FX IP65 Strip to Strip Cable – Single Colour
• LFCONIP4FX IP65 Strip to Strip Cable – CCT / RGB

GLUE ACCESSORIES

• LFCONIPG Silicone Glue 10ml
• LFCCAP Pack of 10 Silicone glue caps

FIXING KIT

• FLEXFIX Fixing Kit for IP LED Flex – 10mm
• FLEXFIXL Fixing Kit for IP LED Flex – 14mm

24DC200M 24V DC 200W No

IP67 CONSTANT VOLTAGE LED DRIVERS

Product code Voltage Description Dimmable

• 12CDIP40 12V DC 40W No
• 24DCIP40 24V DC 40W No COMING SOON
• 24DCIP75 24V DC 75W No
• 24DCIP100A 24V DC 100W No COMING SOON

THE FORMULA FOR SELECTING THE APPROPRIATE DRIVER:
[Wattage per metre] x [length of LED Flex run] = TOTAL WATTAGE
However, when using FLEX-CUT – our bespoke LED Flex cutting service – this will all be done for you!
