TAP STA-51 Natural Sound
SENSOR STA-51 Guitar
Natural sound
FEATURES INSTRUCTION
Exceptional and flexible, sensor – (contact microphone). The sensor takes the vibrations directly from the instruments body. |Produces an acoustic with high output signal. Perfectly balanced, and undistorted sound satisfying even the most demanding player. Comes with high output signal for connection on amplifier or console. Suitable for Guitar, Dulcimer, Aud, Lute, Bouzouki, Violin, Lyre, Saz, etc

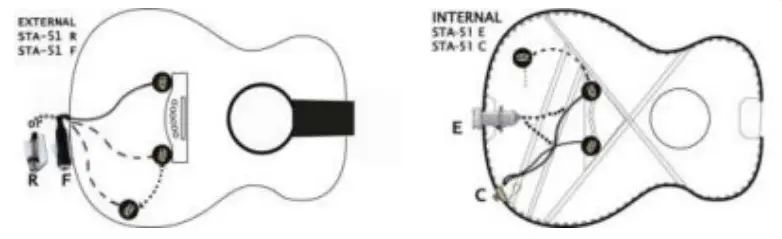

- STA-51R (for external installation) with RCA plug and clamp holder.
- STA-51F (for external installation) with 1/4 female jack and clamp.
- STA-51C (for internal installation) with 1/4 (6.3mm) chassis jack.
- ***TA-51E (for internal installation with 1/4 (6.3mm) Endpin jack
Technical Information
Technical Information- Sensor Height: 3mm
- Sensor diameter: 23mm
- Imvedance: High ohmic

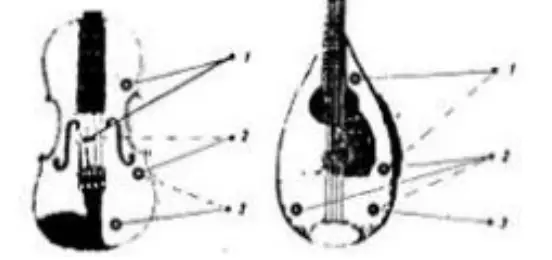

Installation
Before installing the STA-51, must cleaning the instrument surface. After that, easy mount the sensor with the double adhesive tape. sensor, keep firmly with fingers around the diameter and pull out carefully slowly. For reinstallation, a spare part of double adhesive tape included. For removing the
