USB INTERCONNECTS
Quick Reference Guide
TE Connectivity (TE) is a standing member of the USB-IF (USB Implementers Forum) and offers a wide range of products to meet your interconnect needs. Our products accommodate the two differentially driven data wires that provide bi-directional, simultaneous signals for USB 4 Gen 3 (40 Gbps), USB Type-C (20Gbps) USB 3.0 (5 Gbps), USB 2.0 (480 Mbps) and USB 1 (1.5 & 12 Mbps). TE has a wide variety of USB offerings including: standard (A & B), mini (A, A/B, B) B, and micro (A/B and B) sizes, Type-C. We also offer locking versions of its standard USB as well as latching versions of its standard and micro USB while also providing faster, reliable, rugged solutions for next-generation applications with waterproof and splash proof capabilities. USB INTERCONNECTS Quick Reference Guide
FEATURES AND BENEFITS
- Complete family of board mount receptacles, including various orientations and PCB mounting styles
- Consolidates serial parallel, keyboards, mice and game ports
- Compatible with asynchronous and isochronous data transfer methods
- Polarized for proper orientation
- Plug and Play capability
- Hot pluggable, permitting attaching or detaching peripherals without power down or reboot
- Allows for charging
PRODUCT APPLICATIONS

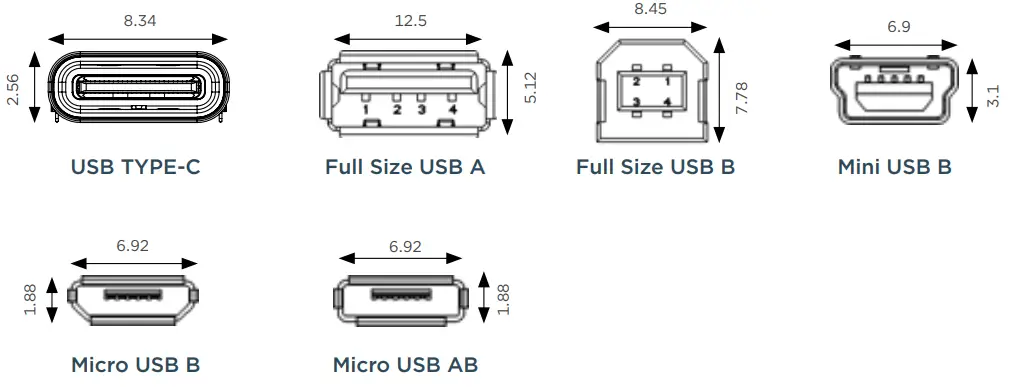

Product Sizes

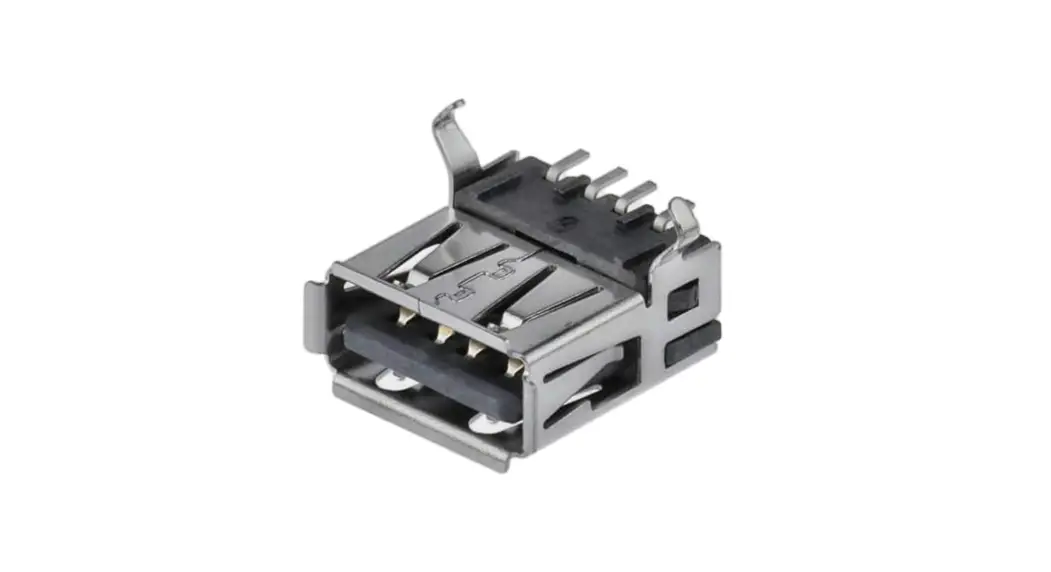

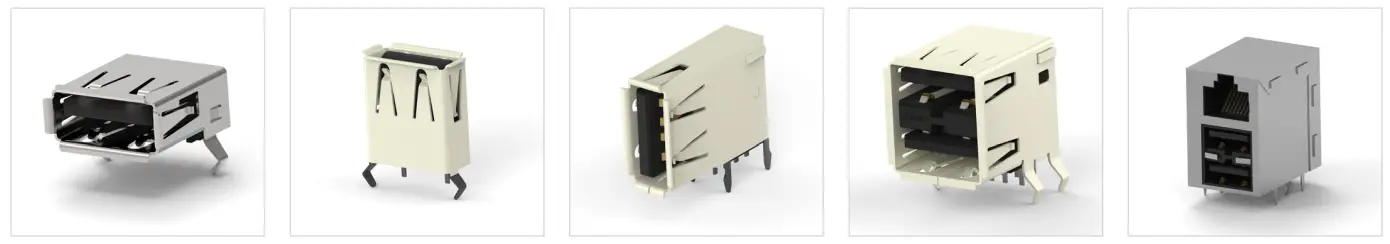

FULL SIZE USB: Series A Receptacles
| Part Number | Orientation | Board Mount | Housing Color | USB 2.0 Compliance | No. of Ports | Description |
| 292303-1 | Right Angle | Through Hole | Black | – | 1 | Solder tail length 2.84 mm/Kinked legs |
| 292303-2 | Right Angle | Through Hole | Black | – | 1 | Solder tail length 2.29 mm/Kinked legs |
| 292303-4 | Right Angle | Through Hole | Black | – | 1 | Solder tail length 2.84 mm/Kinked legs/ High temperature compatible |
| 292303-5 | Right Angle | Through Hole | White | – | 1 | Solder tail length 2.84 mm/Kinked legs |
| 292303-6 | Right Angle | Through Hole | Black | – | 1 | Solder tail length 2.29 mm/Kinked legs/ High temperature compatible |
| 5353929-1 | Right Angle | Surface Mount | White | 60000276 | 1 | – |
| 292303-7 | Right Angle | Surface Mount | White | – | 1 | T/H solder legs |
| 292303-9 | Right Angle | Surface Mount | White | – | 1 | High temperature surface mount hold down tab |
| 1734366-1 | Vertical | Through Hole | Black | 60000042 | 1 | – |
| 292336-1 | Flag | Through Hole | Black | 60000047 | 1 | – |
| 5787617-1 | Right Angle | Through Hole | Black | 60000044 | 2 | Solder tail length 2.84 mm/Kinked legs |
| 5787617-4 | Right Angle | Through Hole | Black | – | 2 | Solder tail length 2.84 mm/Kinked legs |
| 5787745-1 | Right Angle | Through Hole | Black | 60000046 | 2 | Solder tail length 2.84 mm/Kinked legs/ With panel ground |
| 5787745-2 | Right Angle | Through Hole | Black | – | 2 | Solder tail length 2.29 mm/Kinked legs/ With panel ground |
| 5787745-4 | Right Angle | Through Hole | Black | – | 2 | Solder tail length 2.84 mm/Kinked legs/ With panel ground |
| 6116151 | Right Angle | Through Hole | Black | – | 2(USB) 1(RJ45) | -1 No LEDs, -2 With LEDs |
FULL SIZE USB: Series A Plug Kit
| Part Number | Orientation | Board Mount | Housing Color | No. of Ports |
| 1734372-1 | Vertical | Solder Tabs | Black | 1 |
FULL SIZE USB: Locking
| Part Number | Orientation | Board Mount | Gender | Housing Color | No. of Ports |
| 1775690-2 | Vertical | Through Hole | Receptacle | Black | 1 |
FULL SIZE USB: Latching
| Part Number | Orientation | Board Mount | Gender | Housing Color | No. of Ports | Description |
| 2040305-1 | Vertical | Solder Tabs | Plug Kit | Black | 1 | Integrated Latches |
| 2013798-1 | Vertical | Solder Tabs | Plug Kits | Black | 1 | Mass Production |

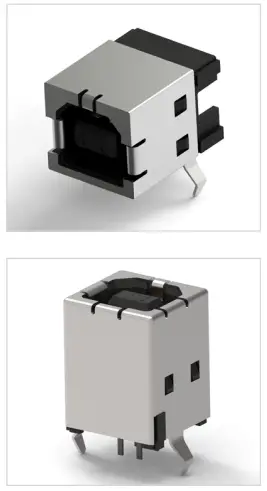

FULL SIZE USB: Series B Receptacles
| Part Number | Orientation | Board Mount | Housing Color | USB 2.0 Compliance | No. of Ports | Description |
| 292304-1 | RIght Angle | Through Hole | Black | 60001134 | 1 | Shell plating : Bright tin over nickel |
| 292304-2 | RIght Angle | Through Hole | White | – | 1 | – |
| 292317-4 | RIght Angle | Through Hole | Black | – | 1 | Shell plating : Nickel, matte tin on tails |
| 1734346-1 | RIght Angle | Surface Mount | Black | – | 1 | – |
| 1734346-4 | Right Angle | Surface Mount | White | – | 1 | – |
| 5787834-1 | Vertical | Through Hole | Black | 60000281 | 1 | – |
| 5788336-1 | Vertical | Through Hole | Black | – | 1 | – |
| 1734517-1 | Vertical | Surface Mount | Black | – | 1 | – |

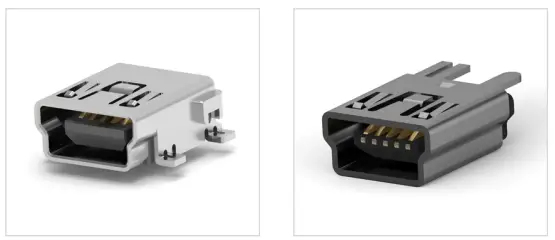

MINI USB
| Part Number | Orientation | Board Mount | Gender | Housing Color | USB 2.0 Compliance | No. of Ports | Description |
| 1734035-1 | Right Angle | Surface Mount | Receptacle | Black | 62001202 | 1 | Tray |
| 1734035-2 | Right Angle | Surface Mount | Receptacle | Black | 60001202 | 1 | Tape and Reel |
| 1734753-1 | Vertical | Through Hole | Receptacle | Black | – | – | – |
| 1734205-1 | Vertical | Solder Tabs | Plug Kit | Black | – | – | – |

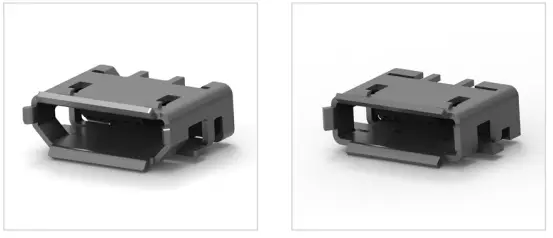

MICRO USB
| Series | Part Number | Orientation | Board Mount | Gender | Housing Color | No. of Ports |
| B | 1981568-1 | Right Angle | Surface Mount | Receptacle | Black | 1 |
| AB | 1981584-1 | Right Angle | Surface Mount | Receptacle | Grey | – |
USB 3.0
| Part Number | Orientation | Board Mount | Gender | Housing Color | No. of Ports | Description |
| 1932258 | Right Angle | Through Hole | Receptacle | Blue | 1 | Std, type A |

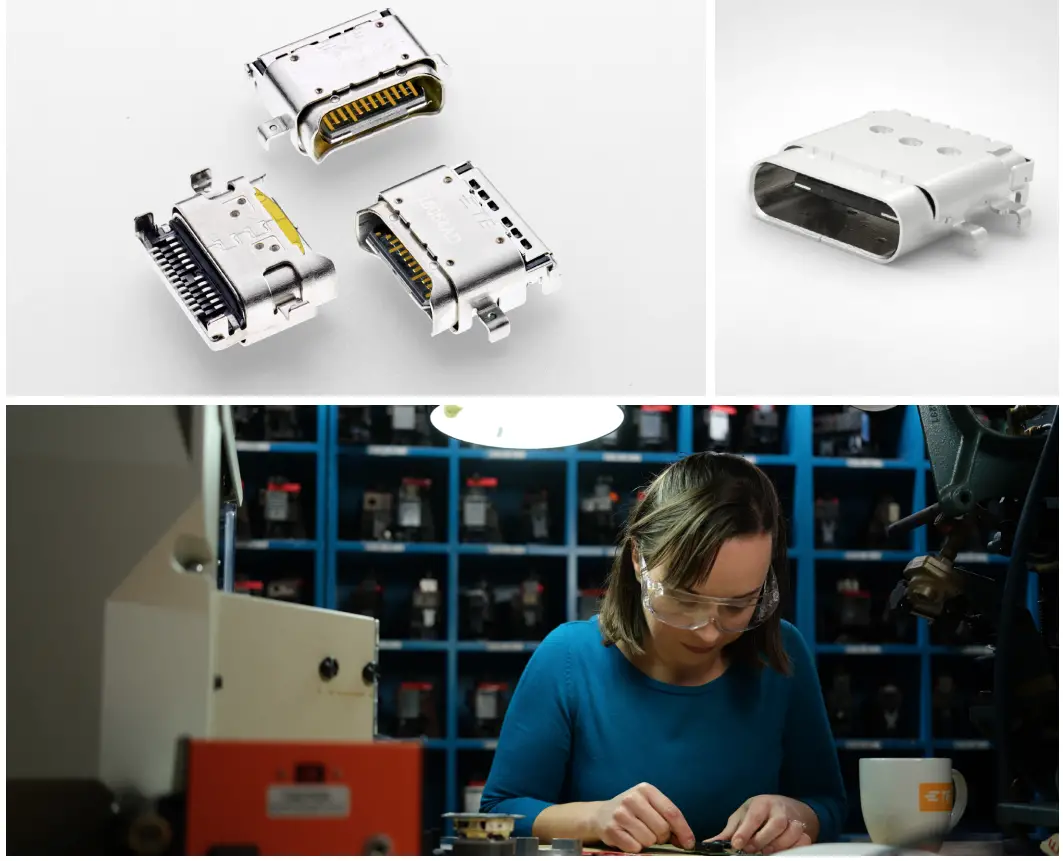

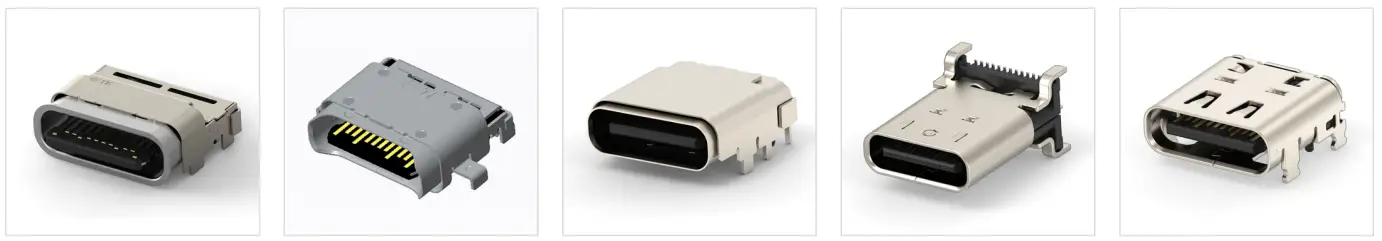

USB Type-C
| Part Number | Orientation | Board Mount | Gender | Housing Color | No. of Ports | Description |
| 2305018-2 | Right Angle | Top | Receptacle | Black | 1 | USB Dual Row SMT, IPX8 |
| 2129691-1 | Right Angle | Mid Mount | Receptacle | Black | 1 | USB Mid-Mount 0.485 Hybrid |
| 2295018-2 | Right Angle | Mid Mount | Receptacle | Black | 1 | Offset 0.65mm Dual Row SMT, Splash Proof |
| 1-2295018-2 | Right Angle | Mid Mount | Receptacle | Black | 1 | USB 3.1 Offset 0.65mm Dual Row SMT |
| 2129691-2 | Right Angle | Mid Mount | Receptacle | Black | 1 | USB 3.1 Mid-Mount 0.485 Hybrid |
| 2338792-1 | Right Angle | Top | Receptacle | Black | 1 | USB 3.1 Receptacle Top Mount |
| 2340901-1 | Right Angle | Mid Mount | Receptacle | Black | 1 | USB 2.0 Mid-Mount |
| 2345986-1 | Right Angle | Top | Receptacle | Black | 1 | USB 3.1 Top Mount Dual SMT |
| 2337857-1 | Vertical | Top | Receptacle | Black | 1 | USB 3.1 Vertical |
| 2345986-2 | Right Angle | Top | Receptacle | Black | 1 | USB 3.1 Top Mount Dual SMT |
| 2345986-3 | Right Angle | Top | Receptacle | Black | 1 | USB 3.1 op Mount Dual SMT |
| 2385692-1 | Right Angle | Top | Receptacle | Black | 1 | USB4 Surface Mount |
| 2388749-1 | Right Angle | Mid Mount | Receptacle | Black | 1 | USB4 Mid Mount |
Frequently asked questions
What is USB 4.0?
USB4 is the latest generation of USB specification which can meet transmission speeds of up to 40Gbps max providing significantly faster transfer speeds as compared to USB 3.0, 20Gbps and USB 2.0, 5Gbps. USB4 is compatible with USB 3.x/2.0 and Thunderbolt 3 and supports display functionality.
What is the difference between USB-A vs. USB-C?
Opening shape of USB-C is different from USB-A. USB-C is smaller with a reversible connector design that allows for easier connection. USB-A is bigger and has to mate right side up because of its rectangular, horizontal shape with the bottom portion dedicated to pin connectors. This creates a one-sided USB connection that only works when the connector is mated correctly. USB-C transmits faster data speeds up to 100W at 20V and USB-A has a maximum speed of 12Mbps (megabits per second) Looking for an efficient interconnect with speeds up to 5 Gbps?
TE Connectivity’s offering of USB 3.0 provides 5 Gbps data rates for 10x performance over USB 2.0. View USB 3.0 Products.
Is it possible to add a USB Type-C port to a USB 3.0 port?
USB 3.0 is a version of USB spec that defines data transmission speed, charging power etc. parameters. USB Type-C is a kind of USB connector structure type, that can perform multiple versions of USB spec. (e.g. USB-C (USB 2.0), USB-C (USB 3.1), USB-C (3.2)
What types and options should be considered when designing for micro USB 2.0?
Learn more about micro USB versatility in this brief overview.
What are the advantages of the micro USB connectors with integrated ESD protection?
There are several advantages: enhanced reliability due to the fact that the ESD impact is diverted at the connector; reduction of component count leads to board space saving, assembly cost, and also logistic cost of quality; integrated ESD protection provides engineers with design freedom to place the connector almost anywhere on the device; and reduced cross talk leads to optimized performance for USB 2.0 connectors (high speed beyond current 480 Mbps) View Micro USB Products.
