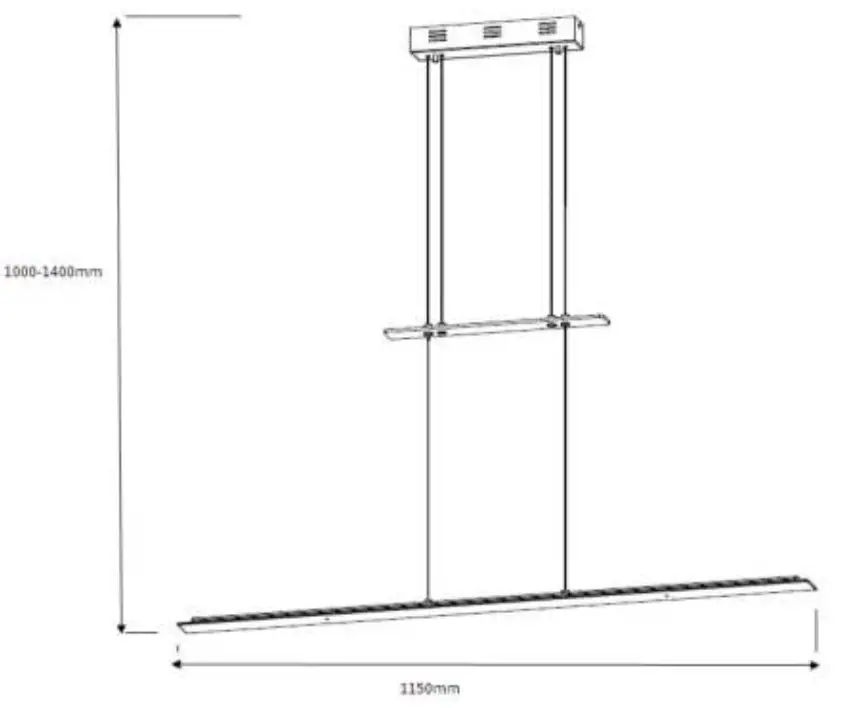

LUCIDE Line drawing

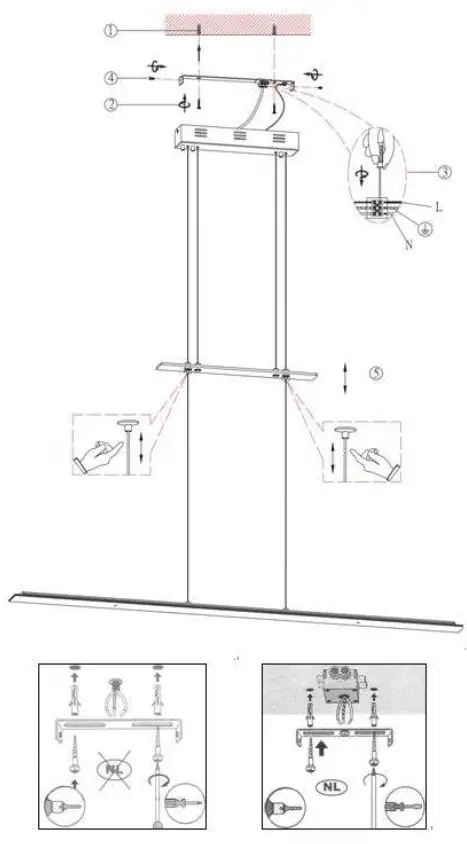

Installation drawing
Technical details
| materials used: | Metal,Glass | |
| color: | Satin nickel | |
| dimmable and how is the fixture dimmable: | Driver dimmable | |
| size: | Height: | 1000-1400mm |
| Length: | 1150mm | |
| Width: | 60mm | |
| Net Weight: | 2.7KGS | |
| power requirements: | 220-240~50Hz | |
| bulb type and maximum Wattage: | LED 6W | |
| number of bulbs: | 5xLED | |
| IP degree: | IP20 | |
EES label (only one in English, vertical)
