DENON AVR-X4800H 9.4-Channel Home Theater Receiver with Dolby Atmos
Call us at 914-723-3344 or email to check our stock, but most of Denon’s new receivers are in stock

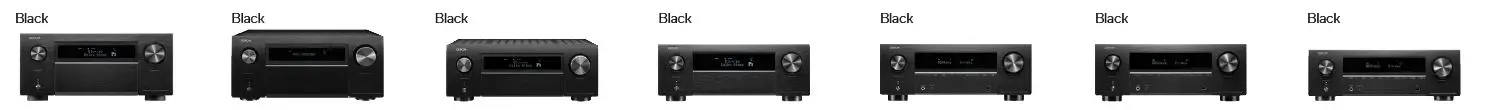

| Authorized Denon Dealer | AVR-A1H | AVR-X8500HA | AVR-X6700H | AVR-X4800H | AVR-X3800H | AVR-X2800H | AVR-X1700H |
| The Ultimate AV Amplifier with 15ch of amplification ready for the biggest and unimaginable installations. Up to 9 floor speakers, 6 ceiling speakers and 4 subwoofers can be driven simultaneously. The bench- mark in performance and sound technologies. | A flagship model with reference class 13ch amplifier design, highest quality sound technologies, and maximum flexibility for highly demanding home cinema installations. | Your number 1 choice for big home cinema installations with up to 11 speakers driven by built-in amps, and 13.2 processing. The monolithic amplifier de- sign gurantees best sound quality. | A class of ist own, with Auro-3D, premium build-quality, and custom Denon audio technologies for 9 monolithic amplifiers to deliver outstanding surround sound and music experience supported by up to 4 subwoofers. | Upgrade to high-power for bigger rooms with 9 am- plifiers builit-in and 11.2ch processing . With Auro 3D and IMAX Enhanced on top of Dolby Atmos and DTS:X all 3D audio formats are supported. 8K HDMI on all in- puts and 4x subwoofers out. Get ready for bigger tasks. | Upgrade your home cinema with more power, virtual height effects and advanced HDMI processing to connect up to two screens with HDMI 4K and 8K video support.. | Where performance is on the wish list, but budget is limited the entry X-Series AVR comes with a full feature set to make a good sounding 3D theatre setup, even supporting 8K video. On screen Setup Assistance makes the start even for novice customer a breath. | |
| Your room size | Custom Installation | Custom Installation | Custom Installation | big | medium to big | medium | medium |
| Number of amplifiers / channels | 15 / 15.4 | 13 / 13.2 | 11 / 13.2 | 9 / 11.4 | 9 / 11.4 | 7 / 7.2 | 7 / 7.2 |
| Maximum 3D Audio configuration | up to 9.4.6 | up to 9.2.4 or 7.2.6 | up to 7.2.6 (with additional 2ch amp) | up to 7.4.4 (with additional 2ch amp) | up to 7.4.4 (with additional 2ch amp) | up to 5.2.2 | up to 5.2.2 |
| Power per channel (6 ohms, 1% THD, 1ch driven) | 210W x 15ch | 210W x 13ch | 205W x 11ch | 200W x 9ch | 180W x 9ch | 150W x 7ch | 145W x 7ch |
| 3D Audio Formats supported | Dolby Atmos, DTS:X, DTS:X Pro, Auro-3D, IMAX Enhanced | Dolby Atmos, DTS:X, DTS:X Pro, Auro-3D, IMAX Enhanced | Dolby Atmos, DTS:X, DTS:X Pro, Auro-3D, IMAX Enhanced | Dolby Atmos, DTS:X, Auro-3D, IMAX Enhanced | Dolby Atmos, DTS:X, Auro-3D, IMAX Enhanced | Dolby Atmos, DTS:X, Dolby Atmos Height Virtualization | Dolby Atmos, DTS:X, Dolby Atmos Height Virtualization |
| Advanced HDMI Processing | HDMI source upscaling to 8K/60Hz; 4K/120Hz, HDR10+, ALLM, VRR, QFT | Analogue and HDMI source upscaling to 8K/60Hz; 4K/120Hz, HDR10+, ALLM, VRR, QFT | Analogue and HDMI source upscaling to 8K/60Hz; 4K/120Hz, HDR10+, ALLM, VRR, QFT | HDMI source upscaling to 8K/60Hz; 4K/120Hz, HDR10+, ALLM, VRR, QFT | HDMI source upscaling to 8K/60Hz; 4K/120Hz, HDR10+, ALLM, VRR, QFT | HDMI source upscaling to 8K/60Hz; 4K/120Hz, HDR10+, ALLM, VRR, QFT | HDMI source upscaling to 8K/60Hz; 4K/120Hz, HDR10+, ALLM, VRR, QFT |
| HDMI in / out | 7 / 3 (different video in zone 2) – all 8K | 8 / 3 (different video in zone 2) – 1x 8K | 8 / 3 (different video in zone 2) – 1x 8K | 7 / 3 (different video in zone 2) – all 8K | 6 / 3 (different video in zone 2) – all 8K | 6 / 2 (same content on both) – 3x 8K | 6 / 1 – 3x 8K |
| Room correction | Audyssey MultEQ XT32, LFC, Sub EQ HT, MultEQ App, Dirac Live (by update, licence required) | Audyssey MultEQ XT32, LFC, Sub EQ HT, MultEQ App | Audyssey MultEQ XT32, LFC, Sub EQ HT, MultEQ App | Audyssey MultEQ XT32, LFC, Sub EQ HT, MultEQ App, Dirac Live (by update, licence required) | Audyssey MultEQ XT32, LFC, Sub EQ HT, MultEQ App, Dirac Live (by update, licence required) | Audyssey MultEQ XT, MultEQ App | Audyssey MultEQ XT, MultEQ App |
| Number of analogue devices (CD Player, Tape Deck) | 5 + XLR + Phono | 7 + Phono | 7 + Phono | 6 + Phono | 6 + Phono | 4 + Phono | 4 + Phono |
| Number of other digital devices | 2x Optical / 2x Coaxial | 2x Optical / 2x Coaxial | 2x Optical / 2x Coaxial | 2x Optical / 2x Coaxial | 2x Optical / 2x Coaxial | 2x Optical | 2x Optical |
| Denon Advanced Digital Audio Processing | AL32 Processing Multichannel | AL32 Processing Multichannel | AL32 Processing Multichannel | AL32 Processing Multichannel | – | – | – |
| Bluetooth Audio Transmission | Play audio on speakers and Bluetooth headphones simultaneously | Play audio on speakers and Bluetooth headphones simultaneously | Play audio on speakers and Bluetooth headphones simultaneously | Play audio on speakers and Bluetooth headphones simultaneously | Play audio on speakers and Bluetooth headphones simultaneously | Play audio on Wspeakers and Blue- tooth headphones simultaneously | Play audio on Wspeakers and Blue- tooth headphones simultaneously |
| Number of preamplifier outputs (incl. Subwoofer) | 17.4ch / 2ch zone 2+3 4 sub out, RCA & XLR, sub XLR assignable L/C/R | 15.2ch / 2ch zone 2+3 | 13.2ch / 2ch zone 2+3 | 11.4ch / 2ch zone 2+3 | 11.4ch / 2ch zone 2 | 0.2ch / 2ch zone 2 | 0.2ch / 2ch zone 2 |
| Others | Internet Radio, AirPlay, Music Streaming, HEOS multiroom | Internet Radio, AirPlay, Music Streaming, HEOS multiroom | Internet Radio, AirPlay, Music Streaming, HEOS multiroom | Internet Radio, AirPlay, Music Streaming, HEOS multiroom | Internet Radio, AirPlay, Music Streaming, HEOS multiroom | Internet Radio, AirPlay, Music Streaming, HEOS multiroom, FM / DAB+ (look for DAB model) | Internet Radio, AirPlay, Music Streaming, HEOS multiroom, FM / DAB+ (look for DAB model) |
| Home Automation Support | IP Control, RS232, 2x 12V Trigger | IP Control, RS232, 2x 12V Trigger | IP Control, RS232, 2x 12V Trigger | IP Control, RS232, 2x 12V Trigger | IP Control, RS232, 12V Trigger | IP Control | IP Control |
| Power consumption | 1100W / Standby 0.1W / CEC 0.5W | 900W / Standby 0.1W / CEC 0.5W | 750W / Standby 0.1W / CEC 0.5W | 710W / Standby 0.1W / CEC 0.5W | 660W / Standby 0.1W / CEC 0.5W | 500W / Standby 0.1W / CEC 0.5W | 440W / Standby 0.1W / CEC 0.5W |
| Dimensions (WxHxD) | 434 × 195 × 498 mm | 434 × 195 × 482 mm | 434 x 167 x 389 mm | 434 x 167 x 389 mm | 434 x 167 x 389 mm | 434 x 167 x 341 mm | 434 x 151 x 339 mm |
| Weight | 32.0 kg | 23.3 kg | 14.8 kg | 13.4 kg | 12.5 kg | 9.5 kg | 8.6 kg |
MODELS
All Denon AV Receivers support
