FLOMEC QS100 Turf and Residential Irrigation Flow Sensor I

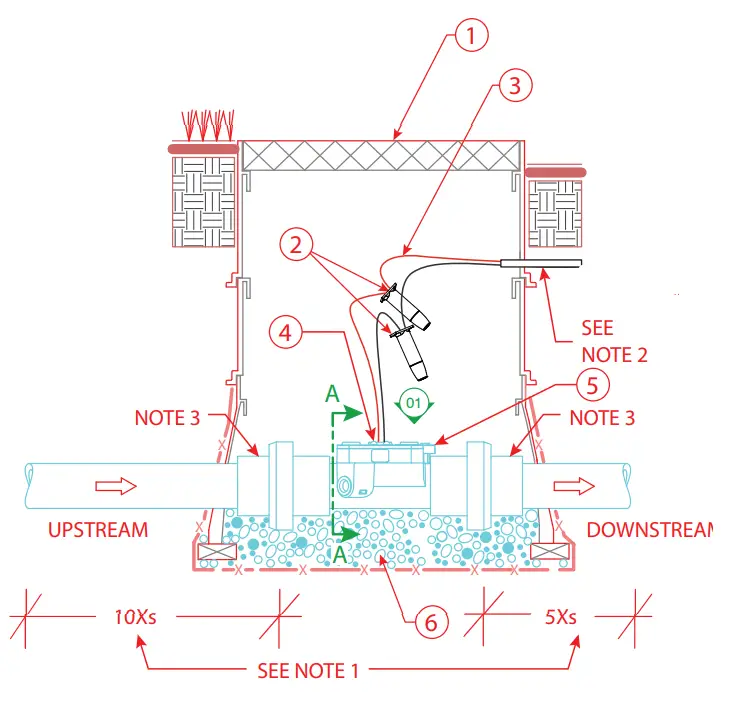

FLOMEC FLOW SENSOR INSTALLATION

1. PLASTIC VALVE BOX TO PROVIDE ACCESS
2. 3M DBR/Y-6 SPLICE KIT OR EQUIVALENT DIRECT BURIAL SPLICE KIT
3. DIRECT BURIAL 1 PAIR, TWISTED SHIELDED CABLE. RECOMMENDED MINIMUM CONDUCTER SIZE 18 AWG. RATED FOR DISTANCES UP TO 2,000 FT (610 M). ENSURE A SERVICE LOOP (EXTRA WIRE LENGTH) IS PROVIDED AT THE FLOW SENSOR IN CASE MAINTENANCE IS NEEDED

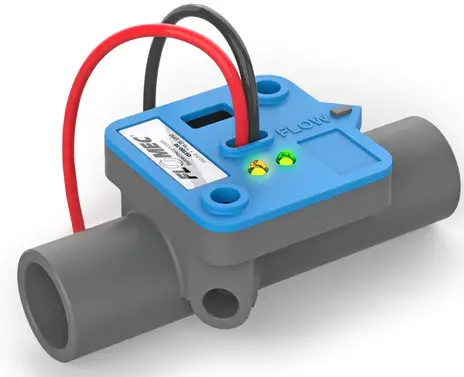

4. QS100 ULTRASONIC FLOW SENSOR

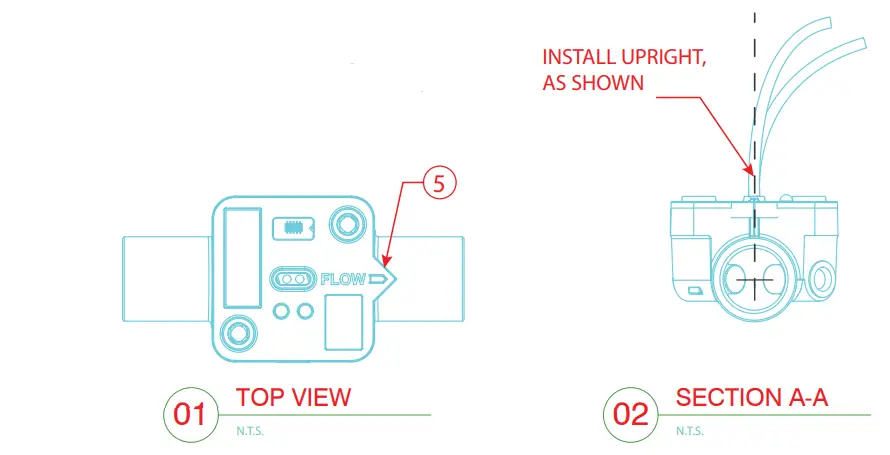

5. FLOW DIRECTION ARROW
6. GRAVEL – GRAVEL SHALL BE PLACED AT BOTTOM OF QS100 AND SHALL BE A MINIMUM OF 10-INCH THICK (10-INCH DEEP

NOTE 1
5Xs MEANS 5 TIMES PIPE’S INNER DIAMETER AND 10Xs MEANS 10 TIMES PIPE’S INNER DIAMETER

NOTE 2
BURIED CABLE ENROUTE TO IRRIGATION CONTROLLER

NOTE 3
PVC UNIONS OR COUPLERS ARE REQUIRED FOR QS100 INSTALLATION

Great Plains Industries, Inc, 888-996-3837 FLOMEC.net
Great Plains Industries, Inc. Australia +61 2 9540 4433 FLOMEC.net
